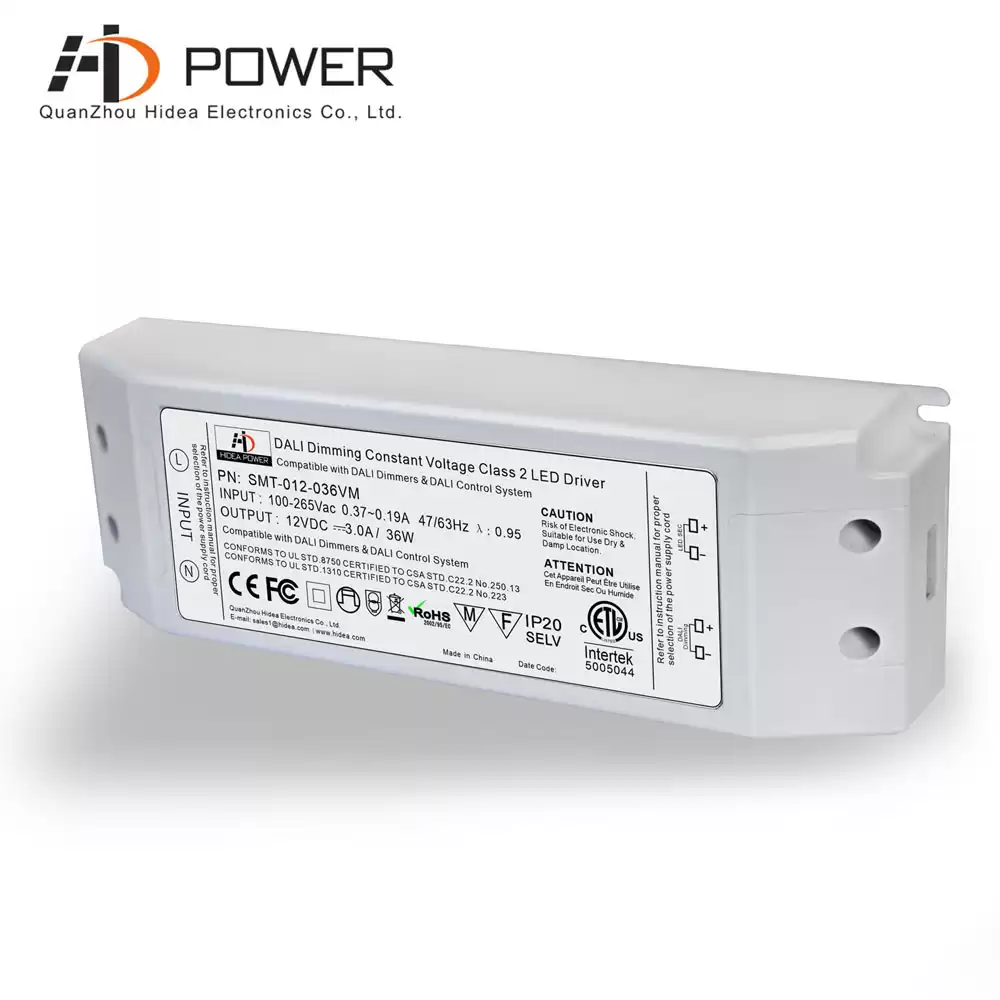

SMT-012-036VM is a dali led dimmable power supply, 12vdc 3,0a 36w output, it can meet all kinds of lighting applications during the -20~+60C temperature operating range, such as Ledodm led strip light 5050.
Specification
|
Model
|
SMT-012-036VM
|
SMT-024-036VM
|
|
output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
0~3.0A
|
0~1.5A
|
|
Rated power
|
36W
|
|
input
|
Voltage Range
|
100~130VAC, 170~265VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor (Typ.)
|
PF≧0.90/110V / PF≧0.90/220V
|
|
Efficiency(Typ.)
|
>88%
|
|
AC Current(Typ.)
|
0.41A@110VAC
|
|
Leakage current
|
﹤0.40mA/110VAC / ﹤0.50mA/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed
|
|
Over Loading
|
≦120%
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015,EN61000-3-2,3 (≧50%loading)
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11(Surge 4KV)
|
|
Others
|
Net.Weight
|
0.55Kg
|
|
Size
|
180*60*34mm(L*W*H)
|
|
packing
|
355*215*215mm/20pcs/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V / 220VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set us tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again
|
Compatible Light Type
SMT-012-036VM is a led driver 12v 36w with a compact size and high efficiency, supplying 0-3000mA. It accepts universal input from 100 to 265VAC, and is certified to ETL,CE, ROHS, IP20 grade, which are work well with Ledodm led strip light ip20.
Related Products
|
Plastic case 12v 36w led driver, dali dimmable version, constant voltage working mode, the slim size is easy to install.
Mode：SMT-012-036VMSPH
Dimming Mode : DALI Dimming
Output Power : 36W
intput voltage：100~277V AC
Size：262*32*20MM （L*W*H）
|
