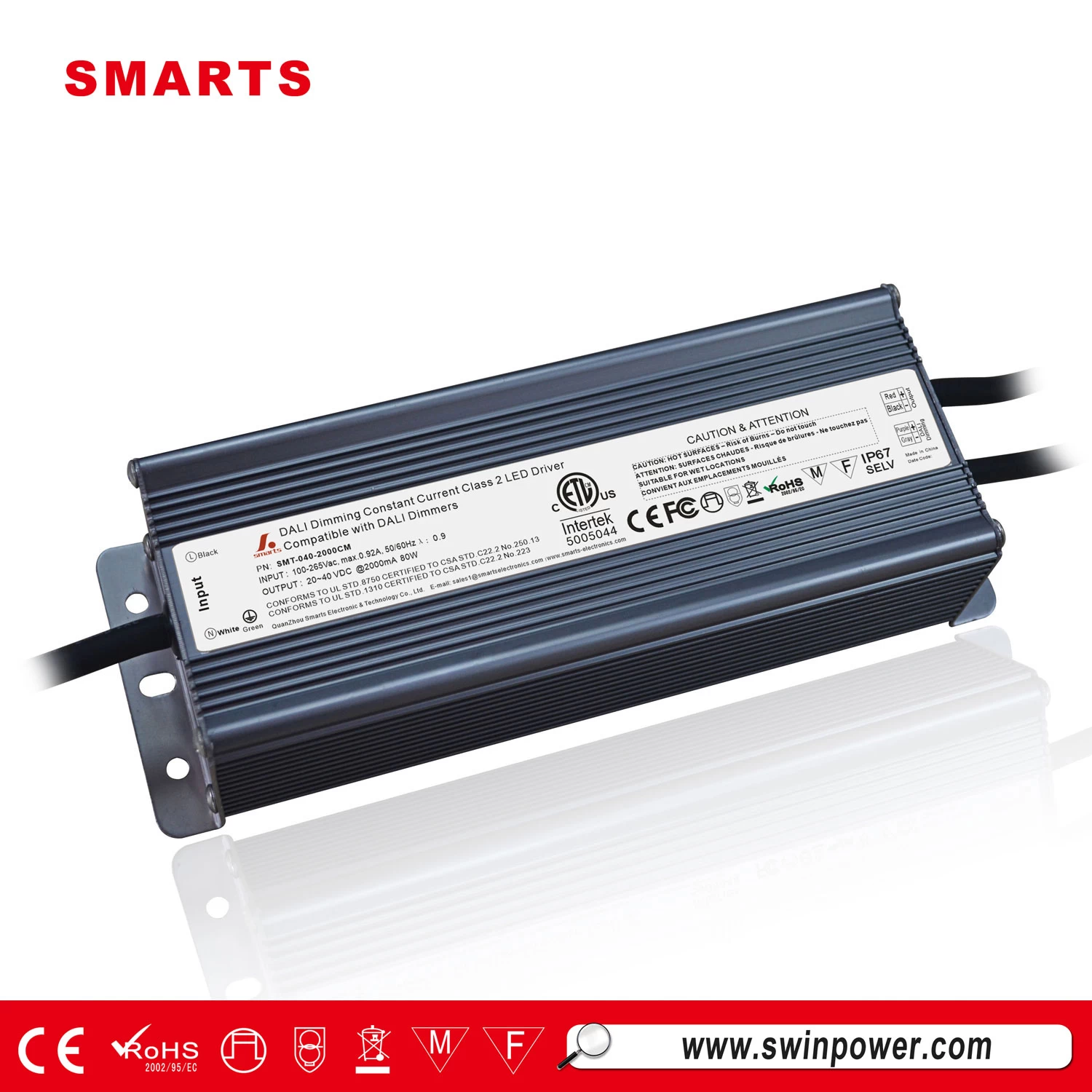

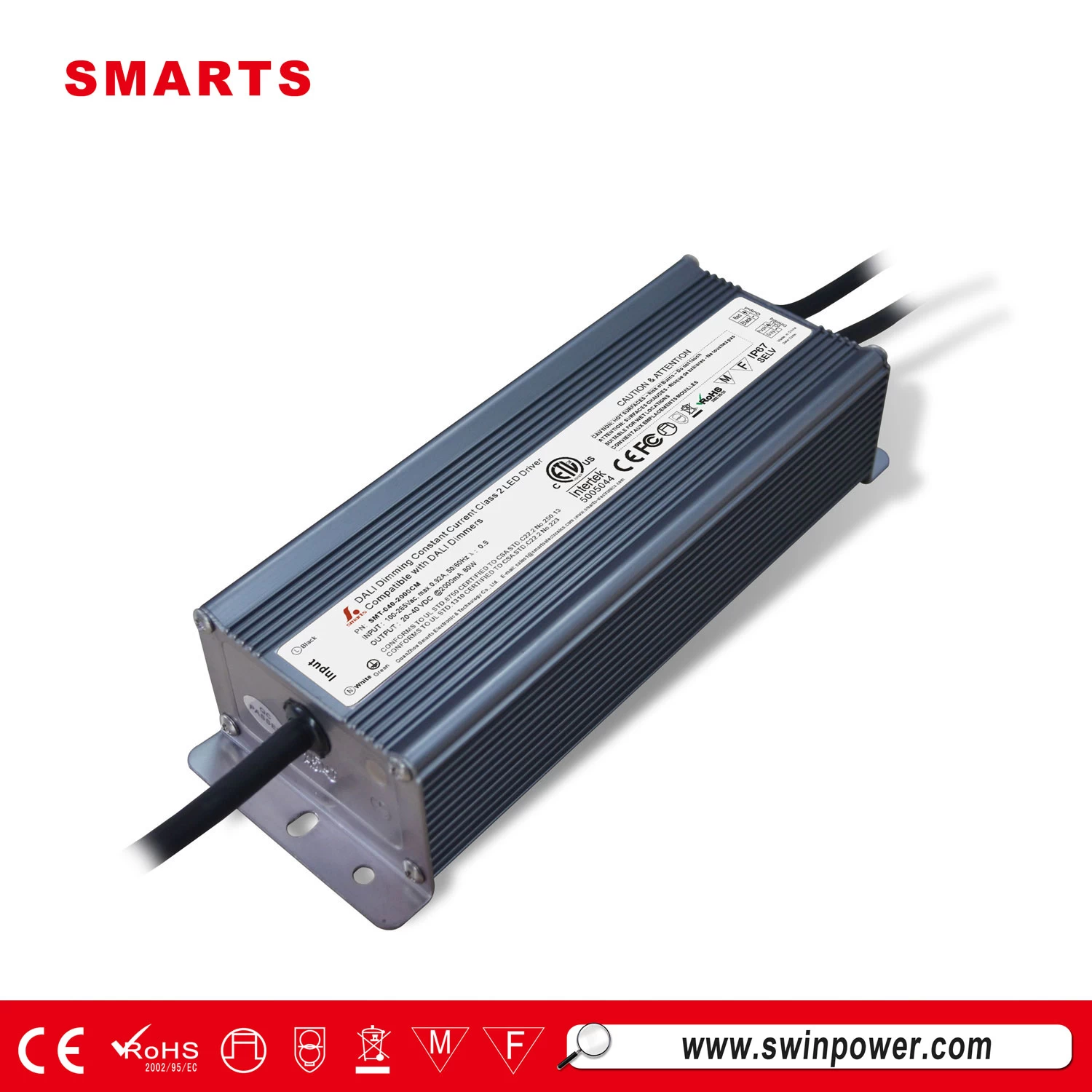

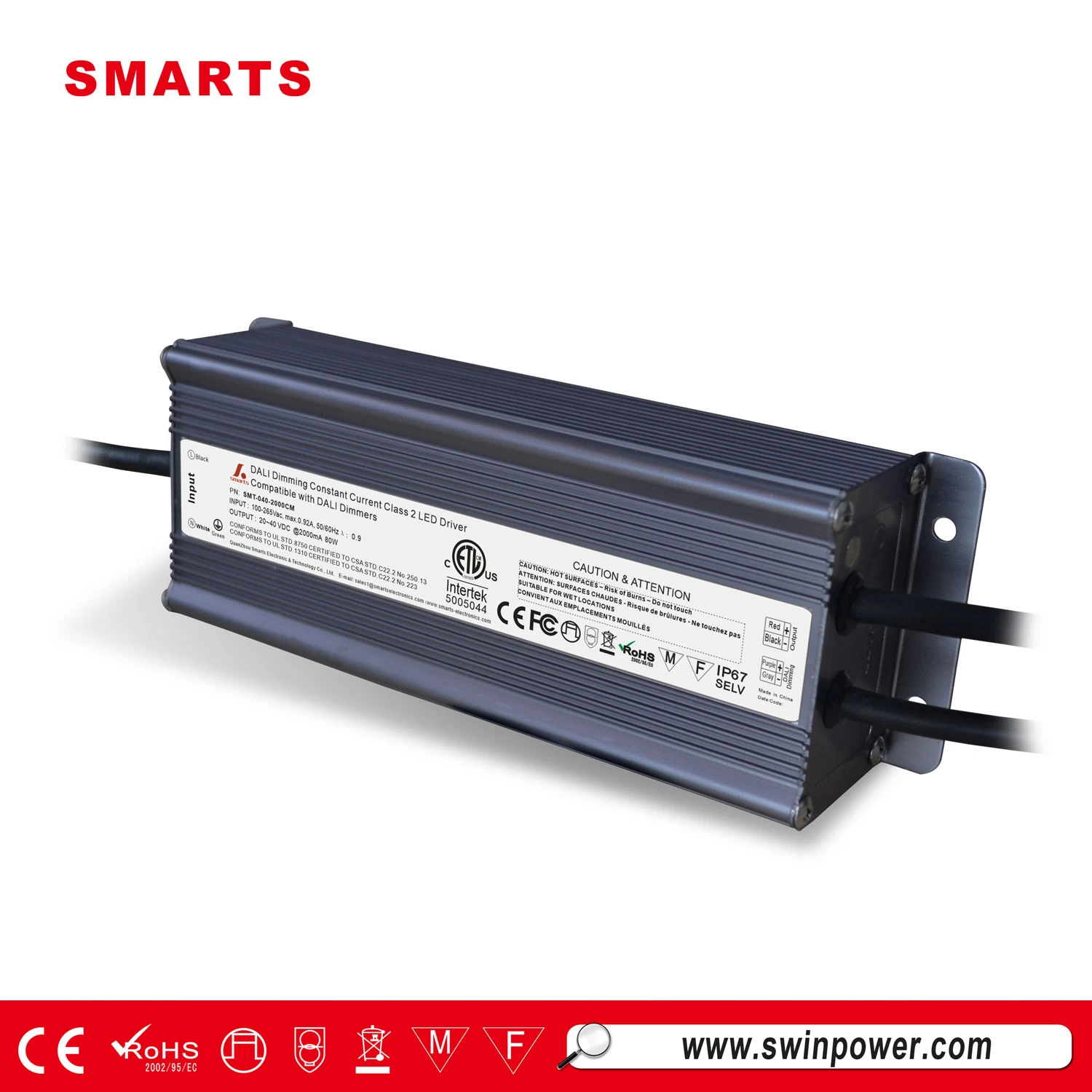

ETL CE ROHS approval Dali dimmable led driver 2000mA 80w led power supply
220vAC to 40vDC power driver are ETL CE ROHS FCC approval,it is suitable for american market.we give 5 years warranty. pls note that Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor
Specification
|
Model
|
SMT-034-2400CM
|
SMT-036-2100CM
|
SMT-040-2000CM
|
SMT-057-1400CM
|
SMT-067-1020CM
|
|
Output
|
DC Voltage
|
18~34V
|
20~36V
|
20~40V
|
35~57V
|
36~67V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
0～2400mA
|
0～2100mA
|
0～2000mA
|
0～1400mA
|
0~1020mA
|
|
Rated power
|
81W
|
79W
|
80W
|
80W
|
80w
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
PF≧0.95/100V, 220V
|
|
Full Load Efficiency（Typ.）
|
>89%(110,220V)
|
>88%(110,220V)
|
>88%(110,220V)
|
>88%(110,220V)
|
>88%(110,220V)
|
|
AC
Current（Typ.）
|
0.960A(110,220V)
|
1.042A(110,220V)
|
1.031A(110,220V)
|
1.038A(110,220V)
|
1.037A(110,220V)
|
|
Leakage current
|
﹤0.75mA/110, 220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition
is removed
|
|
Over Current
|
≦1.4*I out
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40～+50℃
|
|
Working Humidity
|
20～95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP66
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry
level （surge4KV）
|
|
Others
|
Weight
|
1.3Kg
|
|
Size
|
200*68*45mm（L*W*H）
|
|
packing
|
324*298*176mm/10pcs/CTN 240*70*50 mm for inner box
|
|
Not
es
|
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|

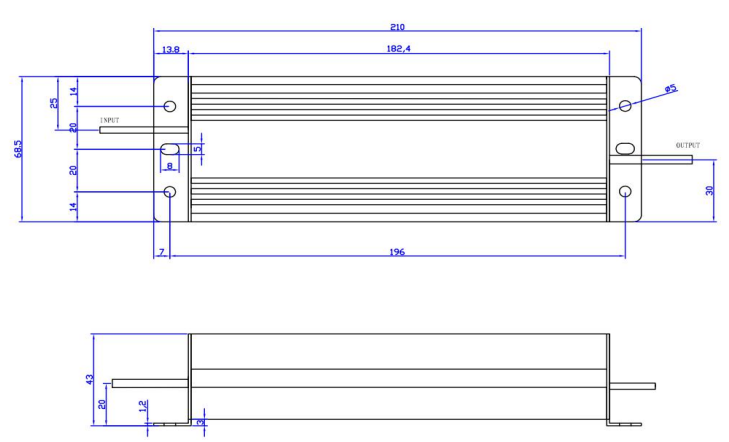

Mechanical Specification

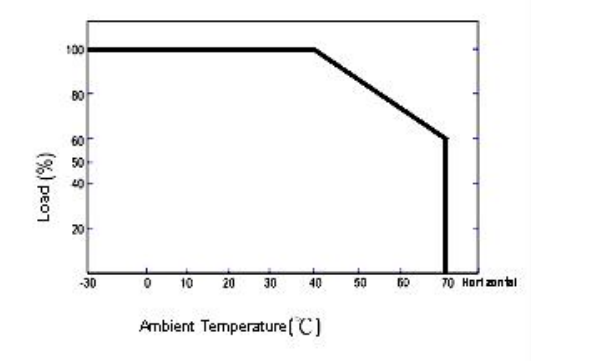

Derating curve
Application
All of our drivers are got ETL CE SAA ROHS listed .OEM Welcome.
Our led drivers are widely used for:
-
1.Indoor LED illuminating lights
-
2.LED Neon, LED urban Decoration
-
3.LED Lighting Advertising,LED Display
-
4.Safety Protection Apparatus
-
5.Telecommunications, Networks
-
6.Vehicle Lights, Controller Panels
Our Services
What Service we can supply??
-
1.All inquiries will be replied within 24 hours
-
2.Professional manufacturer,welcom to visit our website
-
3.OEM/ODM avaliable:
-
A.Print logo on our product;
-
B. Customized specification;
-
4.After Sales-Service:
-
A. All products will have 100% burn-in test and strictly quality test before shipping;
-
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
-
5.High efficiency,long life span,reasonable&competetative price,fast lead time;
-
6.We have our engineer team, if you have any question about your LED applications, let us know freely.
Certifications
