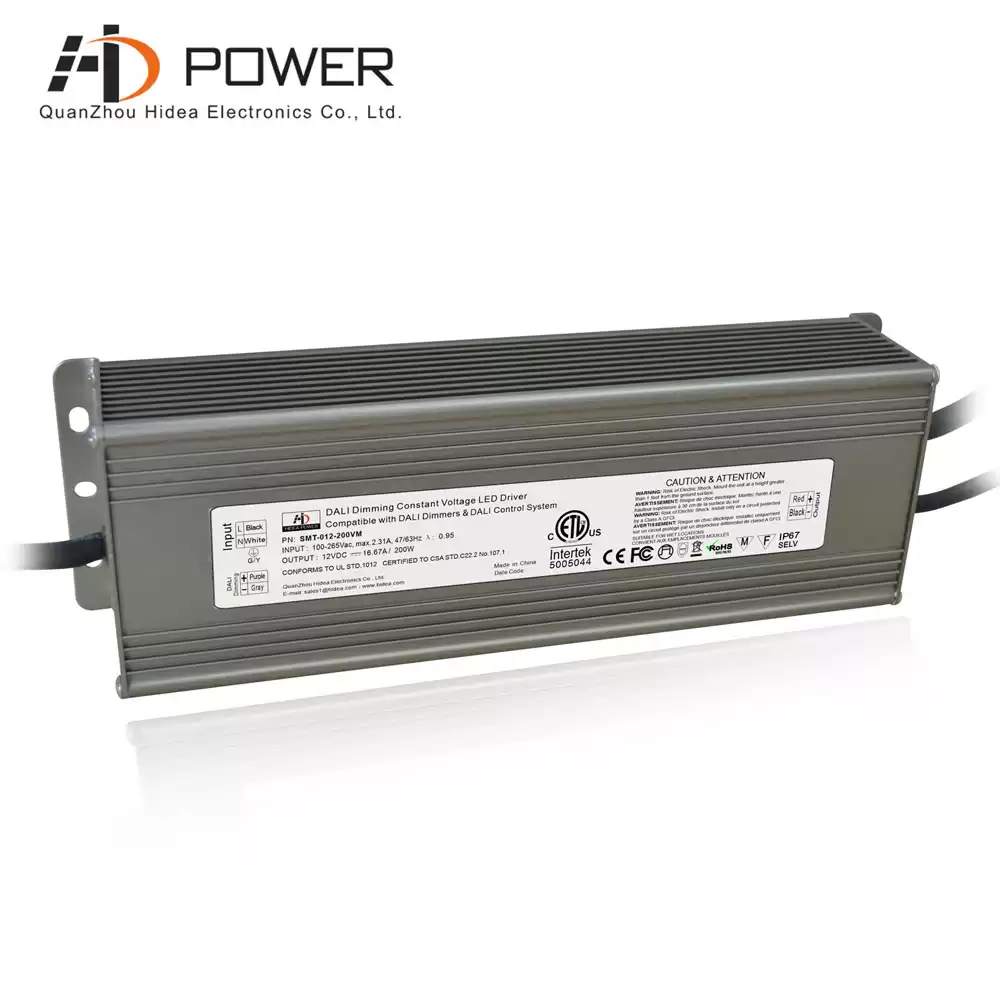

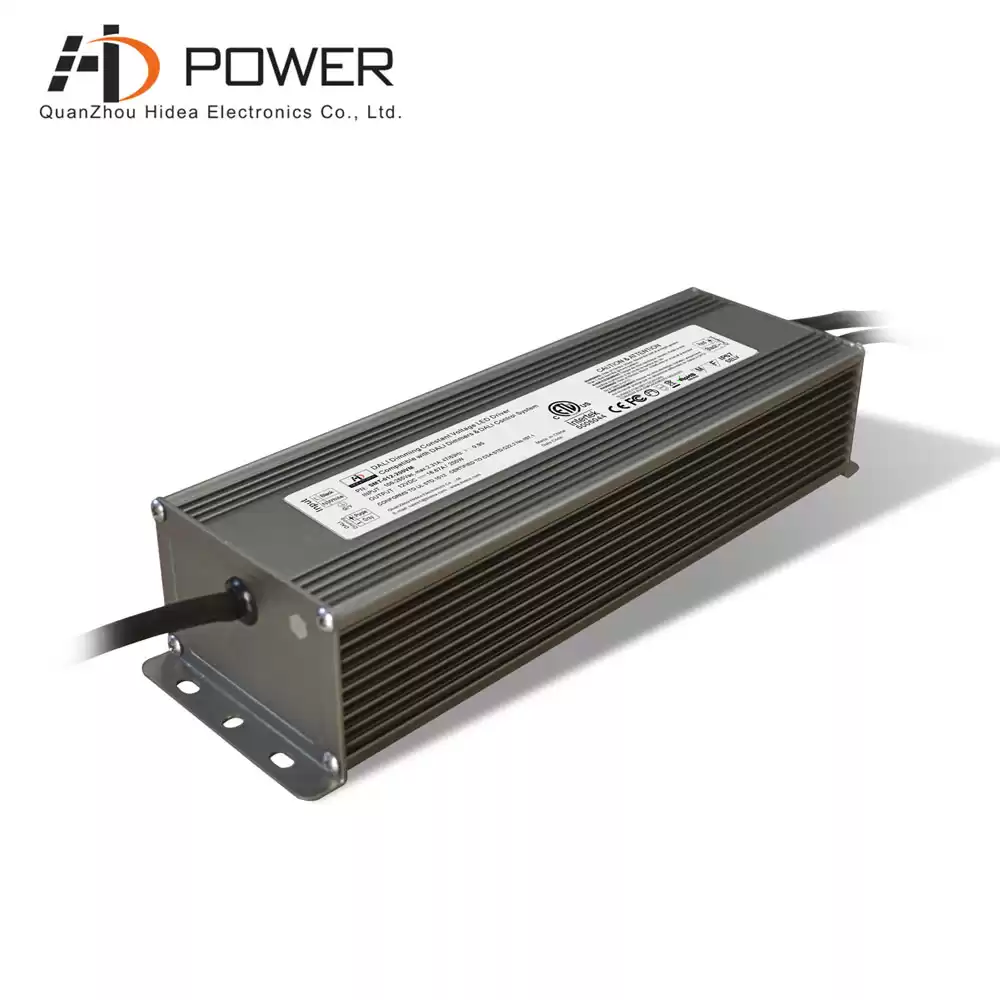

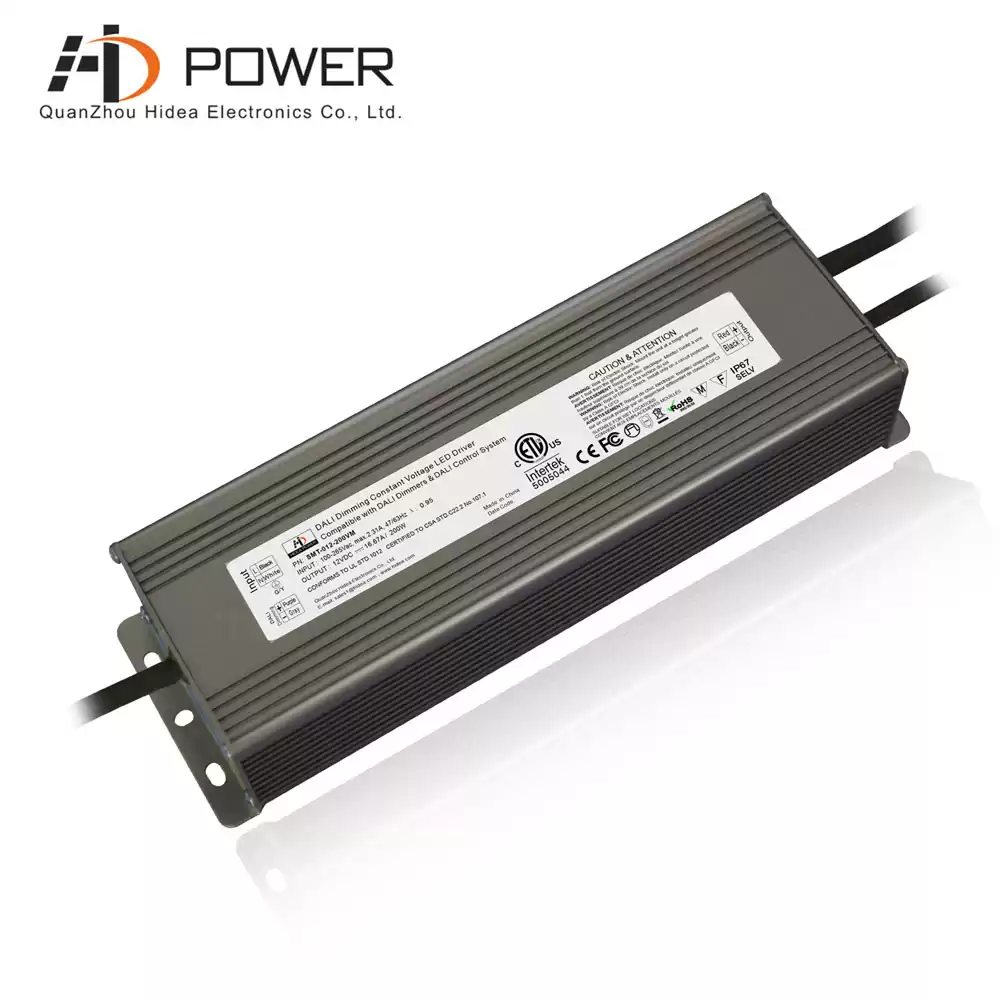

This 200w 24v led driver is the max. wattage in this series for choice. With high energy savings, This driver is suitable for safety lighting applications in accordance with ETL & CE & ROHS.
Specification
|
Model
|
SMT-012-200VM
|
SMT-024-200VM
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
0~16.67A
|
0~8.33A
|
|
Rated power
|
200W
|
200W
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.90/100V, PF≧0.90/220V
|
|
Full Load Efficiency(Typ.)
|
>88%/110, 220V
|
>88%/110, 220V
|
|
AC Current(Typ.)
|
2.30A/110VAC
|
1.15A@220VAC
|
|
Leakage current
|
﹤0.72mA/110VAC, ﹤0.74mA/220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Over Current
|
≦1.4*I out
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40~+50℃
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP67
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV)
|
|
Others
|
Weight
|
1.8Kg
|
|
Size
|
250*79*52mm(L*W*H)
|
|
packing
|
355*215*215mm/10pcs/CTN / 240*70*50 mm for inner box
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type

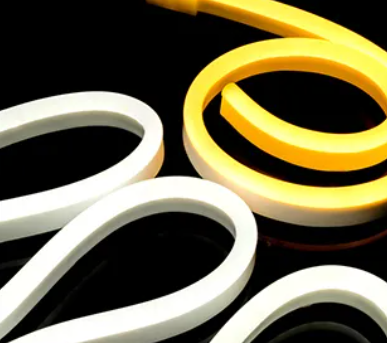

The 200w led power supply offer virtually flicker-free dimming and different wattages designed for different applications. The Dali models are rated at IP67, ideal for outdoor coxotech strip light.
Related Products
|

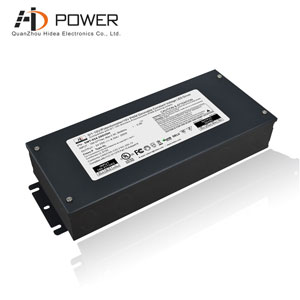

 The 0 10v PWM dimmable 12v transformer operates in 200watt for indoors application. The same spec has update version for wet, damp and dry locations.
Mode：SMT-012-200VDH
Dimming Mode : 0-10V Dimming
Output Power : 200W
intput voltage：100~277V AC
Size：260*103*46MM （L*W*H）
|
