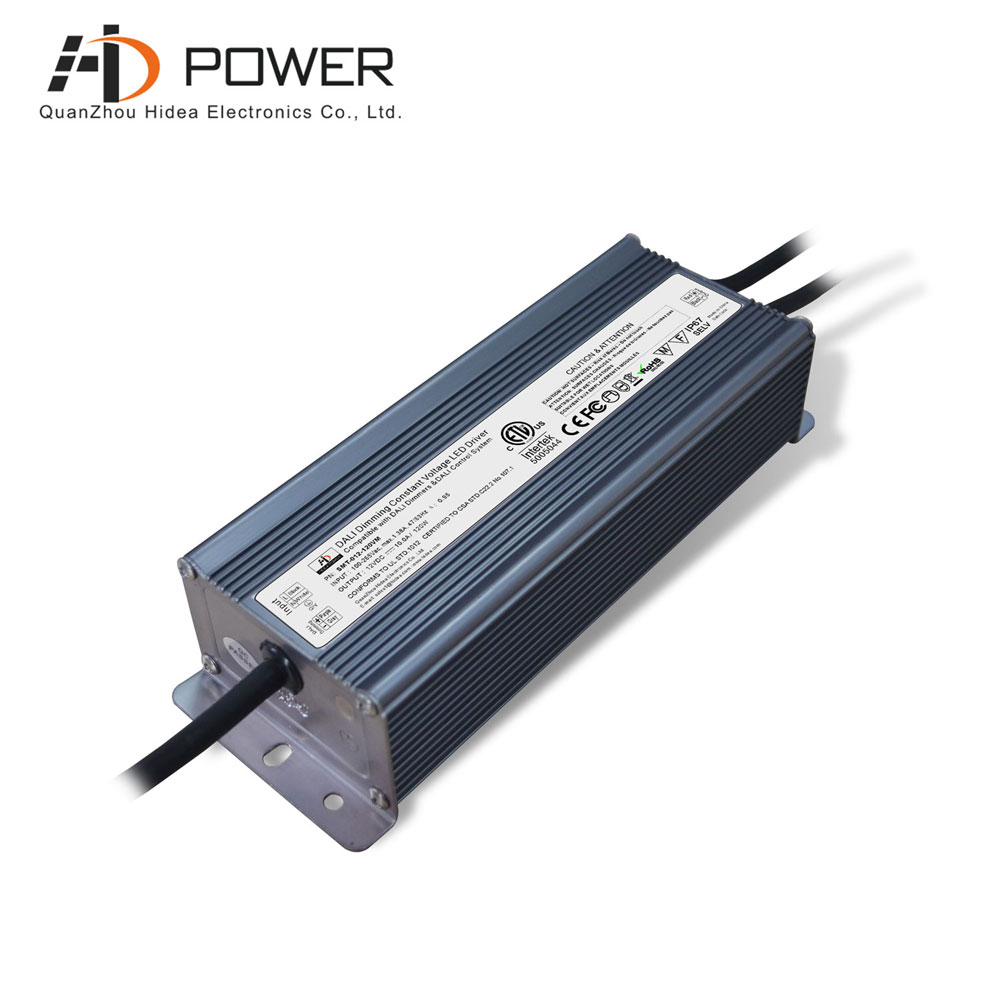

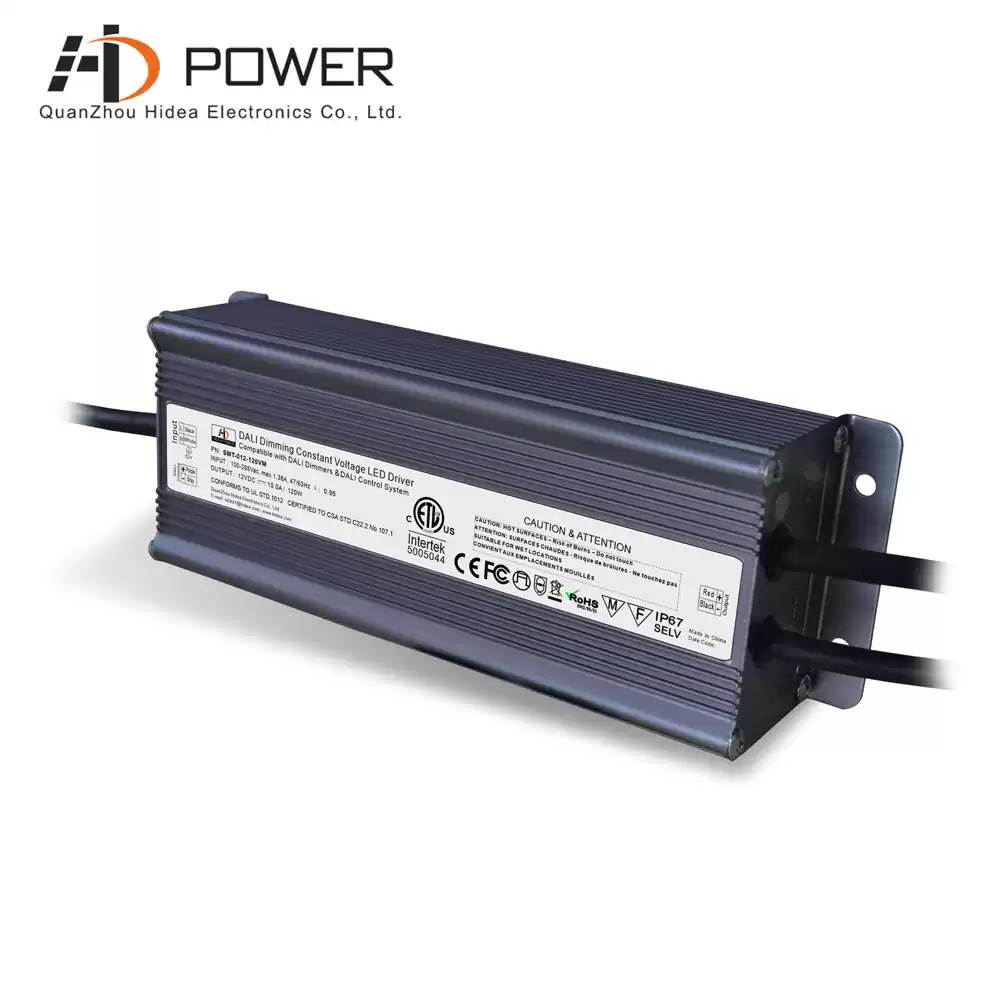

The 12v 24v dali driver operates in 120watt. The best/Max. load of this driver is 108watt. Suitable for constant voltage LED lighting applications by PWM output.
Specification
|
Model
|
SMT-012-120VM
|
SMT-024-120VM
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
0~10.0A
|
0~5.0A
|
|
Rated power
|
120W
|
120W
|
|
Input
|
Voltage Range
|
100-130VAC, 170-265VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.90/100V, 220V
|
|
Full Load Efficiency(Typ.)
|
>88%(110,220V)
|
>88%(110,220V)
|
|
AC Current(Typ.)
|
1.38A@110VAC)
|
0.69A@220VAC
|
|
Leakage current
|
﹤0.73mA/110, ﹤0.76mA/220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Over Current
|
≦1.4*I out
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40~+50℃
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP67
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV)
|
|
Others
|
Weight
|
1.3Kg
|
|
Size
|
230*69*45mm(L*W*H)
|
|
packing
|
355*215*215mm/10pcs/CTN 240*70*50 mm for inner box
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type

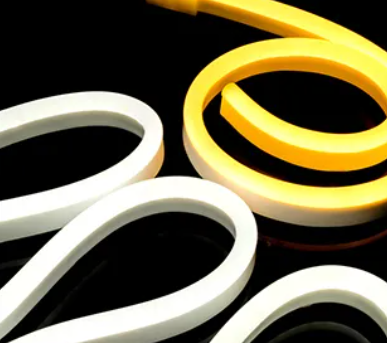

This 120 watt led driver is made for energy saving, high performance and professional lighting projects. With 5 years warranty, the driver has long life sevice. We suggest environmentallights LED neon for good compatibility.
