ETL 800W single output 48v switching power supplies
Description:
Features:
1, 800W high efficiency 48v single output power supplies;
2, International universal full voltage input;
3, 800W single output 48v built-in active PFC function;
4, Built-in filter, low noise, high reliability;
5, Overload, short circuit, under voltage, over voltage, over temperature protections and etc.
|
SPECIFICATIONS
|
|
Item NO
|
K18C-UP 800S12/F
|
K18C-UP 800S24/F
|
K18C-UP 800S30/F
|
K18C-UP 800S36/F
|
K18C-UP 800S48/F
|
K18C-UP 800S60/F
|
|
OUTPUT
|
OUTPUT VOLTAGE
|
+12VDC
|
+24VDC
|
+30VDC
|
+36VDC
|
+48VDC
|
+60VDC
|
|
OUTPUT RATED CURRENT
|
58.4A
|
33.4A
|
26.7A
|
22.3A
|
16.7A
|
13.4A
|
|
CURRENT RANGE
|
0-58.4A
|
0-33.4A
|
0-26.7A
|
0-22.3A
|
0-16.7A
|
0-13.4A
|
|
RATED POWER
|
700.8W
|
801.6W
|
801W
|
802.8W
|
801.6W
|
804W
|
|
RIPPLE & NOISE
|
150mVp-p
|
300mVp-p
|
350mVp-p
|
400mVp-p
|
400mVp-p
|
600 mVp-p
|
|
DC VOLTAGE ADJ.
|
±5%
|
|
OUTPUT ACCURACY
|
±1%
|
|
LINE REGULATION
|
±0.5%
|
|
LOAD REGULATION
|
±0.5%
|
|
SETUP,RISE,HOLE UP TIME
|
300ms,20ms,12ms
|
|
INPUT
|
INPUT VOLTAGE RANGE
|
100-240V AC
|
|
AC CURRENT
|
3.8A @ 230V AC,7.6A@115VAC
|
|
INPUT FREQUENCY
|
47-63 Hz
|
|
EFFICIENCY
|
>91%
|
>92%
|
>92%
|
>93%
|
>93%
|
>93%
|
|
POWER FACTOR
|
>0.99@100V;>0.95@230V
|
|
INRUSH CURRENT
|
COLD START 25A/115V，50A/230V
|
|
LEAKAGE CURRENT
|
<0.5mA@240V AC
|
|
PROTECTION
|
OVERLOAD PROTECTION
|
100~130%,TYPE:HICCUP RESET:AUTO RECOVER
|
|
OVER VOLTAGE
|
＞120%Vout，shut down out voltage ,re-power on to recover
|
|
|
OVER TEMP. PROTECTION
|
>105℃，recovers automatically after temperature goes down
|
|
ENVIROMENT
|
WORKINGTEMP., HUMIDITY
|
-20~50℃，10~90% RH，non-condensing
|
|
STORAGE TEMP., HUMIDITY
|
-20~85℃，10~95% RH
|
|
TEMPERATURE DRIFT
|
±0.03%/℃(0~50℃)
|
|
VIBRATION
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
SAFETY&EMC
|
SAFETY STANDARD
|
GB4943-1,EN60950-1,EN62368-1
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
INSULATION RESISTANCE
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC STANDARD
|
MEET EN55022 CLASSB，EN61000-3-2
|
|
OTHERS
|
DIMENSION
|
168*82*41mm(WITHOUT DC FAN),168*82*60mm(WITH DC FAN)
|
|
WEIGHT
|
0.7Kg(WITHOUT DC FAN),0.9Kg(WITH DC FAN)
|
|
NOTE
|
1. ALL PARAMETERS ARE SPECIFIED AT 230VAC INPUT, RATED LOAD, 25ºC 70% RH. AMBIENT.
2.TOLERANCE:INCLUDE SET UP TOLERANCE, LINE REGULATION, LOAD REGULATION.
3.RIPPLE & NOISE ARE MEASURED AT 20MHz BY USING A 12" TWISTED PAIR TERMINATED WITH A 0.1uF & 47uF CAPACITOR.
4.LINE REGULATION IS MEASURED FROM LOW LINE TO HIGH LINE AT RATED LOAD. 5.LOAD REGULATION IS MEASURED FROM 20% TO 100% RATED LOAD, AND OTHER OUTPUT AT 60% RATED LOAD.
|

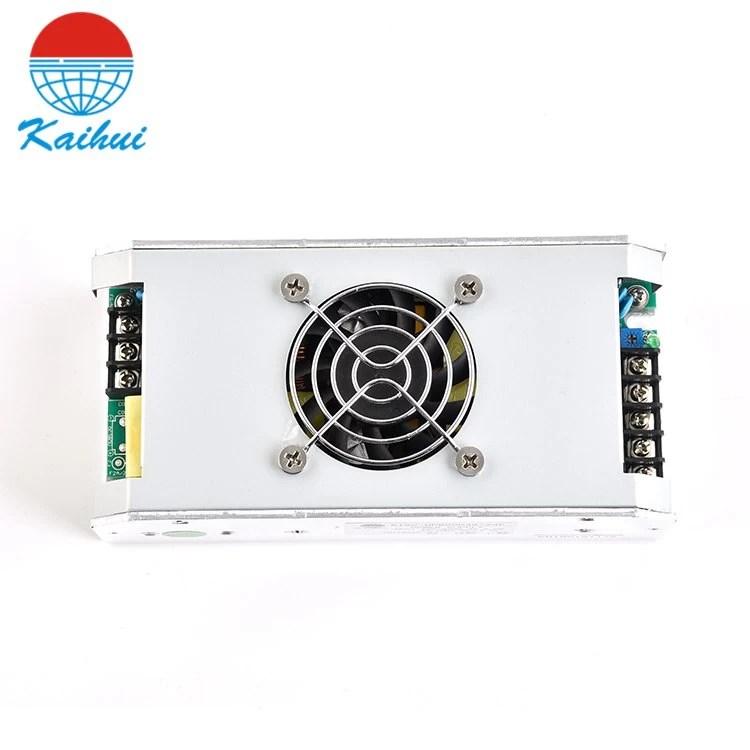

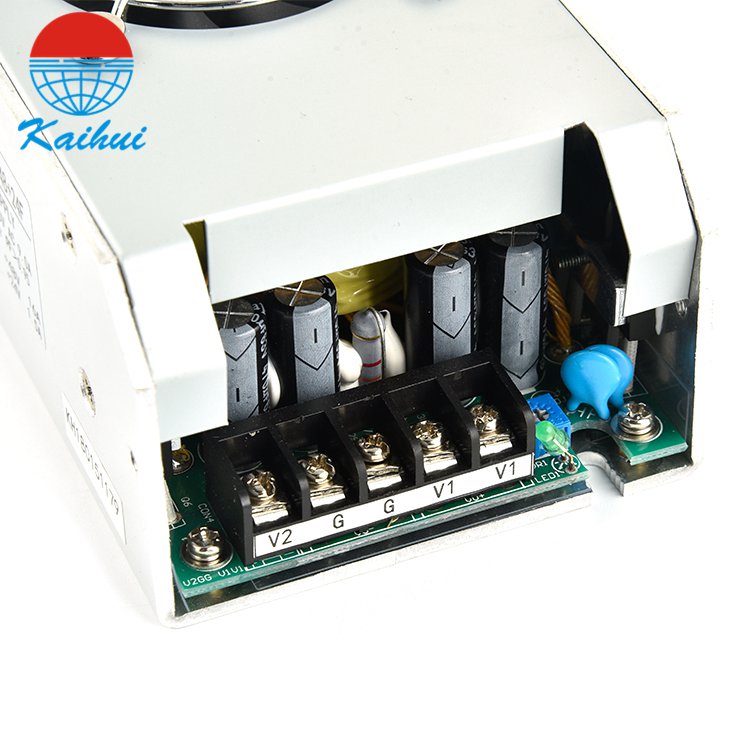

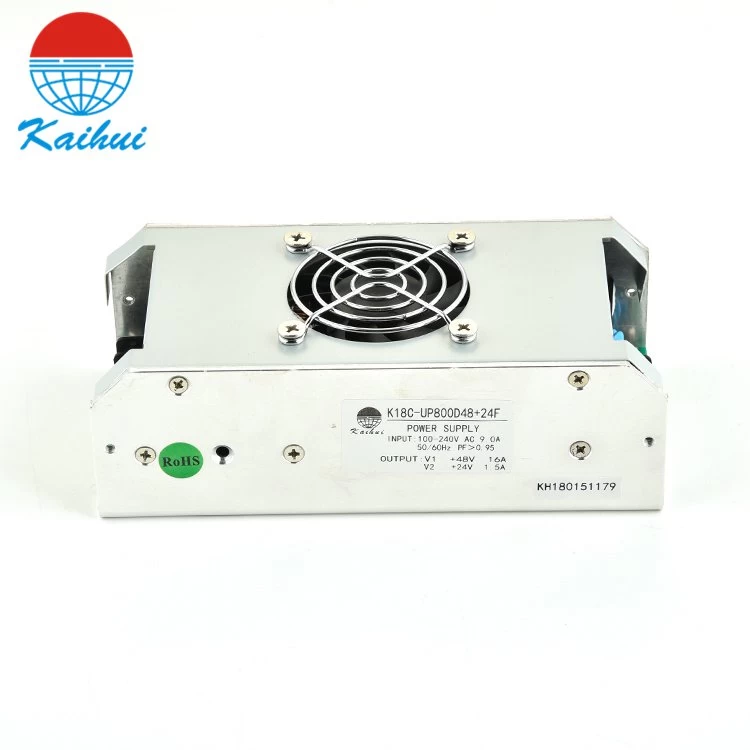

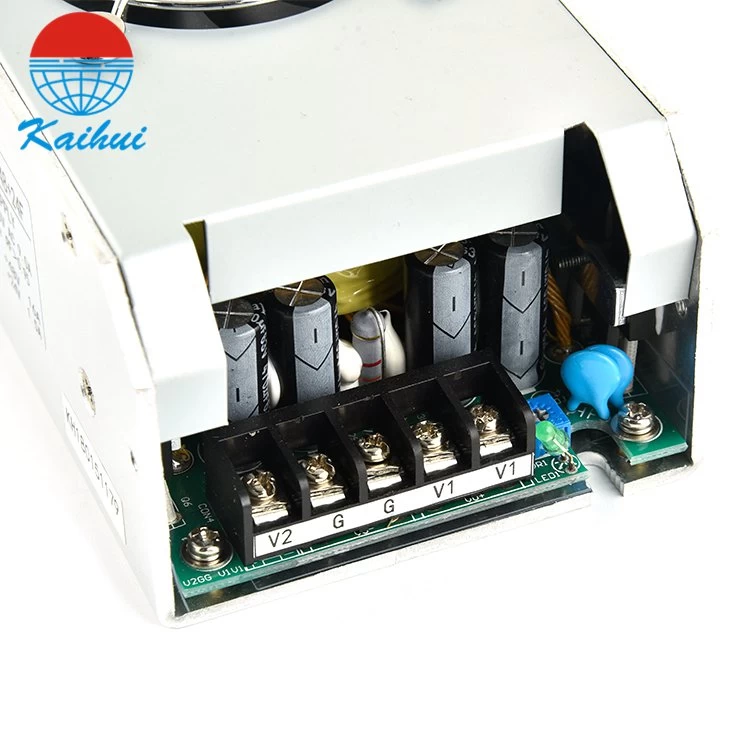

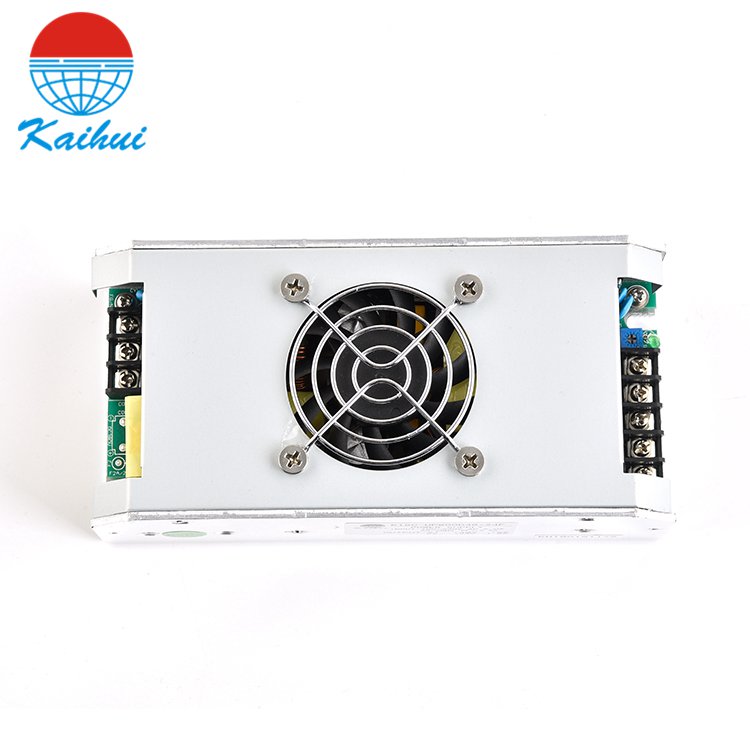

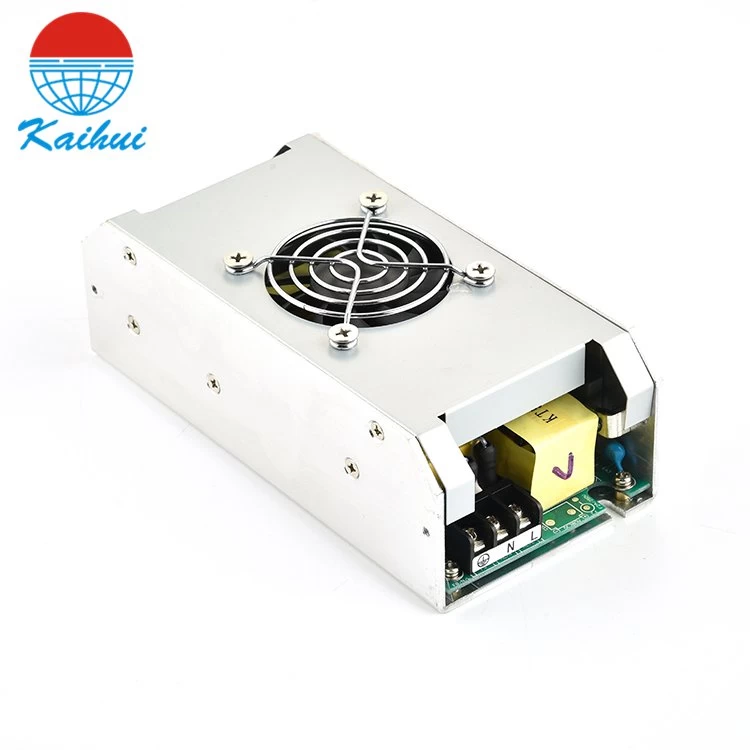

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
