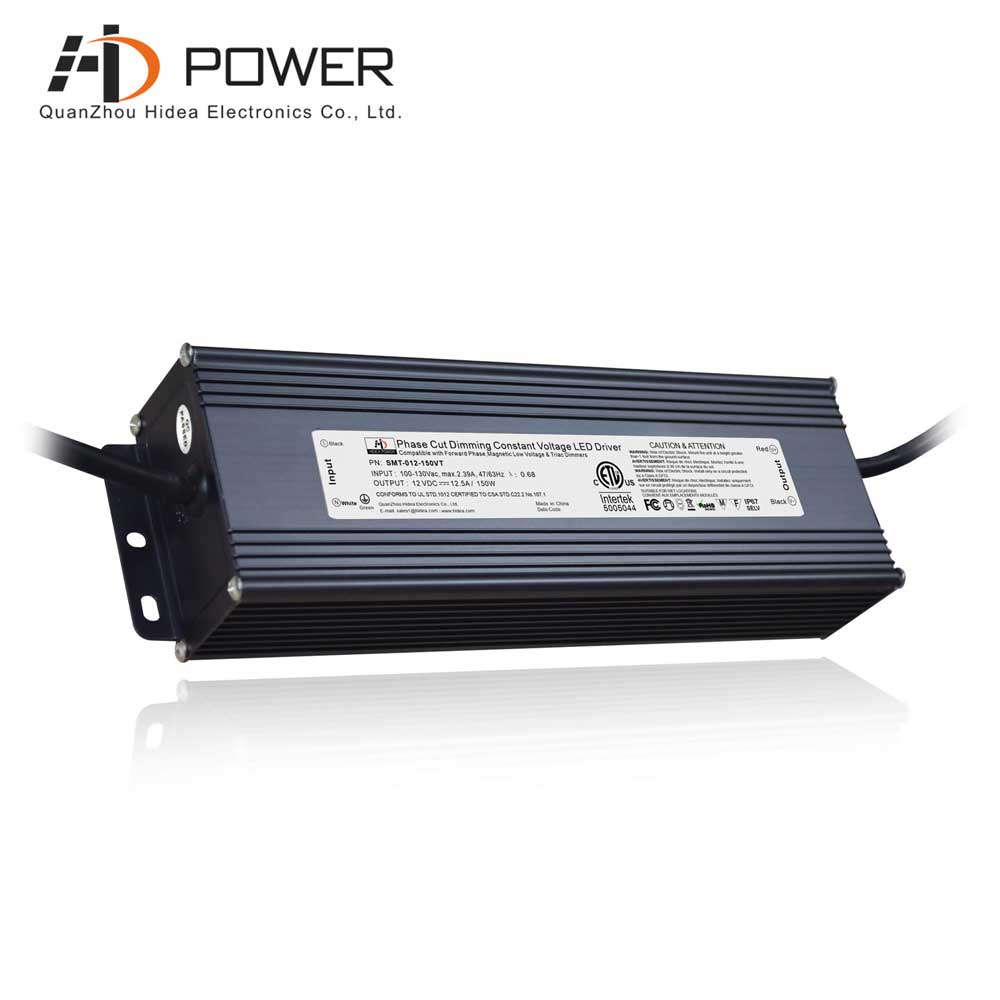

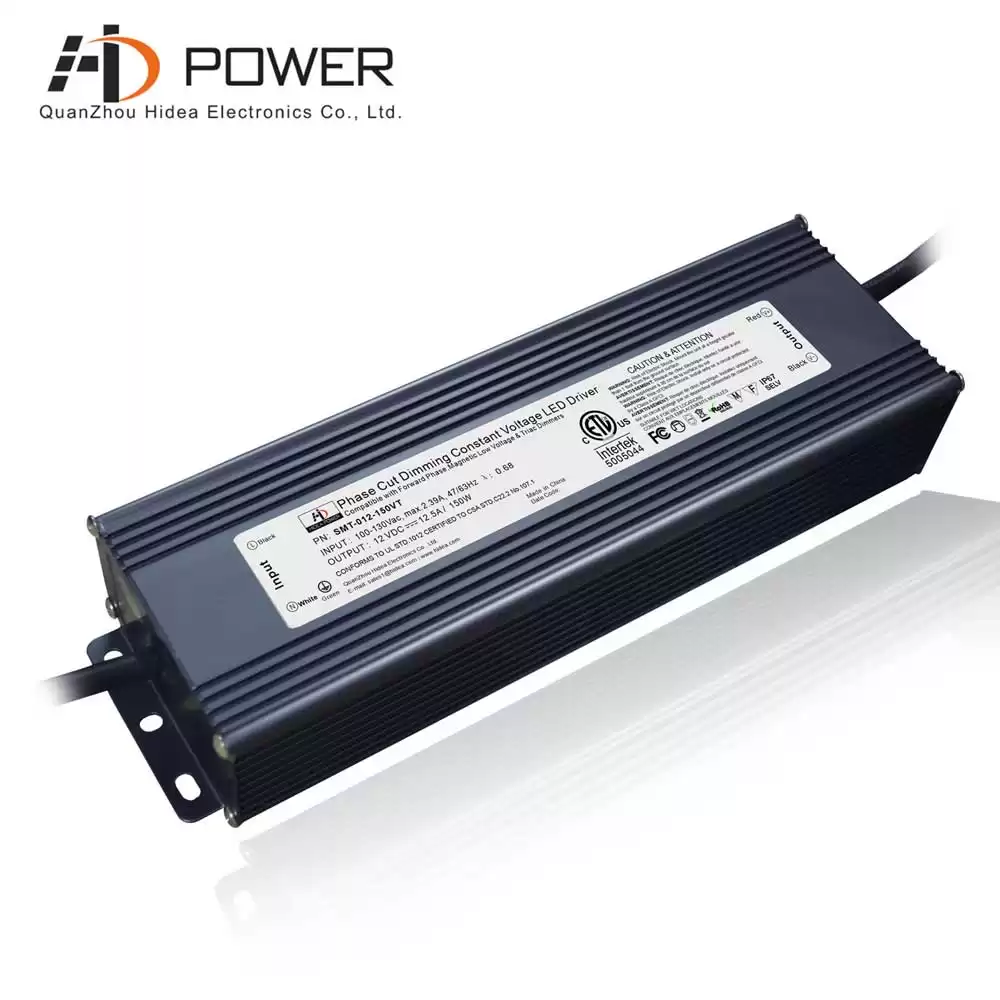

This ETL certified 24v 150w constant voltage led driver has a short circuit/over voltage/over heat protection design, which can well protect the life of the led power supply and has a 5-year warranty
Specification
|
Model
|
SMT-012-150VT
|
SMT-024-150VT
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
12.5A
|
6.25A
|
|
Rated power
|
150W
|
|
Input
|
Voltage Range
|
100~130VAC
|
|
Frequency Range
|
50~60HZ
|
|
Power Factor
|
0.65(Full loading)
|
|
Efficiency(Typ.)
|
84%
|
86%
|
|
AC Current(Max.)
|
2.4A
|
2.4A
|
|
Leakage current
|
﹤0.50mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL1012
|
|
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
Safety&EMC
|
EMC EMISSION
|
FCC Part 15 B
|
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11(Surge about 4KV)
|
|
Others
|
Weight
|
1.65Kg
|
With junction 2.38Kg
|
|
Size
|
256*78*47mm (L*W*H)
|
406*87*60mm (L*W*H)
|
|
packing
|
305*295*210mm 10PCS/CTN
|
445*350*205mm 10PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃ of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3.Loading should be 5-100%.
|
Compatible Light Type
Smarts led driver 24v 150w had the protection like overload, over temprature and over current protection, that would be safety when it working with Dia light LED Linear 3,300-7,900 lumens.
Related Products
|

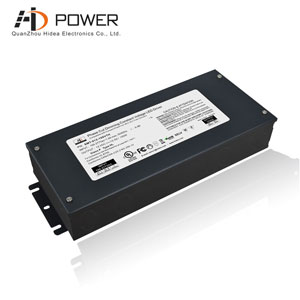

 Triac 150W dimmable constant voltage led driver integrated junction box, with wiring space inside, easy and fast installation, iron box design, safe and reliable, good heat dissipation, with 7 years warranty
