Product Description

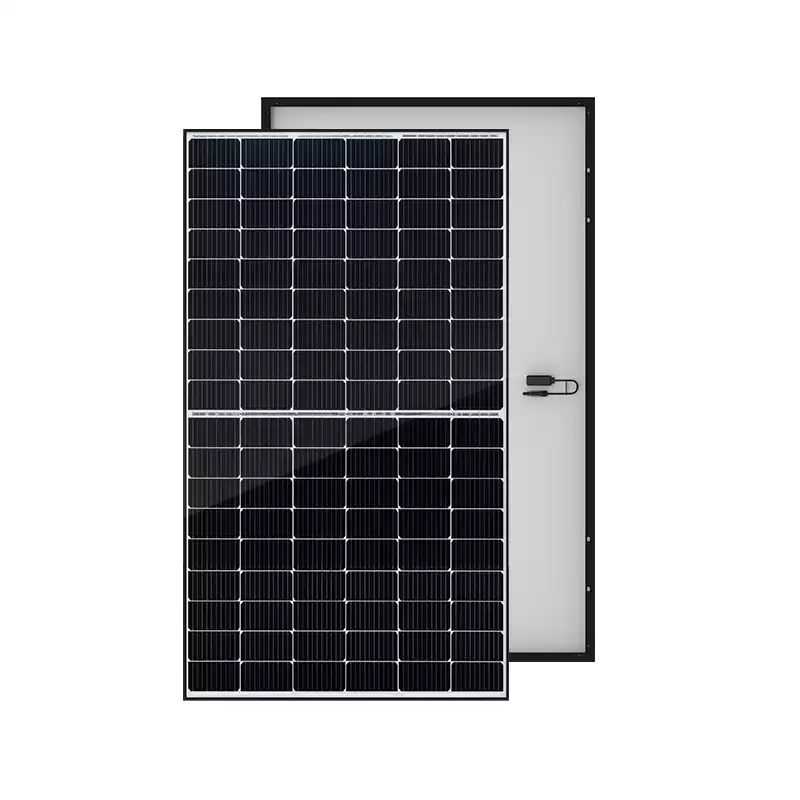

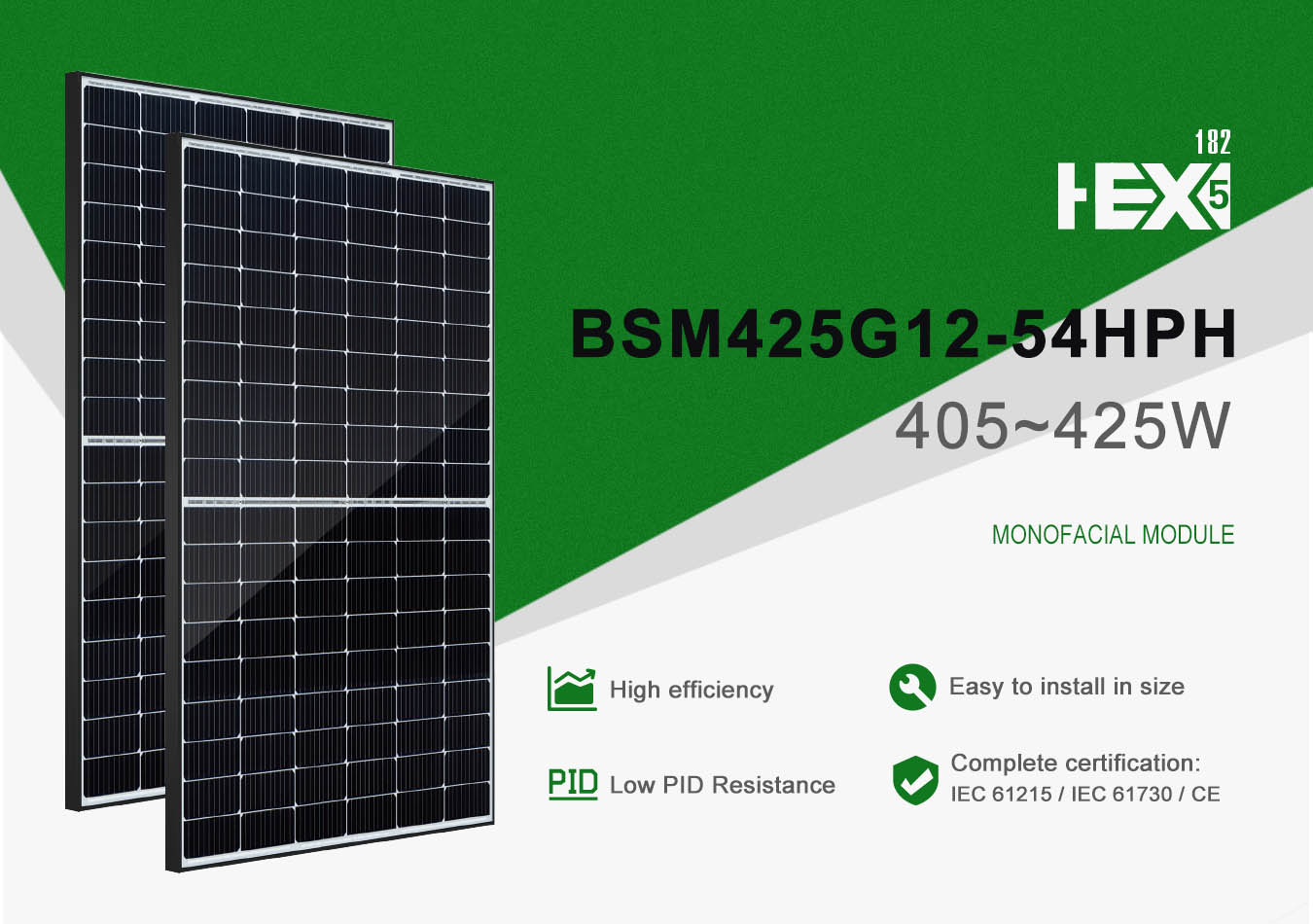

Bluesun HEX5 series monocrystalline solar panels use half cell PERC cells,it has a passivated rear side and a laser grooving process,which significantly improves the cell efficiency,power range from 405-425w.Passed IEC 61215, IEC 61730,UL 61730,INMETRO test for harsh environment.
*High module conversion efficiency *Withstanding harsh environment
*Excellent Anti-PID performance *Excellent weak light performance
|
Module Type
|
BSM405G12-54HPH
|
BSM410G12-54HPH
|
BSM415G12-54HPH
|
BSM420G12-54HPH
|
BSM425G12-54HPH
|
|
|
STC
|
NMOT
|
STC
|
NMOT
|
STC
|
NMOT
|
STC
|
NMOT
|
STC
|
NMOT
|
|
Maximum Power(Pmax/W)
|
405
|
302
|
410
|
306
|
415
|
310
|
420
|
314
|
425
|
318
|
|
Operating Voltage(Vmpp/V)
|
31.24
|
29.2
|
31.43
|
29.3
|
31.64
|
29.6
|
31.83
|
29.8
|
32.03
|
30.0
|
|
Operating Current(Impp/A)
|
12.97
|
10.36
|
13.05
|
10.42
|
13.13
|
10.48
|
13.21
|
10.54
|
13.29
|
10.60
|
|
Open-Circuit Voltage(Voc/V)
|
37.25
|
35.10
|
37.50
|
35.30
|
37.75
|
35.50
|
38.00
|
35.70
|
38.25
|
35.90
|
|
Short-Circuit Current(Isc/A)
|
13.86
|
11.17
|
13.94
|
11.24
|
14.02
|
11.30
|
14.10
|
11.36
|
14.18
|
11.42
|
|
Module Efficiency(%)
|
20.7
|
21.0
|
21.3
|
21.5
|
21.7
|
STC: Irradiance 1000W/㎡,Cell Temperature 25°C,Air Mass AM1.5 NMOT: Irradiance at 800W/㎡,Ambient Temperatue 20°C,Air Mass AM1.5,Wind Speed 1 m/s
