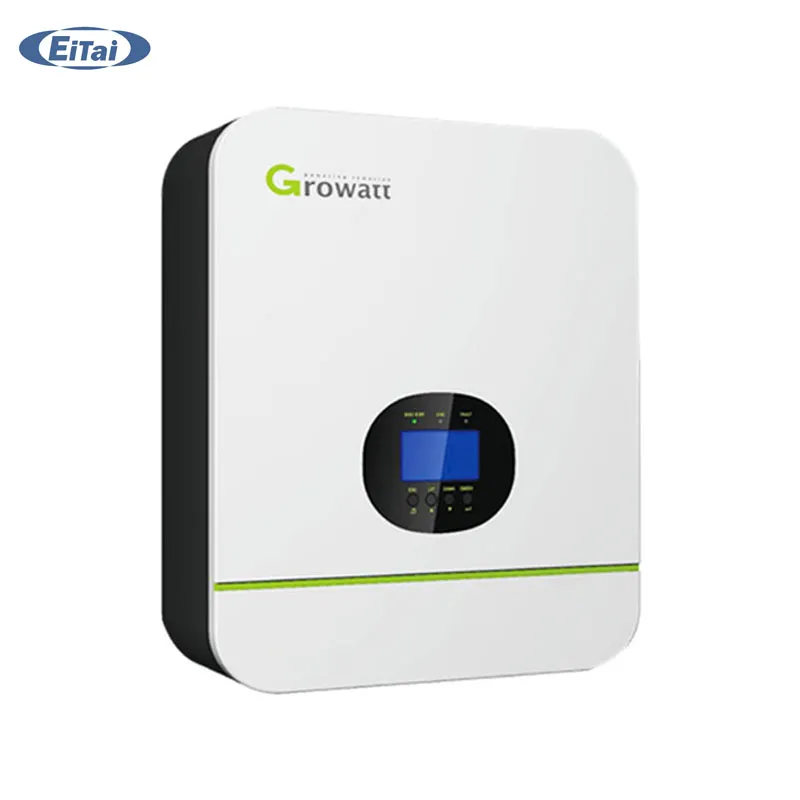

Europe Version Growatt 5kw off grid inverter

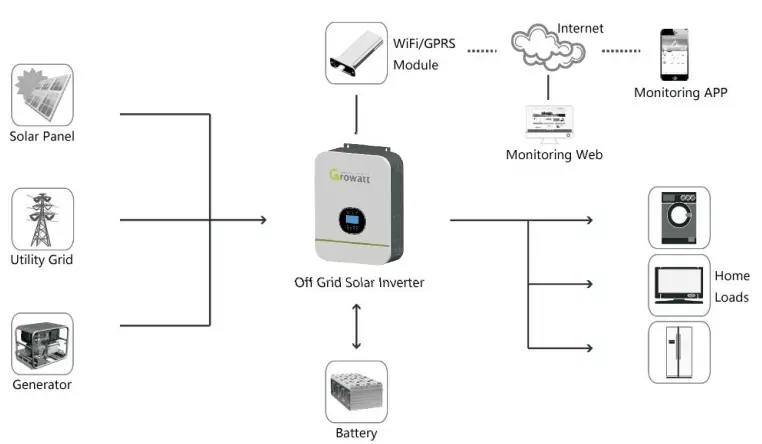

This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine , which is perfect for off grid back up power and self-consumption applications.  The wifi /GPRS module is a plug-and-play monitoring device to be installed on the inverter.With this device , users can monitor the status of the PV system from phone or from the website anywhere.


  • Size130*350*455mm
  • Output Type Single Phase

Europe Version Growatt 5kw off grid inverter

Europe Version Growatt on and off grid inverter 5kw SPF5000 off grid 3kw inverter


Off grid solar inverter



Product Detail :


Datasheet
SPF 3000TL HVM
SPF 5000TL HVM
Battery voltage
24VDC
48VDC
INVERTER OUTPUT
RATED POWER
3000VA/ 3000W
5000VA/ 5000W
Parallel Capability
No
Yes, 6 units
AC Voltage Regulation (Battery Mode)
230VAC ± 5% @ 50/60Hz
230VAC ± 5% @ 50/60Hz
Surge Power
6000VA
10000VA
Efficiency (Peak)
93%
93%
Waveform
Pure sine wave
Pure sine wave
Transfer Time
10 ms (For Personal Computers); 20 ms (For Home Appliances)
SOLAR CHARGER
Maximum PV Array Power
1000W
4500W
MPPT Range @ Operating Voltage
30VDC ~ 80VDC
60VDC ~115VDC
Maximum PV Array Open Circuit Voltage
100VDC
145VDC
Maximum Solar Charge Current
50A
80A
Maximum Efficiency
97%
97%
Standby Power Consumption
2 W
2 W
AC CHARGER
Charge Current
30A
60A
AC Input Voltage
230 VAC
230 VAC
Selectable Voltage Rang
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range
50Hz/60Hz (Auto sensing)
PHYSICAL
Dimension (D/W/H) in mm
120/315/390
130/350/455
Net Weight (kgs)
8
14.5
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
0°C - 55°C
Storage Temperature
-15°C - 60°C


Category :  Solar Inverter

Off grid inverter



Product Application :


Growatt off grid inverter
