Even and Odd Harmonic Filters

YTPQC-PQF based on 3-level topology, is an Power Quality Filter  (PQF) system designed to eliminate harmonic oscillations and reduce costs consequently. AHF is a versatile solution, easily tailored to deliver power factor improvement, voltage variation control, flicker mitigation and load balancing functionality, and highly improved power quality in networks while reducing harmonic pollution.

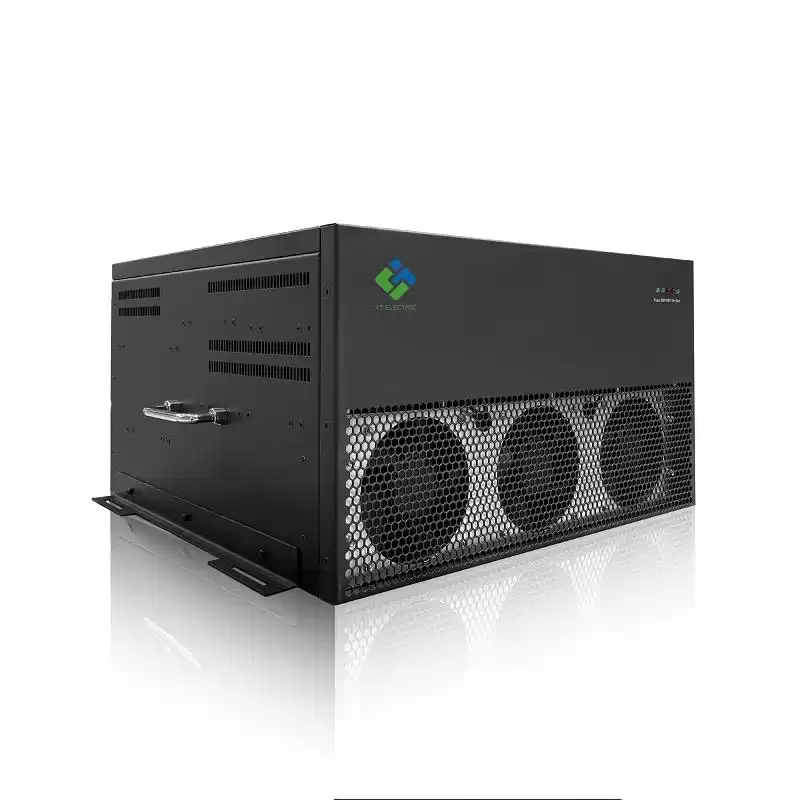

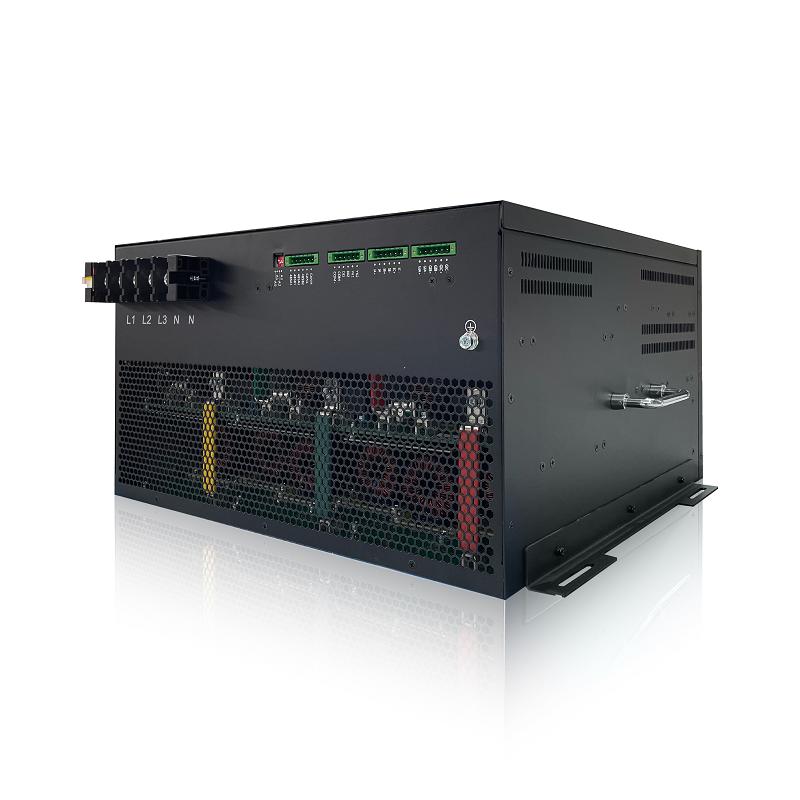

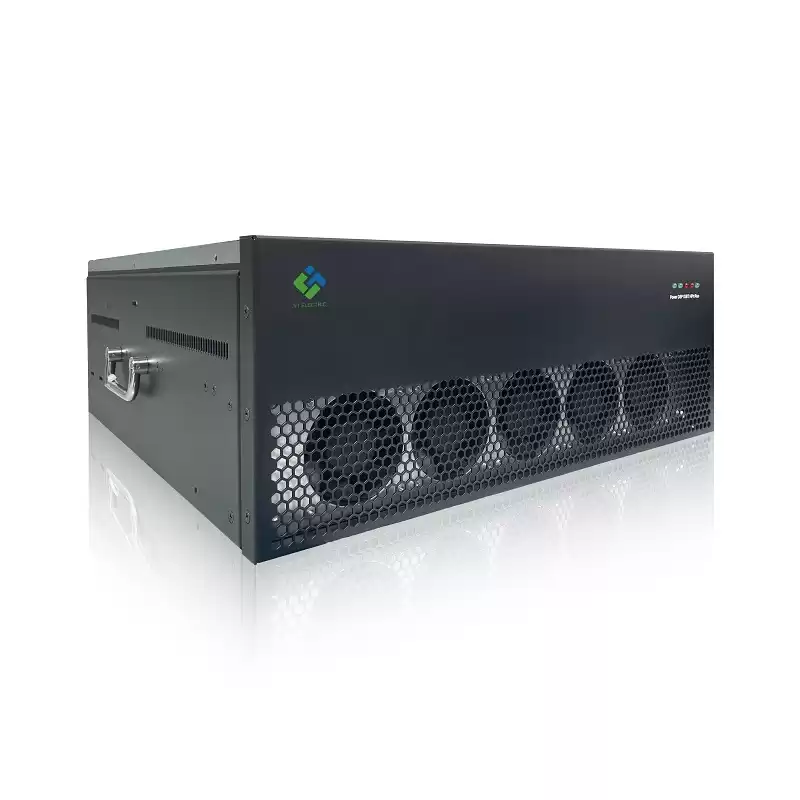

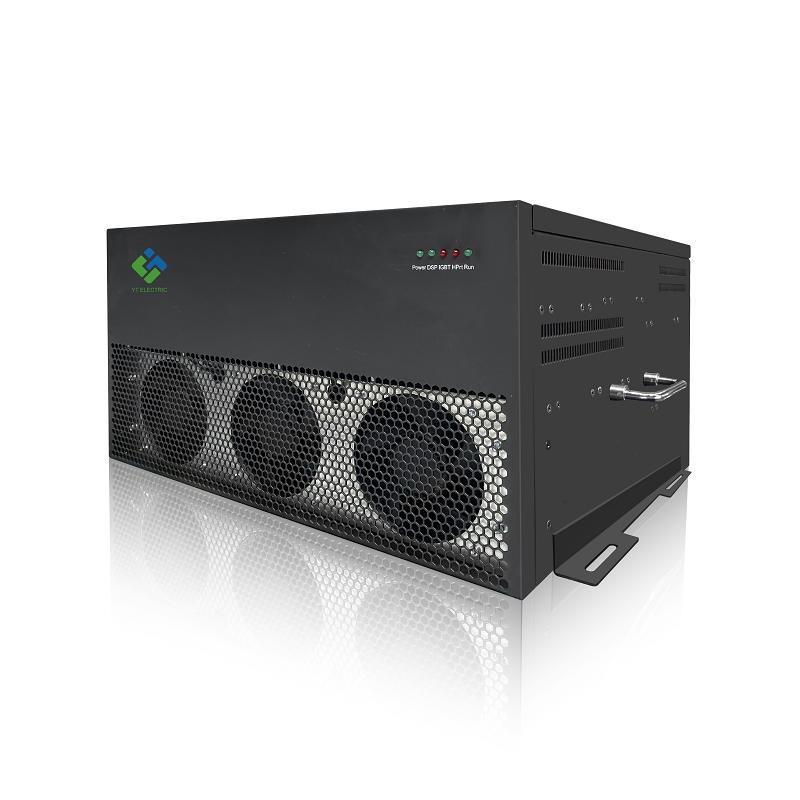

YT-PQC-PQF Power Quality Filter

YTPQC-PQF Power Quality Filter is a perfect and comprehensive solution to the power quality issues of power grid , such as harmonics, reactive power and 3 phase load unbalance. YTPQC-PQF which is in parallel to power grid can detect the harmonic wave in power grid in time, generate the reverse-phase compensation current through the converter and dynamically filter the harmonic wave in power grid.

YTPQC Active Harmonic Filter basics

The operation of YTPQC-PQF is unaffected by multifarious load forms and power grid structures. And it will not produce harmonic oscillation (resonance) along with the system, thus perfectly realizing harmonic control under diverse loads. YTPQC Power Quality Filter can fully accomplish dynamic reactive compensation, control the capacitor switching and ultimately heighten the power factor of power grid. Meanwhile, YTPQC-PQF has the function of controlling the three-phase load current unbalance, thus comprehensively handling various power quality matters in power grid.

YT Power Quality Filters can filter odd and even order harmonics at the same time, should be informed in advance.



Modular Design

YTPQC Power Quality Filter has a advanced modular design. Usually YTPQC-PQF consists of one or several PQF modules and an optional touched LCD Human Machine Interface. Each PQF module is an independent harmonic filtering system, and users can change the harmonic filtering system rating by adding or removing PQF modules.

According to the mounting type, YTPQC-PQF can  be divided into Rack Modular PQF, Wall-mounted PQF and free landing PQF.

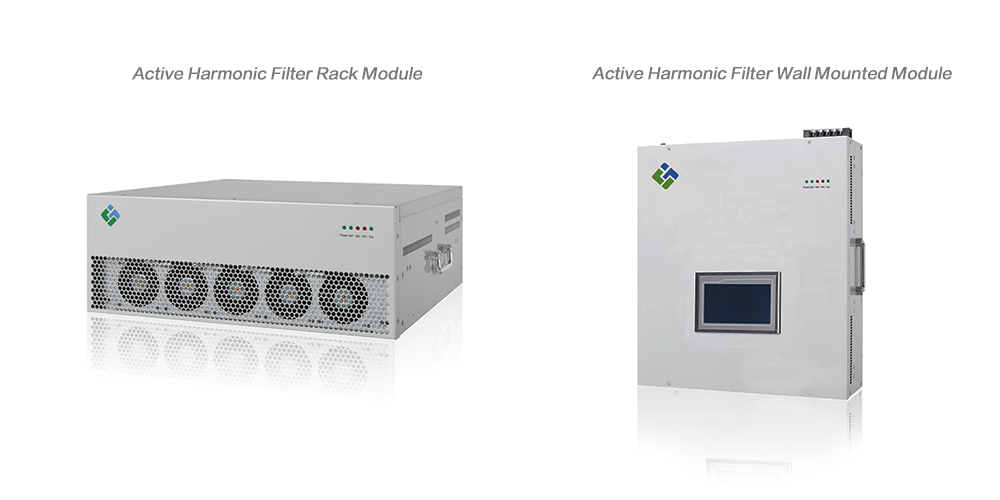

YT Active Harmonic Filter, Rack type and wall mounted Modules



Model Description

YTPQC-AHF Power Quality Filter Module series cover from 15A to 150A, support wall mounted type, rack type, free landing modules.



SN Item Rated Capacity Factory Model Dimensions
(W*D*H,MM)
N.G
(KG)

Packing Size

(W*D*H,MM)

G.W.
(KG)
1 APF 15A YTPQC-PQF/15-4-4L-RW 360*402*125 20 740*690*445 25
2 APF 25A YTPQC-PQF/25-4-4L-RW 360*402*125 20 740*690*445 25
3 APF 50A YTPQC-PQF/50-4-4L-RW 505*550*190 34 740*690*445 40
4 APF 75A YTPQC-PQF/75-4-4L-RW 505*550*190 35 740*690*445 40
5 APF 100A YTPQC-PQF/100-4-4L-RW 505*570*280 53 740*690*445 63
6 APF 125A YTPQC-PQF/125-4-4L-RW 505*570*280 54 740*690*445 64
7 APF 150A YTPQC-PQF/150-4-4L-RW 505*570*280 55 740*690*445 65




Product Tags harmonic filter rating          Odd Harmonic Filters          Even Harmonic Filters          75A harmonic compensation filter          high quality power filter          100A Active Harmonic Filter
