Overview

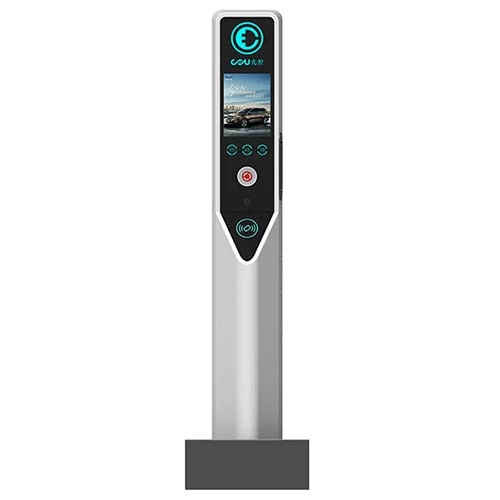

EVTS series charging system is the latest intelligent DC charging system. This product has two types: one stack multiple terminals, which is composed of DC charger stack and charging terminal; and one station multiple outlets, which is composed of DC charge stack, concentral control unit and outlets.
Adopting modular structure design concept and forefront power electronic technology, the charger stack consists of power distribution unite, DC charging module, controlling unit and safety protection unit. There are 16 DC charging modules in total, can provide 2outlets, 4outlets, and 8 outlets DC output at the same time. The maximum power could achieve 240 KW, also the power can be allocated flexible, which could satisfy different needs.
Feature
1.2 outlets,4 outlets, or 8 DC outlets, can charging multiple vehicle at the same time.
2.Flexible power range: 8outlets, 15KW-75KW, 4 outlets, 30KW-90KW, 2 outlets,60KW-180KW.
3.Flexible power distribution, it fits all kinds of charging demands, and can also reduce charging time, save investment.
4.intelligent management，intelligent module dispatch, it can enable different amount of modules according to loading current, highly increase module’s working life and running efficiency, reduce system loss and operating energy consumption.
5.Has insulation monitoring function, it can automatically turn off the output to ensure safe charging when insulation level is low.
6.High adaptability of temperature range, has isolated heat dissipation air ducts. Power heat dispassion is separated from control circuit to ensure dust-free of control circuit.
7.High efficiency, high reliability, ultra low radiation, fast maintenance, flexible capacity expansion, energy efficiency and environmental protection.
Application
Parking lots and charging station where multiple DC charging service required
