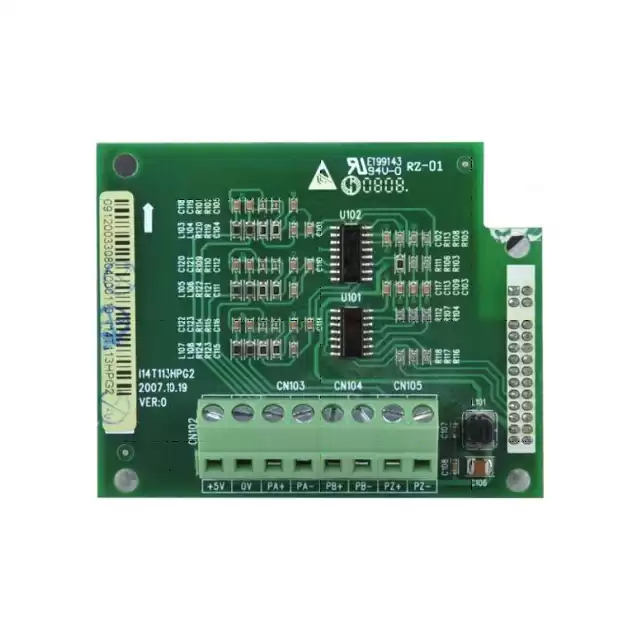

1. Provide 5V power supply (±5%).
2. Provide PA+ PA-, PB+ PB-, PZ+PZ- encoder input.
Optional Expansion Card
|
category
|
name
|
model
|
Function Description
|
reference
|
|
Operation panel
|
Operation panel (shuttle ;type)
|
V6−DP01
|
Full range of models
|
P2−**
|
|
Operation panel (button type)
|
V6−DP02
|
Full range of models
|
P2−**
|
|
Text display
|
EX−MT01
|
Man-machine interface - text display
|
P2−**
|
|
touch screen
|
EX−MT02
|
Human-machine interface - touch screen
|
P2−**
|
|
Fake panel
|
V6−DP03
|
Customer option
|
P2−**
|
|
Pallet
|
V6−DP05
|
Operation panel mounting accessories
|
P2−**
|
|
Expansion Card
|
Power monitoring card
|
EX−PA01
|
Three-phase input power supply phase loss / instantaneous power failure monitoring
|
P2−**
|
|
Phase detection card
|
EX−PA02
|
Three-phase input power phase detection
|
P2−**
|
|
External power rectifier card
|
EX−RF01
|
Control power is provided by external power supply
|
P2−**
|
|
Programmable CAN bus expansion card
|
EX−CA05
|
;
|
P2−**
|
|
Profibus DP communication card
|
EX−CA06
|
;
|
P2−**
|
|
Keyboard extension cord
|
2 m keyboard extension cable
|
CB1−200
|
;
|
P2−**
|
|
3 m keyboard extension cable
|
CB1−300
|
;
|
P2−**
|
