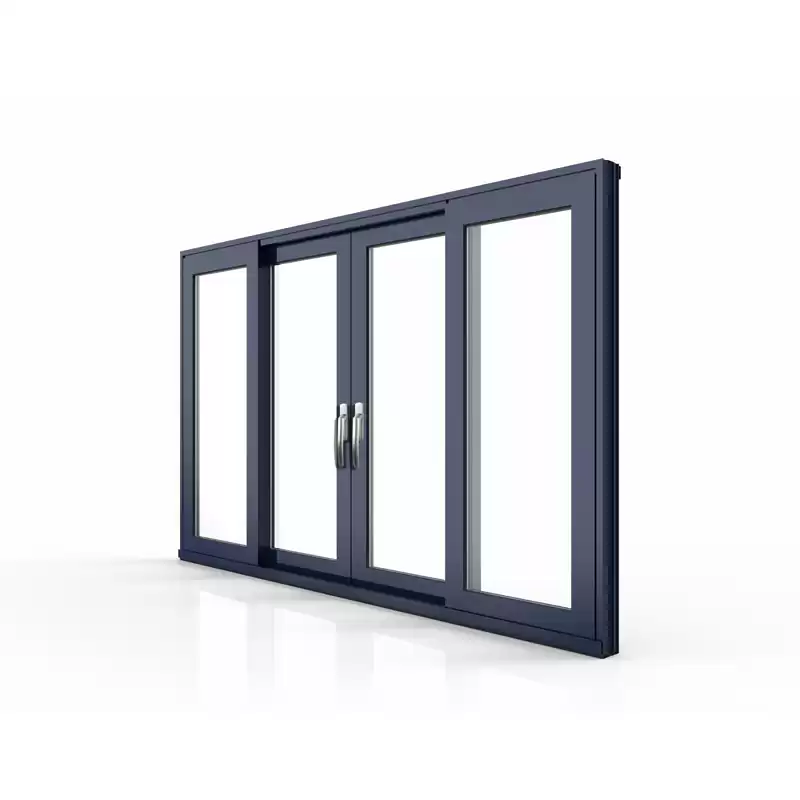

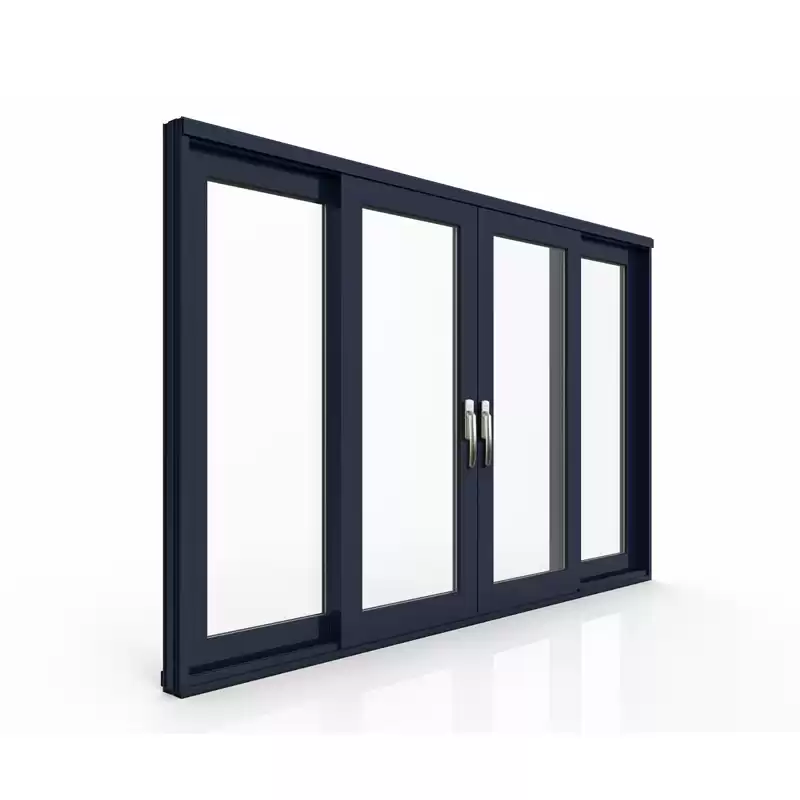

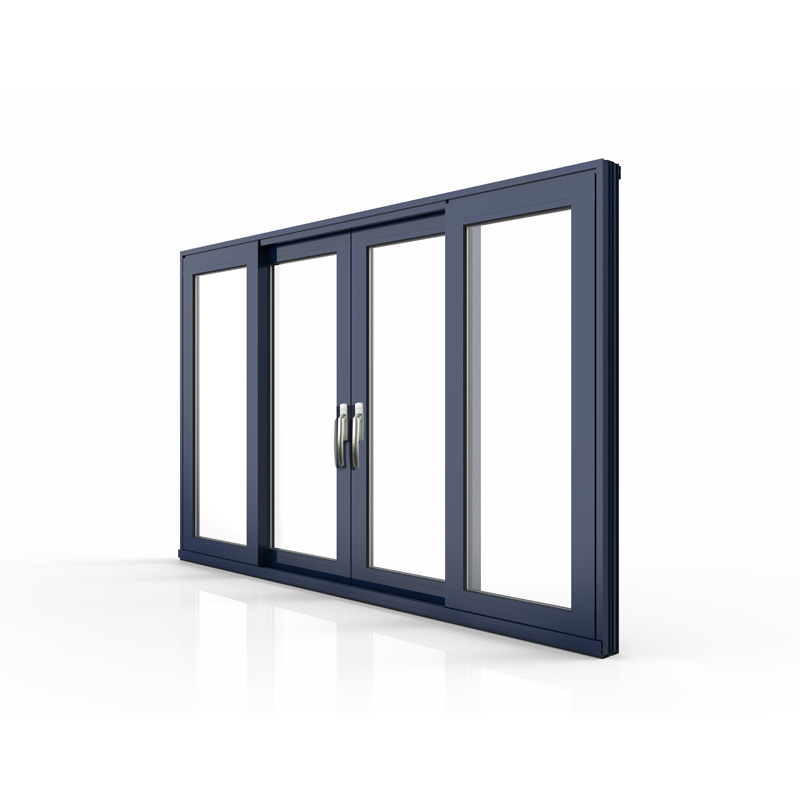

Excellent Aluminium Heavy Duty Lift and Slide Door with Big Size Sashes
Heavy-duty aluminum sliding door, simple atmosphere, flexible space, rich colors and flowing lines, giving you an exclusive sense of space, away from impetuous and restless. Smooth sliding, excellent drainage performance, is your best choice.
- HSD190 is a high-end class LIFT-SLIDE system, for huge opening with impressive and luxurious
- HSD190 system has an Intelligent and smart drainage device guarantees water tightness.
- It can be a classic SLIDING with same profiles and with the same performances.
- Corner constructions without mullion profiles connection.
- Stainless steel rail for minimizing the friction between frames and sashes. More smoothly slide of the sashes.
| Performance |
Heat Insulation
W(m2.k) |
Sound Insulation
(DB) |
Water Tightness
(Pa) |
Air Tightness |
Wind Load
(KPA) |
|
2.3-2.8
level 5/6
|
35DB
level 4 |
500PA
level 5 |
level 6 |
3.1KPA
level 5 |
| Parameters |
|
Sash Width/Height
(mm)
|
Visible Width
(mm)
|
Depth
(mm)
|
Glass Thiickness
(mm)
|
|
/idth 720-3300mm
/eight 1800-2700mm Weight 300kg
|
Fame Width 40mm
Sash Width 100mm
|
Frame Depth 130/190mm
Sash Depth 50mm |
SGU:
8-10mm
DGU:
24-35mm |
Customized - HOMI is a aluminium manufacturer with over 30 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design -Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
Q: Are you trading company or manufacturer?
A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience. And you are warmly welcomed to visit us.
Q: How long is your delivery time?
A: Generally it is 15-20 workdays after receiving payment.
Q: Do you provide samples for free? What's the MOQ?
A: The new die samples are free for approval and inspection. The MOQ is 8-10tons
Q: What is the payment terms?
A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight
