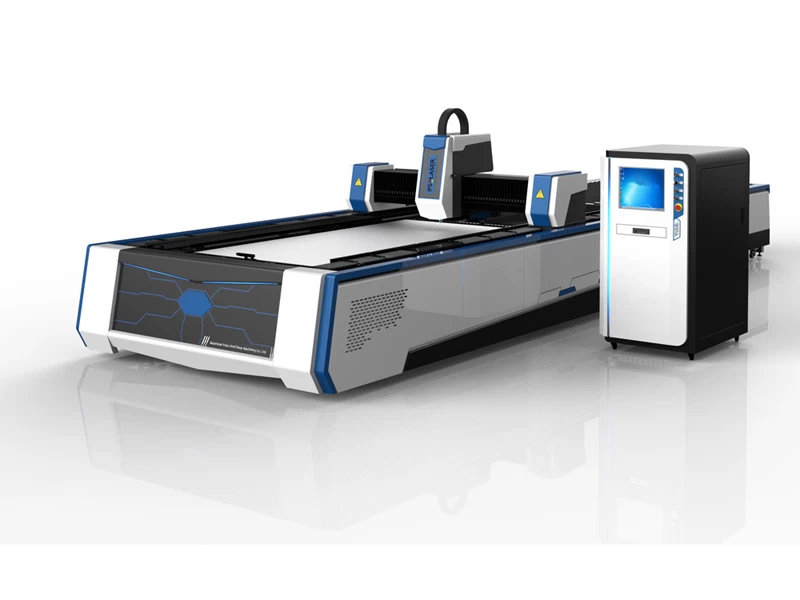

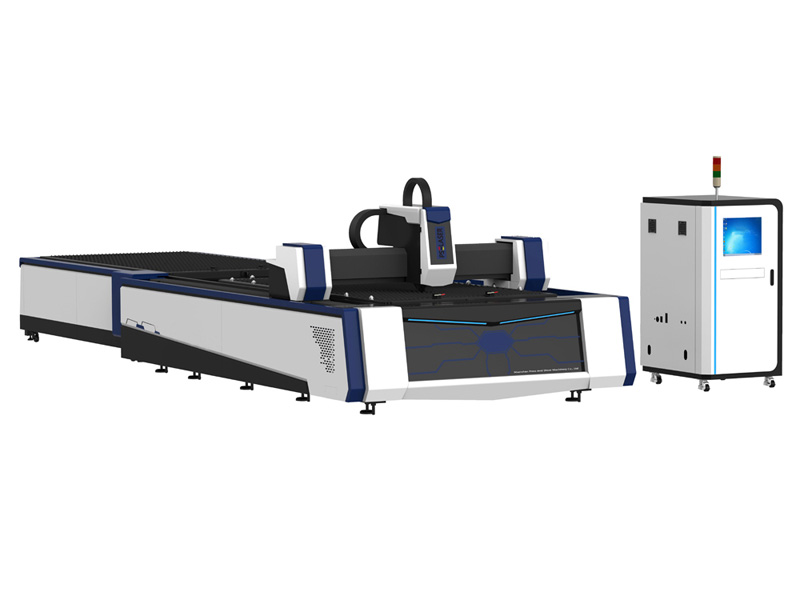

Product Item: Exchange Platform CNC Fiber Laser Cutting Machine
Fiber Laser Cutting Machine Configuration List:
|
Fiber Laser Source
|
Raycus/IPG
|
|
Fiber Laser Cutting Head
|
Raytools/WSX
|
|
Servo Drive System
|
Schneider/ Delta
|
|
Liner Guider System
|
Lapping/THK
|
|
Transmit System
|
Dual Rack & Pinion type
|
|
Pneumatic Component
|
SMC/AirTac
|
|
ElectricSystem
|
Schneider
|
|
Motor Reducer
|
Motovario
|
|
Nesting Software
|
Cypcut
|
|
Exhaust Blower
|
Included
|
|
Water Chiller Unit
|
S&A
|
Fiber Laser Source
1. Fiber Laser Module
2. Low Energy Consumption: Save energy and
protect environment
3. Photoelectric conversion rate is up to
25-30%
4. Low electric power consumption, it is
only about 20%-30% of traditional CO2 laser cutting machine
5. Lifetime is more than 100,000 hours
6. Almost free
maintenance.

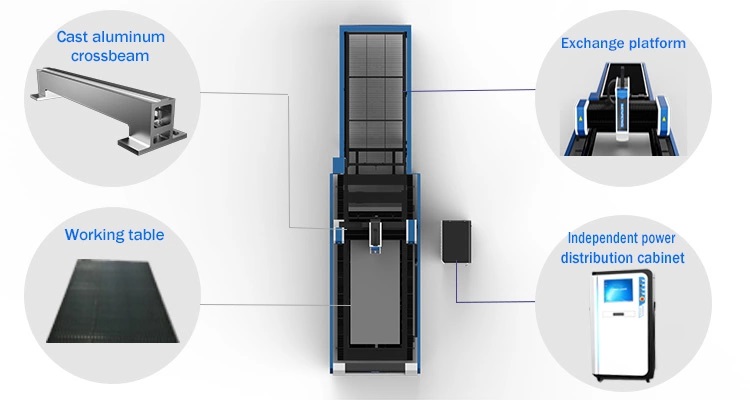

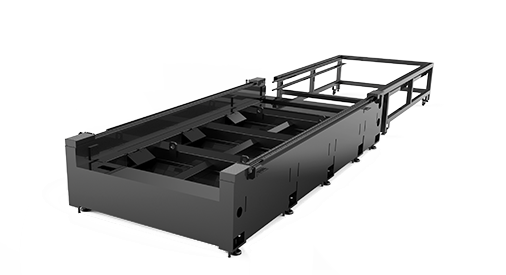

Exchange Table Fiber Laser Cutting Machine With Gantry Type Mechanical Structure
1. High precision CNC fixed working table.
2. Gantry welding machine tool with high temperature heat treatment and aging treatment to ensure a smooth and high-speed cutting equipment reliability.
CNC Laser Cutting Machine Work table
Saw tooth platform to reduce the impact of reflective, durable, stable.
Cutting Parameter:
Product Parameters
|
Model
|
PS3015
|
PS4020
|
PS6020
|
PS6025
|
|
Working Area (L*W)
|
3000*1500 mm
|
4000*2000 mm
|
6000*2000 mm
|
6000*2500 mm
|
|
Laser Output Power
|
6000w/4000w/3000w/2000w/1500w/1000w
|
|
X/Y-axis positioning accuracy
|
±0.05mm
|
|
X/Y-axis repositioning accuracy
|
±0.02mm
|
|
X/Y-axis Max. linkage speed
|
130 m/min
|
Carbon Steel Cutting:
Stainless Steel Cutting:
