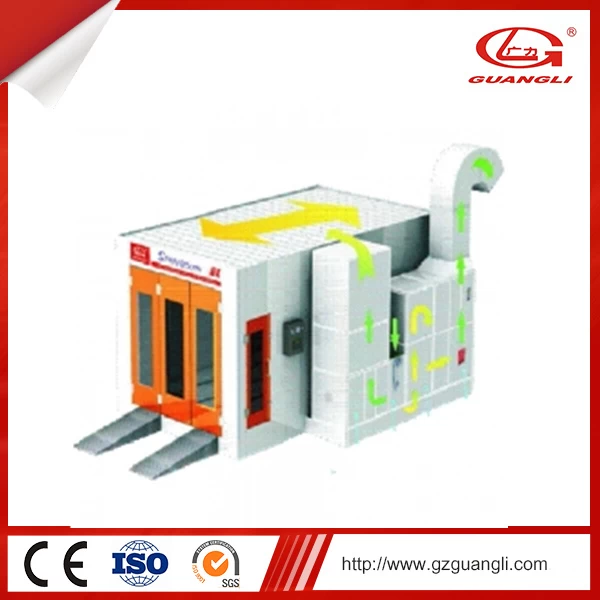

Exhaust Gas Treatment Device
It is a exhaust gas deal with equipment for protecting the environment, make sure the exhaust gas is clean.
Application:
1. Automotive repair shop

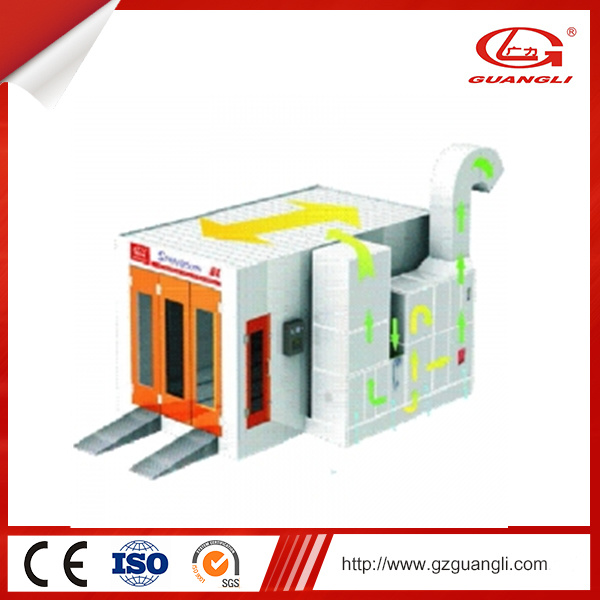

2. Spray booth/Paint booth
3. Industry gas treatment
4. Powder and coating
1. Economical models and configurations

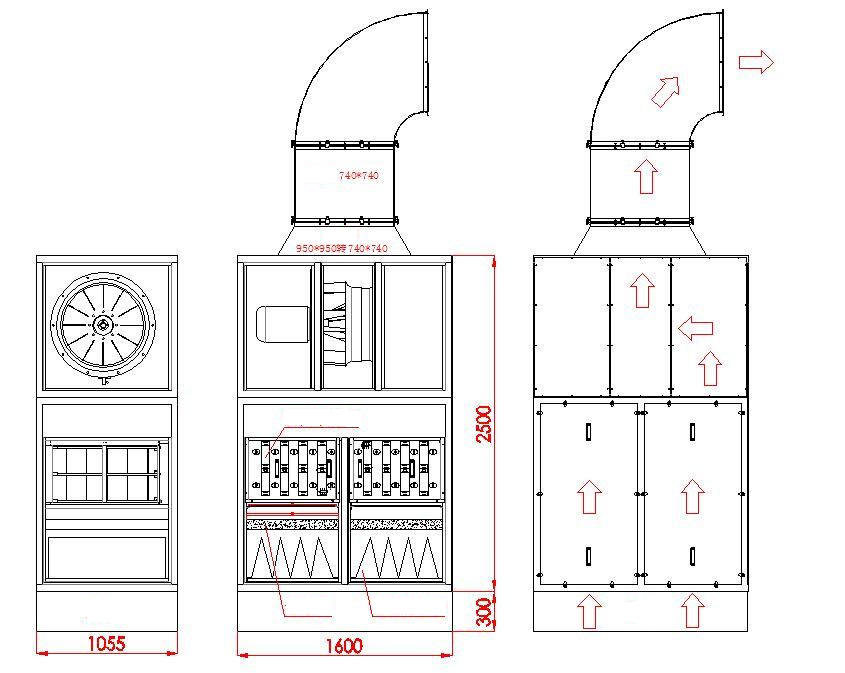

1.1 GL-HB1(total: VOCs 70-120 mg/m3) GL-HB1 model as below, air ducts and
reducer pipes are for options, suggest the duct size should be≥740*740mm
1.2 Detailed Technical
specifications: GL-HB1(air flow:
18000m3/h)
|
Name
|
Brand
|
Spec.
|
Units
|
Qty.
|
Remark
|
|
Total
size
|
Guangli
|
L1600×W1055×H2500
|
set
|
|
Frame+color
steel plate
|
|
Dry
filter
|
Guangli
|
L×W: 675×495
|
pcs
|
4
|
Bag
filtration
|
|
Activated charcoal
(100*100*50)
|
Guangli
|
L675×W490
|
pcs
|
One
layer/4pcs drawer(drawer structure)
|
Honeycomb
Type Activated Carbon: 96pcs
|
|
UV
tube
|
German joint-venture
|
|
set
|
22pcs
|
UV
power:3.3kw
|
|
Catalyst
plate
|
Guangli
|
Aluminum
materials
L650×W495
|
pcs
|
8
|
Panel
structure
|
|
Exhaust
fan frame
|
Guangli
|
Total
forming by color steel plate
|
set
|
1
|
Total
frame, air-inlet on bottom
|
|
European
fan
|
Shuangju
|
Air
flow 18000m³/h
|
set
|
1
|
Motor
will be placed outside, fan top position, 4kw
|
|
Control
panel
|
Guangli
|
Schneider
|
set
|
1
|
Ballast
and others will be placed outside and
explosion-proof
design
|

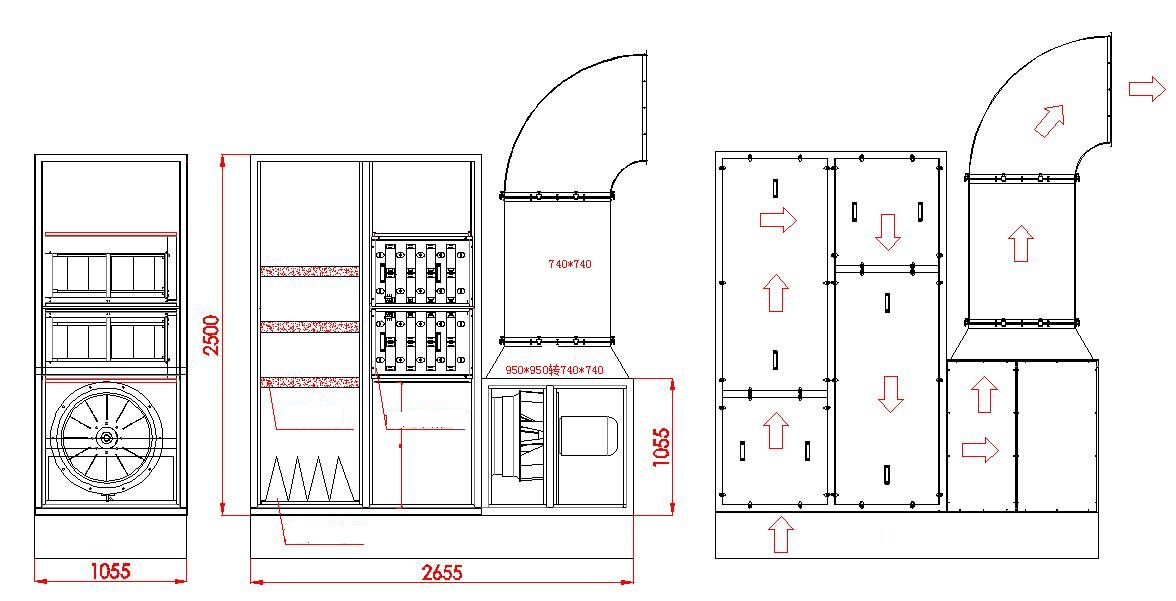

1.3 GL-HB2(total: VOCs 50-70 mg/m3)
GL-HB2
as below (air duct, reducer pipes arefor options,
suggest the duct size should be≥740*740mm
1.4 Detailed Technical
specifications: GL-HB2 (air flow: 22000m3/h)
|
Name
|
Brand
|
Spec.
|
Units
|
Qty.
|
Remark
|
|
Total size
|
Guangli
|
L2655×W1055×H2500
|
set
|
|
Frame+color
steel plate
|
|
Dry filter
|
Guangli
|
L550×W495
|
pcs
|
2
|
Bag
filtration
|
|
Activated
charcoal
(100*100*50)
|
Guangli
|
L1000×W550
|
pcs
|
Three
layer/3 drawer(drawer structure)
|
Honeycomb
Type Activated Carbon: 126pcs
|
|
UV tube
|
German joint-venture
|
|
set
|
22pcs
|
UV
power:3.3kw
|
|
Catalyst
plate
|
Guangli
|
Aluminum
materials L850×W495
|
pcs
|
4
|
Panel
structure
|
|
Exhaust fan
frame
|
Guangli
|
Total
forming by color steel plate
|
set
|
1
|
Total
frame, air-inlet on bottom
|
|
European
fan
|
Shuangju
|
Air flow:
22000m³/h
|
set
|
1
|
Motor will
be placed outside, fan frame structure, side position, 5.5kw
|
|
Control
panel
|
Guangli
|
Schneider
|
set
|
1
|
Ballast and
others will be placed outside and
explosion-proof
design
|
2. Standard models and configurations

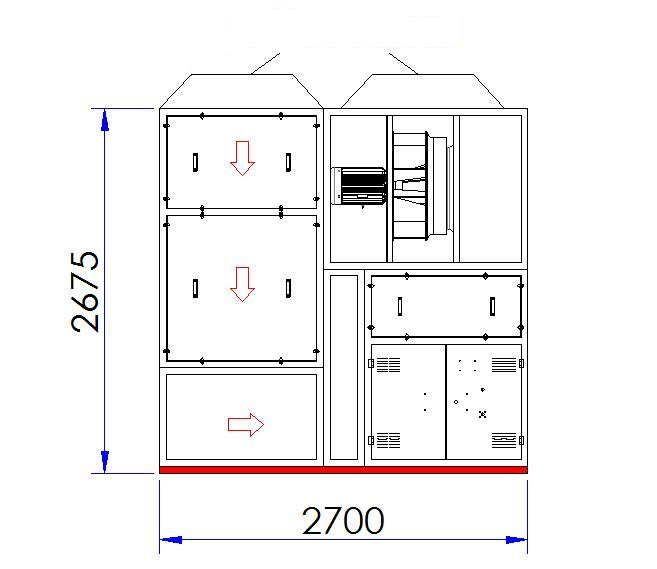

2.1GL-HB3(total:
VOCs 40-70 mg/m3, for standard vehicle service and repair shop)
GL-HB3
as below (air duct, reducer pipes arefor options,
suggest the duct size should be≥740*740mm
2.2 Detailed Technical
specifications:
|
Name
|
Brand
|
Spec.
|
Units
|
Qty.
|
Remark
|
|
Total size
|
Guangli
|
L2700×W1365×H2625
|
set
|
|
Frame+color
steel plate
|
|
Panel
structure filter
|
Guangli
|
L652×W490×H50
|
pcs
|
4
|
W shape
paper
|
|
Fiberglass
filter
|
Guangli
|
L654×W320×H10
|
pcs
|
8
|
M shape
|
|
Dry filter
|
Guangli
|
L490×W650×H300
|
pcs
|
4
|
Bag
filtration
|
|
Activated
charcoal
(100*100*100)
|
Guangli
|
L1010×W626
|
Set
|
8
|
Honeycomb
Type Activated Carbon: 480pcs
|
|
UV tube
|
German joint-venture
|
|
set
|
30pcs
|
UV
power:4.5kw
|
|
Catalyst
plate
|
Guangli
|
Aluminum
materials L1045×W650
|
pcs
|
4
|
Panel
structure
|
|
Ozone
filter panel
|
Guangli
|
Aluminum
materials L1045×W650
|
pcs
|
2
|
Panel
structure
|
|
Exhaust fan
frame
|
Shuangju
|
Air flow:
24000m3/h
|
set
|
1
|
Total
frame, 7.5KW
|
|
Control
panel
|
Guangli
|
Schneider
|
set
|
1
|
Ballast and
others will be placed outside and
explosion-proof
design
|

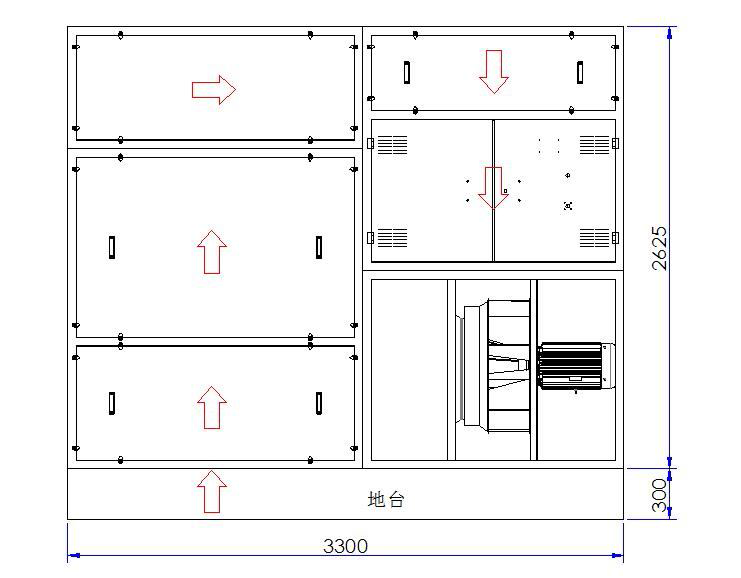

2.3 GL-HB303(total: VOCs 40-70 mg/m3, for standard 4S vehicle shop)
GL-HB303 as below (air
duct, reducer pipes arefor options, suggest the duct
size should be≥800*800mm
2.4 Detailed Technical
specifications:
|
Name
|
Brand
|
Spec.
|
Units
|
Qty.
|
Remark
|
|
Total size
|
Guangli
|
L3300×W1365×H2625
|
set
|
|
Frame+color
steel plate
|
|
Panel
structure filter
|
Guangli
|
L652×W765×H50
|
pcs
|
4
|
W shape
paper
|
|
Fiberglass
filter
|
Guangli
|
L654×W425×H10
|
pcs
|
8
|
M shape
|
|
Dry filter
|
Guangli
|
L765×W650×H300
|
pcs
|
4
|
Bag
filtration
|
|
Activated
charcoal
(100*100*100)
|
Guangli
|
L1010×W626
|
Set
|
12
|
Honeycomb
Type Activated Carbon: 640pcs
|
|
UV tube
|
German joint-venture
|
|
set
|
40pcs
|
UV
power:6.0kw
|
|
Catalyst
plate
|
Guangli
|
Aluminum
materials L1395×W650
|
pcs
|
4
|
Panel
structure
|
|
Ozone
filter panel
|
Guangli
|
Aluminum
materials L1395×W650
|
pcs
|
2
|
Panel
structure
|
|
Exhaust fan
frame
|
Shuangju
|
Air flow:
24000m3/h
|
set
|
1
|
Total
frame, 7.5KW
|
|
Control
panel
|
Guangli
|
Schneider
|
set
|
1
|
Ballast and
others will be placed outside and
explosion-proof
design
|
2.5 GL-HB4(total: VOCs 40-70 mg/m3, for high-end 4S vehicle shop)
GL-HB4 as below (air duct,
reducer pipes arefor options, suggest the duct size
should be≥850*850mm
2.6 Detailed Technical
specifications:
GL-HB4(air flow:
28000m3/h, the air flow can be adjusted)
|
Name
|
Brand
|
Spec.
|
Units
|
Qty.
|
Remark
|
|
Total size
|
Guangli
|
L4000×W1365×H3350
|
set
|
1
|
Frame+color
steel plate
|
|
Panel
structure filter
|
Guangli
|
L652×W490×H50
|
pcs
|
8
|
W shape
paper
|
|
Fiberglass
filter
|
Guangli
|
L654×W320×H10
|
pcs
|
16
|
M shape
|
|
Dry filter
|
Guangli
|
L490×W650×H300
|
pcs
|
8
|
Bag
filtration
|
|
Activated charcoal
|
Guangli
|
L1010×W626
|
Set
|
16
|
Honeycomb
Type Activated Carbon: 960pcs
|
|
UV tube
|
German joint-venture
|
|
set
|
60pcs
|
UV
power:9kw
|
|
Catalyst
plate
|
Guangli
|
Aluminum
materials L1048×W1305
|
pcs
|
8
|
Panel
structure
|
|
Ozone
filter panel
|
Guangli
|
Aluminum
materials L1045×W650
|
pcs
|
4
|
Panel
structure
|
|
Exhaust fan
frame
|
Shuangju
|
Air flow:
28000m3/h
|
set
|
1
|
Total
frame, 11KW
|
|
Control
panel
|
Guangli
|
Schneider
|
set
|
1
|
Ballast and
others will be placed outside and
explosion-proof
design
|
2.7 GL-HB5(total: VOCs 20-30 mg/m3, for high environmental
requirements area)
GL-HB5 as below (air duct,
reducer pipes arefor options, suggest the duct size
should be≥950*950mm
2.8 Detailed Technical
specifications: GL-HB5(air flow:
28000m3/h, the air flow can be adjusted)
|
Name
|
Brand
|
Spec.
|
Units
|
Qty.
|
Remark
|
|
Total size
|
Guangli
|
L4900×W1200×H3300
|
set
|
1
|
Frame+color
steel plate
|
|
Panel
structure filter
|
Guangli
|
L1100×W560
|
pcs
|
2
|
W shape
paper
|
|
Fiberglass
filter
|
Guangli
|
L1100×W560
|
pcs
|
2
|
M shape
|
|
Dry filter
|
Guangli
|
|
pcs
|
4
|
Bag
filtration
|
|
Cylindrical
filter
|
Guangli
|
L325×H600
|
pcs
|
9
|
Pulsed
cleaning
|
|
Activated
charcoal
|
Guangli
|
L1100×W560
and L600×W560
|
Set
|
Total:
2sets
drawer
structure
|
Honeycomb
Type Activated Carbon: 1CBM
|
|
UV tube
|
German joint-venture
|
|
set
|
120pcs
|
UV
power:18kw
|
|
Catalyst
plate
|
Guangli
|
Aluminum
materials L710×W1560
|
pcs
|
6
|
Panel
structure
|
|
Iodine
activated filter panel
|
Guangli
|
Aluminum
materials L710×W560
|
pcs
|
1
|
Panel
structure
|
|
Exhaust fan
frame
|
Guangli
|
Forming by
color steel
|
set
|
1
|
Total
frame, air-inlet on bottom
|
|
European
fan
|
Shuangju
|
Air flow:
28000m3/h
|
set
|
1
|
Motor
outside position, total frame, fan side position, 15KW
|
|
Damper
|
Guangli
|
L740×W740
|
pcs
|
1
|
Adjust air
|
|
Control
panel
|
Guangli
|
Schneider
|
set
|
1
|
Ballast and
others will be placed outside and
explosion-proof
design
|
