Exhaust Header Wrap

Exhaust Header Wrap is an innovative way to create more horsepower and reduce under-hood temperatures. Flame Barrier Exhaust wrap is a high temperature, soft, resilient exhaust wrap capable of withstanding continuous temperatures up to 550°C. Made by fiberglass and have different colors.



Description

Colored Exhaust Header Wrap is made from high quality fiberglass with colored dry. The exhaust insulation wrap contains weaved fiberglass to which it thanks its robustness. This exhaust wrap is able to withstand direct heat up to 600 °C.

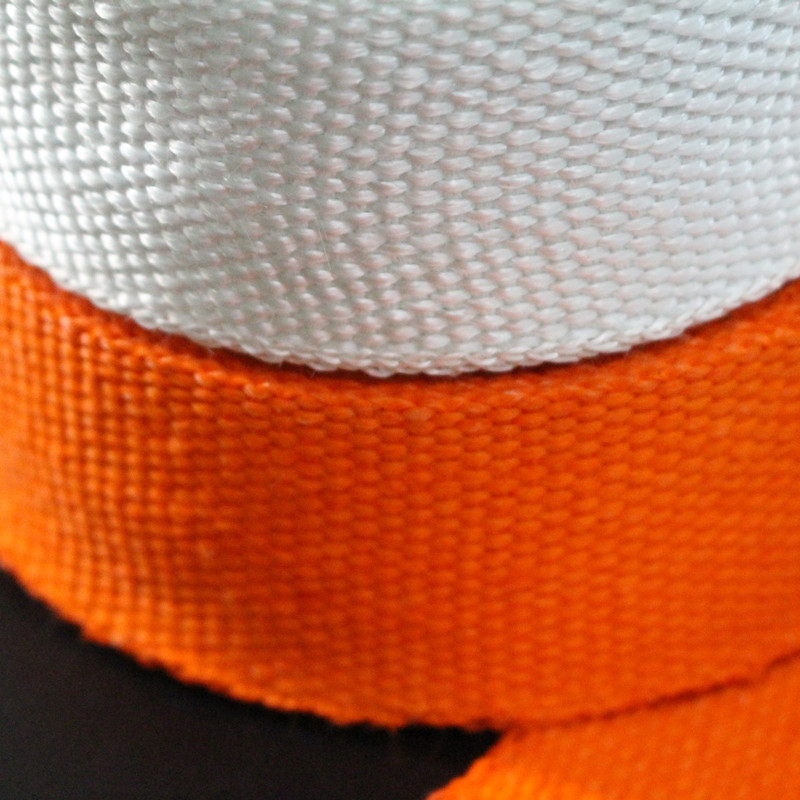

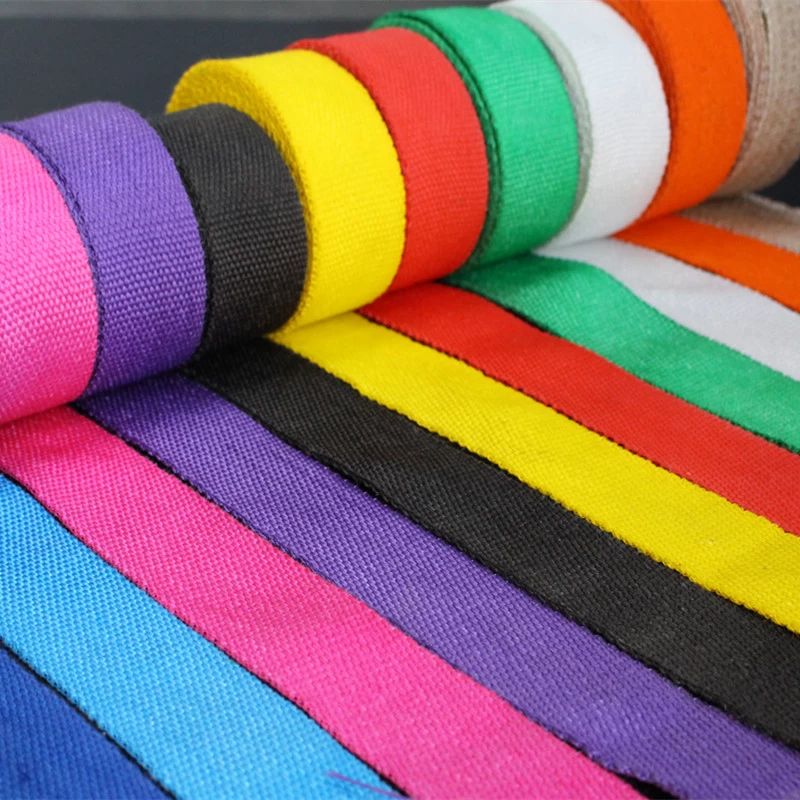

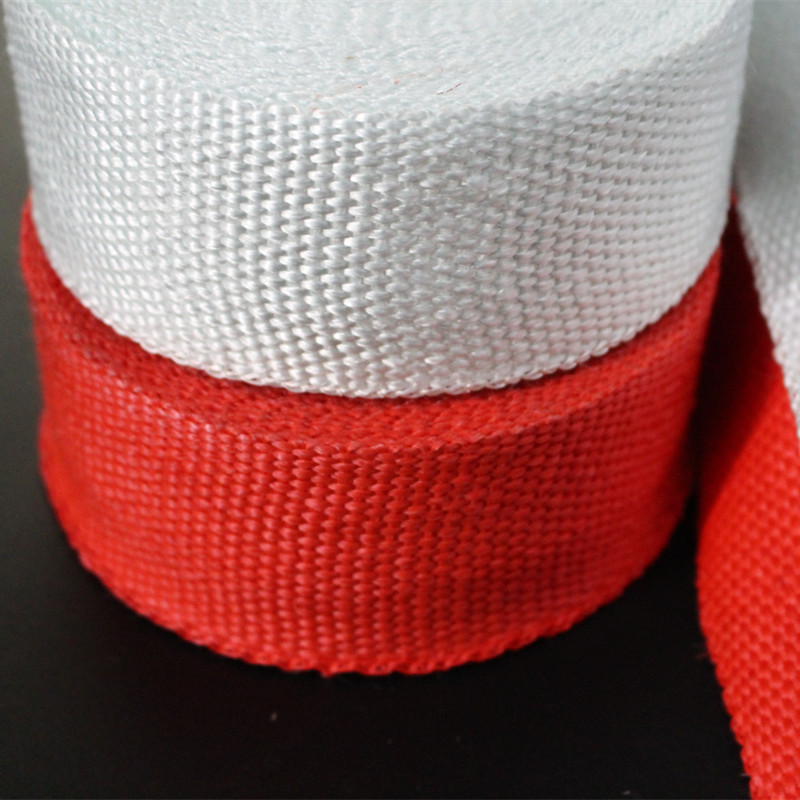

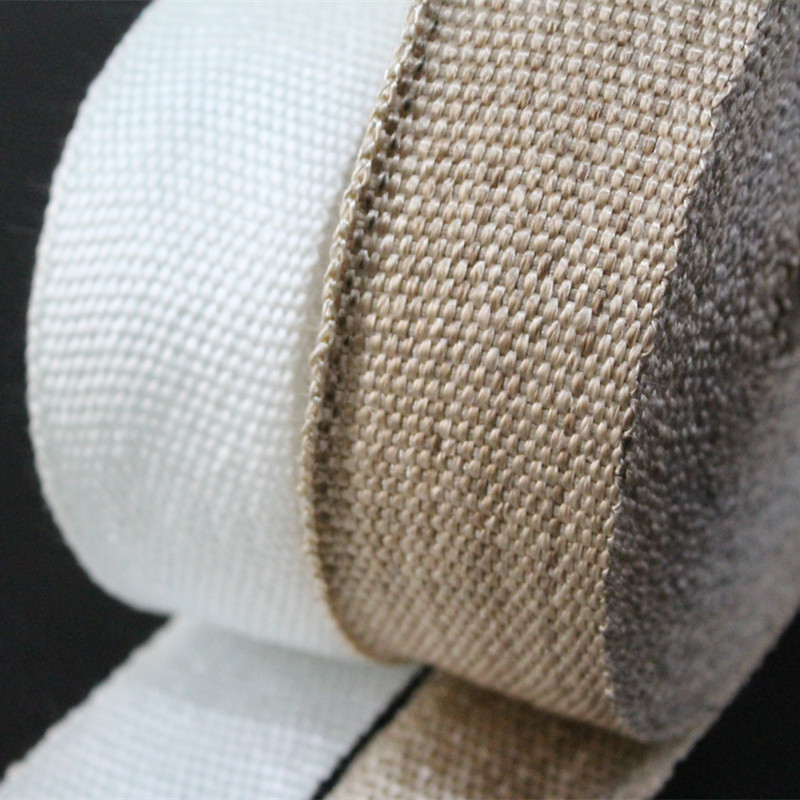

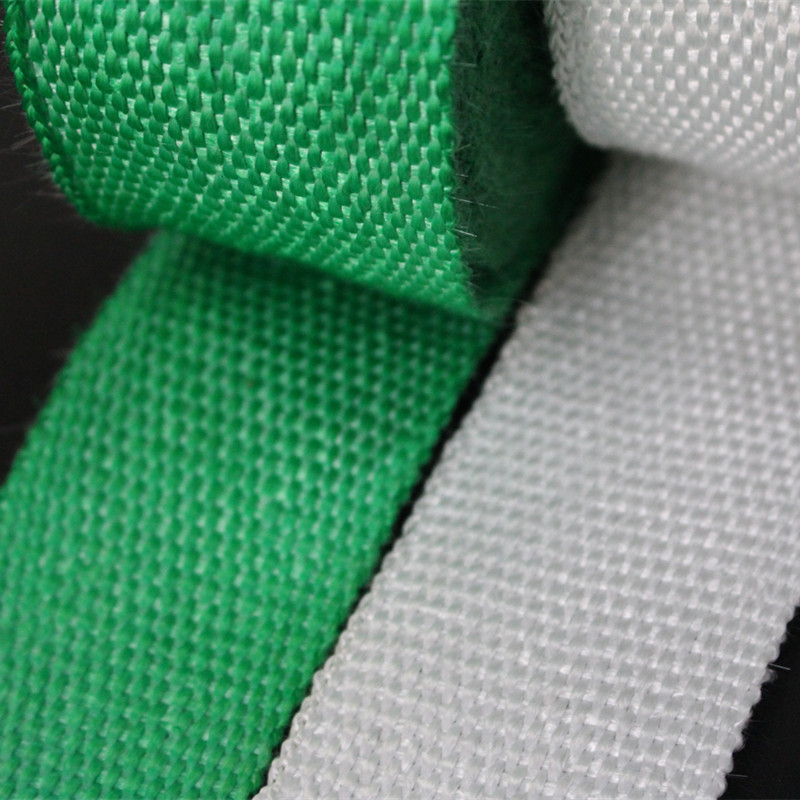

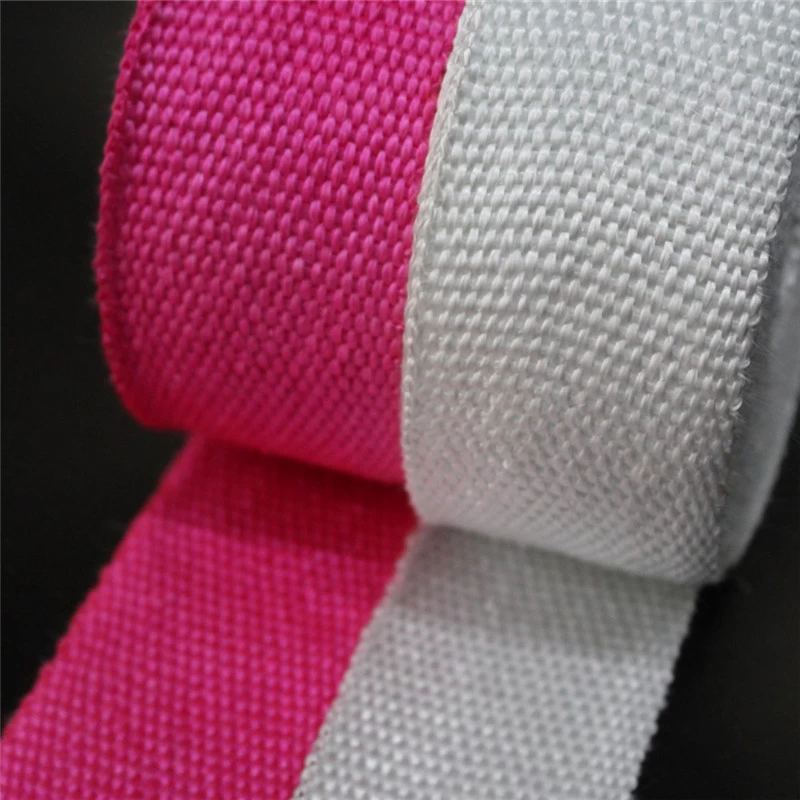

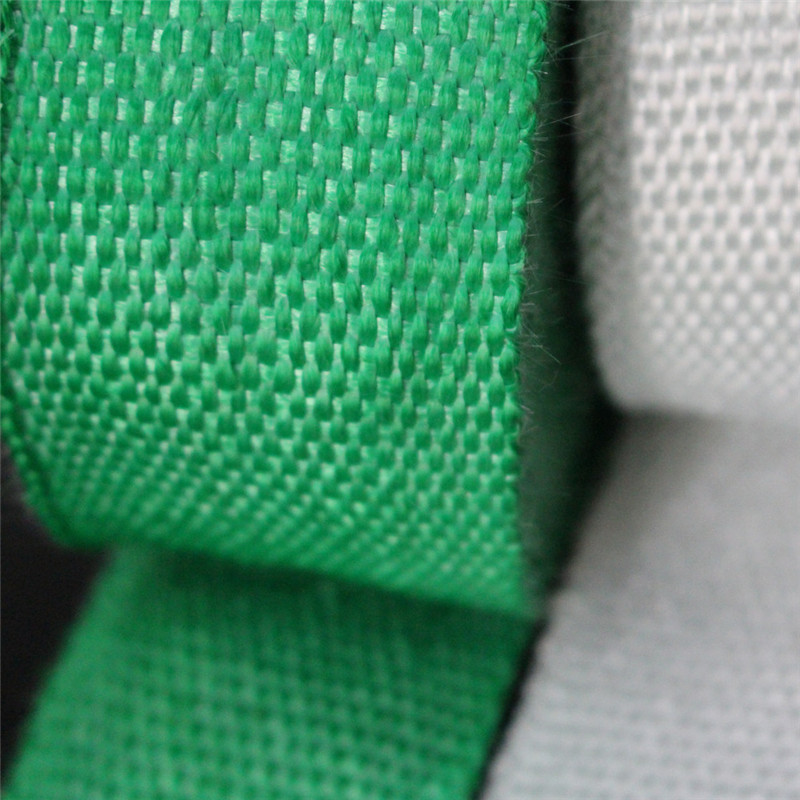

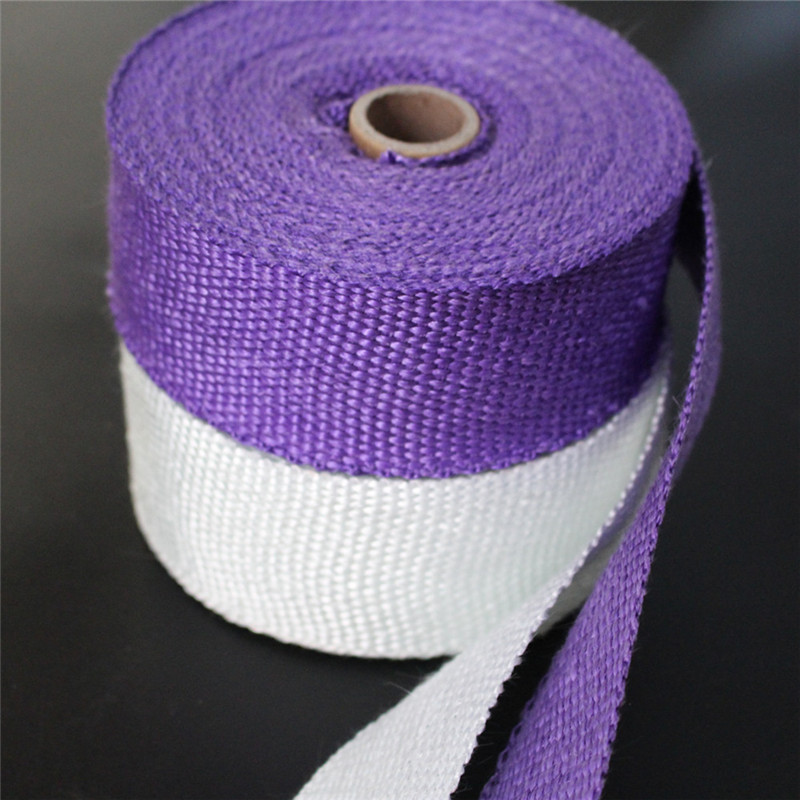

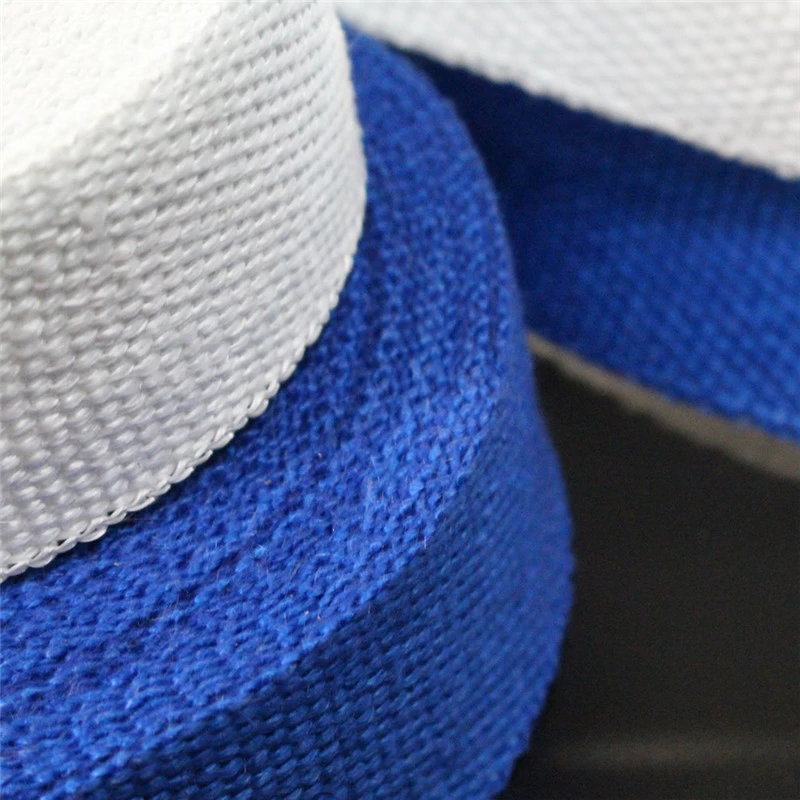

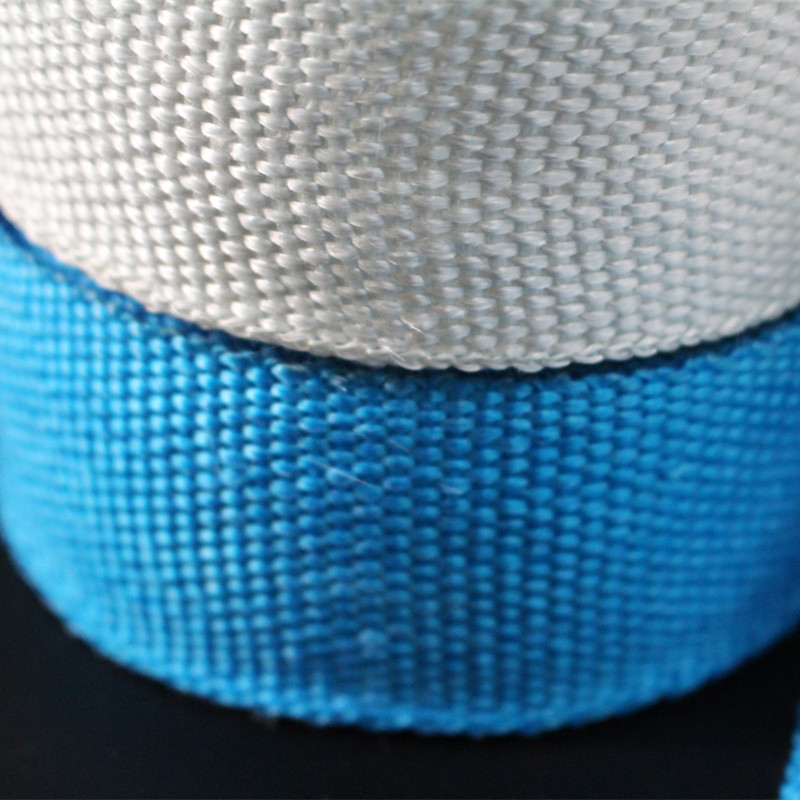

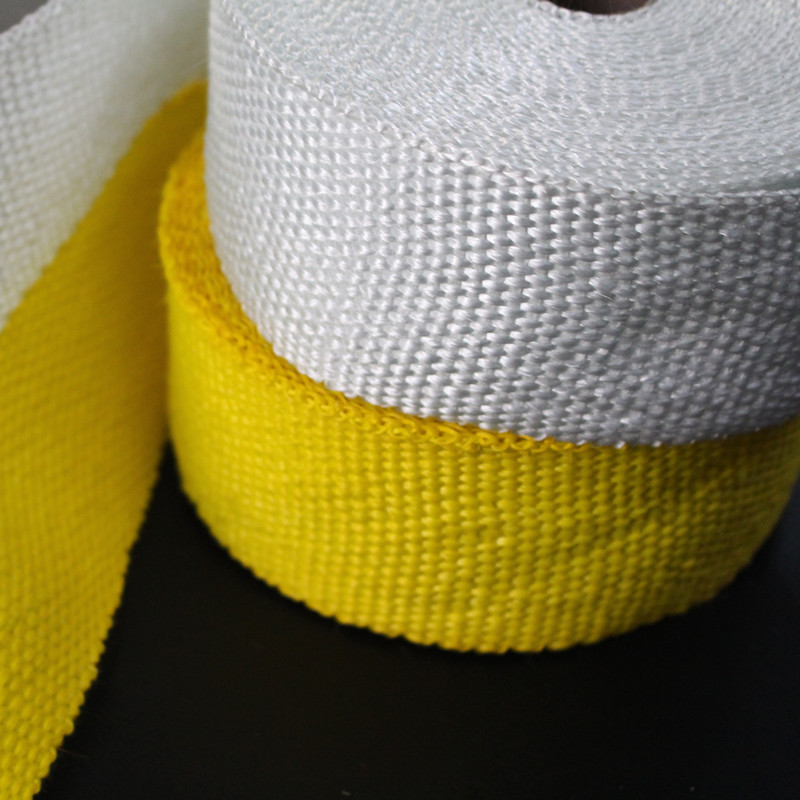

The wrap is available in white, tan, light blue, dark blue, red, pink, purple, yellow, silver, green, orange.


Feature

Withstands 1800 degree F direct/2500 degree F intermittent heat


Application

Used to protect headers, exhaust pipe, mufflers, catalytic convertors.


Specifications

Datasheet
Material Fiberglass
Continuous Temperature 1200 °F
Melt Temperature 2000 °F
Standard Thickness 1.5mm
Thickness 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm
Width 1", 1-1/2", 2", 3", 4", 6", 8"
Length MAX 50 meter/roll
Color white, tan, light blue, bright blue, dark blue, red, pink, purple, yellow, silver, green, orange, black
Package Each roll with shrink film
Cutting Tool Scissor


Part Number Description
121015 1 in × 15 ft Roll
121025 1 in × 25 ft Roll
121033 1 in × 33 ft Roll
121050 1 in × 50 ft Roll
121100 1 in × 100 ft Roll
122015 2 in × 15 ft Roll
122025 2 in × 25 ft Roll
122033 2 in × 33 ft Roll
122050 2 in × 50 ft Roll
122100 2 in × 100 ft Roll
123100 3 in × 100 ft Roll
124100 4 in × 100 ft Roll
126100 6 in × 100 ft Roll
Part number will be follow WH for white color, TN for tan color, RD for red color, OR for orange color, GR for green color, YL for yellow color, LB for light blue, BB for bright blue, DB for bark blue, PK for pink color, PP for purple color, SL for silver color.


Notes:

Special width and color upon request.
