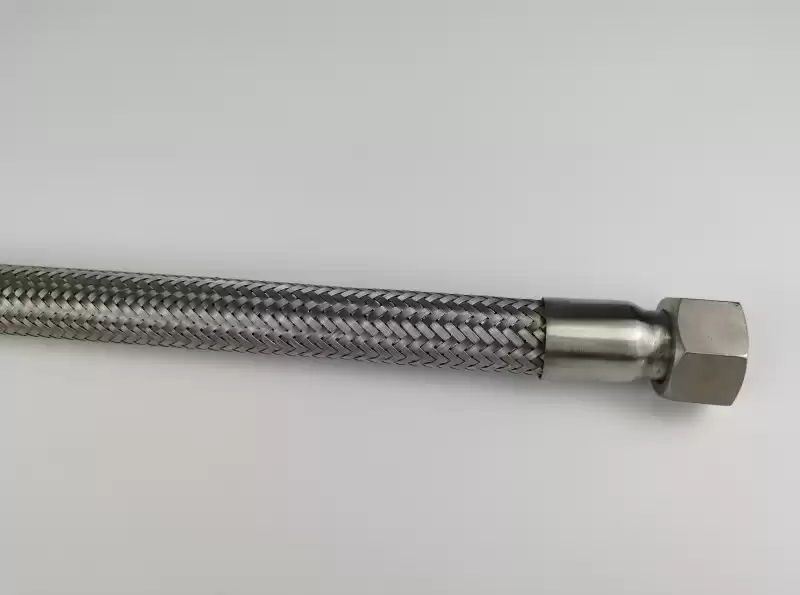

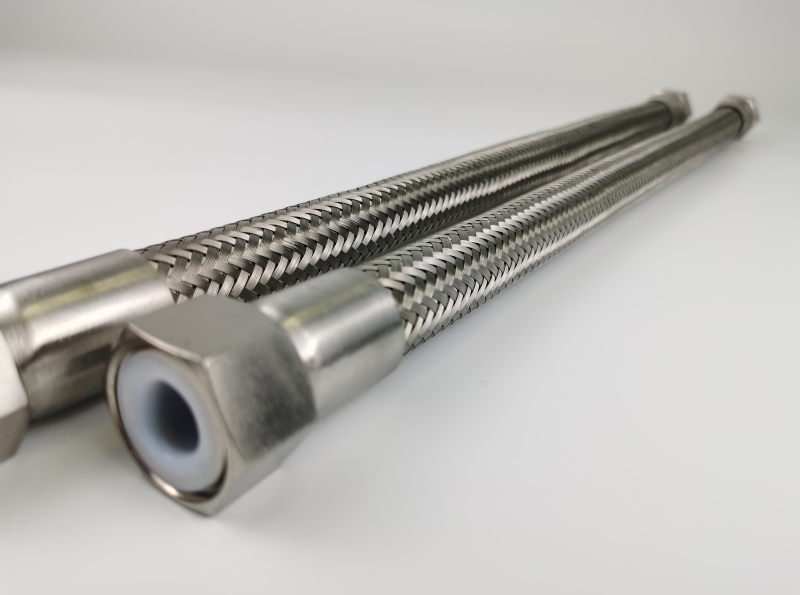

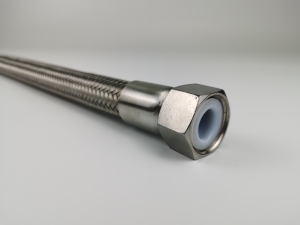

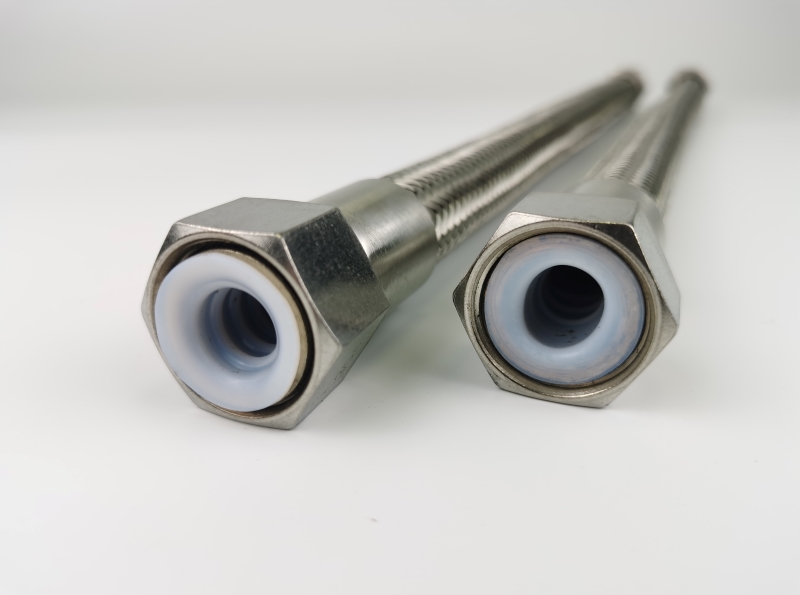

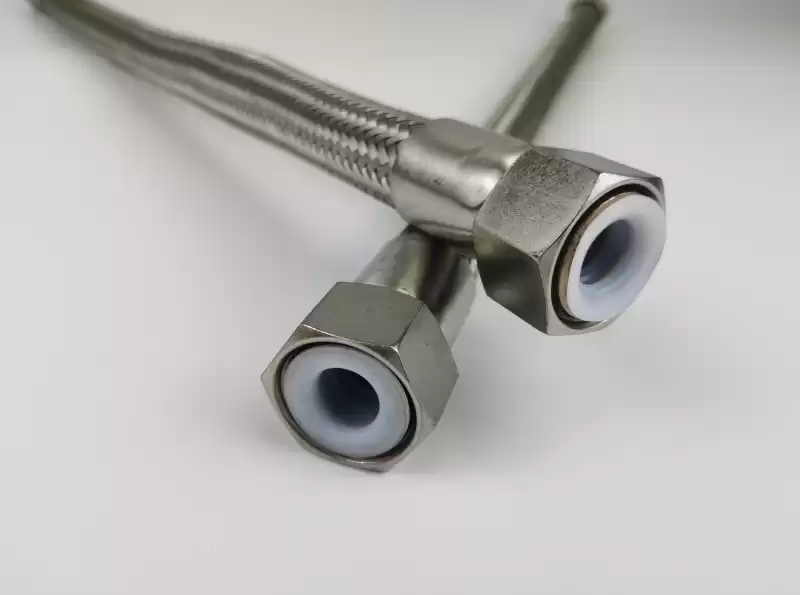

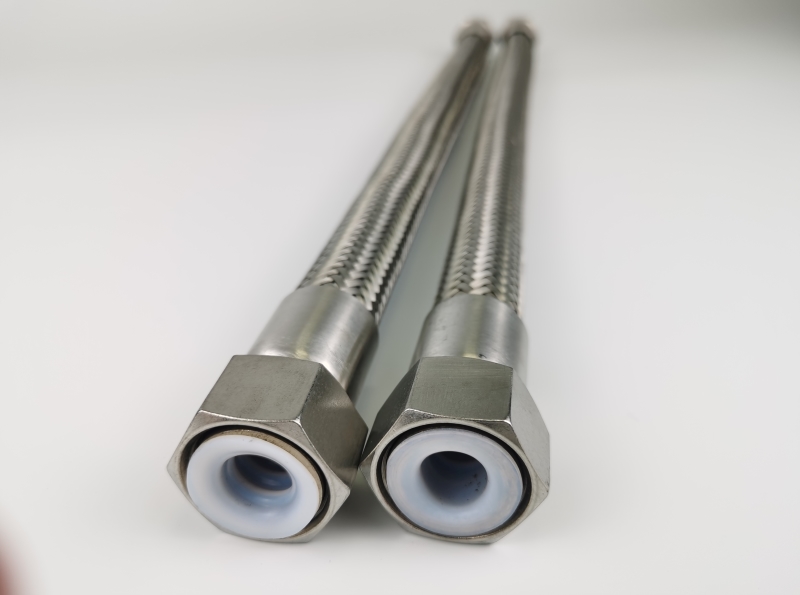

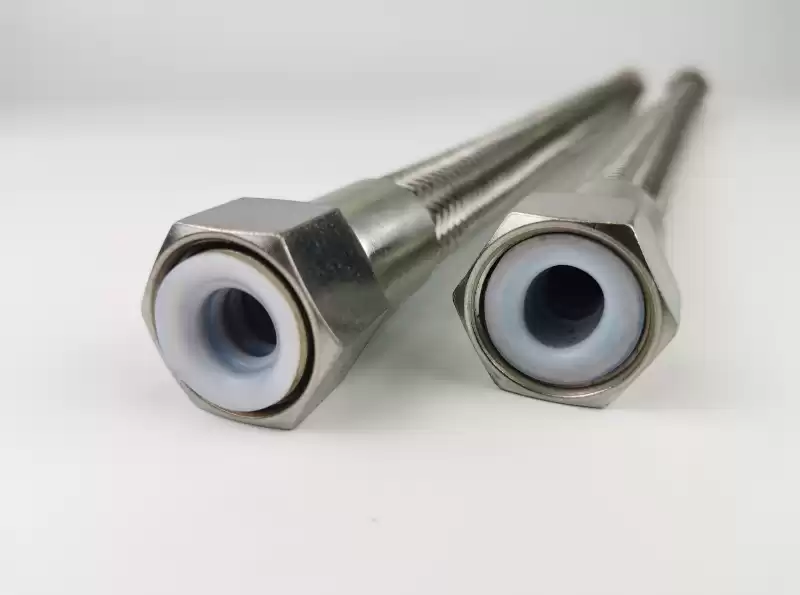

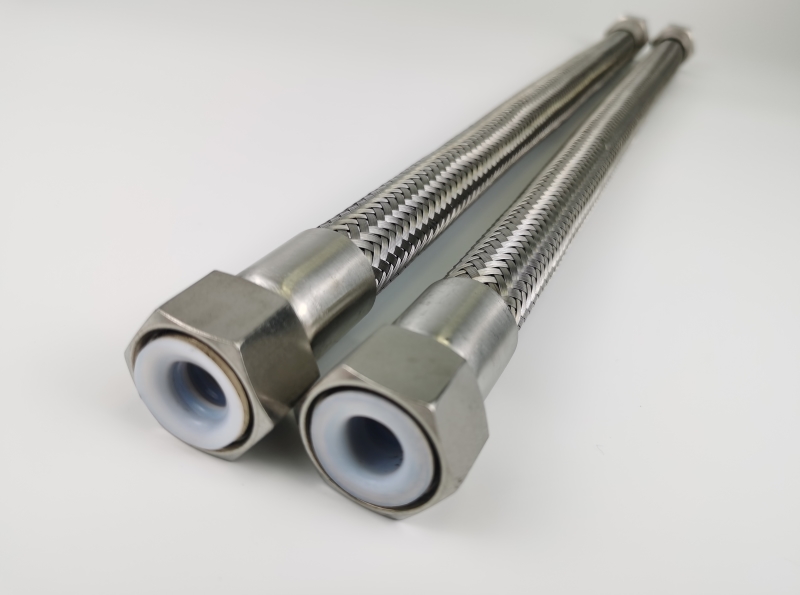

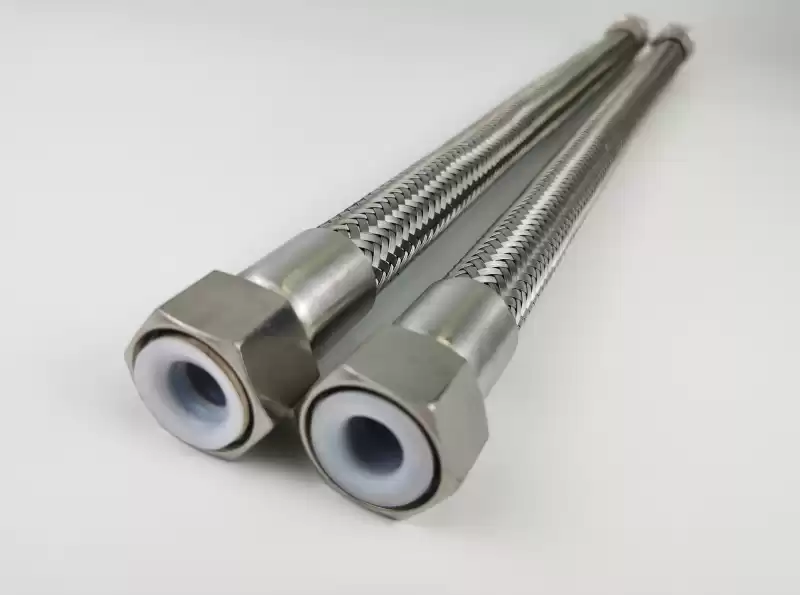

Expansion Inter PTFE lined Flexible Metal Hose

Material of the SS304 wire braided PTFE flexible metal hose, outer is ss304 stainless steel wire braided, middler is ss304 stainless steel corrugated hose, inner is PTFE tube.

Customized with buyer's specific design, such as I.D, O.D, Lenth, Connects, Material, Printed Tag, Package, etc.



Expansion Inter PTFE lined Flexible Metal Hose


Flexible metal hoses are indispensable flexibility hoses in industrial pipelines, qualified superior sealability, high pressure and high temperature, high temperature and low temperature resistant, corrosion resistant.

Applicated in chemical industry, water system, electric power,  roboticized equipments, hydraulic system, aviation field, gas and steam system and other industrial system.


Construction of Flexible Metal Hose Assemblies:

Inner Core: PTFE Corrugated Tube

Middler Layer: SS304 stainless steel corrugated hose

Outer Cover: SS304 Wires Braided


PTFE hose features

  • Corrosion resistance: can withstand all strong acids(including aqua regia), strong oxidants, reductant and a variety of organic solvents, in addition to molten alkali metals, fluorinated media and above 300℃ NaOH

  • Insulation: not affected by the environment and frequency, volume resistance up to 1018Ω/㎝, small medium loss and high voltage.

  • Temperature resistance: little effect on different temperature, has a wide range of temperature from -100~+260℃.

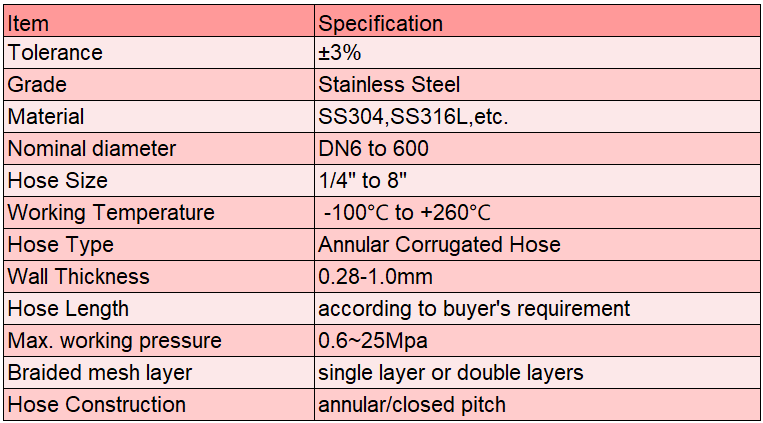

Product Specification:

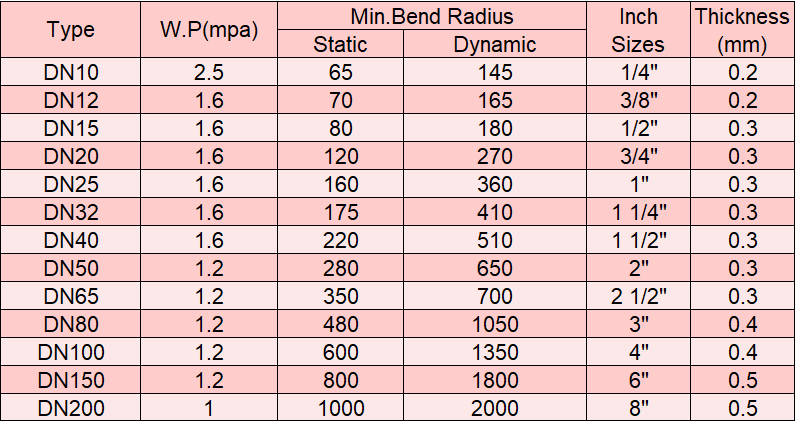

Flexible Metal Hose Performance Parameters As Below:



Custom Service

1.Customized with specific design, such as I.D, O.D, Lenth, Connects, Material, Printed Tag, Package, etc.

2.OEM/ODM service can provide what you want and custom design printed to your specification.

3.Purchase a free sample order for test quality before place on full order.
