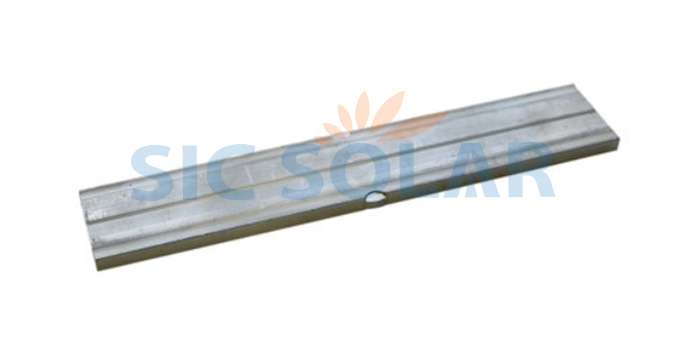

Profile connector for aliminum rails
Mounting rail extension is currently in use is compressed in the middle which prevents it from slipping into the rail.

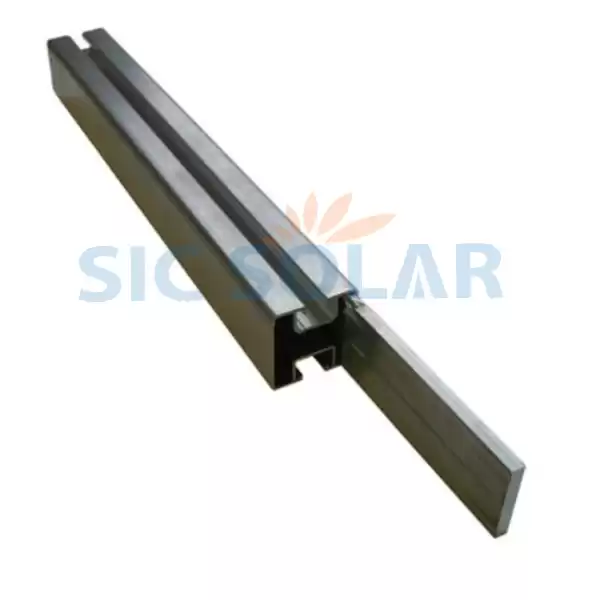

The assembly is done by hammering into the first profile and pushing the second profile on with force.

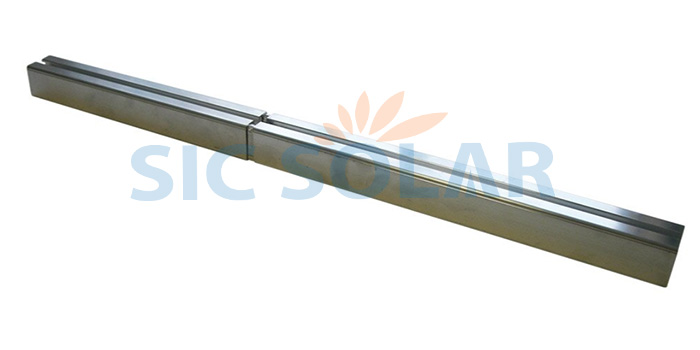

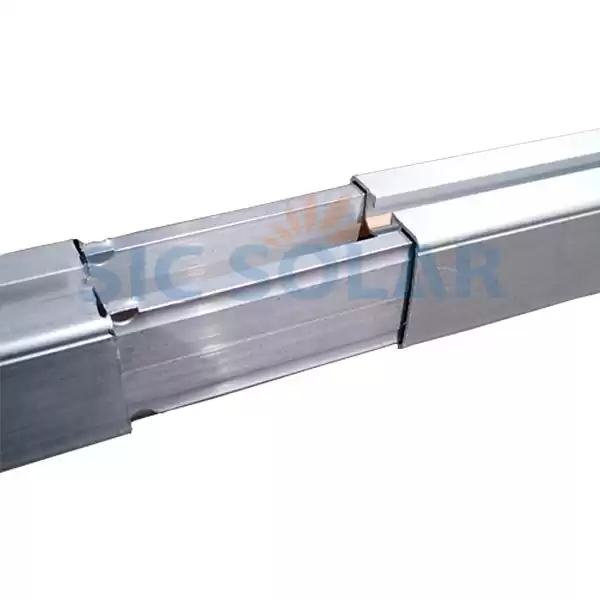

After pushing the two rails together, the rails are compressed.
Category: Solar components
|
Installation Site
|
Roof
|
|
Wind Load
|
<60M/S
|
|
Snow Load
|
<1.4KN/M2
|
|
Material
|
AL 6005-T5
|
|
Color
|
Silver or Black
|
|
Warranty
|
10 years and 25 years service time
|
|
Length
|
200mm
|
Advantages as follow:
☆ Easy to use - Pushing the two rails together, the rails are compressed.
☆ Good design – No screws or nuts required.
Related Certificate
Our CE Certificate for solar tile hook roof mount system
Our standard package is cartons with plywood pallet as below.
Q1. What's the material of this rail extension?
It is AL 6005-T5.
Q2. How to use this rail extension?
The assembly is made by punching in the first profile, then pressing the second rail onto it.
Q3. How many pcs should use for 40*40 mounting rail?
It is recommended to use two extensions per connection.
