Improvement of our outdoor security lights housing FL03:
1. Concealed screw on surface.
2. Gear type heat sink.
3. Protruding stage to protect painted surface.
4. Double screw hole ventilation to fit monochrome and RGB.
5. Perfect drainage system with gutter inside.
6. Multiple stitching to support high power projection.
|
Detailed data
|
|
Product name
|
china supplier ground mounted light case led housing flood light
|
|
Item No.
|
MSL-FL01-3
|
Glass material
|
Tempered clear glass
|
|
Type
|
Flood light housing
|
Luminousness(Glass)
|
95%
|
|
Brand
|
Mansolo
|
Lens materail
|
PMMA
|
|
Lampshade material
|
Aluminum alloy
|
Luminousness(Lens)
|
92%
|
|
Surface treatment
|
Powder coating
|
Power scope
|
24-36W
|
|
Standard color
|
Black, dark grey, light grey
|
IP rate
|
IP67
|
|
Warranty(housing)
|
5 years
|
Salt spray
|
300hours
|
|

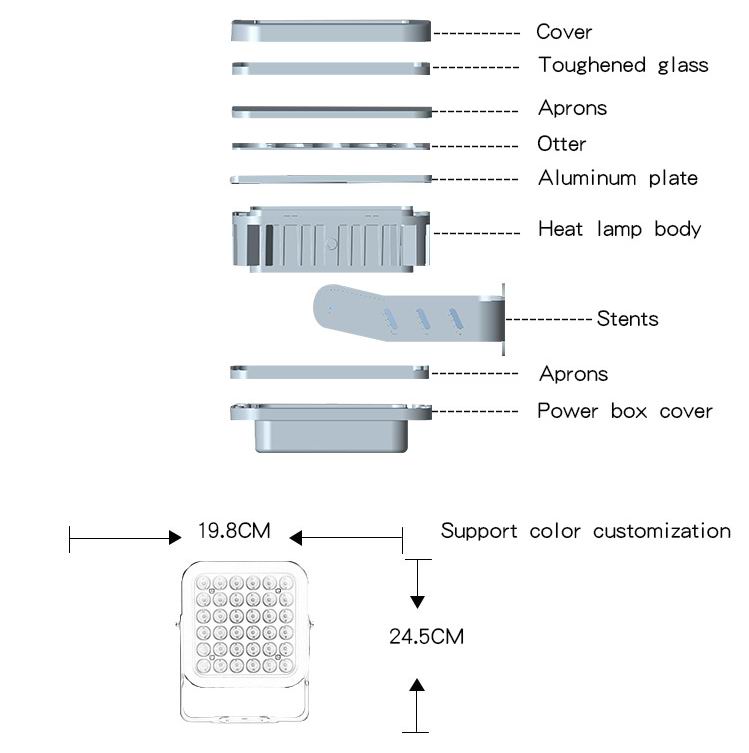

Fixture Parts
|
Surface cover/Lamp couer/Fixed plate for lens/Heat sink body/Waterproof power box/Stents
|
Net weight
|
2.55KG
|
Production process
(housing)
|
Die casting \Machining\ CNC \polishing \powder coating
|
Fixture size
|
L19*W10.8*H24.3
|
