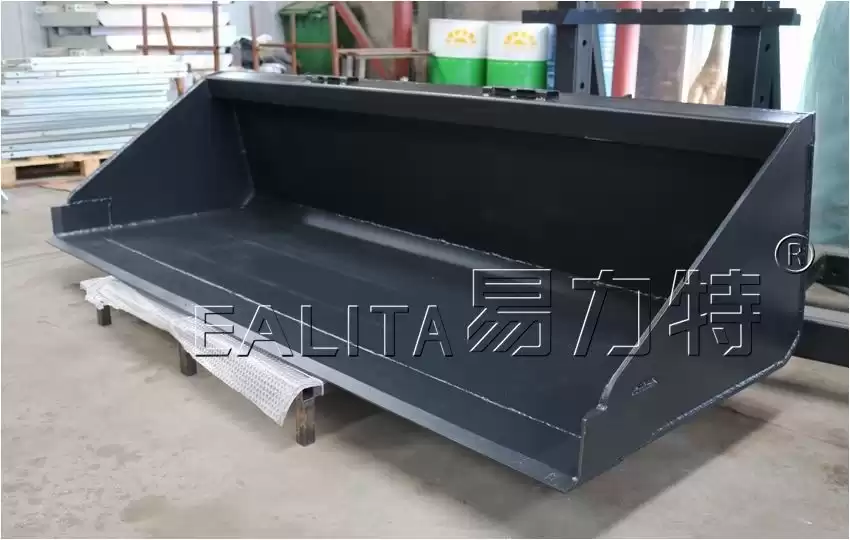

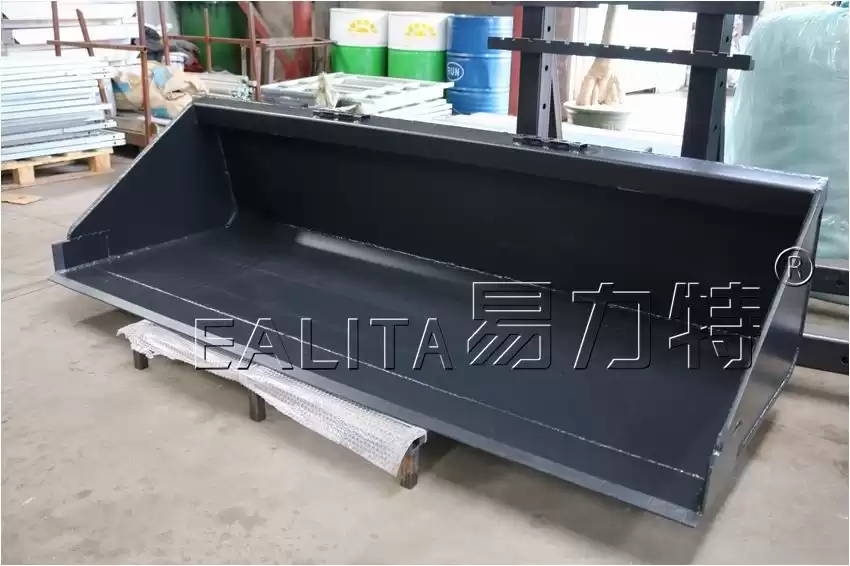

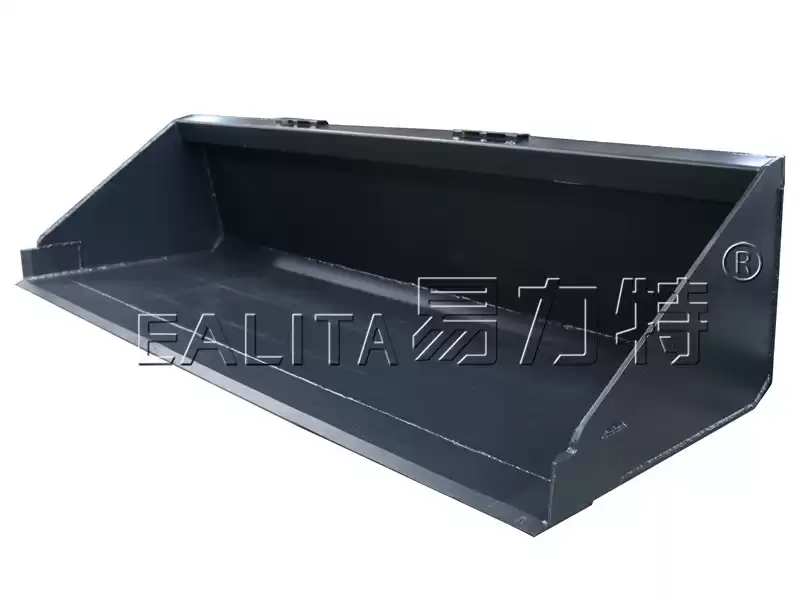

Tough built and heavy duty construction Skid Steer General Purpose Bucket
- 12mm bottom plate, 6mm sides plate with 12mm reinforced.
- Reinforced back; 12mm skid plates on base; 20 mm cutting edge
- Standard universal skid steer quick attach
- Longer base for good visability
- Custom width & sizes as request
Specification
|
Type
|
Code
|
Width
|
Capacity
|
Unit Weight
|
|
S-08105
|
03.03.06.0017
|
62"-1575mm
|
0.44 m3
|
237 kg
|
|
S-08110
|
03.03.06.0019
|
66"-1675mm
|
0.48 m3
|
250 kg
|
|
S-08115
|
03.03.06.0020
|
68"-1727mm
|
0.50 m3
|
255 kg
|
|
S-08125
|
03.03.06.0021
|
72"-1830mm
|
0.53 m3
|
268 kg
|
|
S-08145
|
03.03.06.0023
|
78"-1980mm
|
0.57 m3
|
286 kg
|
|
S-08155
|
03.03.06.0024
|
84"-2133mm
|
0.61 m3
|
298 kg
|
