Eye & Clevis Mounting ISO-SDB

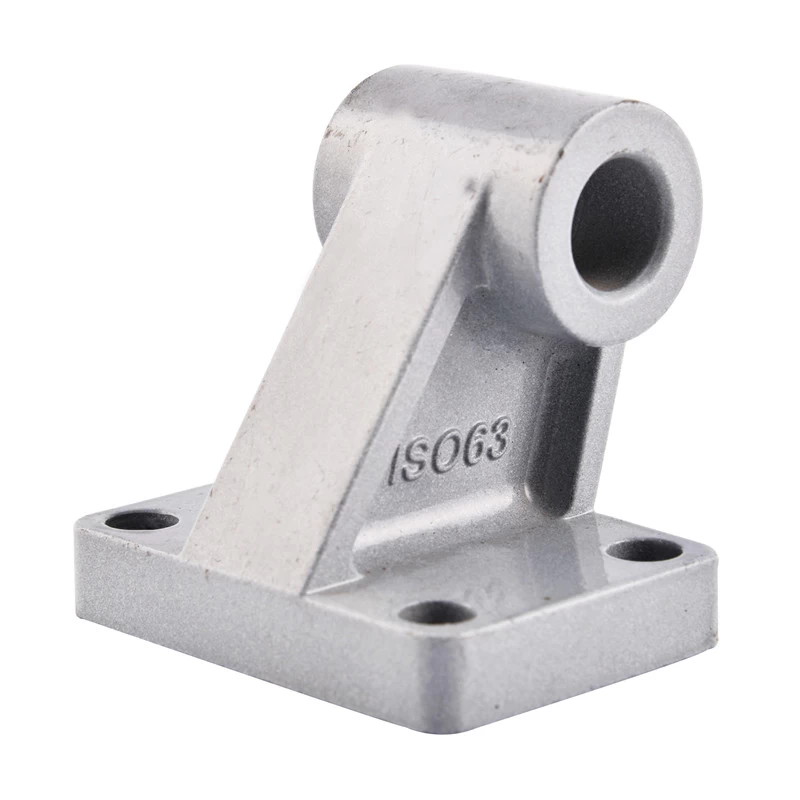

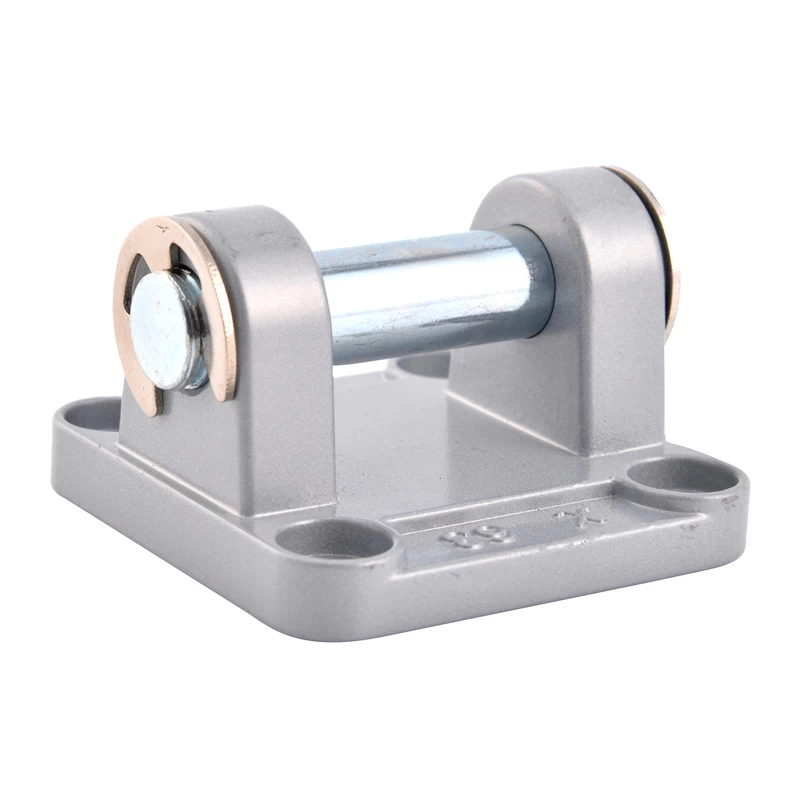

ISO-SDB ( Wide Hinge )






Wide Hinge ISO-SDB63

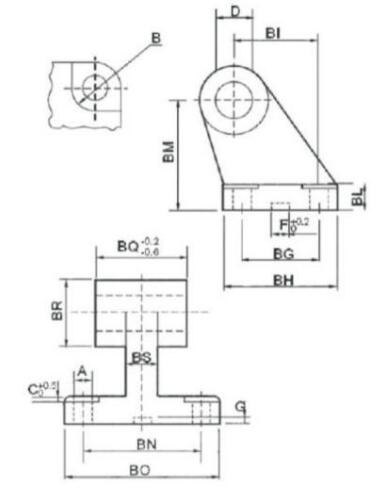

Symbol
Bore
32 40 50 63 80 100 125
A 6.6 6.6 9 9 11 11 14
B 11 11 15 15 18 18 20
BG 18 22 30 35 40 50 60
BH 31 35 45 50 60 70 90
BI 21 24 33 37 47 55 70
BL 8 10 10.5 12 14 17 20
BM 32 36 45 50 63 71 90
BN 38 41 50 52 66 76 94
BO 51 54 65 67 86 96 124
BS 12 15 18 22 20 20 30
BR 20 22 26 30 30 38 45
C 1.6 1.6 1.6 1.6 2.5 2.5 3.2
D 10 12 12 16 16 20 25
F 10.5 10.5 10.5 10.5 10.5 10.5 10.5
G 3 3 3 3 3 3 3
BQ 25 28 32 40 50 60 70
