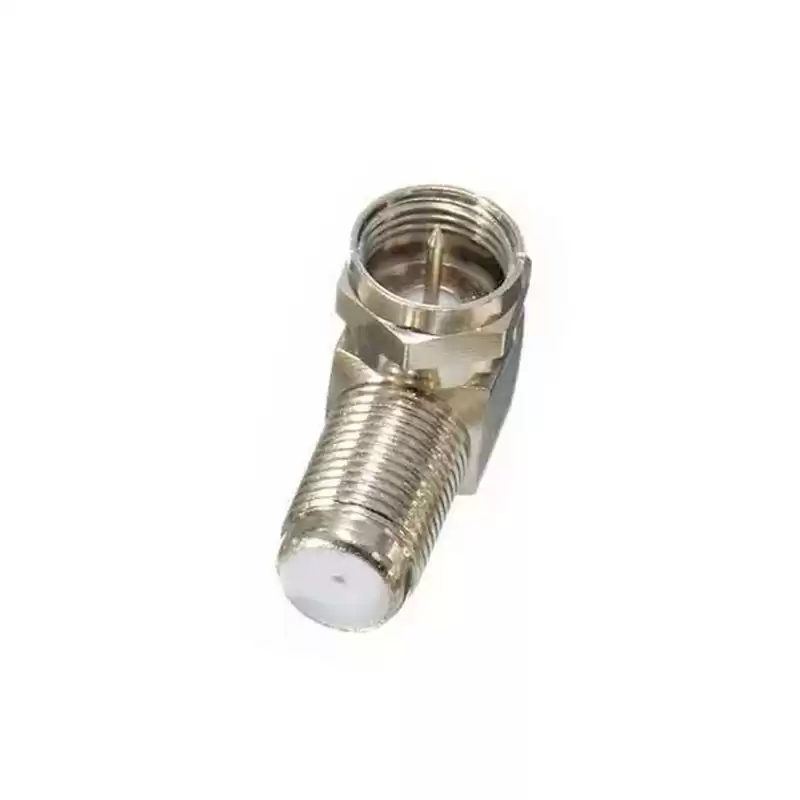

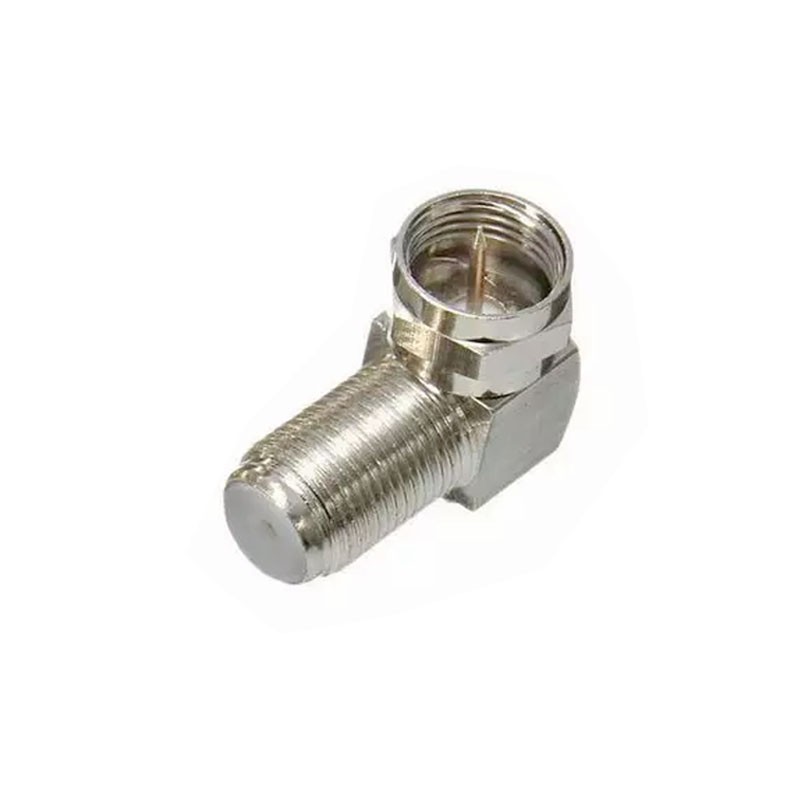

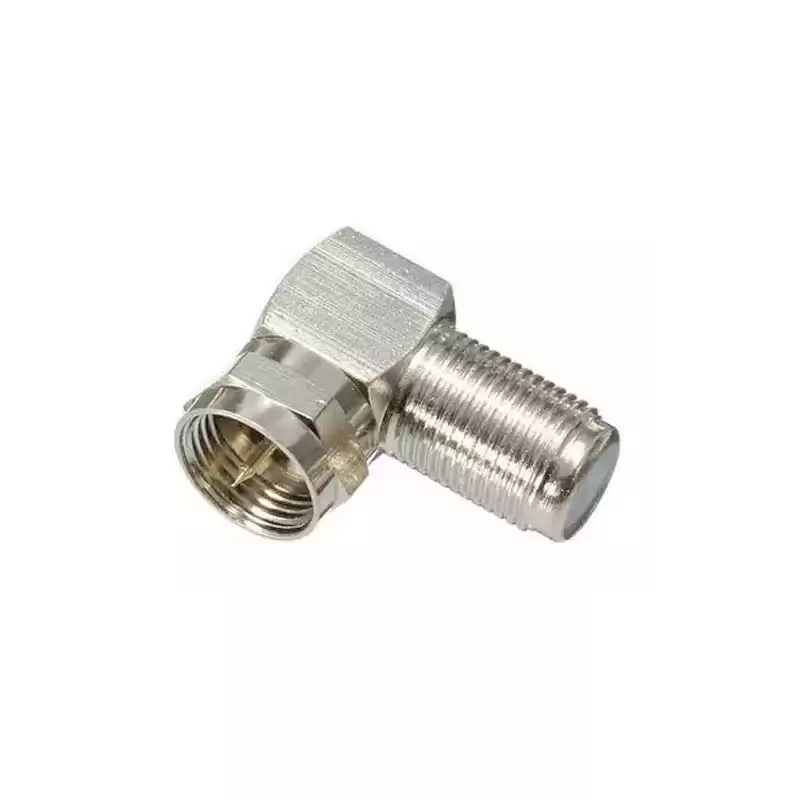

F Male to F Female Right Angle RF Coaxial Connector Adapter
The F Type Adapter has different F to F adapter gender, that is a series coaxial adapter, The F to F adapters has female to female, female to male or male to male gender combinations. This F Type male to F female adapter has a maximum frequency of 3GHz, and is a right angle body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
F |
| Adapter Side 1 Style |
Male |
| Adapter Side 2 Series |
F |
| Adapter Side 2 Style |
Female |
| Frequency (Max GHz) |
3GHz |
| Impedance (Ohms) |
75 |
| Low PIM |
No |
| Orientation |
Right Angle |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass/Zinc Alloy |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Antennas DAB Aerial Adapter
- Coaxial Cables
- Radio Scanners
- Ham Radio Transceivers
- CB Radio Handheld&Amateur Radio Transceivers
- CB Radio Handheld&Amateur Radio
