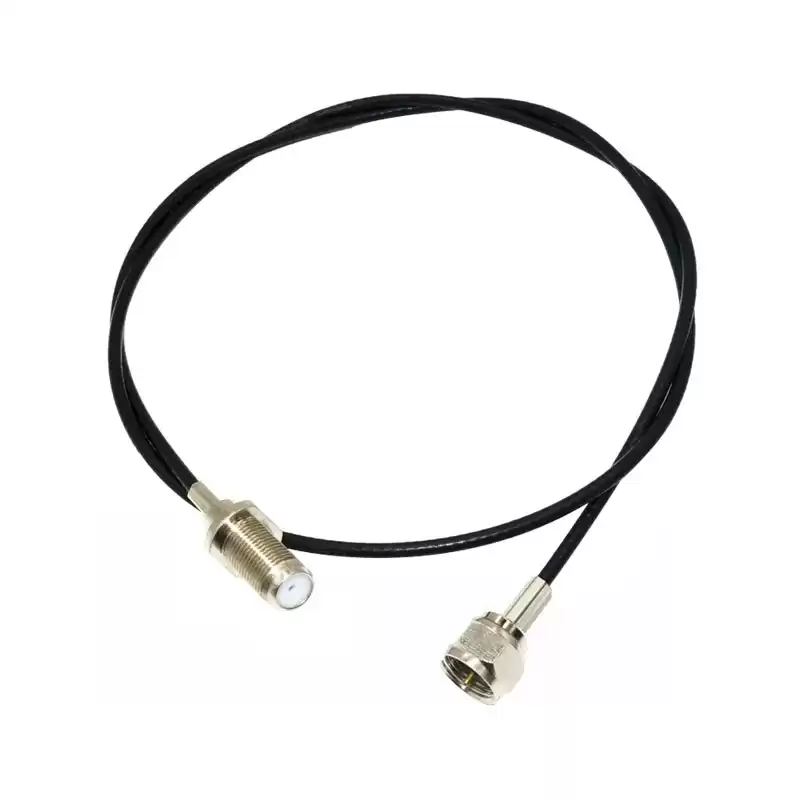

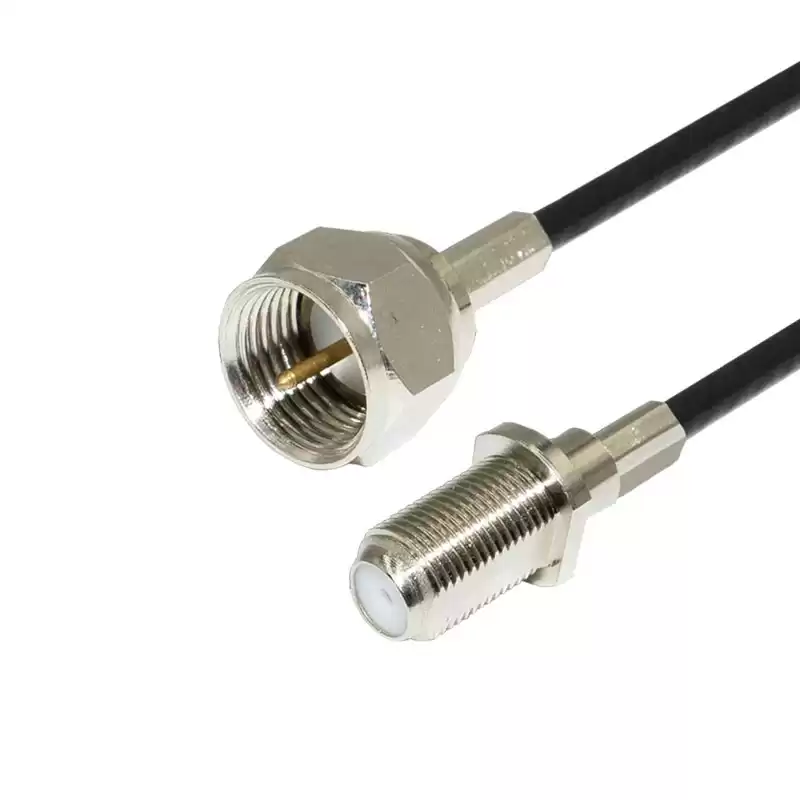

F Type Female to F Type Male Connector Cable Assembly with RG179 Coax Cable
The Type F cable assembly can use flexible coaxial cable such as RG11, RG179, RG187, RG59, RG6 or RG6-CATV cable; the body of F to F cable assembly is right angle or straight connector which is female to female, male to female or male to male gender. This F female to F male cable assembly uses a 75ohm straight type F for connector 1 and a 75ohm Straight F for connector 2, Cable is flexible cable type RG179.
Specifications
| |
|
| Connector 1 Series |
F |
| Connector 1 Style |
Str Female |
| Cable Type |
RG179 |
| Connector 2 Series |
F |
| Connector 2 Style |
Str Male |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 or 75 |
| Low PIM |
No |
| Max Frequency |
3GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Radio Scanners
- Antennas DAB Aerial Adapter
- CB Radio Handheld&Amateur Radio Transceivers
- Ham Radio Transceivers
- CB Radio Handheld&Amateur Radio
