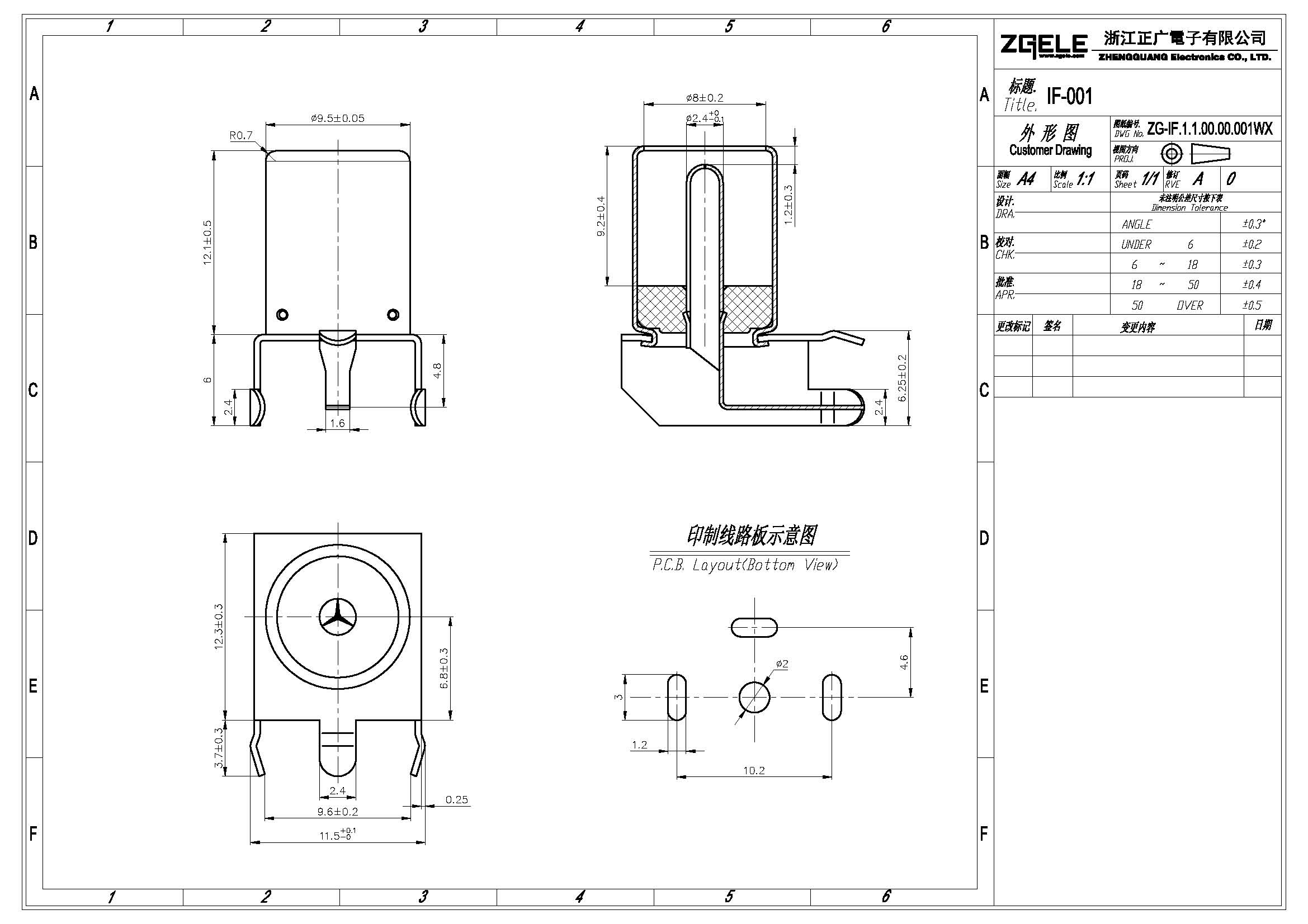

F-TYPE RADIO FREQUENCY COAXIAL CONNECTOR

The F-Type connector series is a high performance, cost competitive threaded connector series. Primary applications of the F-Type connectors are for cable television (CATV), set top boxes and cable modems.

Facebook Twitter Pinterest LinkedIn 分享


  • Head End Equipment
  • Set Top Boxes
  • CATV
  • High Speed Cable Modems
  • CIMs
  • Hybrid Fiber Coax Networks
  • Electrical
    Impedance 75 Ohms
    Frequency Range DC-1 GHz, extended range to 3 GHz
    RF Leakage -100dB min @ 1 GHz

    Environmental
    Temperature Range -40⁰F to +140⁰F

    Mechanical
    Mating 3/8-32 threaded
    Cable Attachement Hex braid-crimp
    Cable Retention 20 lb min

    These characteristics are typical and may not apply to all connectors.
