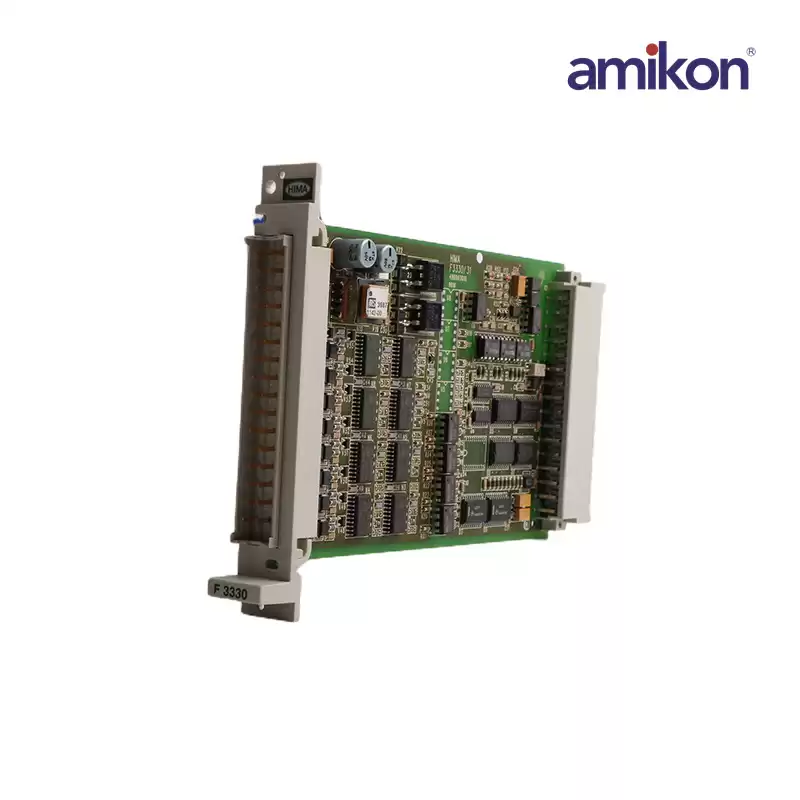

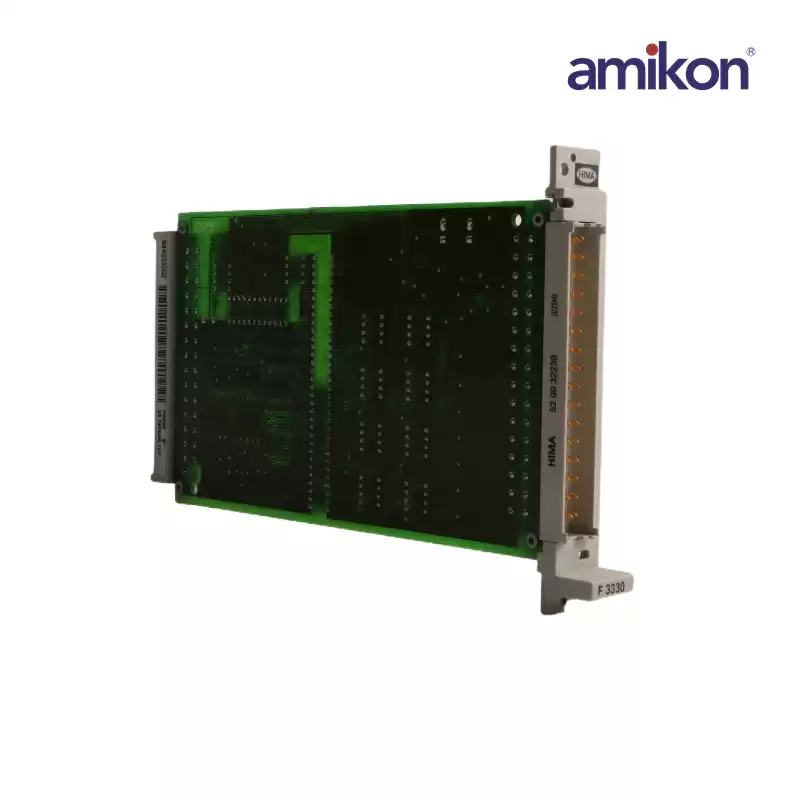

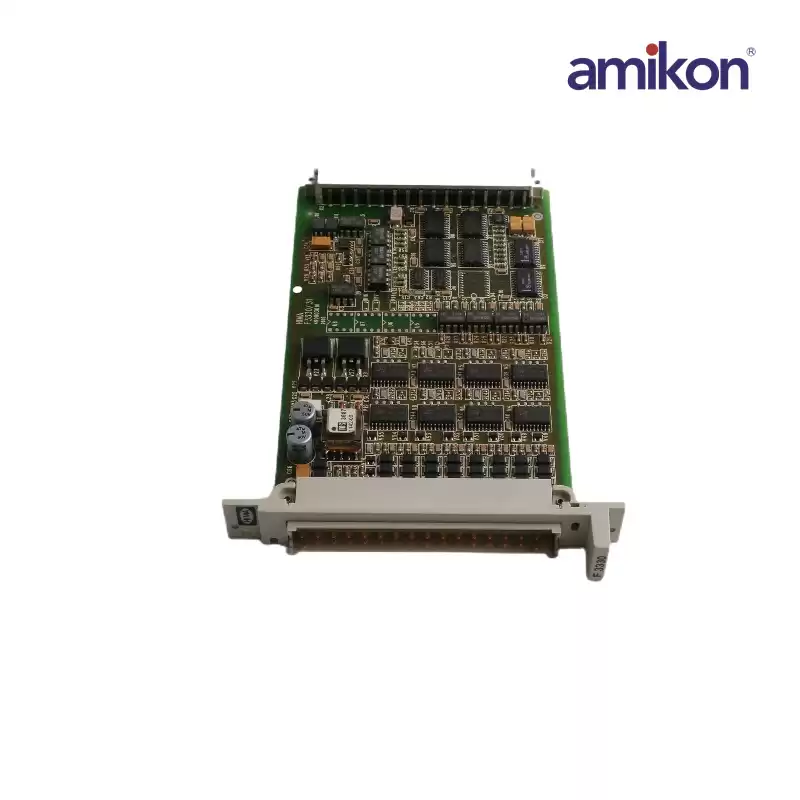

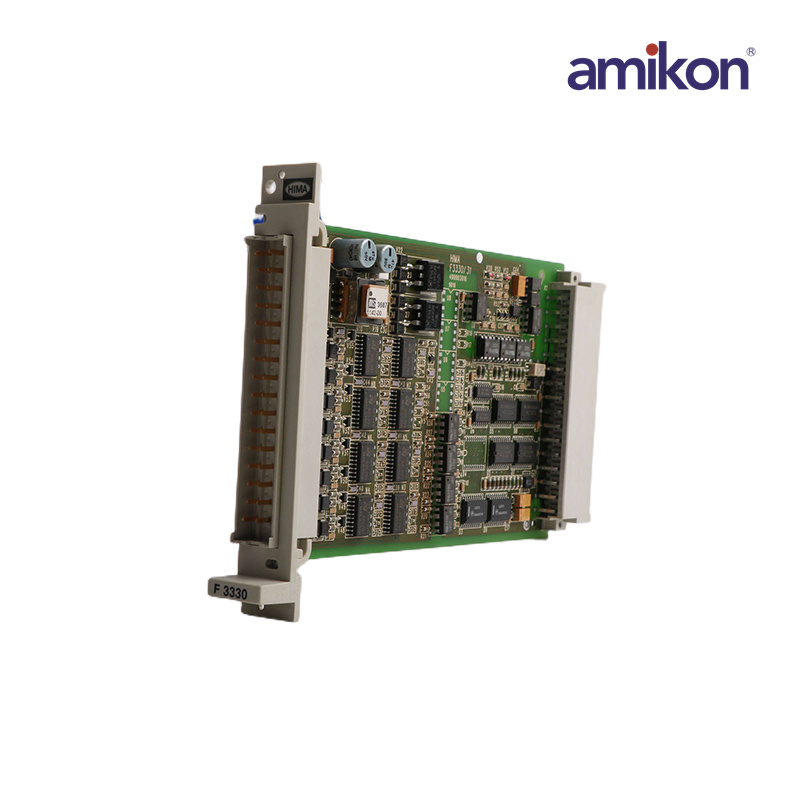

8 fold output module, safety related
resistive load or inductive load up to 500 mA (12 W), lamp connection up to 4 W, with integrated safety shutdown, with safe isolation, no output signal with break of the L- supply requirement class AK 1 ... 6
The module is automatically tested during operation. The main test routines are:
– Reading back of the output signals. The operating point of the 0 signal
read back is ≤ 6.5 V. Up to this value the level of the 0 signal may arise
in case of a fault and this will not be detected
– Switching capability of test signal and cross-talking (walking-bit test).
Outputs 500 mA, k short circuit proof
Internal voltage drop max. 2 V at 500 mA load
Admissible line resistance (in + out) max. 11 Ohm
|
