Fabric Co2 Laser Cutting Machine for Cloth Cutting
Of most large bed co2 laser cutting machine 1600*1300 cutting bed is the best for fabric cutting .
80W 100W 120W 150W (CO2)glass tube Laser power.
1600 x 1300 mm work area.
Baisheng laser unique Design, Cost-effective China Manufactured laser machine.

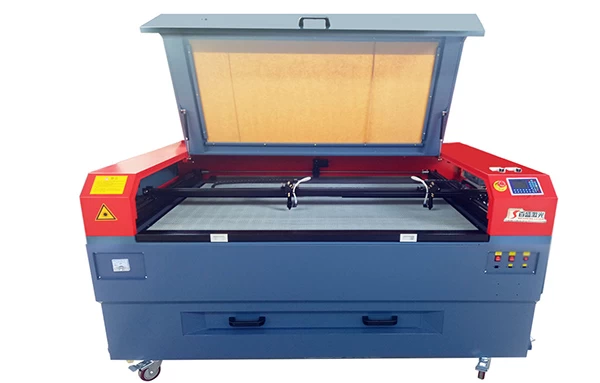

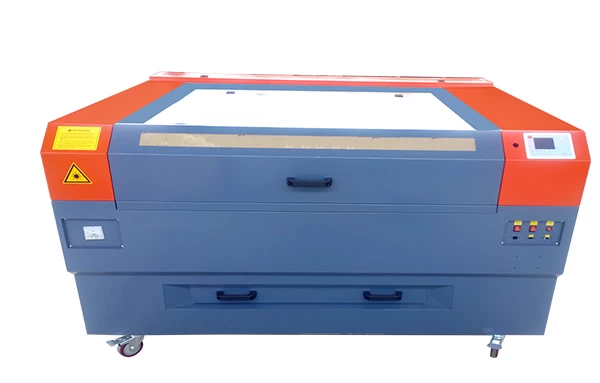

The
floor-standing AS-1613C is a larger sized, dual laser tubes,powerful,versatile laser
cutting-engraving machine - ideal for those who need a good sized work area for
both engraving and cutting, with higher power for faster processing.
Such cnc laser engraver is a popular laser machine for
many types of industry and higher education.
Fabric Co2 Laser Cutting Machine Technical Parameters
|
Model Name
|
AS-1613
|
|
Origin
|
China
|
|
Machine Type
|
Laser cutting and Laser engraving
machine.
|
|
Control Interface
|
Ruida or Topwisdom
|
|
Memory
|
32 M flash memory in the machine for job
storage.
|
|
Work Size
|
1600 x 1300 mm
|
|
Up / Down Work Table (Bed)
|
250 mm mechanically adjustable.(option)
|
|
Laser Tube Type
|
CO2 sealed glass tube
|
|
Tube brands
|
CDWG .Yongli.Reci co2 laser tube
|
|
Available Laser Power
|
80W / 100W /120W/150W CO2.
|
|
.water chiller
|
S&A China
|
|
Speed Range
|
0.1 mm/sec to 800 mm/sec.
|
|
Software Resolution
|
20,000 DPI.
|
|
Electronic Precision
|
< 0.01 mm.
|
|
Angle Accuracy
|
> 0.1º
|
|
Repeatability
|
> 0.1 mm.
|
|
Software version
|
Latest
|
|
Accepted File Formats
|
HPGL, BMP, DXF, AI, G-Code.
|
|
Interface
|
USB2
|
|
Motors
|
X and Y micro stepper motor China Leadshine
|
The AS-1613 comes with:
-
80W / 100W / 120W /150W dual (CO2)
laser tubes.
-
A minimum of 12 months warranty:
laser machine and tubes 8 months.
-

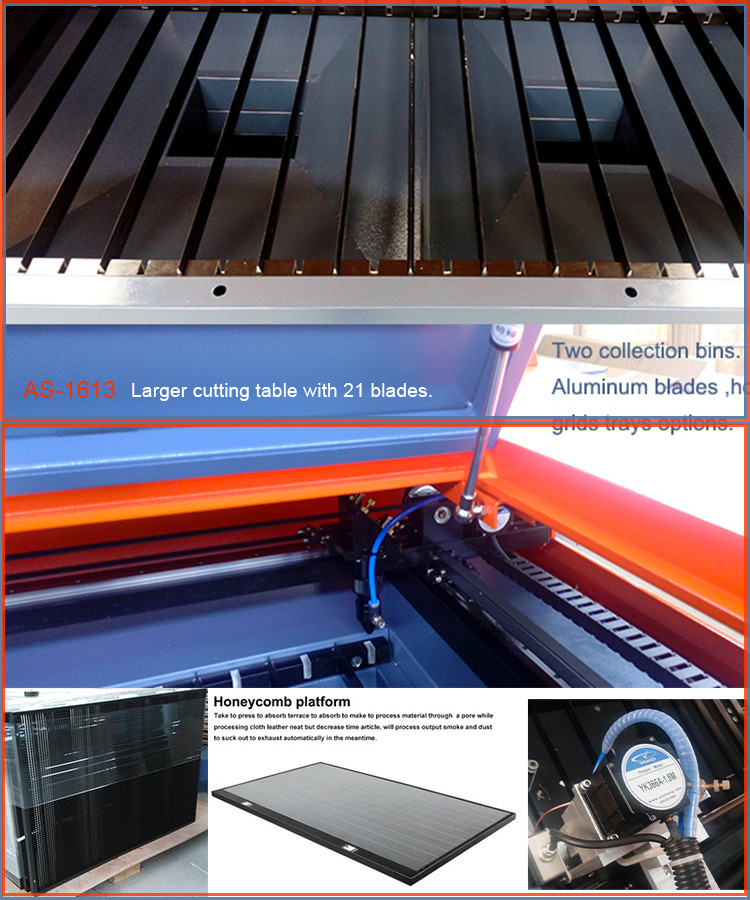

Knife-edge bar bed or honeycomb table.
-
Optical path red dot pointer.
-
Air assist pump.
-
water chiller
-
Laser design software.
-
memory stick operaton manual for installation.
-
on-line guide.
