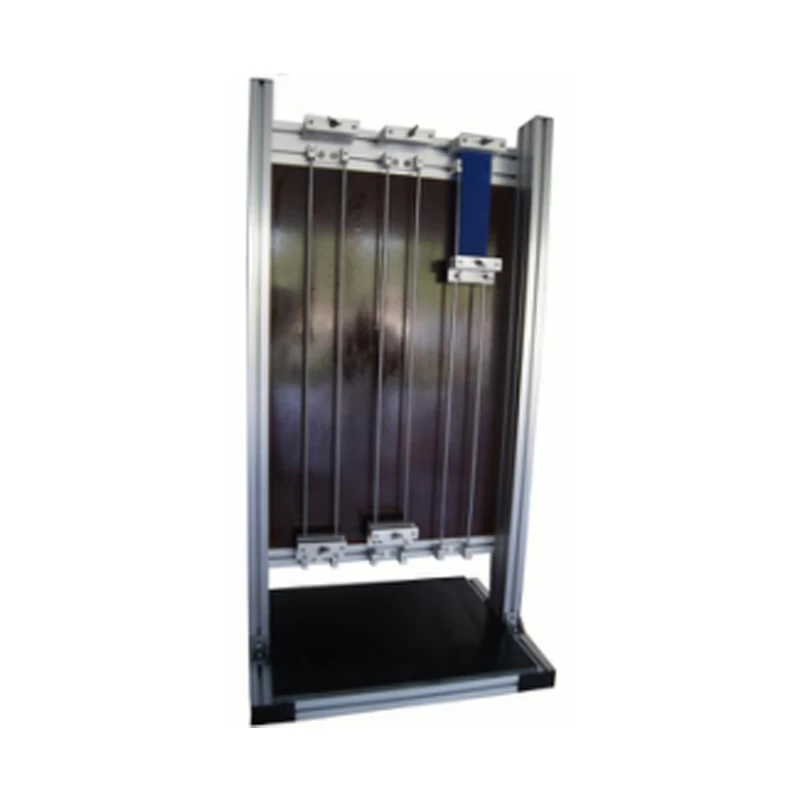

Fabric Stretch and Recovery Tester GT-C181
Product Introduction
|
Application:
This equipment Fabric Stretch and Recovery Tester was designed according to ASTM D3107, mainly used for evaluation of the amount of fabric stretch, fabric growth, and fabric recovery of fabrics woven in whole or in part form stretch yarns after a specified tension an extension.
Standards:
ASTM D3107
|
Feature
1.Fixed Load Method: Clamp the specimen in the upper clamp, hang the specified weights under it, after 4 cycles loading ,then test its stretch, growth, and recovery performance.
2.Fixed Extension Method: Clamp the specimens in the upper and lower clamp separately, move lower clamp to stretch the specimen until specified extension, keep for certain time, then test its growth, and recovery performance.

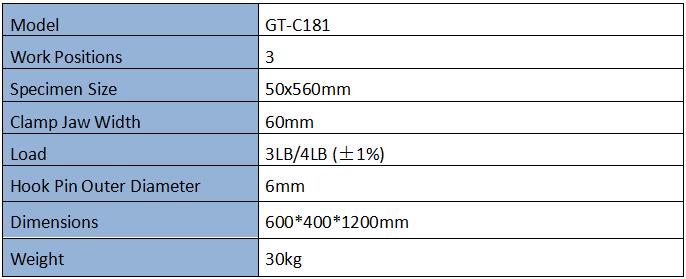

Key Specifications
