Product Name:Face Recognition Tempeerature Measuring Terminal Body Temperature Monitoring APP Alarm Attendance Management
Feature
●Using Hisilicon 3516CV500 series high-performance CPU and Sony HD IMX327/200W HD image sensor.
●Adopt high-precision infrared temperature collector,non-contact automatic body temperature detection,accurate and efficient.
●Temperature monitoring range 30-45°C,accuracy HKUST ±0.3°C.
●Real-time output of authentication results and voice prompts.
●Automatically identify unmasked personnel and provide real-time warning.
●Automatically register and record information, avoid thermal operations, improve efficiency and reduce missing information.
●Using monocular live detection, face recognition distance 0.3-1 meters, photos, video anti-fake.
●Unique face recognition algorithm accurately recognizes the face, the face recognition time is less than 500ms, supports 10,000 face contrast.
Specification
|
Model
|
ANSDEN YAZ-PVR800
|
|
System
|
|
Operating System
|
Embedded LINUX Operating System
|
|
Video
|
|
Imaging device
|
1/2.8 Sony IMX327
|
|
Video coding standard
|
H.264/H.265
|
|
System standard
|
PAL 50HZ/NTSC 60HZ
|
|
Effective resolution
|
1920*1080/1280*720
|
|
Screen size
|
7 inch LCD HD screen
|
|
Video stream
|
128kbps-12288kbps (default variable bit rate)
|
|
SNR
|
SNR ≥69dB
|
|
Minimum illumination
|
Daytime mode 1Lux, night vision mode 0.01Lux
|
|
Day and night mode
|
Automatic (passive mode)/day/night/automatic (active mode)/timed
|
|
Automatic White Balance (AWB)/Backlight Compensation (BLC)/Gain (AGC)/Wide
|
Dynamic Auto
|
|
Automatic Electronic Shutter (AES)
|
AUTO/ 1/50 (1/60)-1/100,000sec
|
|
Video output
|
Easytool/EasyVMS client/mobile APP client/7 inch LCD HD display
|
|
Motion detection
|
Support
|
|
Snapshot function
|
Support
|
|
Audio
|
|
Coding standard
|
G.711U
|
|
Audio input
|
Passive microphone MIC/active pickup
|
|
Audio output
|
External 8Ω/MAX 1.5W speaker
|
|
Recording management
|
|
Recording method
|
Manual recording, alarm recording, timing recording
|
|
Video save
|
TF card (full function board)/PC terminal/NVR
|
|
Alarm
|
|
Alarm input/output
|
Support Wiegand protocol
|
|
Alarm trigger
|
Motion detection alarm, speaker alarm, alarm recording, snapshot, email sending
|
|
Network
|
|
Wifi module/ protocol
|
M8188 (external 2.4G antenna)/support 802.11 b/g/n (full function board)
|
|
Network protocol
|
HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search(Support P6S IP camera, DVR, NVS and etc.)
|
|
Other
|
|
TF card capacity
|
Maximum support 128GB (General FAT32 format) full function board
|
|
Working voltage
|
Standard DC-12V (wide voltage 10-16V)
|
|
Working current
|
160mA ±10mA
|
|
Working environment
|
-20℃ --- 65℃
|
|

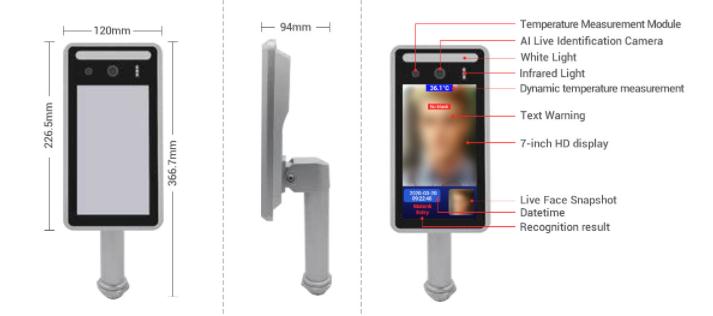

Size and weight
|
|
Product size
|
120mm*94mm*366.7mm
|
|
Product weight
|
1.3kg
|
|
Packing size
|
173mm*125mm*435mm
|
|
Package weight
|
1.5kg
|
Dimension
Temperature monitoring range 30-45°C, accuracy HKUST±0.3C.

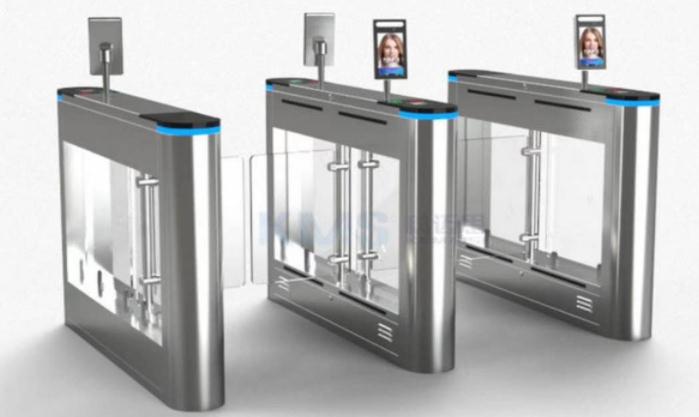

Application
Can be used in various scenarios such as residential quarters,corporate units,shopping malls,supermarkets, service industry venues, urban public transportation entrances and exits.
