Factory cheap price swimming pool water equipment cartridge filter

Features
1)Compact and light
2)UV-resistant tank
3)Easy to service
4)Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element
5)Screw type air bleeder for easy removal of the trapped air inside the filter tank
6)High quality oil filled pressure gauge




Description
This cartridge filters is compact and light.The UV-resistant tank can prevent it from the demage of the sun.Its maximum pressure is 350 kPa/50psi.

Features
1)Compact and light
2)UV-resistant tank
3)Easy to service
4)Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element
5)Screw type air bleeder for easy removal of the trapped air inside the filter tank
6)High quality oil filled pressure gauge

Functions
1. maximum working pressure: 250kPa/36psi/2.5bar
2. factory testing pressure: 400kPa/58psi/4.0bar
3. size of silica sand: 0.5-1.0mm
4. maximum filtration velocity: 50cbm/h/sq
5. maximum water temperature: 40 degree

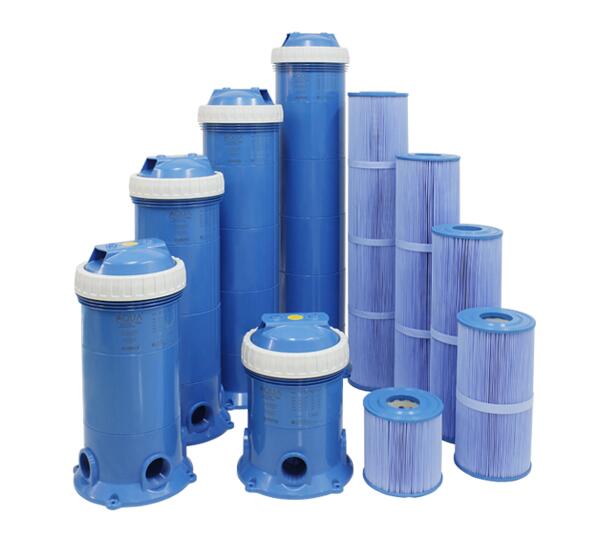

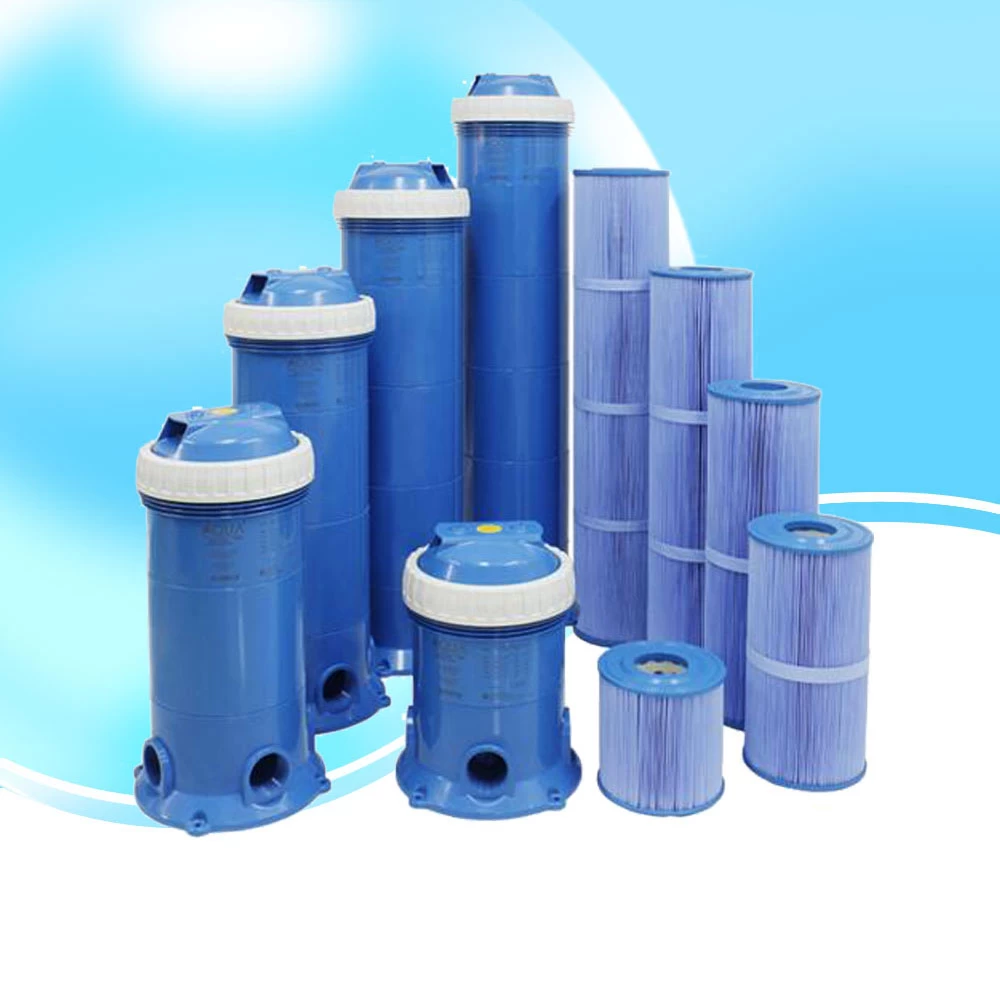

pool cartridge filter

 pool filter

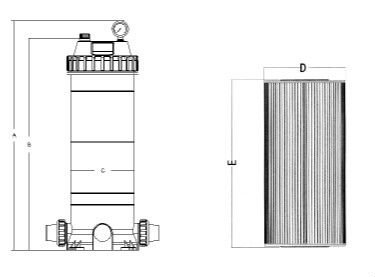

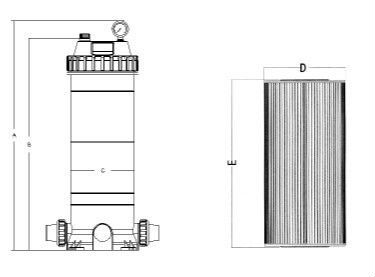

swimming pool equipment         Technical characteristic



paper cartridge pool filters / cartridge for water treatment

Maximum Working Pressure 300kPa/50psi/3.5bar
Max flow rate 5.5m3/h-40.9m3/h
Valve connection 1.5inch 50mm/2inch 63mm
Filter area 2.25m2-16.83m2
Maximum Water Temperature 40°C(100F)



 Model

 Description

CF25

25ft2 Cartridge Filter with 1.5" union sets

CF50

50ft2 Cartridge Filter with 1.5" union sets

CF75

75ft2 Cartridge Filter with 1.5" union sets

CF100

100ft2 Cartridge Filter with 2" union sets

CF150

150ft2 Cartridge Filter with 2" union sets

CF200

200ft2 Cartridge Filter with 2" union sets
