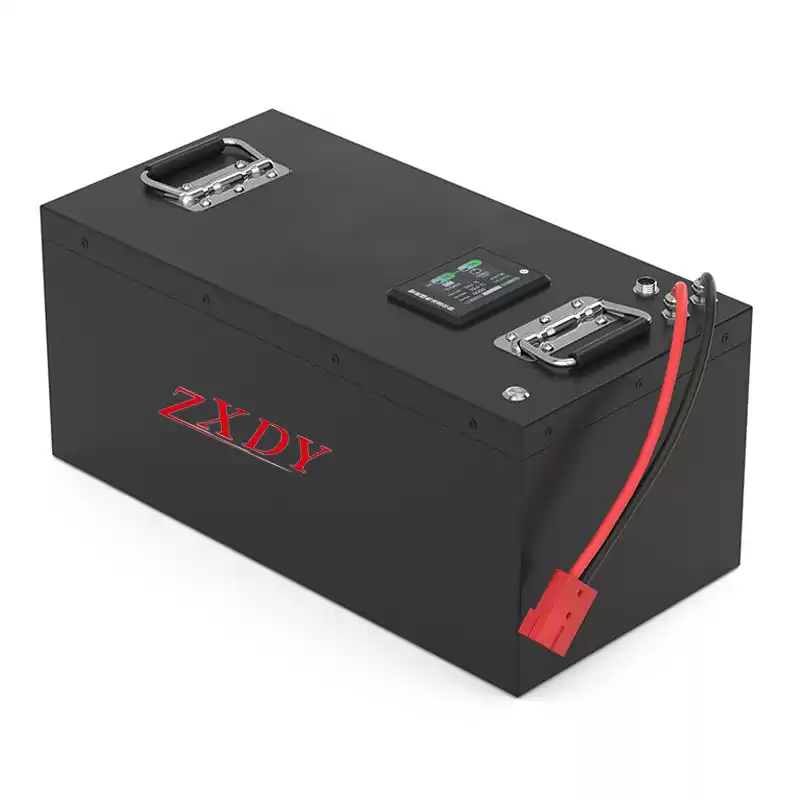

Factory Customized 48 Volt Golf Car Lifepo4 24v 100ah 200ah AGV Lithium Battery
Our AGV lithium battery is equipped with high-strength BMS protection board, stable voltage output, support current (use protection board according to battery output), and prevent overcharge, overdischarge and short circuit.You can also add circuit boards, wires and different interfaces according to customer requirements
We can provide customized services for you
1. Customize batteries for different products
Customize various 24V 48V Lithium battery packs for golf cart, RV AGV car floor washer
2. Custom 7.4v-12v-24v-36v-48v-52v-60v-72v... Lithium battery pack
3. Customize battery size and case material
4. Customize BMS charging and discharging current
5. Customized connection plug, socket and connecting wire
Lifepo4 battery pack product parameters
Norminal Battery Energy:5120wh
Norminal Capacity:100Ah
Norminal Voltage:48V
Internal Resistance:≤22mΩ
Cycle Life:>5000
Months Self Discharge:<3%
DC Normal Charge Voltage:54.75±1Vdc
Charge Mode:0.2C to 54.75V, then 54.75V,charge current to 0.02C (CC/CV)
Recommended Charger Current:≤50A
Allowed Max. Charge Current:50Adc
Charge Cut-off Voltage:54.75±1Vdc
Continuous Discharge Current:50A
Allowed Max. discharge current:100A (option:100Adc)
Rang of DC discharge voltage:37.5V-54.75Vdc
Charge Temperature:0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature:-20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature:0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity
Enclosure Protection Level:IP20
Cell & Method:48V100Ah, Prismatic
Shell material:Iron

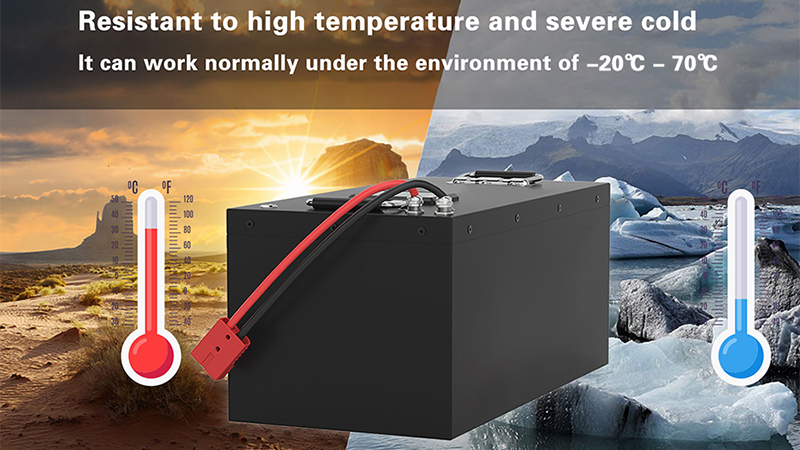

Our 24V 48V AGV battery is resistant to high temperature and cold, and can work normally at - 20c-70c

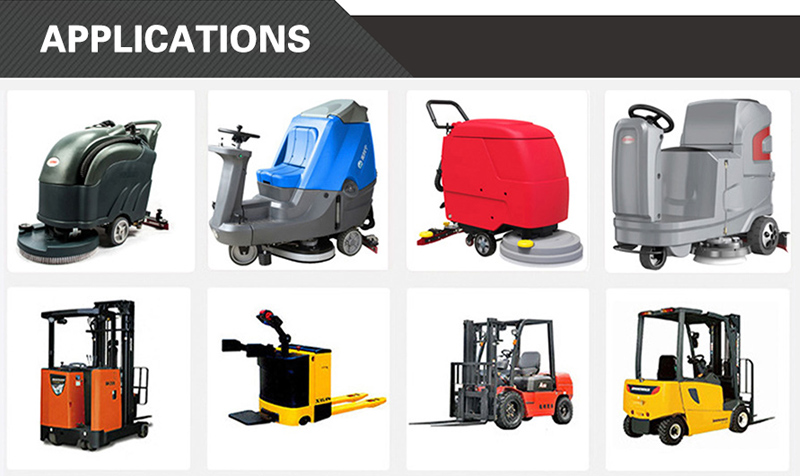

Our AGV batteries are widely used in intelligent carriers, automatic elevators, shuttle cars, restaurant robots and so on

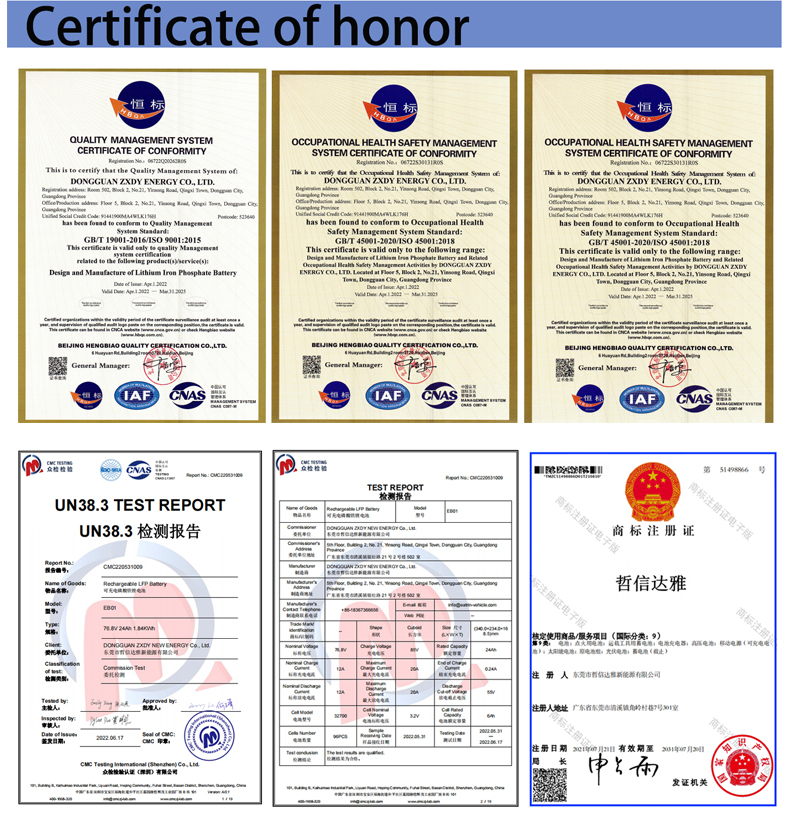

In order to provide more efficient and cost-effective lifepo4 battery 24v 100ah to meet customers' growing power demand and high quality requirements, we have passed the following certification:
1. GB / T 45001-2020 / ISO 45001 06722s30131r0s 2018 occupational health and safety management system.
2. GB / T 24001-2016 / ISO 14001r 2015 environmental management system 06722e20137r0s.
3. GB / T 19001-2016 / ISO 90012015 quality management system 06722q20262r0s.
4. UN38.3 rechargeable lithium iron phosphate battery cmc220531009.
5. MSDS rechargeable lithium iron phosphate battery cmc220531009m01.
6. Dangerous goods transportation certificate: rechargeable lithium iron phosphate battery seksz202206265622wx83001
