Factory Direct Sale Aluminum Solar Bracket Panel Mounting Screw

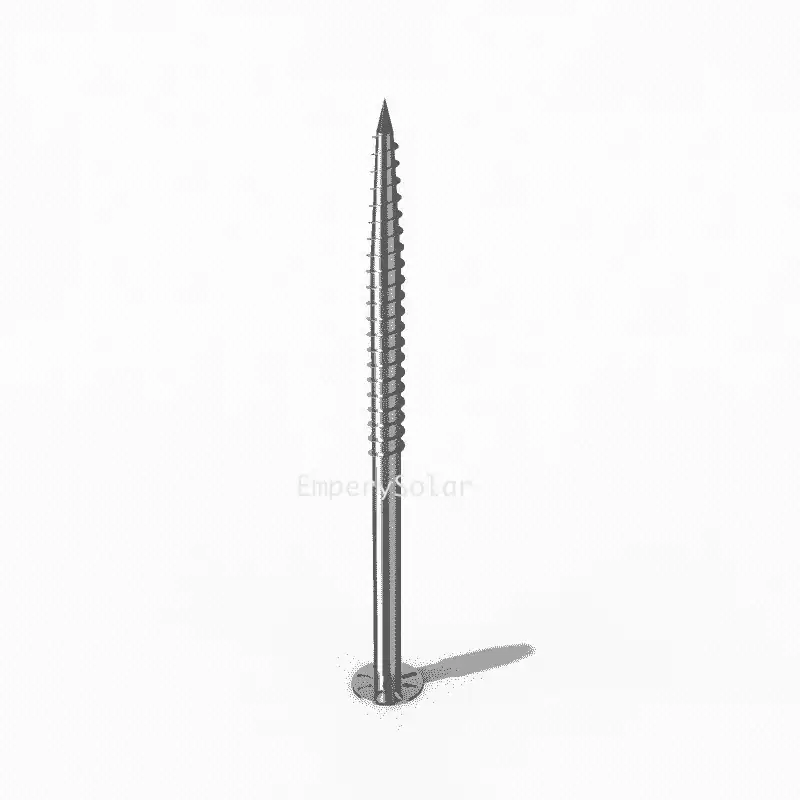

Ground Screw for solar mounting system
Empery solar Ground Screws perform perfect in anti-corrosion & wear-proof and can be freely designed and processed as customized lengths and other requirements. They can be easily installed at the exact points within few minutes. We just need to use ground screw piling machines to drive the ground screws directly into ground, which can largely reduce the project installation time. With such ground screws, installations can be realized in those not so even ground, like the ground with slopes. With these obvious advantages, Empery solar ground screws has been widely used in solar mounting installations, carports, flagpole, traffic lights, outdoor advertising boards, temporary exhibition display field, etc.
PRODUCTS DETAIL
Brand name:Emperysolar
Material:Q235 with Hot Galvanized
Surface:hot-dip galvanized 80μ steel
Anti-corrosive:Yes
Warranty:15 years warranty ,more than 20years duration
Standard: ISO9001：2000
Color:Natural
Install site:Open ground
TECHNICAL INFORMATION

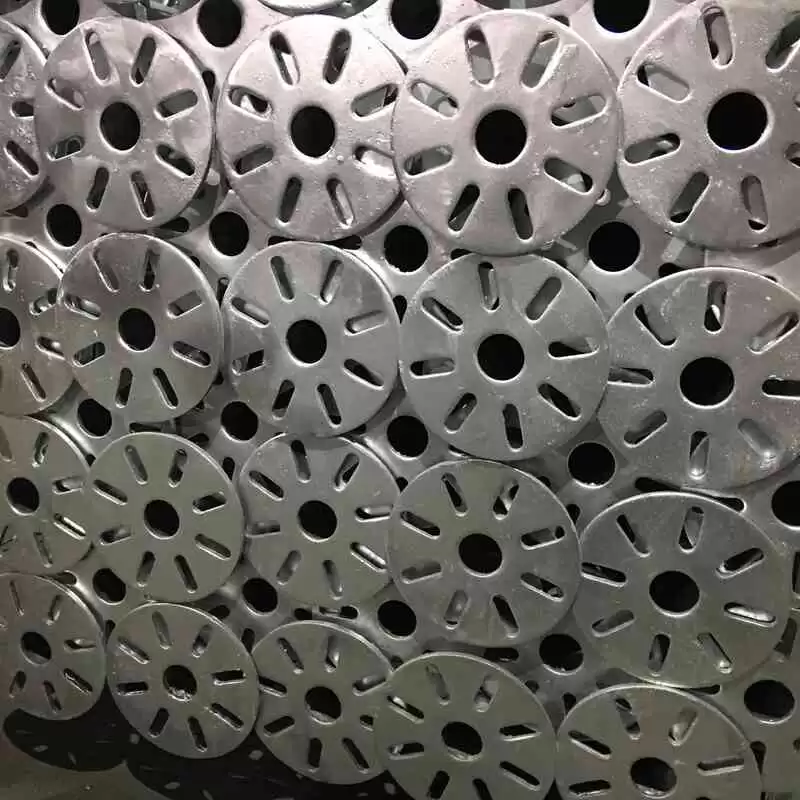

Flange: With /without Flange
Material: Q235
OD: 48-114mm
Length: 1000〜2000MM
Wall Thickness: 2.5--3.75MM
Standard: GB50021-2001,GB50007-2002,GB50011-2001
Surface: With 80um Hot Dip Galvanized.
Warranty: 15 years warranty; more than 20 years duration
Solar bracket accessories
BENEFITS
1.Packing: Steel Pallet and wrapping up thermoplastic Film.
2. Widely used: solar mounting installations, carports, flagpole, traffic lights, outdoor advertising boards, temporary exhibition display field, etc.
3.Easy Installation: No digging and no concrete, can be easily installed at the exact points within few minutes by Ground screw pilling machine.
4. No waiting times: can be subjected to loads immediately.
5.Environmental : Environmentally friendly due to minimum surface sealing.

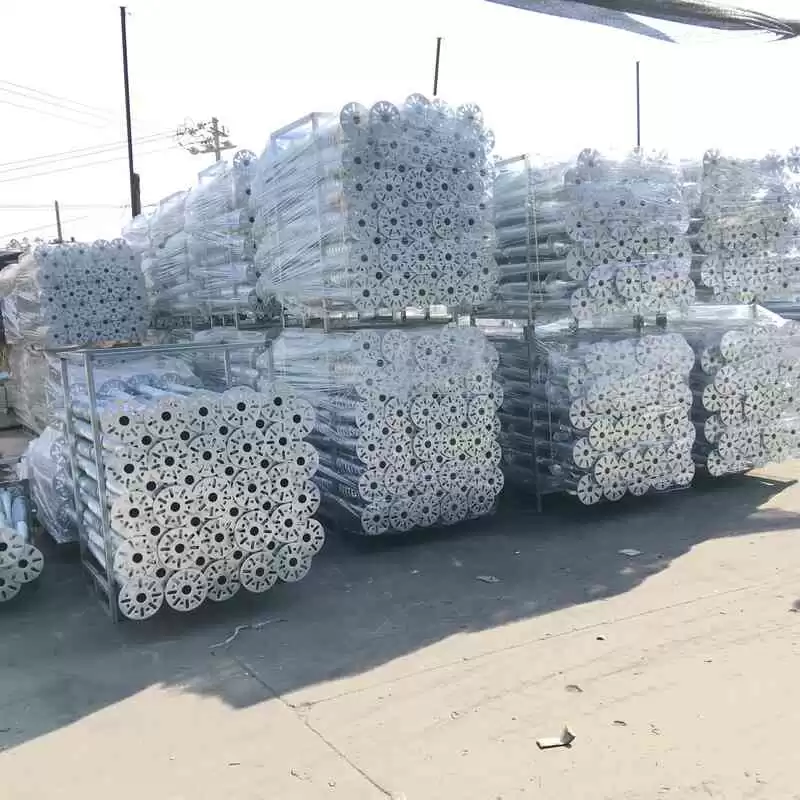

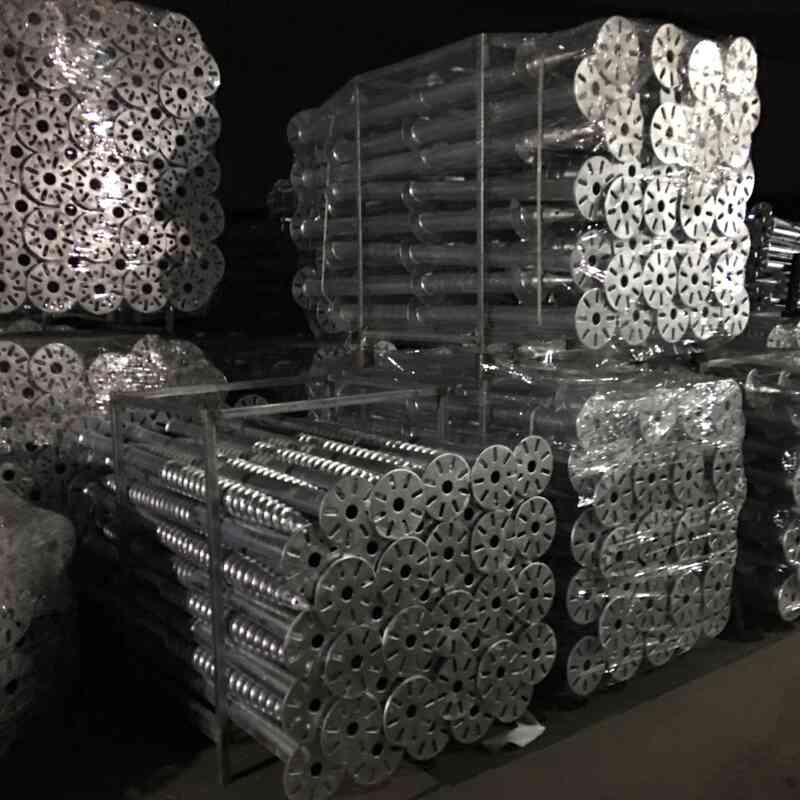

PACKING & DELIVERY
