Screw Post Anchor come with a durable hot dipped galvanized coating that will protect them from corrosion.
|

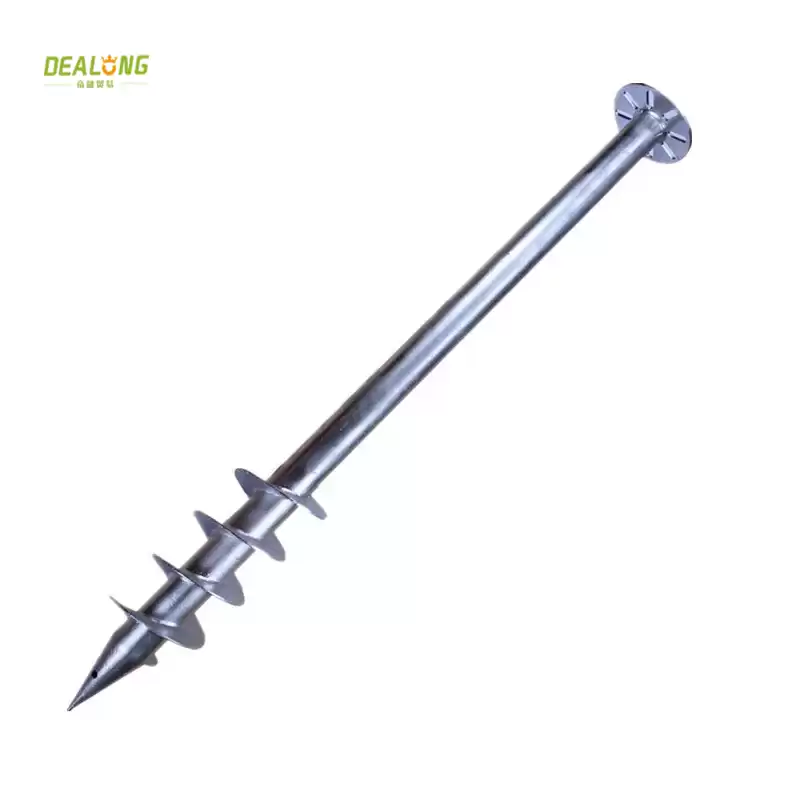

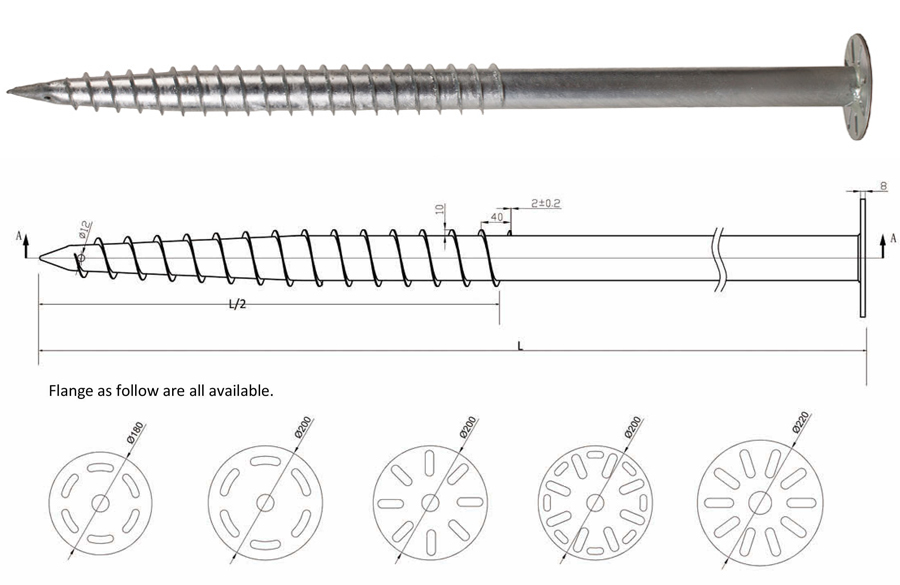

Normal ground screw with flange
|
|
Item NO.
|
Length(mm)
|
Dia.of flange(mm)
|
Minium galvnized thickness (um)
|
OD(mm)
|
Thickness of tube(mm)
|
Remarks(mm)
|
|
F76-1200-T3
|
1200
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-1400-T3
|
1400
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-1600-T3
|
1600
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-1800-T3
|
1800
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-2000-T3
|
2000
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-2400-T3
|
2400
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-2500-T3
|
2500
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-3000-T3
|
3000
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-1600-T3
|
1600
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-1800-T3
|
1800
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-2000-T3
|
2000
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-2100-T3
|
2100
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-2400-T3
|
2400
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-2500-T3
|
2500
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-3000-T3
|
3000
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|

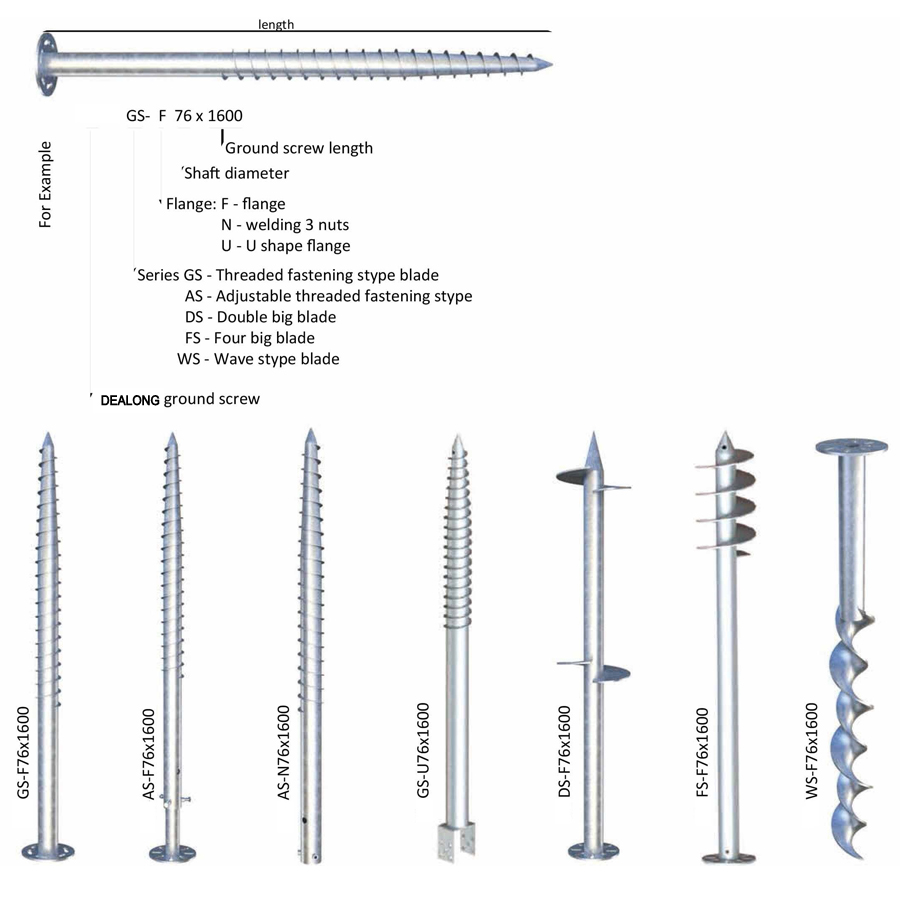

Note: Shuangheng offers different type of ground screw based on different installation conditions,dimension can be customized.
|

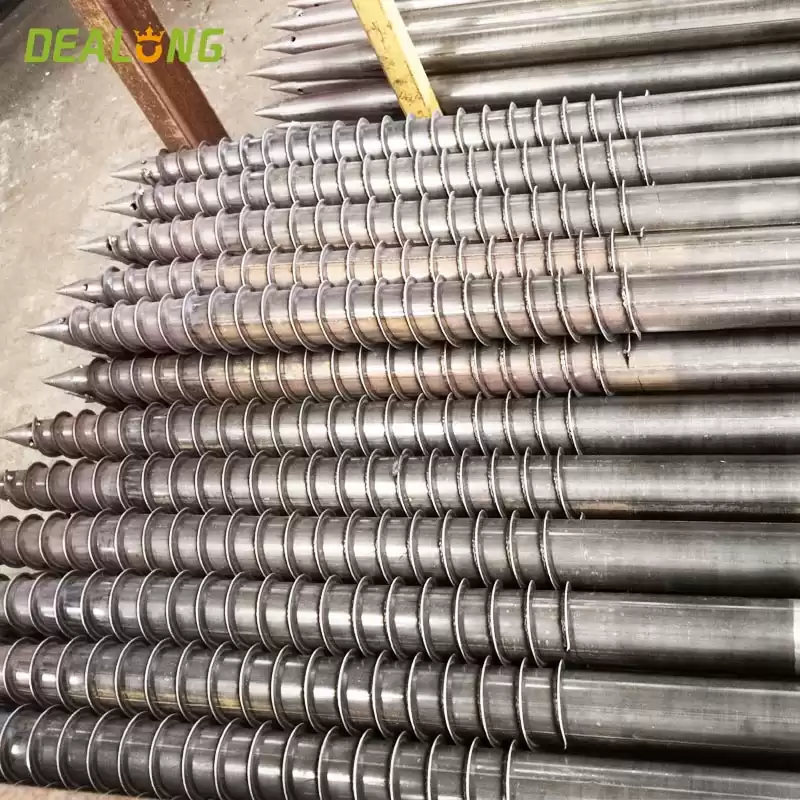

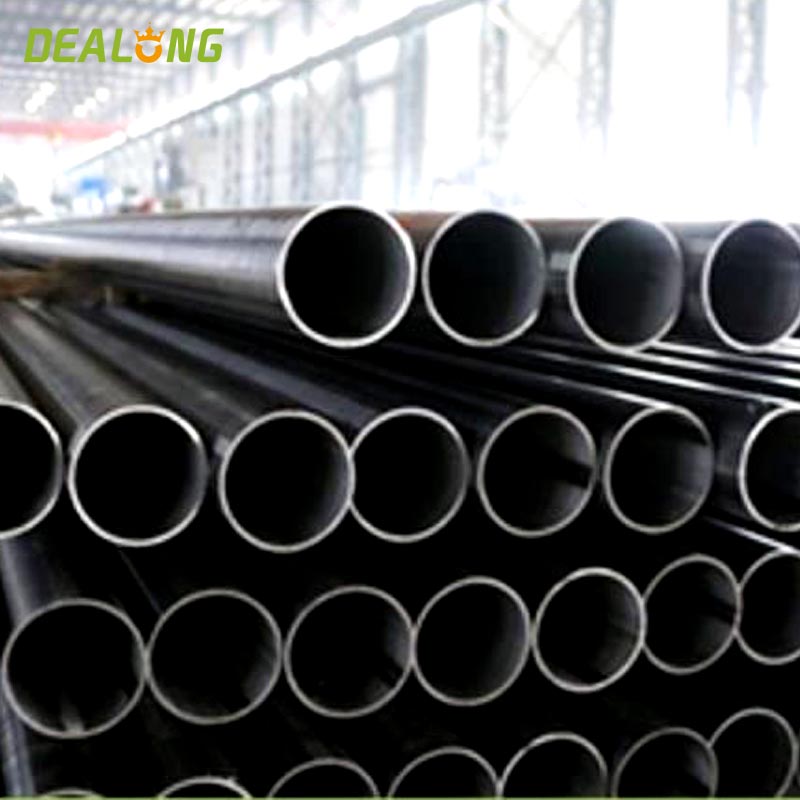

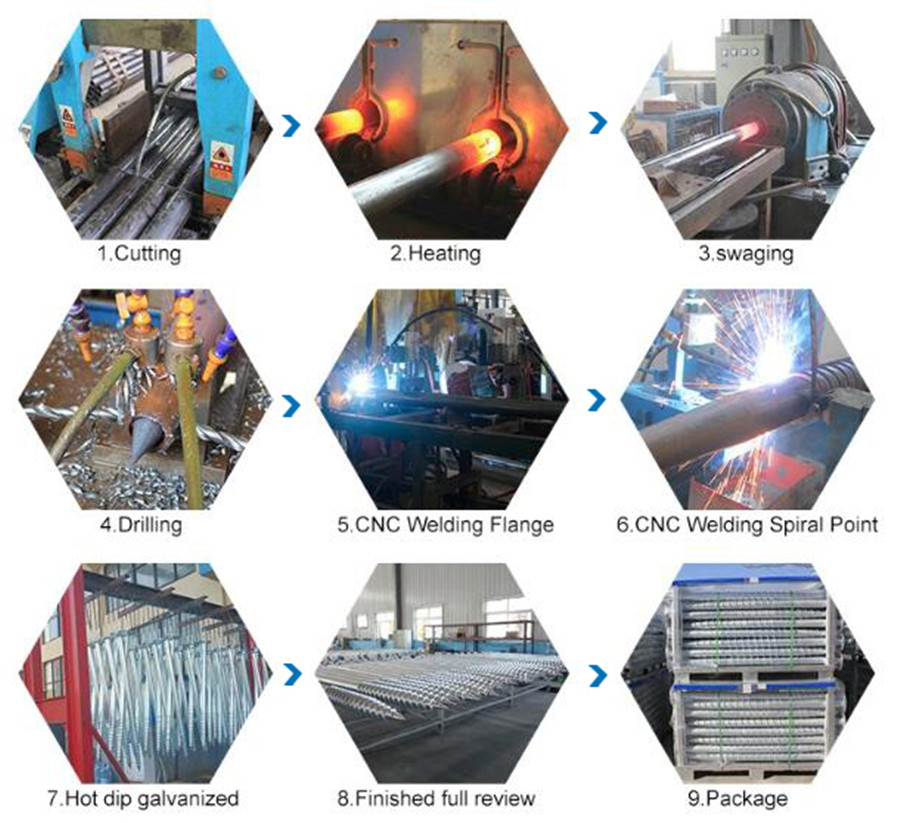

Peoduction process of ground screws

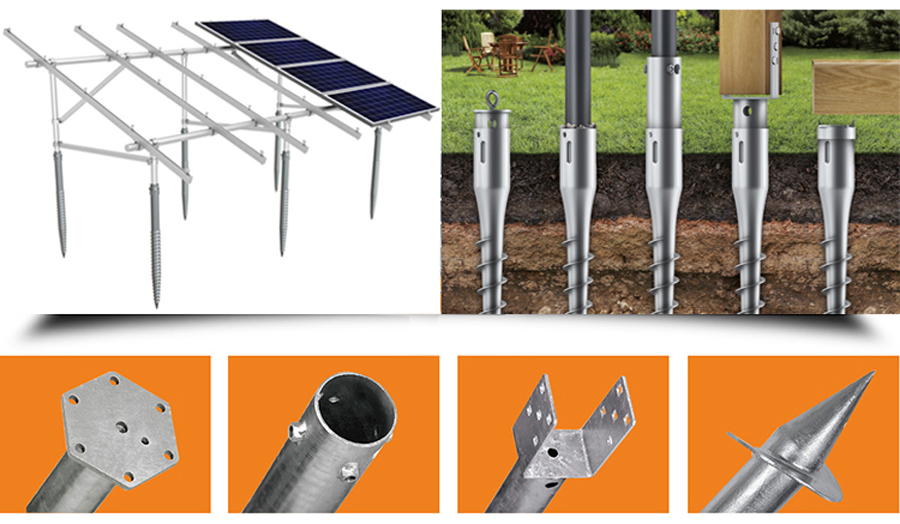

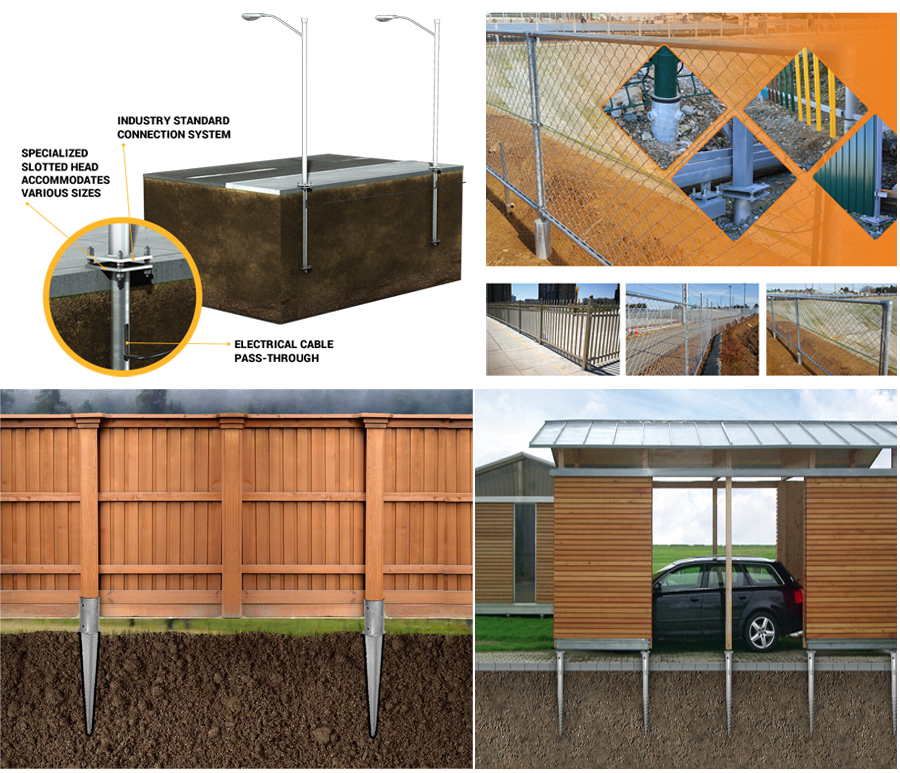

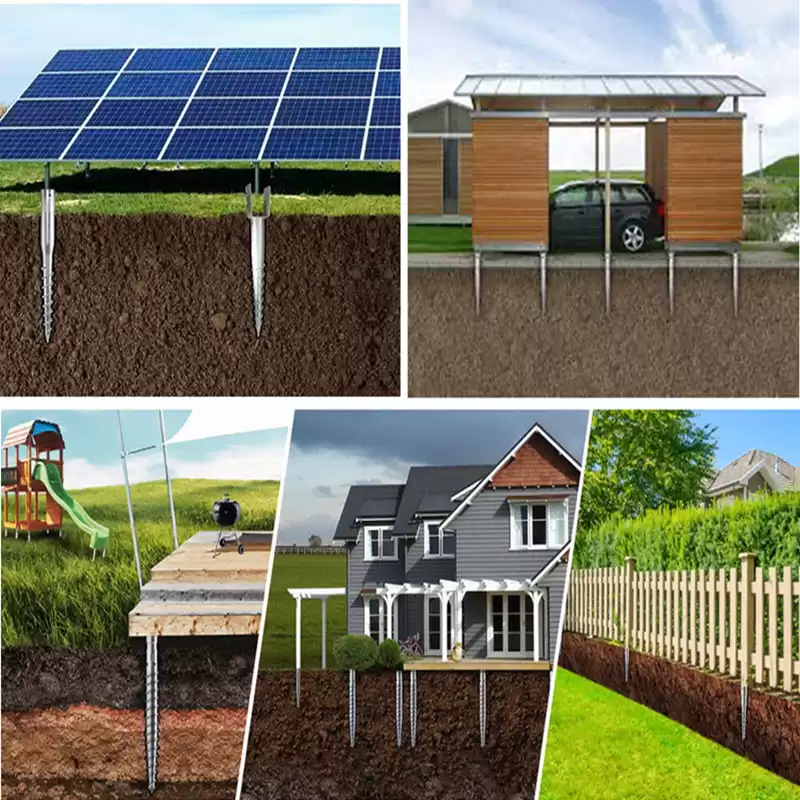

Application of ground screws
Ground screws have a wide variety of application,not only for solar mounting system foundation, but also for light industrial projects, wooden structures to fencing, streetlinghts and storage containers, etc. Install into ground without concrete save your labor and material cost, and its environment friendly and recycle.
Shuangheng Ground screw advantages:
1.Ground screws are faster and cheaper to assembly then normal ground digging.
2.Using ground screws requires no excavation or concrete pouring and raves the landscape and vegetation untouched, they are easy to dismantle and relocate for temporary projects.
3.Many solutions to meet different customers` requirements.
4.Ground screws are environmently friendly.
