Factory Direct Supply Tin Can Fish Tuna/Sardine Seafood Packaging Production Line

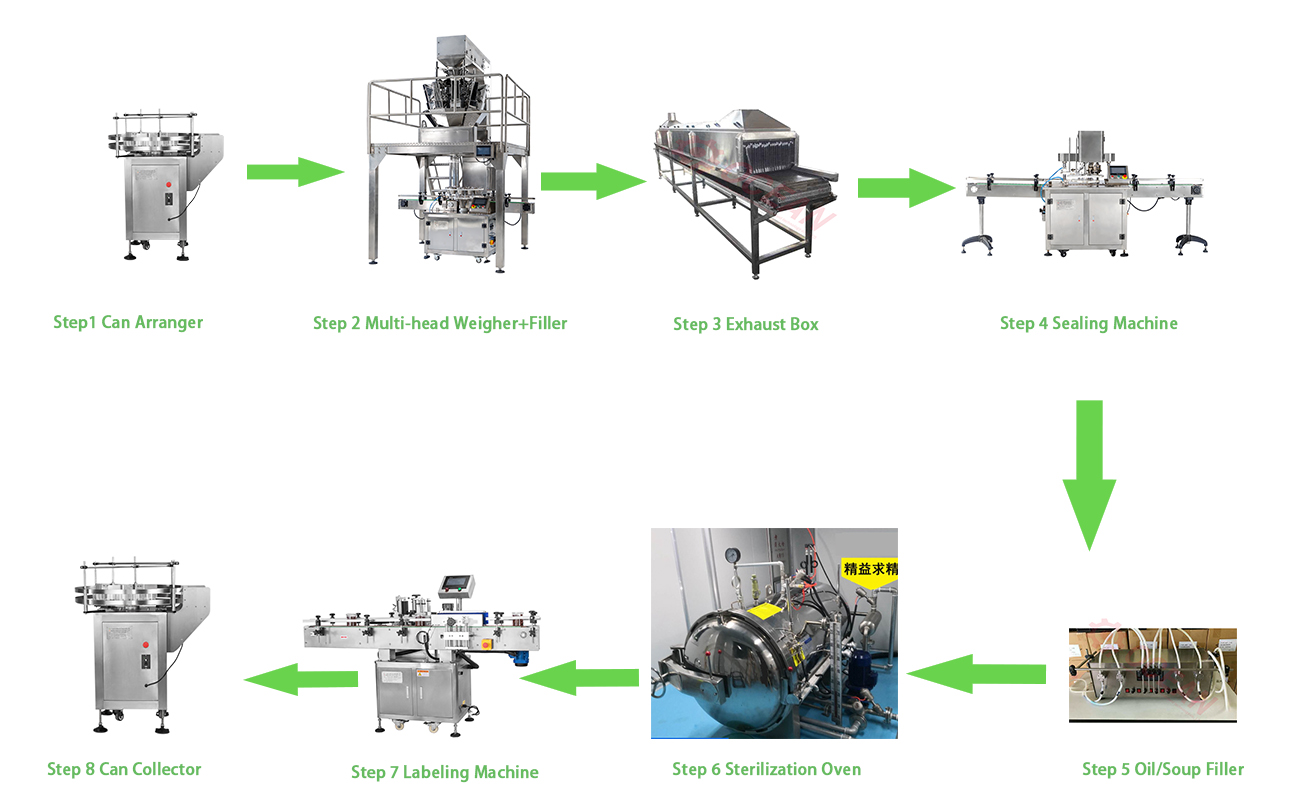

Flowchat for the Line:
Step 1: the cans will be arranged and lined up in advance by the can arranger
Step 2: Fish Tuna/Sardine Seafoodwill be conveyed and weighed through the vertical conveyor and multi-head weigher then fill into the can
Step 3: the oi/soup filler will fill the oil or soup into the can
Step 4: the can will be gone through the exhause box for vacuuming purpose
Step 5: the automatic can sealer will seal the lids of the can one by one
Step 6: the cans will be put into the sterilization oven

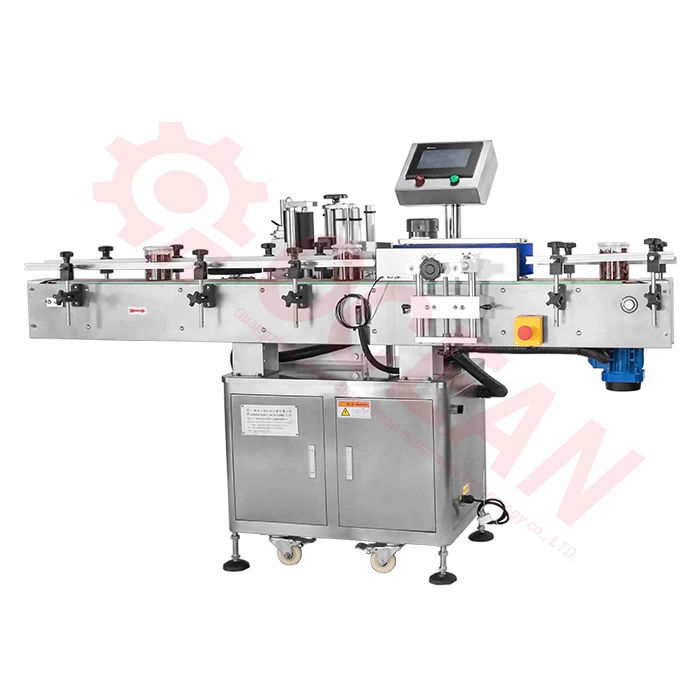

Step 7 : the automatic labeling machine will label the can one by one
Step 8: the can arranger will collect all the cans in the end.
Technical Parameters:
|
Name
|
Tin Can Fish Tuna/Sardine Seafood Packaging Production Line
|
|
Sealing number
|
1
|
|
Packing Speed
|
50 cans/ min
|
|
Applicable can Height
|
30-200mm (Adjustable)
|
|
Applicable can diameter
|
40-150mm
|
|
Air sourse
|
0.6-0.8MPa
|
|
Power
|
6KW
|
|
Weight
|
2500K
|
|
Size
|
10000mm*3900mm*3000mm
|
|
Voltage
|
380V/220V,50Hz
|
Features:
1. Full-automatic weighing-filling-sealing-sterilizing-labeling, efficient and simple to use.
2. Use famous brand electric and pneumatic components, stable and long life circle.
3. Use superior mechanical components, reduce the wear out loss.
4.PLC control and color touch screen 7"with stable and high accuracy output.

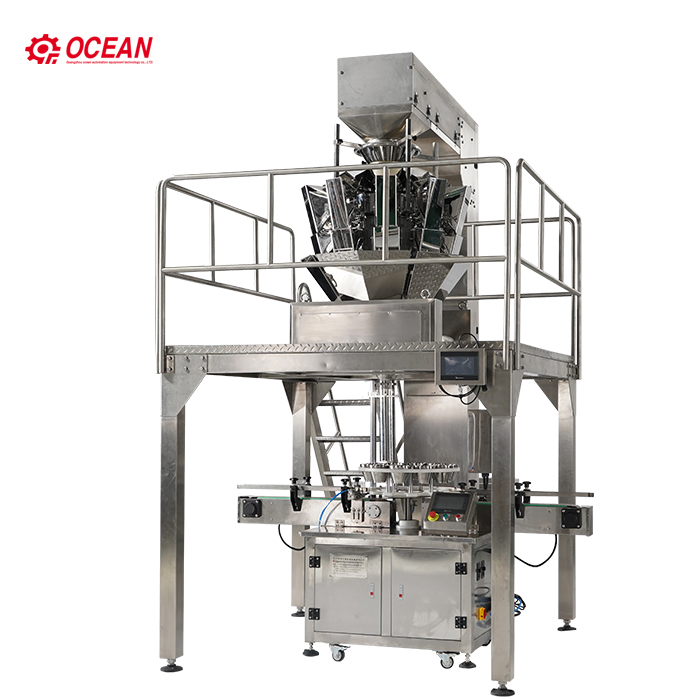

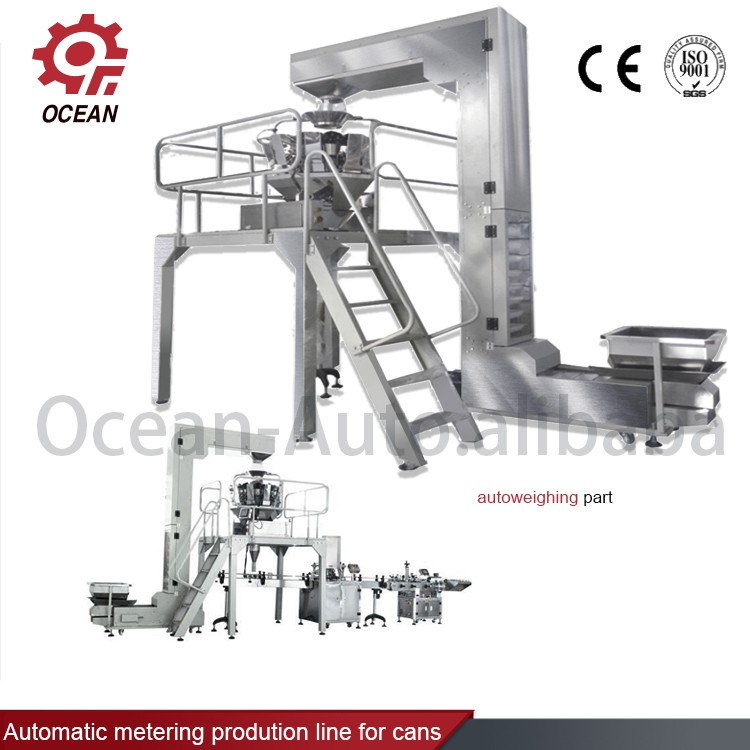

Z-shap Conveyor + Multi-head Weigher + Platform + Filling Machine
Material conveying, weighing and filling ALL IN ONE!

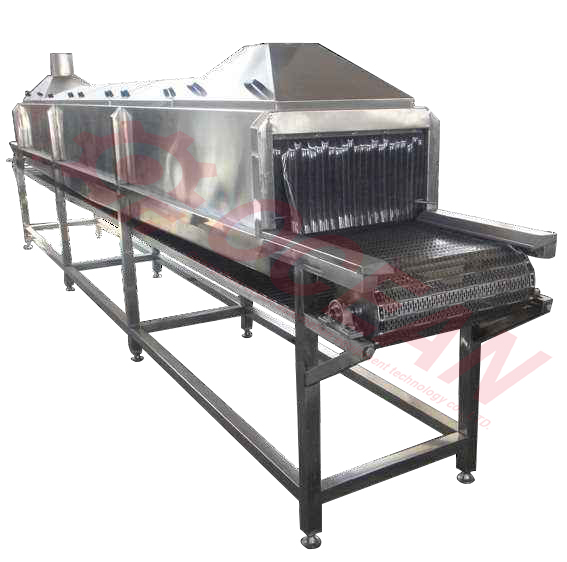

Exhaust Box
After the can to be filled with oil/soup and tranferred through conveyor into the exhaust box, the can will be heated by the steam, which will drain away the air from the can and to realize the vacuum effect to avoid the oxidation of the meat and soap inside.

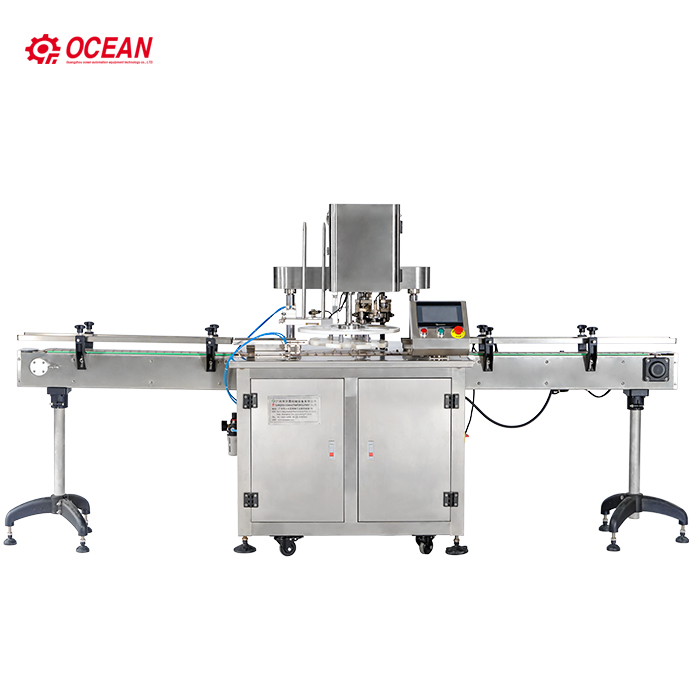

Sealing Machine
1. The machine is controlled by PLC system and touch screen for easy and durable operation.
2.The production capacity is 50 cans per minute, which is 2 to3 times of semi-automatic can sealing machine, it adopts full automatic cap loading and sealing device, save time and manual work, and improve production efficiency.
3. There are four seaming rollers around the chuck for better balance. The seaming rollers will never be rusty with stronghardness because of the chrome steel material.
4.go through strict quality control procedure before delivery including protocol of the seam dimensions and seam leakage test.
5. Applicable for sealing of various tin cans, aluminum cans and all kinds of round cans.
Application
Applicable tovarious tin cans, aluminum cans and otherround container
Contact supplier
Company Information
Guangzhou Ocean Automation Equipment Co., LTD. is a professional production and sales enterprise involving in various packaging automation equipment. The company integrates research and development, design, production and sales business, and the products sell well all over the country, mainly to packaging plastic materials laboratories, tea, food, beverage, medicine and other industries. The company is located in the core center of Guangzhou City in southern China, and has won good reputation through 20 years’ experience in packaging machinery production. We will as always focus on machinery production with rigorous and creative way, to serve customers around the world.
Our Customers
We will as always focus on machinery production with rigorous and creative way, to serve customers around the world.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
FAQ
|
|
1, What is your Installation Services?
|
2, What about your Guarantee of quality?
|
|
User manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well
|
The Tin Can Fish Tuna/Sardine Seafood Packaging Production Line is 1 year warranty, all machine part can be replaced within 1year if broken (not including man made)
|
|
3, If we have very special request for the production line,could you help me to do the design?
|
4, Can I visit your factory?
|
|
Experienced mechanical designer customized-design provided.
|
Yes, welcome please.
|
|
5, If we have samples of new products, can you help to analysis and design the machine?
|
6, Do you have certificate?
|
|
Yes, Our technical department can help to analysis, design and test the new products you offered.
|
Yes, we have some, like CE / SGS.
|
