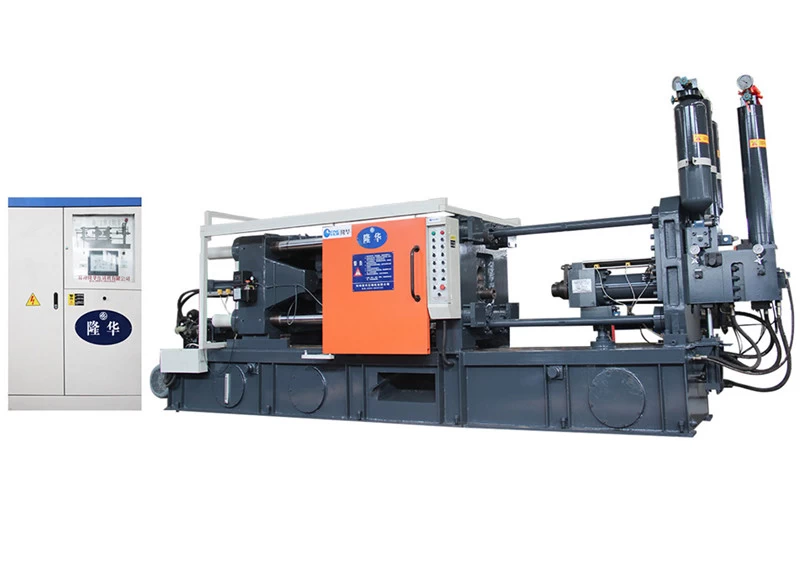

Factory Directly Sell magnesium alloy die casting machine(LH-300T )
Product Description
This die casting machine have Unique static and dynamic performance with dual core-pulling devices ensures one-time formation of precise, complicated products.
LH SERIES OF STANDARD PARAMETER TABLE (LH-300 T)
|
ITEMS
|
UNIT
|
SPECIFICATION
|
|
HYDRAULIC WORKING PRESSURE
|
MPA
|
14
|
|
CLAMPING FORCE
|
KN
|
3000
|
|
SPACE BETWEEN TIE BARS
|
MM
|
560*560
|
|
TIE BAR DIAMETER
|
MM
|
￠110
|
|
DIE OPENING STROKE
|
MM
|
420
|
|
INJECTION FORCE(INTENSIFY)
|
KN
|
240
|
|
PLUNGER LAUNCH DISTANCE
|
MM
|
140
|
|
INJECTION POSITION
|
MM
|
0 -- 160
|
|
PLUNGER DIAMETER
|
MM
|
￠50----￠70
|
|
INJECTION STROKE
|
MM
|
420
|
|
CASTING PRESSURE (INTENSIFY)
|
MPA
|
143/99/73
|
|
CASTING FIANGE PROTRUSION
|
MM
|
12
|
|
CASTING FIANGE DIAMETER
|
MM
|
110
|
|
MAX CASTING AREA UNDER 40MPA
|
CM2
|
700
|
|
LNJECTION WEIGHT(AL)
|
KG
|
3.5
|
|
DIE HEIGHT(MIN--MAX)
|
MM
|
250～650
|
|
EJECTOR FORCE
|
KN
|
150
|
|
EJECTOR STROKE
|
MM
|
120
|
|
MOTOR CAPACITY
|
KW
|
15
|
|
MACHINE DIMENSIONS (L*W*H)
|
M
|
6.4*1.7*2.8
|
|
REFERENTIAL MACHINE WEIGHT FOR UPLIFTING
|
T
|
12.5
|
|
OIL TANK CAPACITY
|
L
|
750
|
PS：WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE
Working principle diagram of die casting machine
Die casting Application
Die casting machines are widely apply to automobile and motorcycle parts, electric armrest step pedal, industrial, highway, railway, aviation, agricultural machinery, spotlight shell, building materials parts, furniture, aluminum art, copper art, magnesium alloy products, non-ferrous metal deep processing and other die-casting products.
