Products Overview:
We are professional LED TV CKD/SKD overall solution provider and OEM/ODM manufacturer with 15 years' experience, which has excellent solution design ability, specialized R&D team, best pre-sales and after-sales service. LED TV size from 18.5" to 75" CKD/SKD both can be customized. Our Aim is to provide you the quickest and most thorough pre-market after-sales service and the best overall solutions.
We can provide LED TV whole CKD/SKD solutions, including plastic/plastic+metal TV Cabinet(front bezel, middle bezel, support shore, back cover, IR lens, bracket base, base rubber, backplane, side terminal plate, bottom terminal plate), Optics(LED bar/reflector/diffuser plate/diffuser film/prism sheet), Mainboard/motherboard, Electronics accessories(key board, IR board, wire for LED bar, speaker and speaker wire, remote, power wire, keyboard wire, LVDS wire), Ingredients(EVA gasket/glass limit/cushion rubbers/acetate tape/double sided foam for OC) and all screws(BB3*8/PWB3*8/BM3*6/BM3*4...).
Main Solutions:
23.6inch Backlight Solution
(Brightness: 4120cd/m²)
|
LED Bar (2*6) 1W
|
|
Diffuser Plate*1
|
|
Diffuser Film*1
|
|
Reflector Film*1
|
|
Cabinet
|
Plastic back plate (can reduce the cost)
|
|
Electronic materials
|
Mainboard+Key board+IR board+LED Bar with wire+Speaker with wire+Remote+Power Wire+Keyboard Wire+LVDS
|
|
Ingredients
|
EVA Gasket for Middle Bezel+Cushion Rubber+Acetate tape+Screws
|
|
Remark: CKD/SKD Customized can be accepted based on your actual requirement.
|
Products Features::
One stop service for LED TV CKD SKD solutions
Panel is LED Panel or LCD Panel. Its voltage is low 5V, sometimes has 12V.
Main-board can be supported for PAL/SECAM/NTSC,DVB-T2/DVB-T/S2/SMART/CI/CI+/DOBLY
Cabinet is whole plastic can cost down
Power Board protected from 7V-15V by battery box
Remote Control middle sizes and ABS materials
Adapter for 2.5A with Two-pin power cable
TV CKD Parts Introduction - LED Bars:
LED Bar refers to the assembly of led in a ribbon of FPC(flexible circuit board) or PCB hard board, because the shape of the product is like a strip of the name. Because the service life is long (the general normal life is in 80,000 ~ 100,000 hours), and very energy-saving and green environmental protection and gradually in a variety of decoration industry.
In LED TV assembly, we use LED Bars with hard board PCB. LED backlighting refers to the use of leds (light emitting diodes) as the backlight for LCD displays. Compared with the traditional CCFL(cold cathode tube) backlight, LED has the characteristics of low power consumption, low calorific value, high brightness and long life, which is expected to completely replace the traditional backlight system in recent years.
The brightness of LED backlight is high, the brightness will not drop for a long time to use and the body of LED backlight is thinner, the appearance is also beautiful. LED backlight, the color is relatively soft, with the hard screen panel color can make the eyes more comfortable. Another advantage is that all LED backlighting is available, saving electricity and reducing environmental radiation.

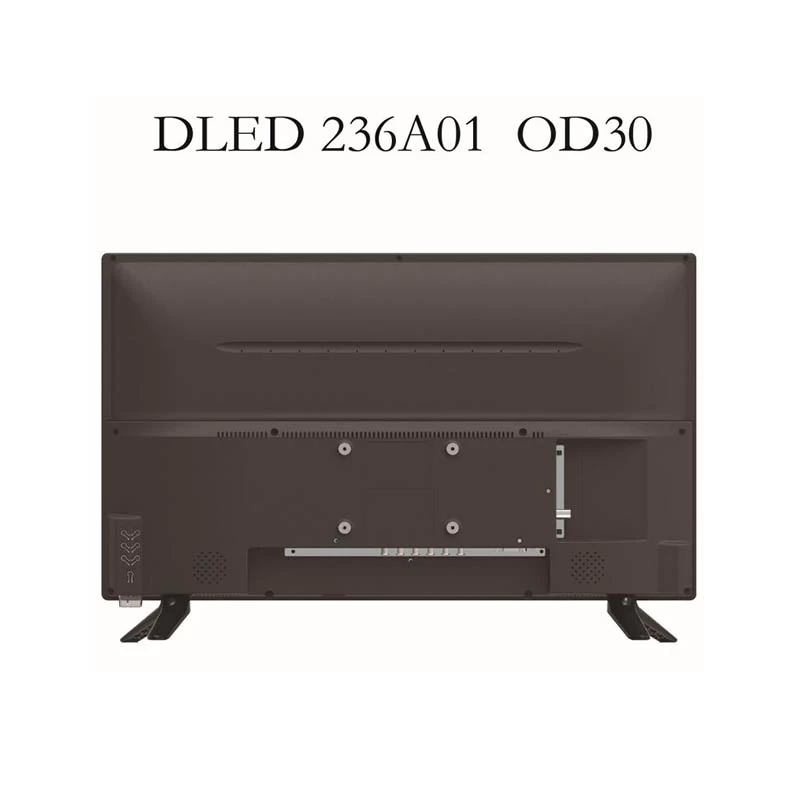

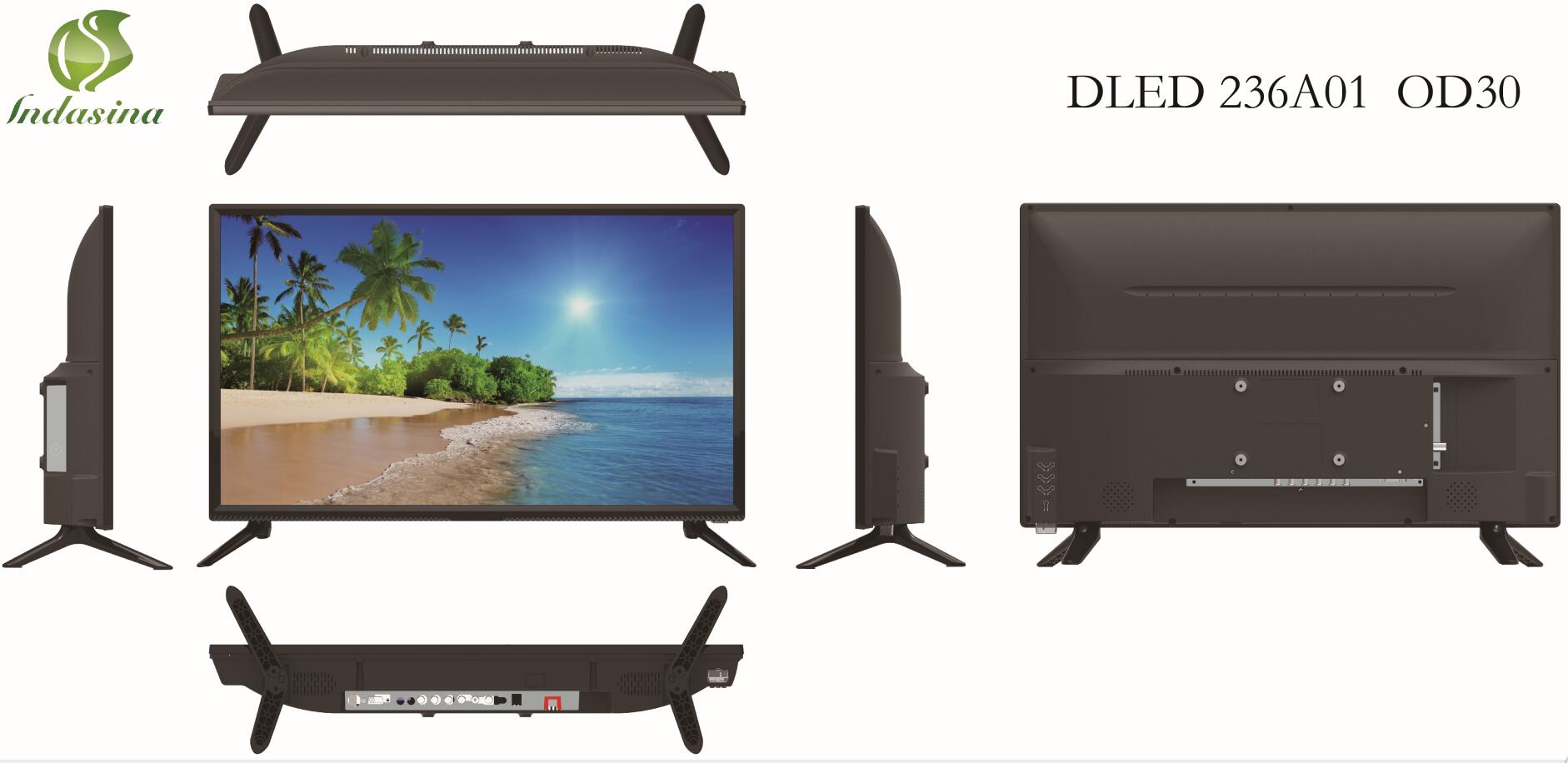

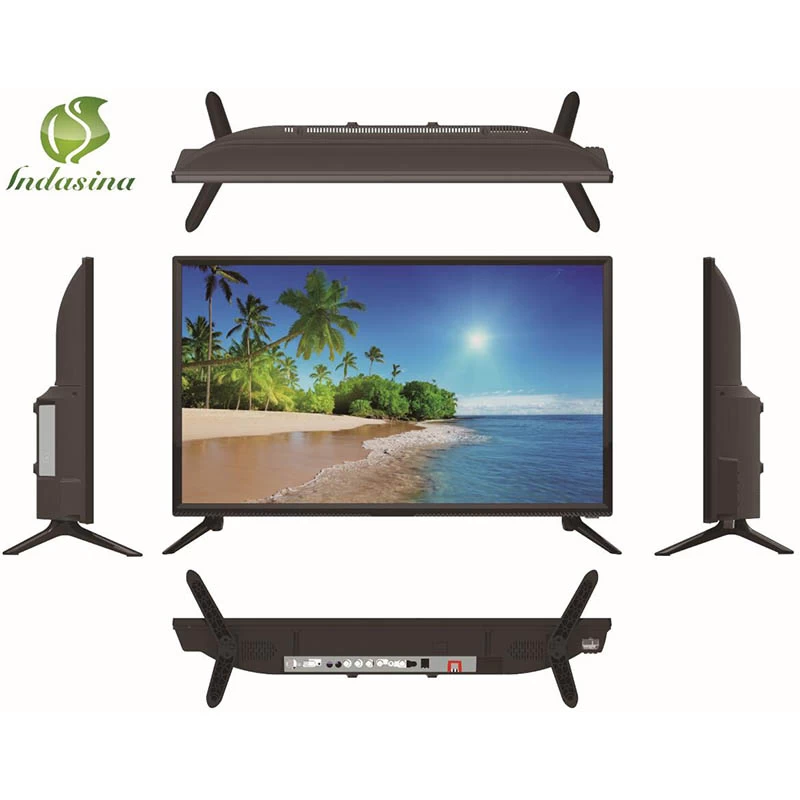

Products Images:
FAQ
Q: How long is the warranty?
A: 1-year warranty since delivered out.
Q:How about the OEM/ODM service ?
A: We provide all kinds of OEM/ODM service,eg:Logo printing on housing,Customized package,Software Customization.
Q: How long is the delivery time?
A: Sample order about 3-5 working days, bulk order about 7-15 working days.
Normally, we ship goods by sea,air and express.
. By sea to your nearest sea port for 10~15 days
. By air to your nearest air port for 5~10 days
. By express(UPS,DHL.FEDEX,TNT...) to your door for 3~6 days
Q: What methods of payment accepted?
A: 1. We can accept T/T, L/C before production.
2. If you have any doubt about payment, please contact us freely.
Q: Why do you choose us?
A: Shenzhen INDASINA Technology Co.,ltd is a high quality DLED TV manufacturer and solution provider. We will try our best to provide the products you need, we will provide you with the most satisfactory service. If you want to know more, you can contact us. We also welcome you to visit our factory in Shenzhen.
