Factory Portable Ready Made Steel Frame Folding Container House
Product Description:
Cheap Prefab Houses Cost saving & Comfortable;
Fast construction & Easy installation;
Long life span & Many times reusable;
Waterproof,Fireproof & Heat insulation;
Eco-friendly material ,no construction garbage caused;
Flexible layout to satisfy different requirements.

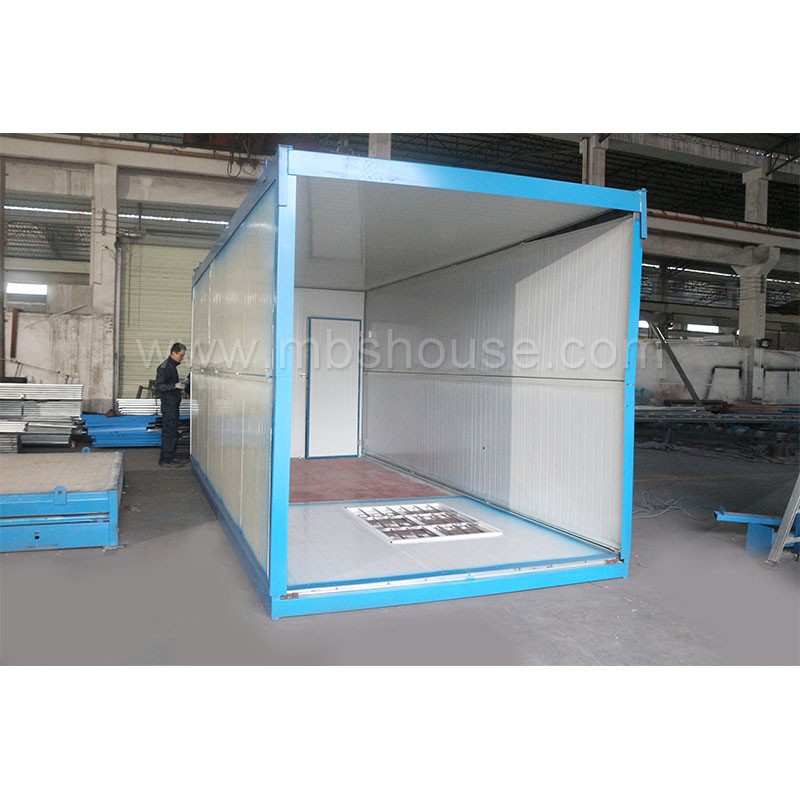

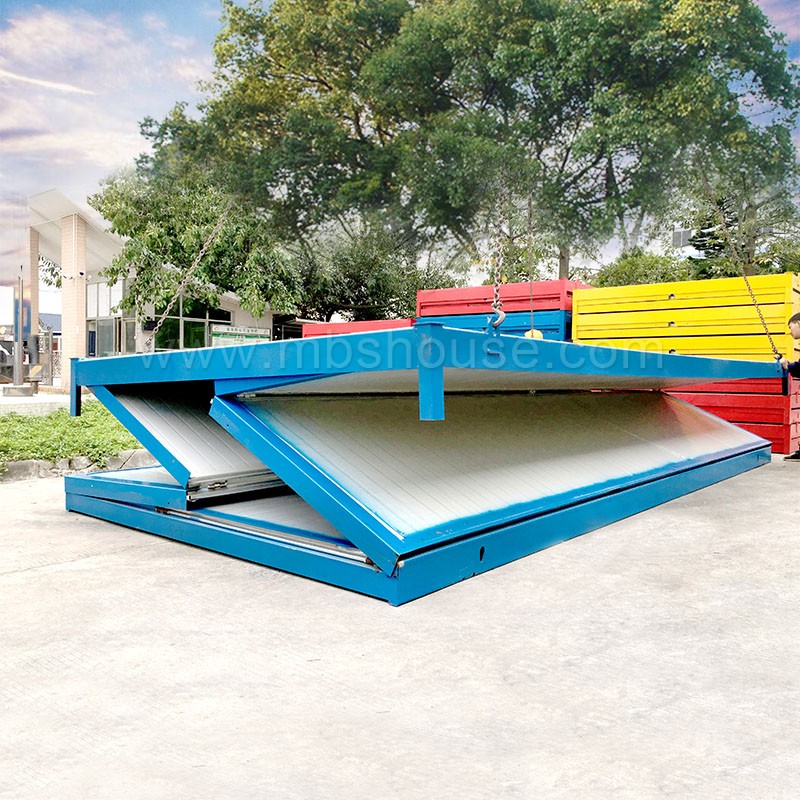

Factory Portable Ready Made Steel Frame Folding Container House
|
Factory Portable Ready Made Steel Frame Folding Container House
|
|
No.
|
Component
|
Description
|
Thickness
|
|
1
|
Main Steel Structure
|
8#C Steel,Square Tube,Angle Iron,
Flat Tube, Round Tube
|
2.0mm
|
|
2
|
Roof Tile
|
PU or EPS Tile
|
20-150mm
|
|
3
|
External Wall Panel
|
50-250mm EPS,PU,Rockwool or EPS Cement
withTwo-sides Color Steel Sandwich Panel
|
0.326mm for Color Steel Sheet
|
|
4
|
Door
|
Color Steel Sandwich Panel Door
|
870mm(W) × 2100mm(H)
|
|
5
|
Window
|
PVC Sliding Window
|
1200mm(W) x 1000mm(H)
|
|
6
|
Flooring
|
Plywood or PVC
|
15/20mm
|
|
7
|
Ceiling
|
PVC or Gypsum Board
|
8-12mm
|
|
Technical Parameter
|
|
No.
|
Description
|
Specification
|
|
1
|
Bearing Load
|
150kg/square meters
|
|
2
|
Wind Pressure
|
0.45KN/square meters Equal 10 Grade
|
|
3
|
Earthquake Resistance
|
7 Grade
|
|
4
|
Temperature Resistance
|
(-25°C) to 50 °C
|
|
5
|
Life Span
|
More Than 12 years
|
