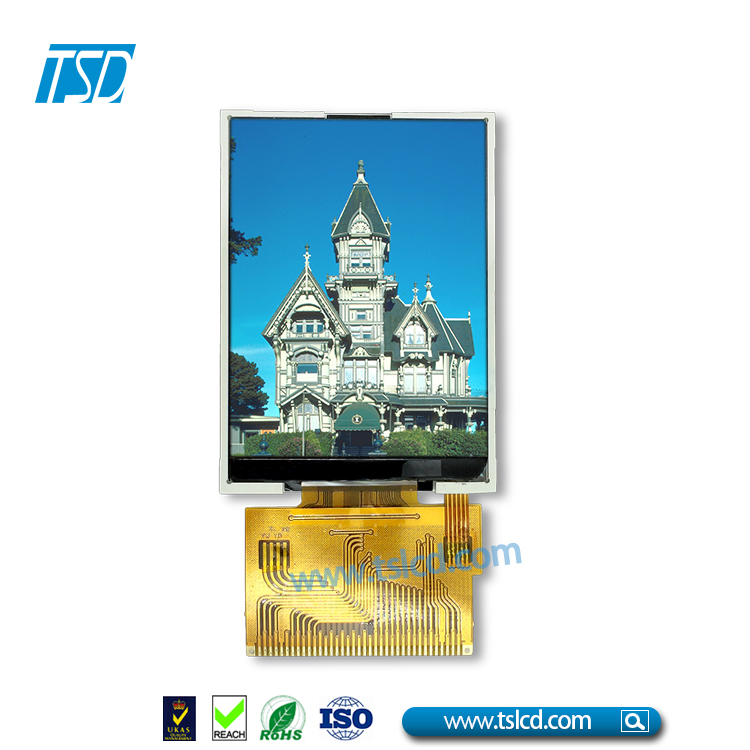

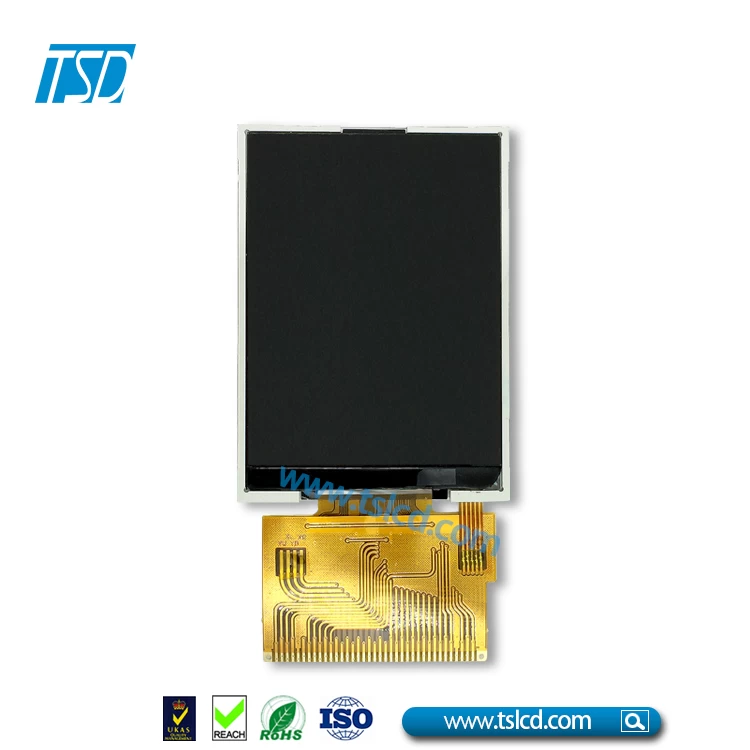

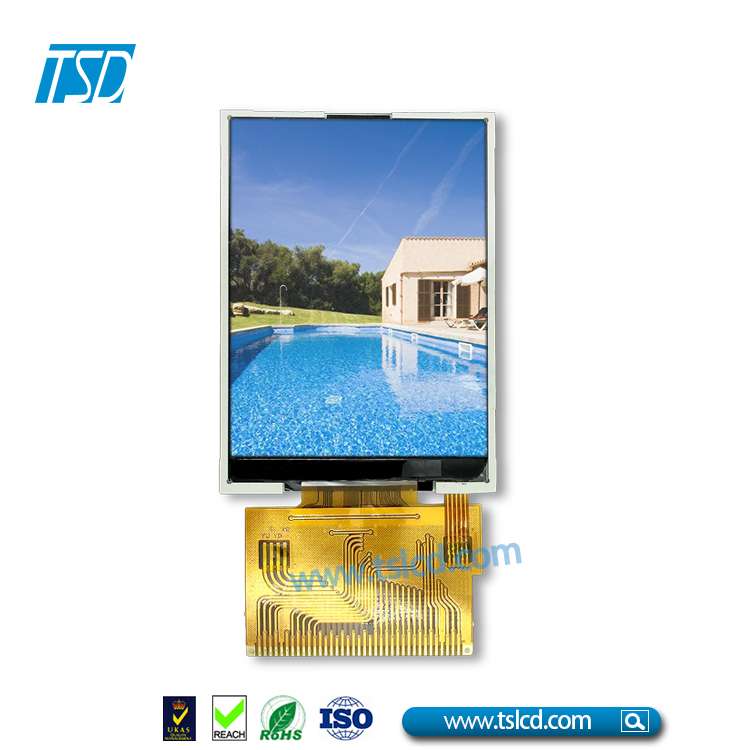

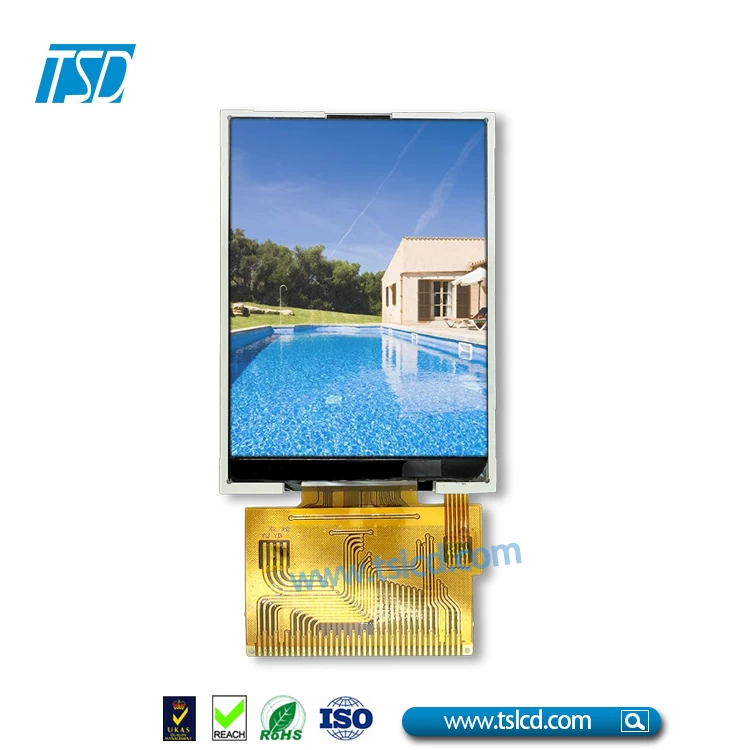

Factory price 2.8" TFT 240x320 LCD display module with RTP

2.8inch 240x320Res

resistance touch panel

Facebook Twitter Pinterest LinkedIn 分享
Specification
Display type 262k color TFT,Transmissive
Description QVGA 320x240 2.8 tft lcd
Display Colors 16.7M Dithering
Outline Dimension(mm) 50x69.2x3.35
A.A.(mm) 43.2x67
Driver IC ILI9341
Resolution(dots)_ 240*RGB*320
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 240(H)x 3RGB x 320(V)
Dots Pitch 0.18x0.18
Color Configuration RGB stripe
Backlight 4 LEDs, White
Weight(g) TBD
Interface 8080 system 8/16 bits parallel interface
Module lifetime(Hours) 50,000-100,000
