Factory Price BS5839 Fire Alarm Cables for Fire Safety System
PRODUCTS NAME

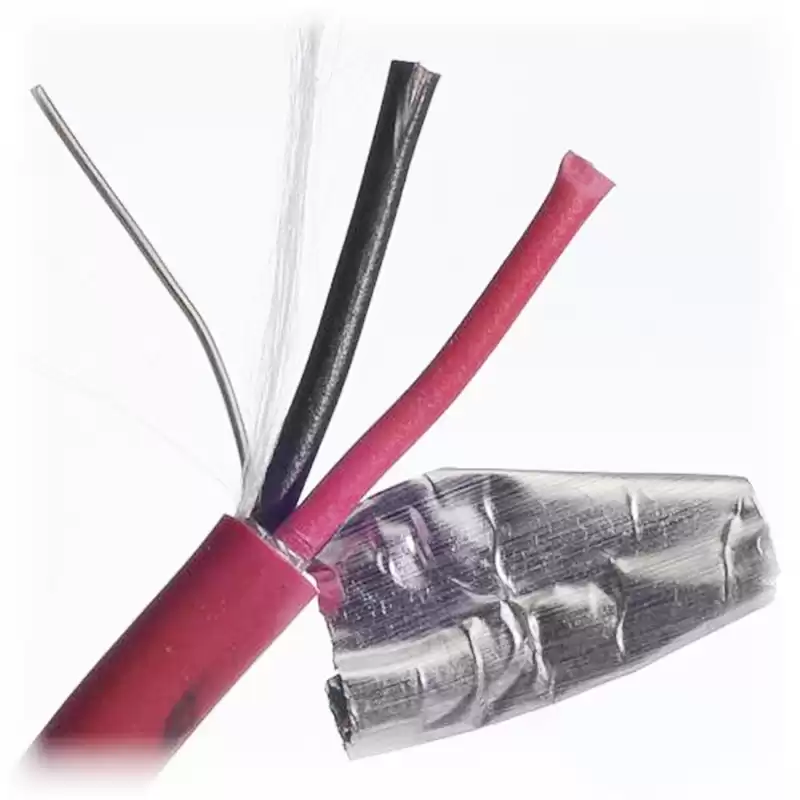

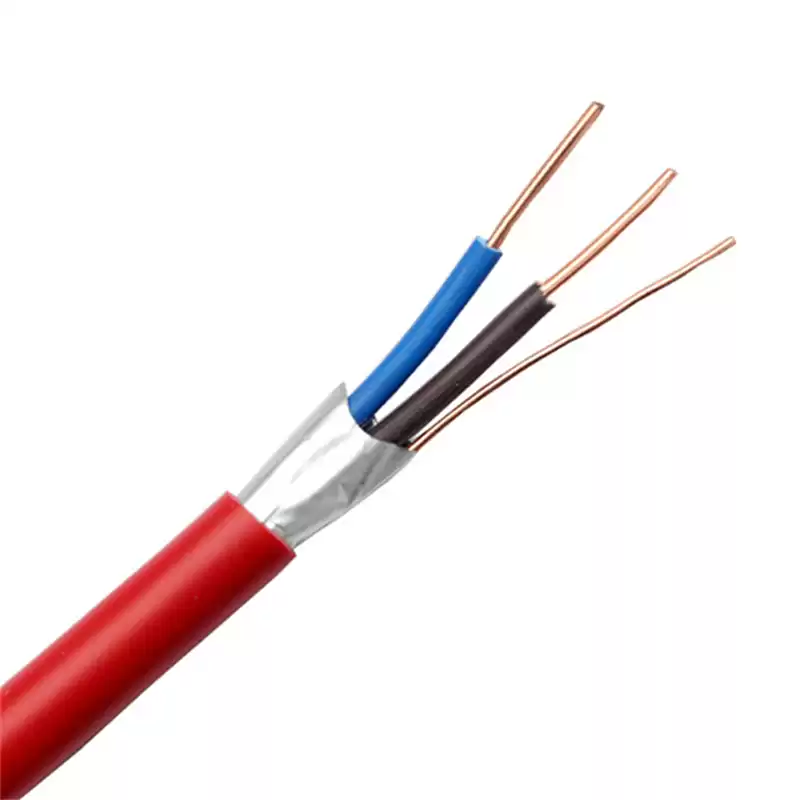

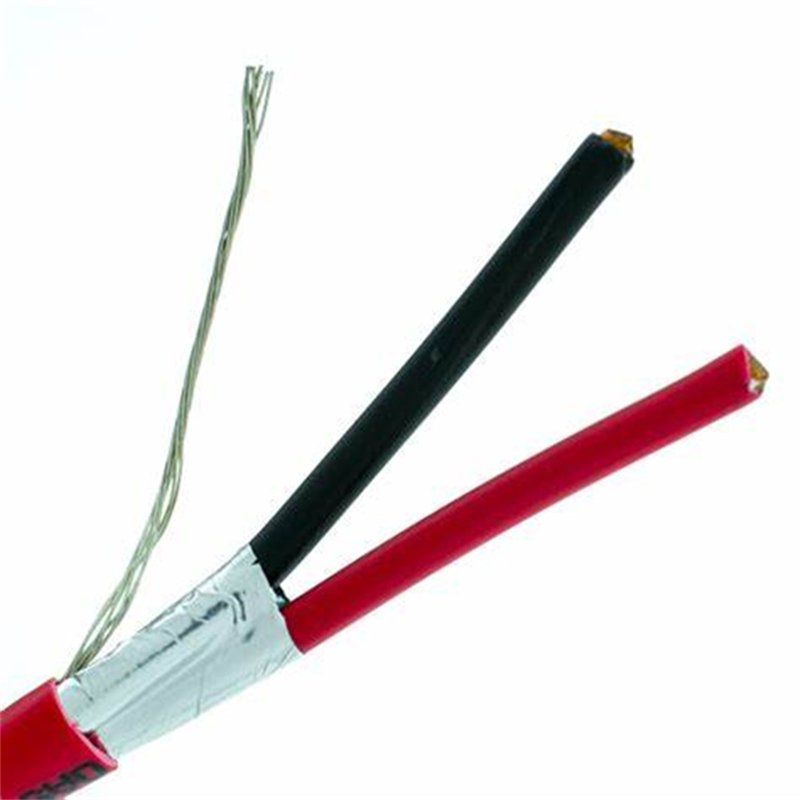

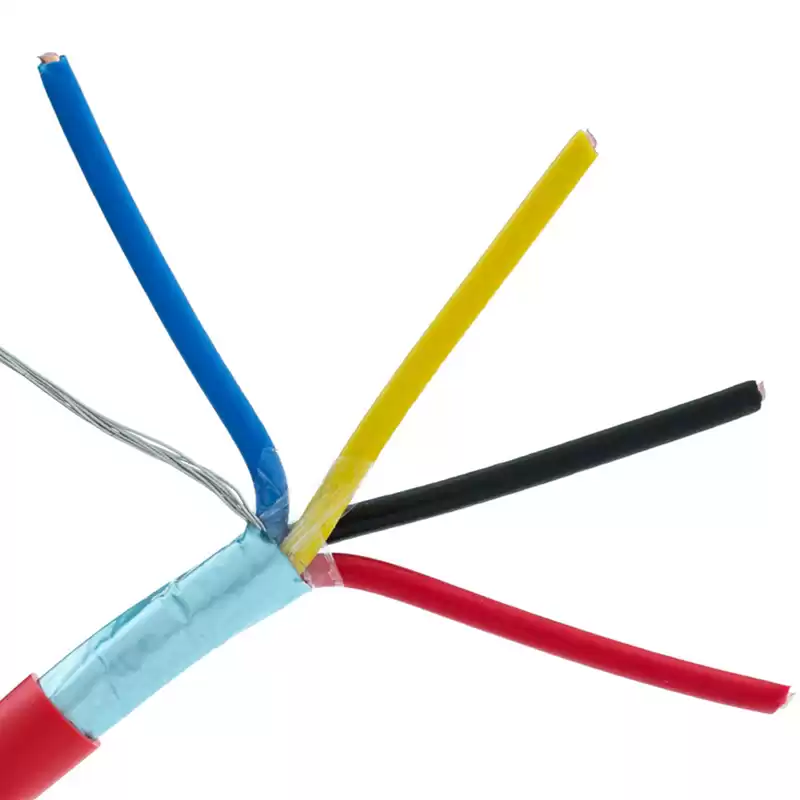

Factory Price BS5839 Fire Alarm Cables for Fire Safety System
PRODUCTS KEYWORDS
fire alarm cable, BS5839, BS7629, security cable, safety cable, fire retardant cable, fire safety system, flame retardant cable, LSZH insulated cable, electrical wire, electric cable, wire and cables, China customized cables.
PRODUCTS APPLICATION
Factory Price BS5839 Fire Alarm Cables for Fire Safety System. Fire alarm cables for use primarily in fire detection, fire alarm, voice alarm, and emergency lighting circuits. These cables are designed to continue to operate for a period of time in a fire situation. Fire alarm cable is recommended for general use.

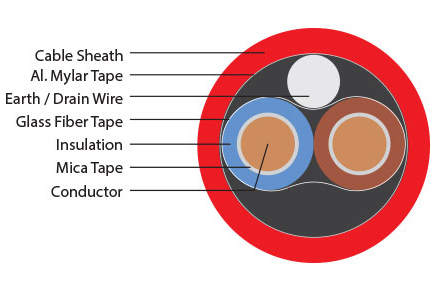

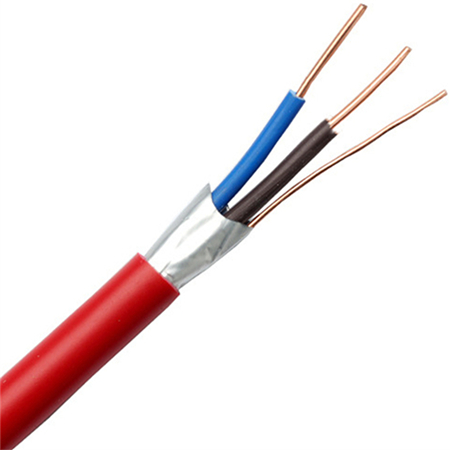

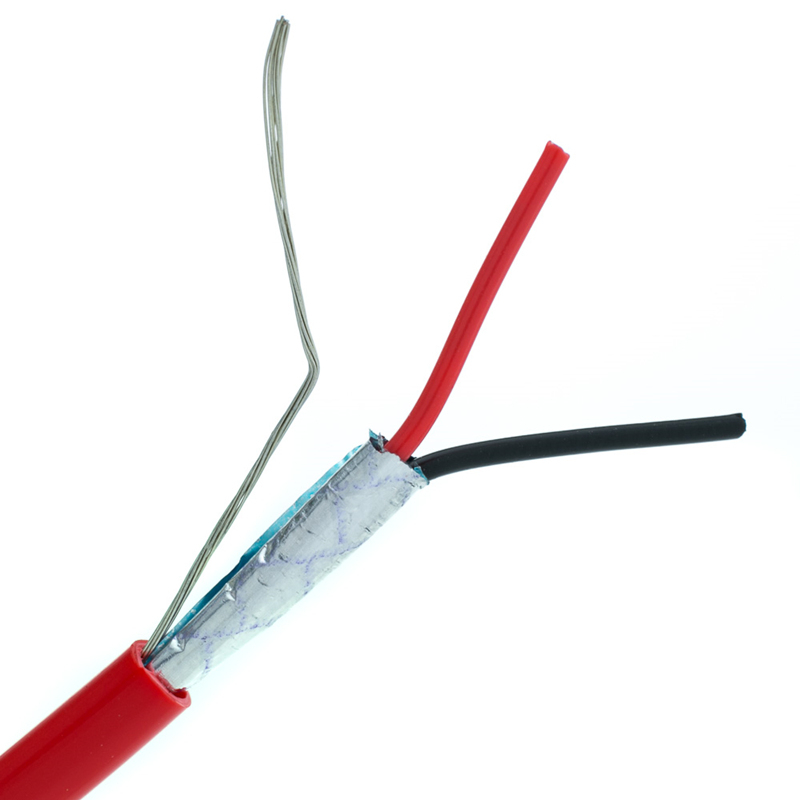

PRODUCTS STRUCTURE
Factory Price BS5839 Fire Alarm Cables for Fire Safety System:
---Conductor Material
Pain annealed copper wire, solid Class 1, or stranded Class 2
1.5 - 2.5mm2: Class 1 solid conductor according to BS EN 60228
4 mm2: Class 2 stranded conductor according to BS EN 60228.
---Insulation Material
LSZH (low smoking zero halogen).
---Earth Material (Rain Wire)
Annealed bare copper wire, non-insulation.
---Screened Material
Aluminum foil tape.
---Sheath Material
LSZH (low smoking zero halogen).
aPRODUCTS DIMENTIONS
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
Factory Price BS5839 Fire Alarm Cables
for Fire Safety System.
|
|
Conductor Material
|
Plain annealed copper wire, solid Class 1.
|
|
Conductor Structure
|
1C x 1/1.78 mm.
|
|
Insulation Material
|
LSZH (low smoking zero halogen).
|
|
Insulation Thickness
|
0.7 mm.
|
|
Insulation Colour
|
Brown, blue; or others.
|
|
Earth Material / Drain Wire
|
Bare Copper Wire, Solid Class 1, Non-insulation.
|
|
Earth Conductor Structurer
|
1/1.38 mm
|
|
Screened Material
|
Aluminum foil tape.
|
|
Aluminum Foil Details
|
Thickness: 0.10mm width: 25mm, coverage 100%.
|
|
Sheath Material
|
LSZH (low smoking zero halogen).
|
|
Sheath Thickness
|
0.9 mm.
|
|
Sheath Colour
|
Red, orange, black, white, or others.
|
|
Conductor Cross-section
|
1 x 2.5 mm2.
|
|
Core Number
|
2 cores plus earth, 2C+E.
|
|
Out Diameter
|
10.2 mm.
|
|
Voltage Rate
|
300/500V (U0/U).
|
|
About Net Weight
|
150 kg/km.
|
|
Production Standard
|
BS5839, BS7629, JB/T 10491-2004, GB/T 19666-2019.
|
|
Products Packing
|
100 Meters per roll, or according to the customers requirement.
|
|
Max. Conductor DC
Resistance at 20℃ in Air
|
7.41 Ω/km.
|
|
Max. Ampacity at 40 ℃ in air
|
33A.
|
|
Working Temperature
|
-20℃ to +90℃
|
|
Max. Working Temperature
|
+120℃
|
COMPANY PROFILE
Xiamen Seebest Wire & Cable Co., Ltd, was established in 2009, is located in Xiamen City, Fujian Province, China. The total area of company more than 100,000 square meters. The company is a modern manufacturing enterprise specializing in the research, development, production, sales and service of wire and cables for customers at home and abroad.
COMPANY ADVANTAGE
---Reasonable Price, Overvalue Products, Quickly Delivery, Foremost Services.
---ISO9001, CCC, CE, CB, RoHS, SAA, VDE, DEKRA, UL, and other certificates.
---20 years of professional experience in wire and cable manufacturing, sales, and service.
---One hour arrives at Xiamen airport, seaport, High-speed Railways station, and bus station.
---2 professional engineers, 8 rigorous QC staff, and a total of 168 experienced staff.
---Familiar with GB, JB, IEC, AS/NZS, BS, VDE, TüV, UL, and other standards, can be customized for wire and cables according to the customer's requirements.
COMPANY PRODUCTS
---Electrical Wires: PVC or LSZH Insulated Electrical Wires.
---Power Cables: 0.6/1kV, PVC, XLPE, or LSZH Insulated Power Cables.
---Electronic Wires: UL 62, UL 1007, UL1015, UL 2464, UL 2468, VDE 0281, VDE 0282,
VDE 0250, and other Electronic Wires.
---Customized Products: Fire Retardant Cables, Fire Resistant Cables, Mineral Insulated Power
Cables, LSZH, LSOH, LSFH and other RoHs Cables, and Environmental Protection Cables.
---Communication Cables: Networking Cables, Telephone Cables, Coaxial Cables, Speaker Cables.
---Power Plugs: CCC, UL, VDE, and other standards Power Plugs.
COMPANY SLOGAN
---Seebest Cable: Become the most trusted cable company in China.
---Seebest Cable: Focus on Quality, Foremost Service.
---Seebest Cable: It is your Production Base, Overseas Warehouse, Purchase Consultant,
Technology Supporter, and Sales Assistant in Wire and Cables Industry.
COMPANY FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer, we can control your order from the first step to the final shipment (from start to end), welcome you to visit us, we will receive you warmly in Xiamen City, China.
2. Can you provide the free samples?
Of course, we can provide free samples to you, but you should pay the express freight and taxes.
3. What’s your Minimum Order Quantity?
For the Electrical Wires less than 16mm2, the MOQ is 5,000 meters;
For the Power Cables more than 25mm2, the MOQ is 1,000 meters;
For the networking cables, the MOQ is 100 boxes/cartons;
For the Electronics Wire with International Approvals, the MOQ is 10,000 meters.
For other customized wire and cables, please negotiate the MOQ with us immediately.
4. Can you give me the price discount?
We can give you the price discount, but the discount percent depends on the quantity, quality, packaging and payment terms in your order.
In addition, price is an important factor, but it should not the decisive factor; the price can be lower, but we must keep the safe bottom-line. The high-quality products can help you saving more money, and there is not potential safety hazard, you don't worry about them every day.
5. Can you provide the OEM, OBM and ODM services?
Yes, we can provide OEM, OBM and ODM services for you, but you should provide the Power of Attorney for Trademark and other detailed information to us.
