Online Sales High Quality H05VV-F 3183Y RVV 3x4mm2 Flexible Cable
PRODUCTS NAME
Online Sales High Quality H05VV-F 3183Y RVV 3x4mm2 Flexible Cable.
PRODUCTS KEYWORDS
RVV, H05VV-F, 3182Y, 3183Y, 3184Y, 3185Y, flexible cable, tranded copper wire, pvc insulated cable, electrical wire, electric cable, wire and cables, online sales, high quality, factory whoesale price.
PRODUCTS APPLICATION
Online Sales High Quality H05VV-F 3183Y RVV 3x4mm2 Flexible Cable, ordinary duty PVC cable for use in domestic appliances, kitchens and offices. For use with light portable appliances such as table lamps and office equipment. Generally unsuitable for outdoor use or industrial applications.

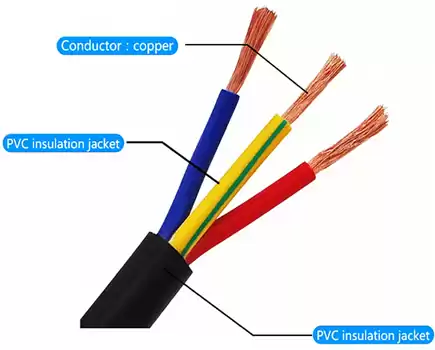

PRODUCTS STRUCTURE

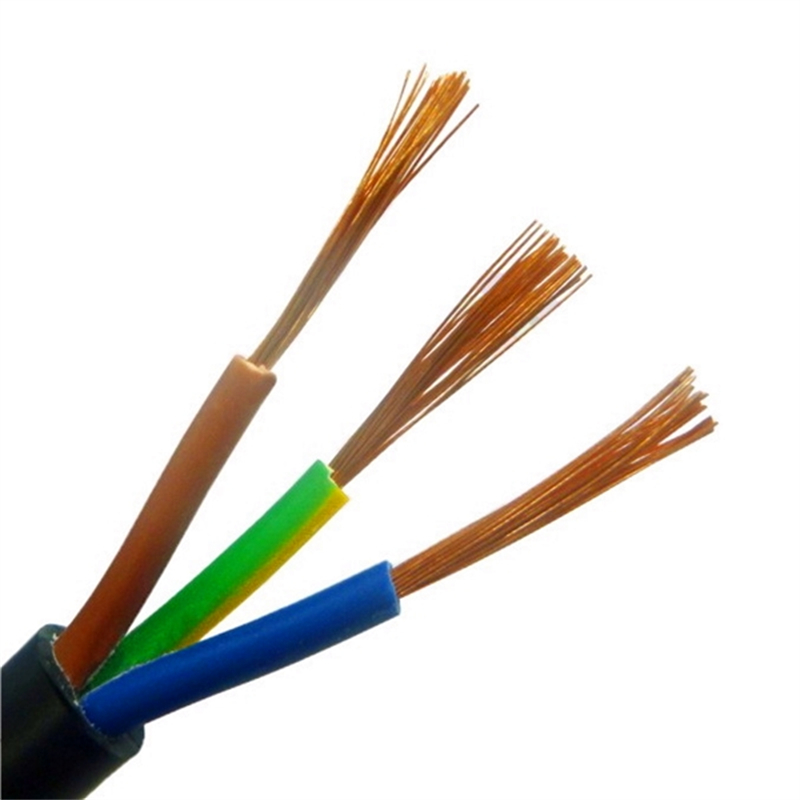

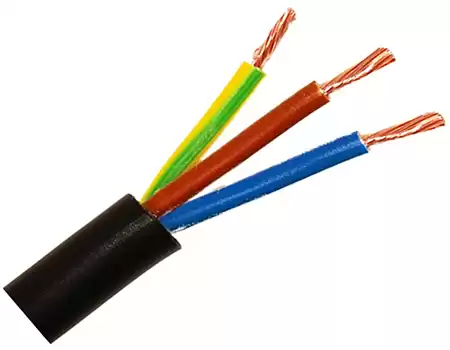

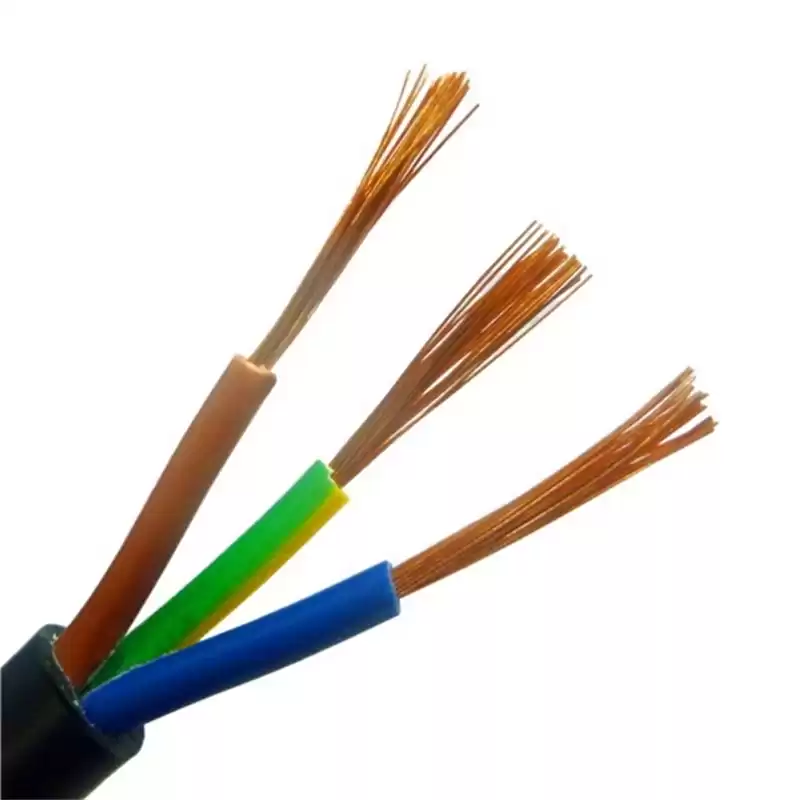

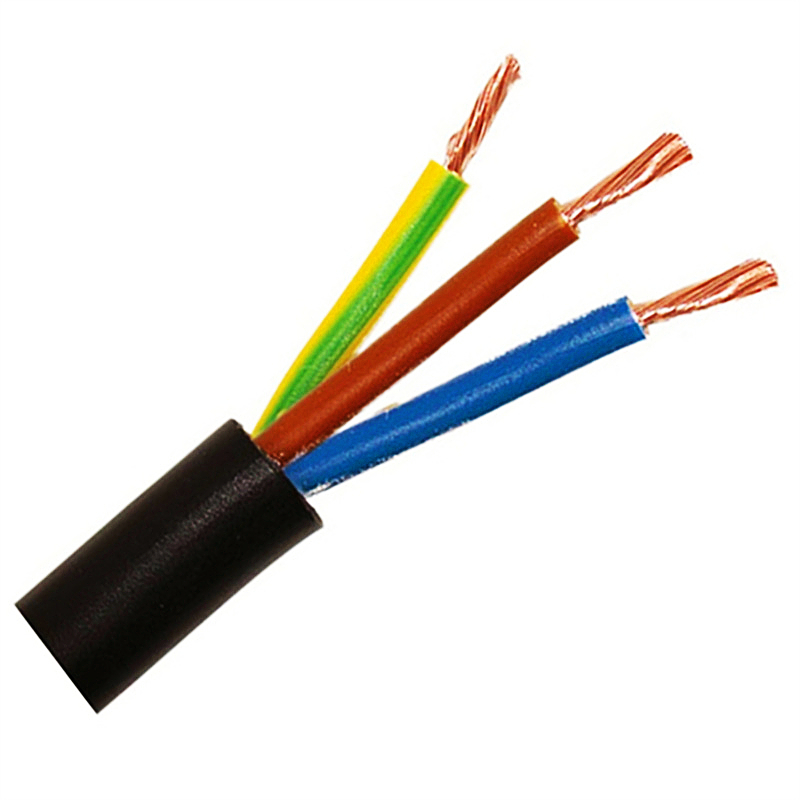

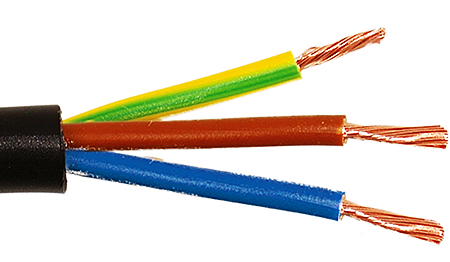

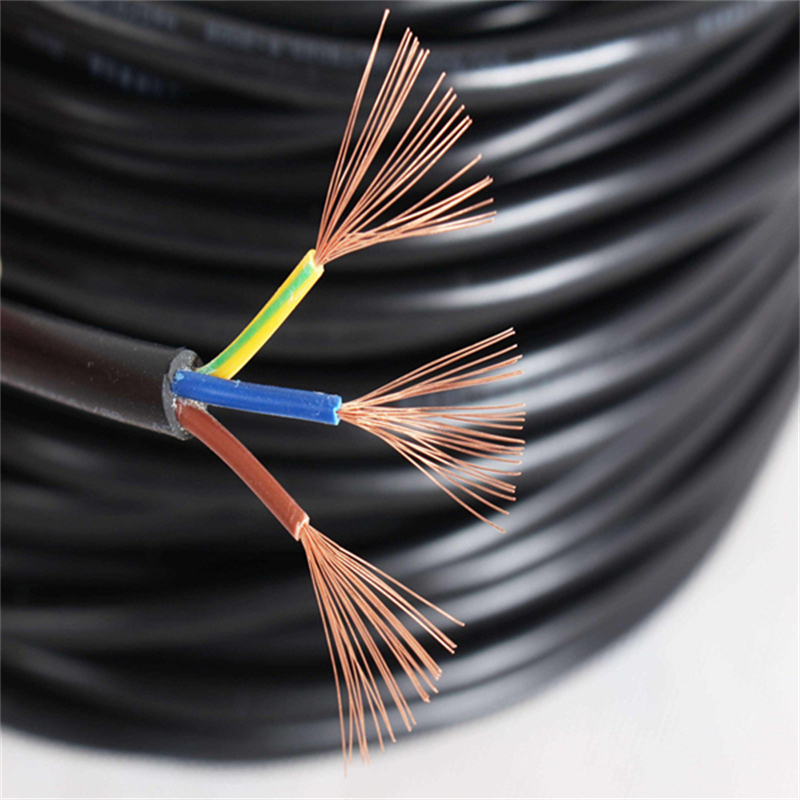

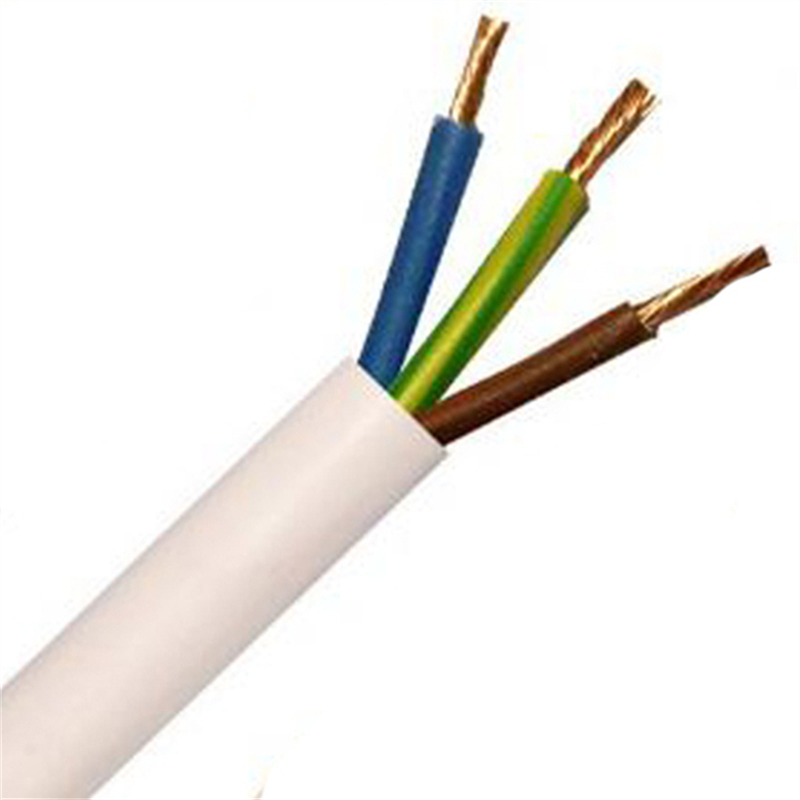

Online Sales High Quality H05VV-F 3183Y RVV 3x4mm2 Flexible Cable:
---Conductor Material
Plain annealed copper wire, stranded Class 5.
---Insulation Material
45P Flexible PVC (polyvinyl chloride).
---Sheath Material
85P Flexible PVC (polyvinyl chloride).
aPRODUCTS DIMENTIONS
|
ITEMS NO.
|
DESCRIPTION OF WIRE AND CABLES
|
|
Products Name
|
Online Sales High Quality H05VV-F 3183Y
RVV 3x4mm2 Flexible Cable
|
|
Conductor Material
|
Plain annealed copper wires, stranded Class 5.
|
|
Conductor Structure
|
3C x 58/0.29 mm.
|
|
Insulation Material
|
45P Flexible PVC (Polyvinyl Chloride).
|
|
Insulation Thickness
|
0.8 mm.
|
|
Insulation Colour
|
Brown, blue, yellow/green; or others.
|
|
Sheath Material
|
85P Flexible PVC (Polyvinyl Chloride).
|
|
Sheath Thickness
|
1.2 mm.
|
|
Sheath Colour
|
Black, white, or others.
|
|
Conductor Cross-section
|
3 x 4 mm2.
|
|
Core Number
|
Three cores, 3 cores, 3C.
|
|
Out Diameter
|
12.1 mm.
|
|
Voltage Rate
|
300/500V (U0/U).
|
|
About Net Weight
|
247 kg/km.
|
|
Production Standard
|
JB/T 8734-2016, GB/T 5023-2008, IEC 60227, BS 6500, EN 50525-2-11.
|
|
Products Packing
|
100 Meters per roll, or according to the customers requirement.
|
|
Max. Conductor DC
Resistance at 20℃ in Air
|
4.95 Ω/km.
|
|
Min. Insulated
Resistance at 70℃
|
0.007 MΩ.km.
|
|
Max. Ampacity
at 40 ℃ in air
|
27A.
|
