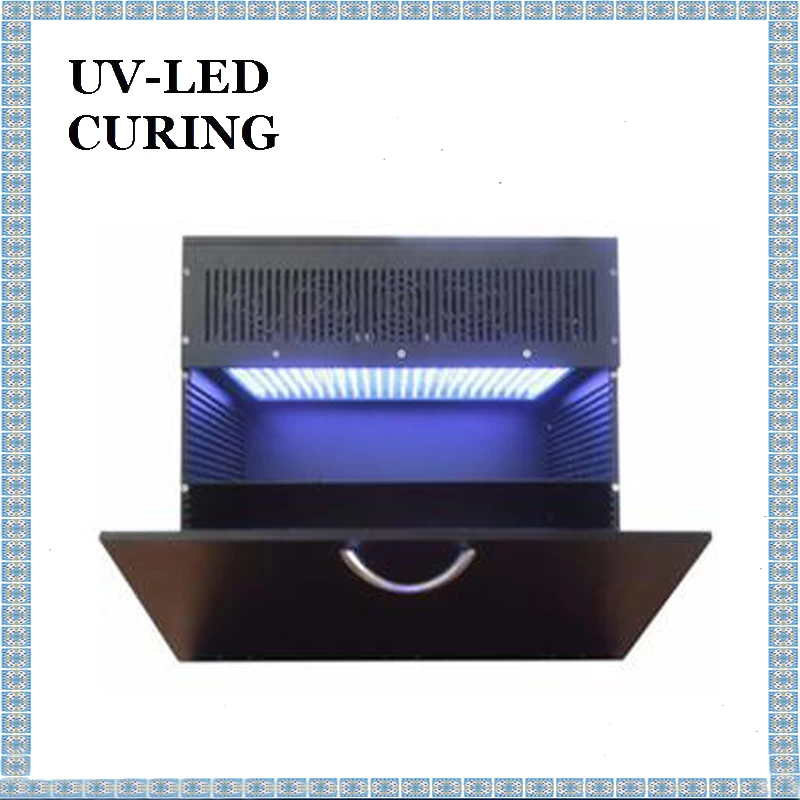

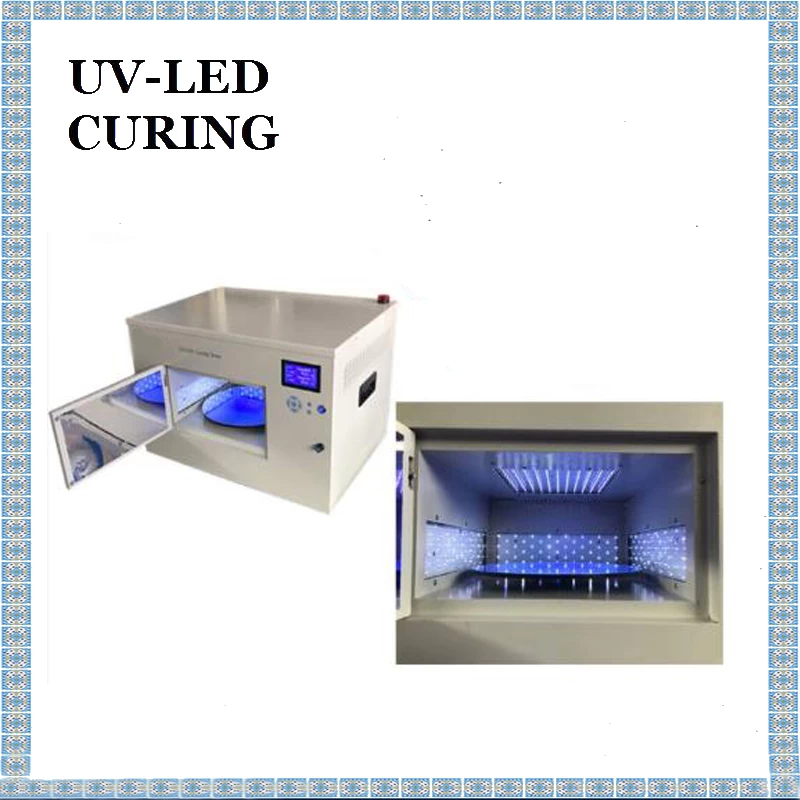

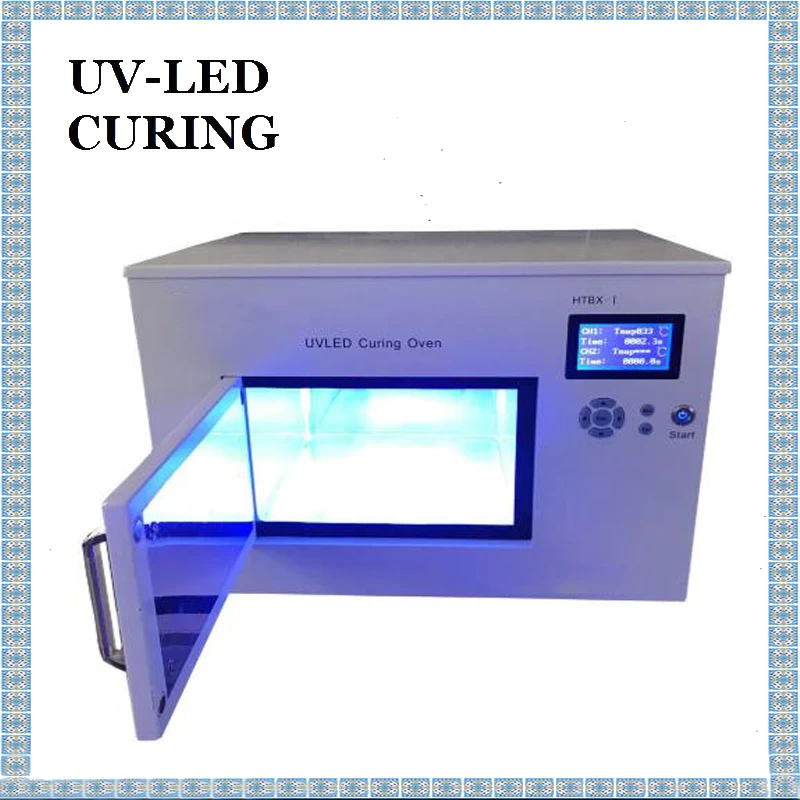

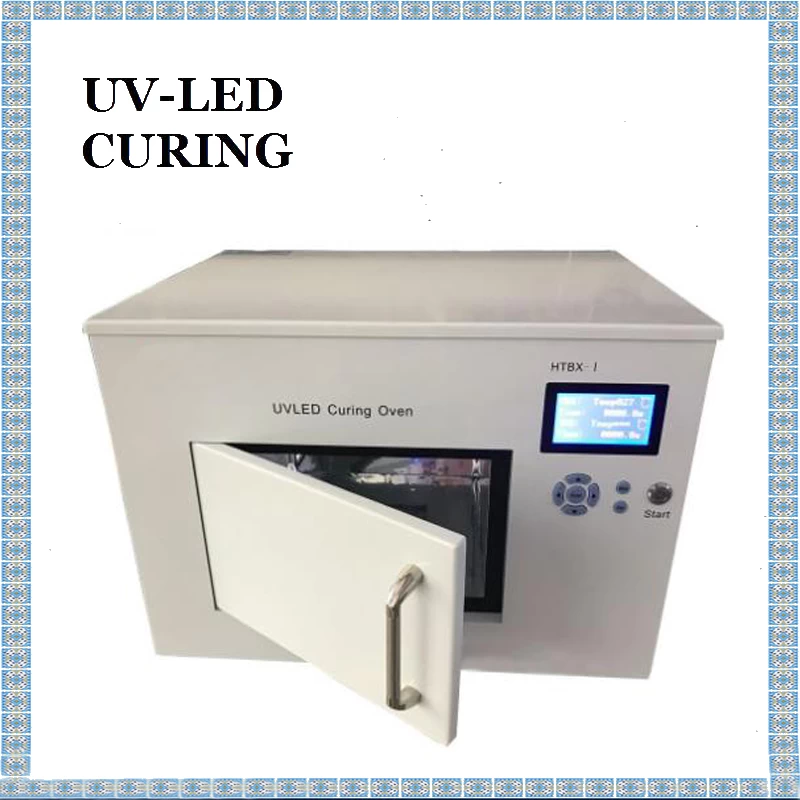

LED Curing Box UV Ink Curing Oven UV Chamber is instantaneous curing, no ozone, environment protection, energy conversation, no mercury.
Quick Details of Fast Cure 3D Printed Simple 365nm UV Curing Systems Sell Offers for UV Curing Resin:
Type: UV LED, Electronic Component
Model Number: UV-LED CURING-II
Chip Material: AlGaInP
Emitting Color: Blue
Luminous Intensity: Max. 20W/cm^2
Luminous Flux(lm): 30-40lm
Optical Attenuation(%): 10
Power: 0.1W
Power Dissipation: 420
Viewing Angle(°): 120
Color Rendering Index(Ra): 100
Color Temperature: Ultraviolet
Operating Temperature(℃): -10 - 50
Storage Temperature(℃): -10 - 50
Place of Origin: Guangdong, China (Mainland)
Brand Name: UV-LED CURING
Certification: CE, RoHS
Condition: 100% Original
Product name: Hmi
Warranty: 1 Year
Quality: 100%Brand
Application: Electronic Equipment
Name: Original A-B 20-HIM-A6 PANEL
Packaging & Delivery of High Power UV Curing Systems 365nm:
Packaging Details : Standard export carton and processed wood packing
Delivery Time : 15 days after payment
Factory Price LED Curing Box UV Ink Curing Oven UV Chamber
|

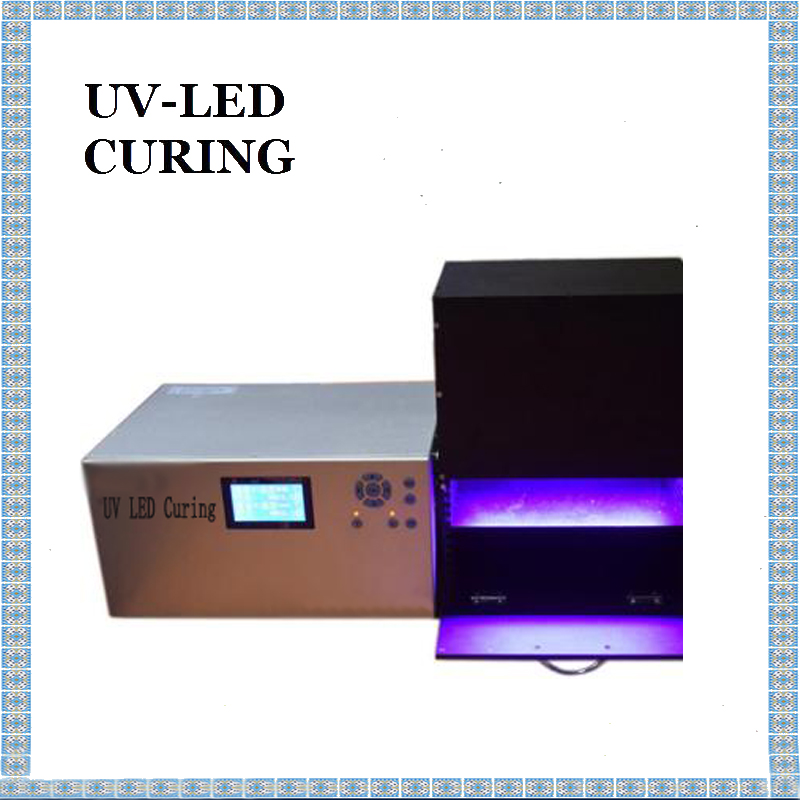

Controller technical specifications
|
|
Type
|
UV-LED CURING-II
|
|
Channel
|
1
|
|
The size of controller
|
L384*W284*H90mm
|
|
Terminal I/O
|
Input
|
Pedal switch & serial RS-232
communication signals
|
|
Output
|
serial RS-232 communication signals
|
|
Cooling method of controller
|
Air cooling
|
|
Power supply voltage
|
AC100~240V±10%(50/60HZ)
|
|
Operation mode
|
Touch Panel
|
|
Ambient temperature and humidity
|
Ambient temperature:-10℃—50℃ Relative humidity:25%—85%RH
|
|
Dimming/Exposure control
|
Digital Debugging,Manual exposure control,
Foot control or timing control (0.1~9999S)
|
|
Setting operation
|
Using the operating switch is set,
Power key parameter switch,RS-232
|
|
External Control
|
External input
|
Enter irradiation alone
Irradiation stop input,
Interlocking,All lights
illuminated input,Query switch
|
|
External output
|
READY signal,Error
signal,Warning Output,Busy
output(Various skinhead),
+5VOutput (indicator used)
|
|
UV LED Irradiation Head Specifications
|
|
type
|
UV-LED CURING-II
|
|
Electric power
|
768W
|
|
Cooling method
|
Air cooling
|
|
Curing area
|
220x230x60mm
|
|
Irradiate distance
|
10~100mm
|
|
UV LED curing head
|
wavelength
|
365-405nm or customized
|
|
Peak irradiance
|
1000~2000mW/CM2
|
