Factory Sales TNC Male to SMA Female Connector Cable Assembly with RG316 RF Coax Cable
TNC Cable assembly Features：
- Can be combined with BNC, FAKRA, MCX, MMCX, N, SMA, SMB or TNC connector;
- Body Can be right angle or straight connectors;
- Max Frequency 18 GHz;
- Cable Can use flexible, formable or semirigid cable.
Factory Sales TNC Male to SMA Female Connector Cable Assembly with RG316 RF Coax Cable
The TNC cable assembly can use flexible, formable or semirigid coaxial cable such as LMR195、LMR240、LMR400、RG142、RG174、RG178、RG188、RG213、RG214、RG223、RG316、RG393、RG400、RG401、RG402、RG58、RG8; the body of TNC to SMA cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. This TNC male to SMA female cable assembly uses a 50ohm straight TNC for connector 1 and a 50ohm straight SMA for connector 2, Cable is a 50ohm flexible RG316.
Specifications
| ELECTRICAL DATA | |
| Connector 1 Series | TNC |
| Connector 1 Style | Str Male |
| Cable Type | RG316 |
| Connector 2 Series | SMA |
| Connector 2 Style | Str Female |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance (Ohms) | 50 |
| Low PIM | Yes |
| Max Frequency | 3GHz |
| Working Temperature | -65°C to +165°C |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Automated Test Systems
- Airborne Systems
- Phased Arrays
- EW and Countermeasures

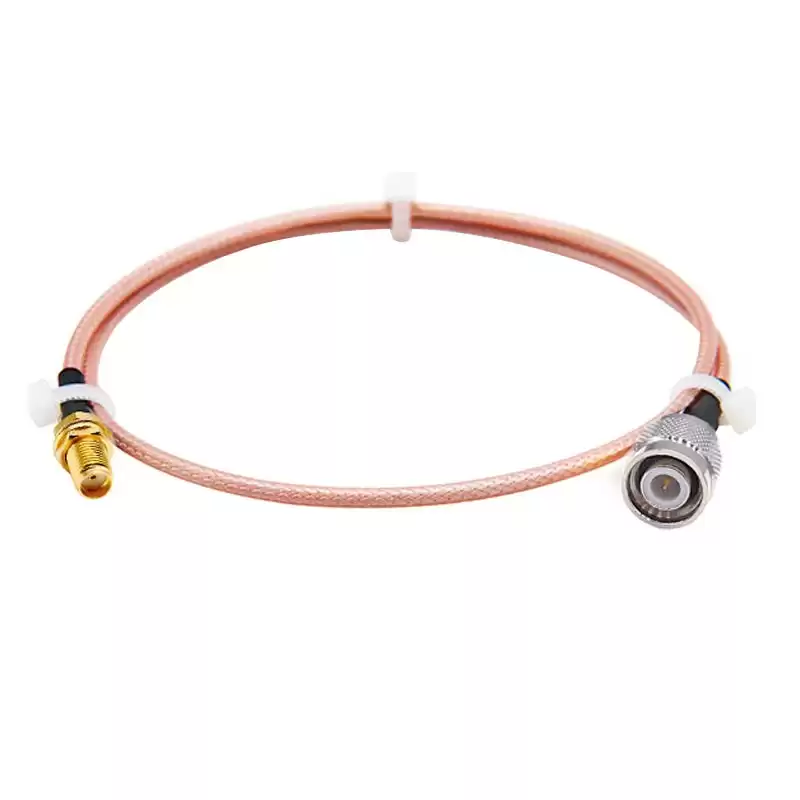

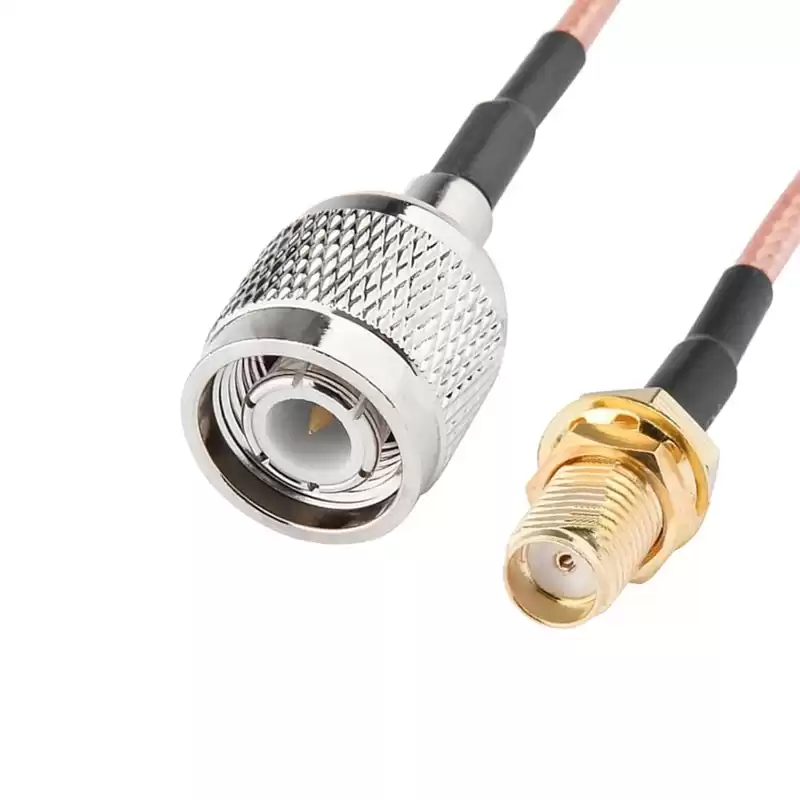

TNC Male to SMA Female Cable Assembly
TNC Male to SMA Cable Assembly
TNC to SMA Cable Assembly
TNC Male Cable Assembly
TNC Male Connector Cable Assembly
TNC to SMA Connector Assembly
