FACTORY SUPPLY EASY INSTALL PLASTIC GRID FLOORING FOR RACECOURSE
Plastic grid flooring is being used for racetracks, competition arenas, paddocks, turnouts, and round pens etc. Each purchase comes with full engineering consultation for peace of mind with any project.
LEIYUAN NEW ONLINE MUD MANAGEMENT PRODUCT –PLASTIC GRID FLOORING

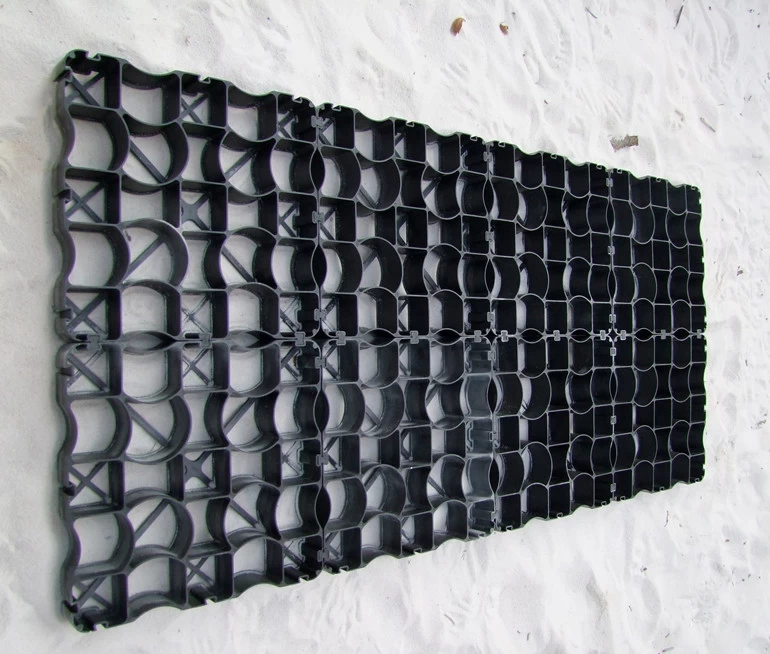

Factory Supply Plastic Grid Flooring is a high quality and versatile range of 100% recycled high density plastic, permeable paving. Racecourse Plastic Grid Flooring from Leiyuan Industrial Company Limited is the best quality product of its kind in the market place. It is best mud management solutions for all equestrian facilities and livestock owners. Grid floor has a compressive strength of up to 250 tonnes per m2.
DIMENSION
| MATERIAL: |
HDPE(100% Recycled High Density Polyethylene) |
| SIZE: |
336*336*50mm |
| COLOR: |
Black; Dark Green |
| CELL WALL THICKNESS: |
2mm |
| WEIGHT: |
0.65kg/pc; 5.85kg/m² |
| PACKING: |
Nine individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1m² in one go. |
| LOADING QUANTITY: |
570m2/20’gp, 1150m2/40’gp, 1310m2/40’HQ |
SPECIFICATION
| LOADING BEARING CAPACITY: |
More than 250tons/m2 after filled |
| OPEN CELL PERCENTAGE: |
92% top; 75% base |
| ANTI HCL: |
According to GB4218-1984, 30%x24h, no visible change |
| ANTI NaOH: |
According to GB4218-1984, 30%x24h, no visible change |
| THERMAL AGING: |
According to GB/T 7141-1999, 70ICx24h, no visible change |
| UV RESISTANCE: |
According to GB/T18830, UPE>30T(UVA)AV<5%, Qualified |
| TOXICITY: |
Non Toxic |
| DURABILITY: |
Durability of at least 10 years in neutral ground of 4<pH<9 |
COLORS
APPLICATION
- Indoor and outdoor riding arenas
- Paddocks and open stables
- Tethering and mounting areas
FEATURE
-Light weight
-Non-slip
-Elastic and robust
-Easy Install
-Crack-proof
-Weatherproof
-Environmentally friendly, 100% recyclable
-High load capacity
-Ammonia resistant
-Withstands frost and UV light
-Does not rot
