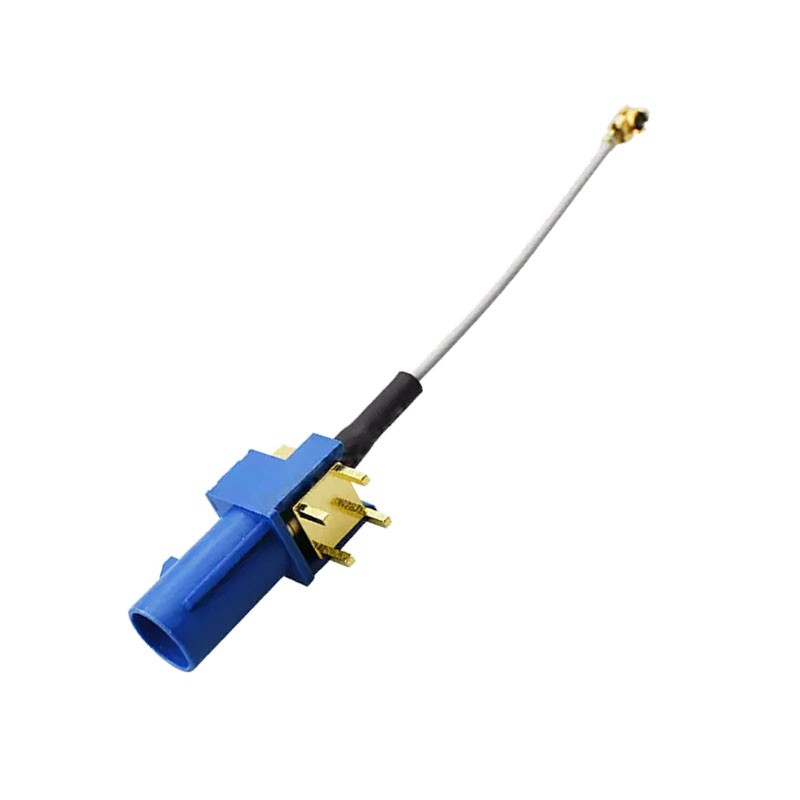

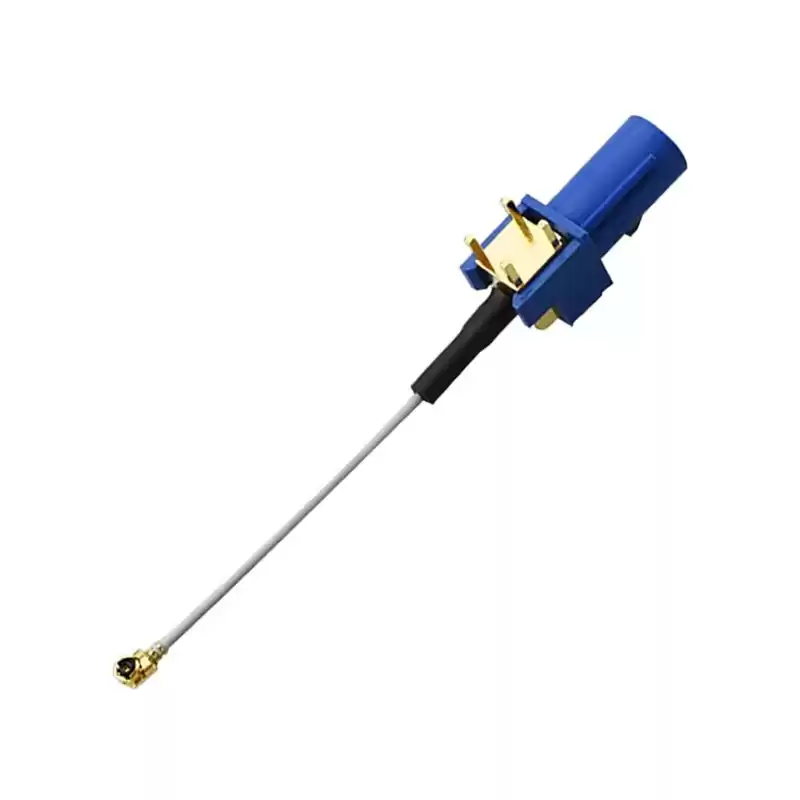

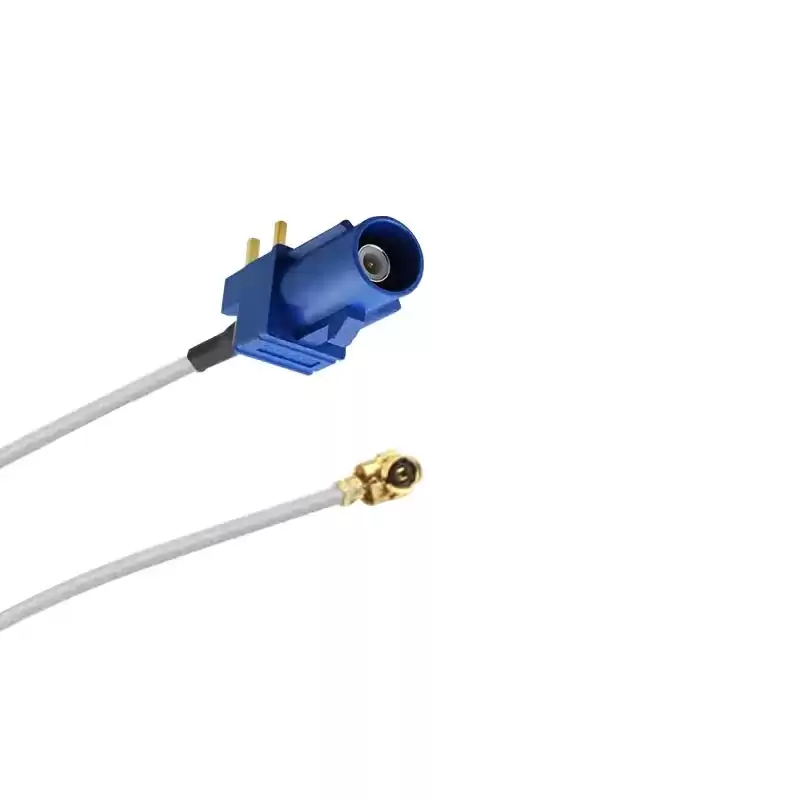

Fakra PCB Plug to UFL IPEX Coaxial Connector Assembly with 1.13mm RF Cable
The Fakra cable assembly can use flexible coaxial cable such as LMR100, RG174, RG188 or RG316 cable; the body of Fakra to UFL cable assembly is right angle or straight connectors which is jack to jack, jack to plug, plug to jack or plug to plug gender. This Fakra plug to UFL plug cable assembly uses a 50ohm straight Fakra for connector 1 and a 50ohm UFL for connector 2, Cable is 50ohm flexible cable type 1.13mm.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
Fakra |
| Connector 1 Style |
Str Plug |
| Cable Type |
1.13mm |
| Connector 2 Series |
UFL |
| Connector 2 Style |
Plug |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Max Frequency |
6GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
| Body Material |
PA / PBT & PA / LCP |
| Body Finish |
Black / White / Blue / Violet / Green / Brown / Blue / Gray/ Beige / Curry / Green / Orange / Green
|
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Advanced Driving Assistant System (ADAS)
- Telematics, multimedia
- Infotainment, GPS
- Navigation and camera
- Body control, safety, security and comfort
