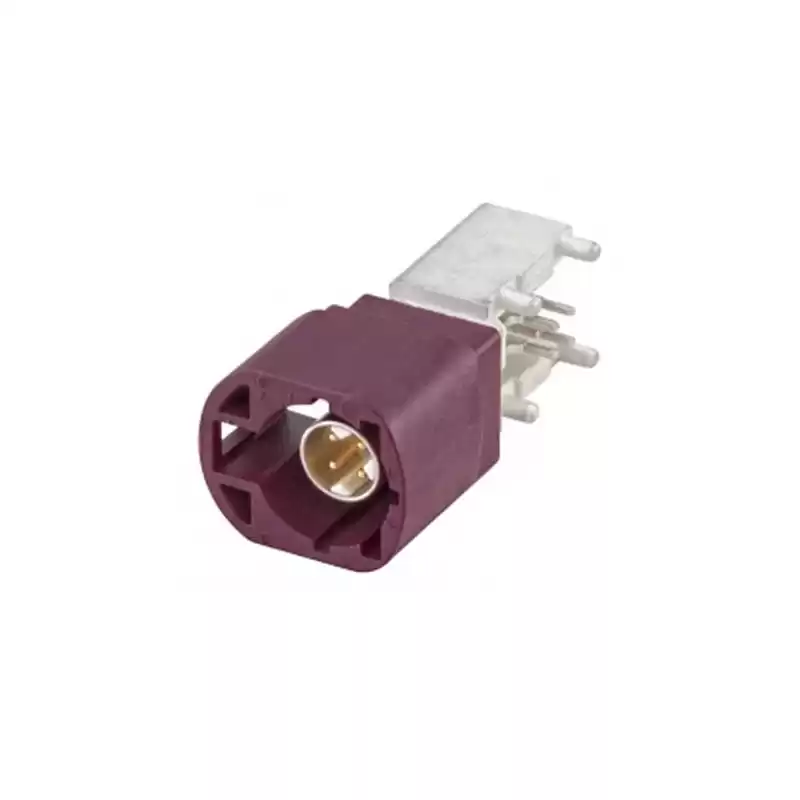

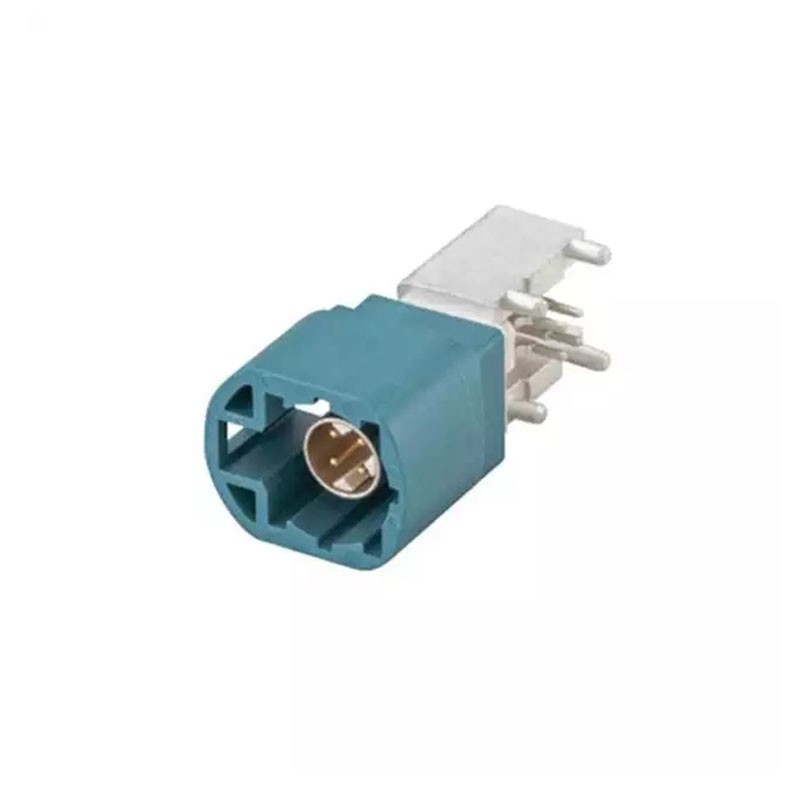

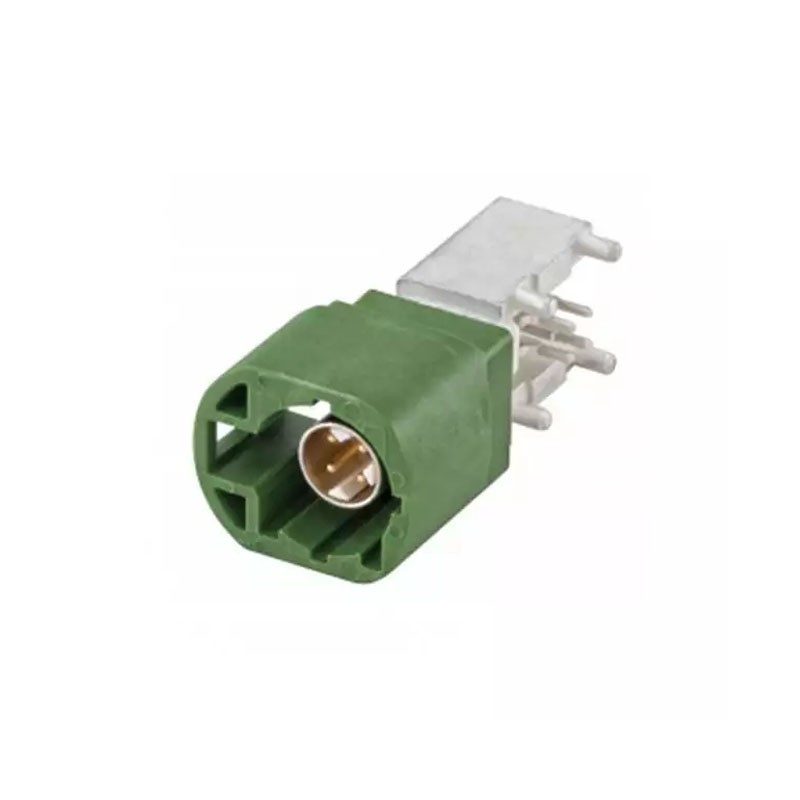

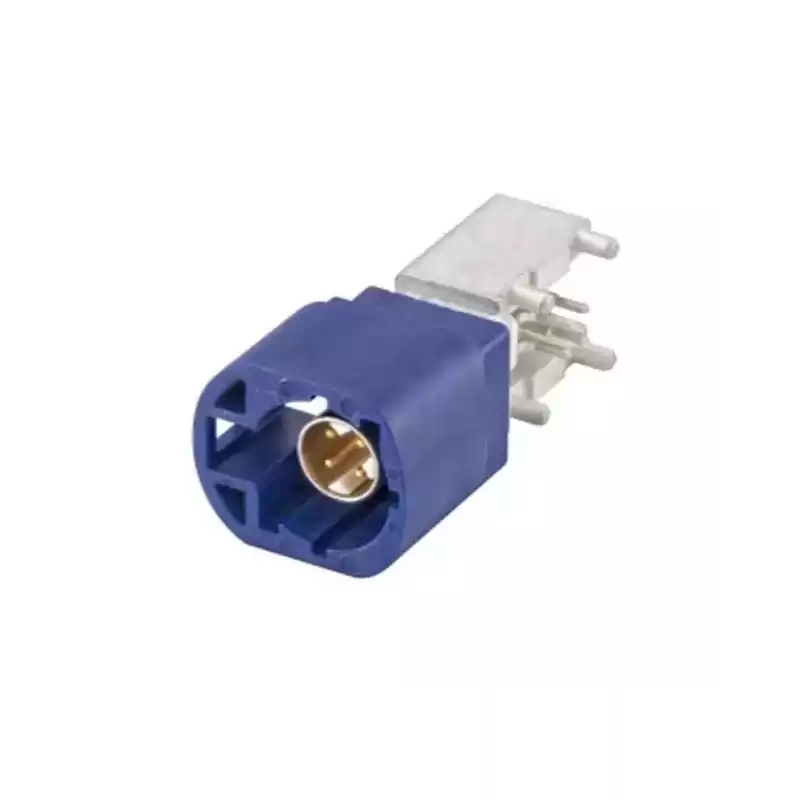

FAKRA RF Connector Right Angle for PCB Mount
RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards;FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.
Specifications
| ELECTRICAL DATA |
|
| Insertion Loss |
≤0.25dB |
| Characteristic impedancd |
50Ω |
| Frequency range |
0~6GHz |
| Working voltage |
≤335V |
| VSWR |
≤1.3 |
| Insulation Resistance |
1000MΩ |
| Dielectric Withstanding voltage |
≥1000V |
| Contact resistance |
≤20mΩ |
|
| MECHANICAL DATA |
|
| Plastic housing retention force |
≥100N |
| Cable retention force |
≥120N |
| Temperature Range |
−40°C to +105°C |
| Solder version |
to 200℃/60s |
| Solder version SND |
to 260℃/60s |
| Material And Plating |
|
| Plastic housing |
P.A |
| Female center contacts |
Bronze |
| female and male body ¢er contact |
Brass |
| Insulators |
PTFE |
Applications
- Global Positioning Satellite
- Automotive
- Satellite Radio
- Bluetooth
- Remote Vehicle Diagnostic
- Infotainment Systems
