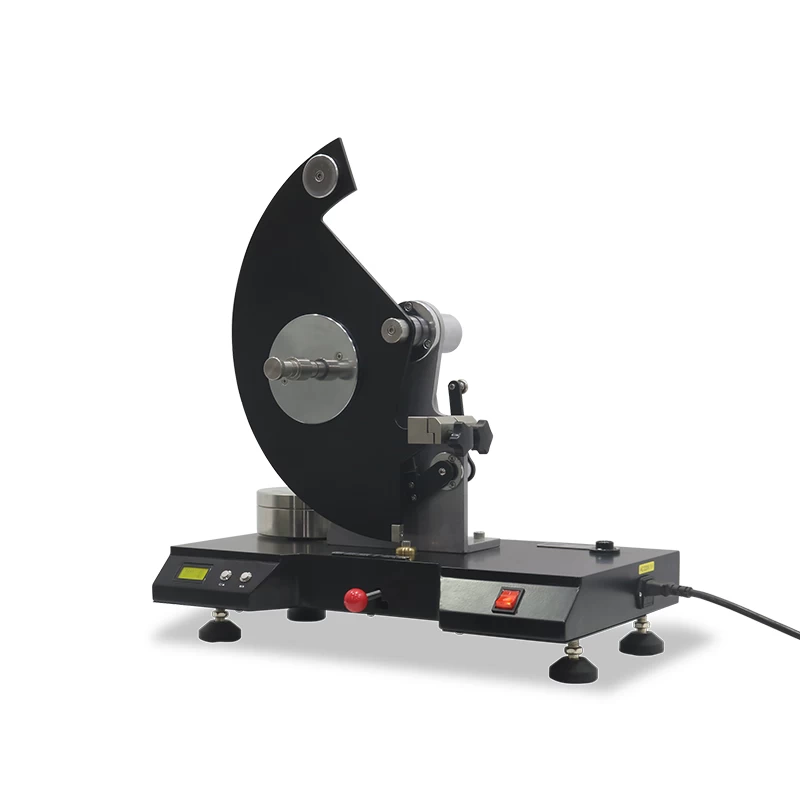

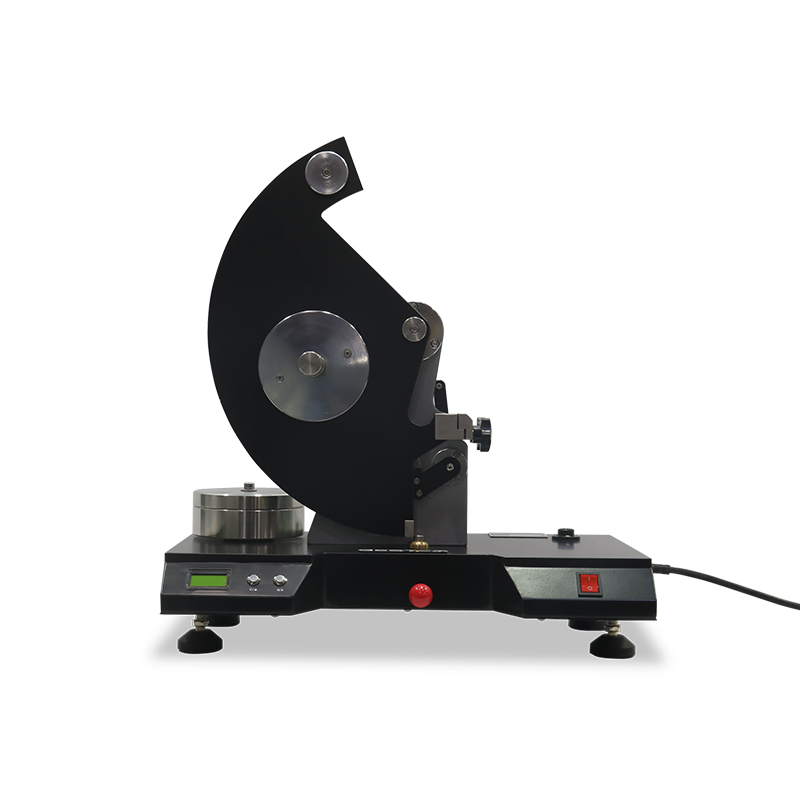

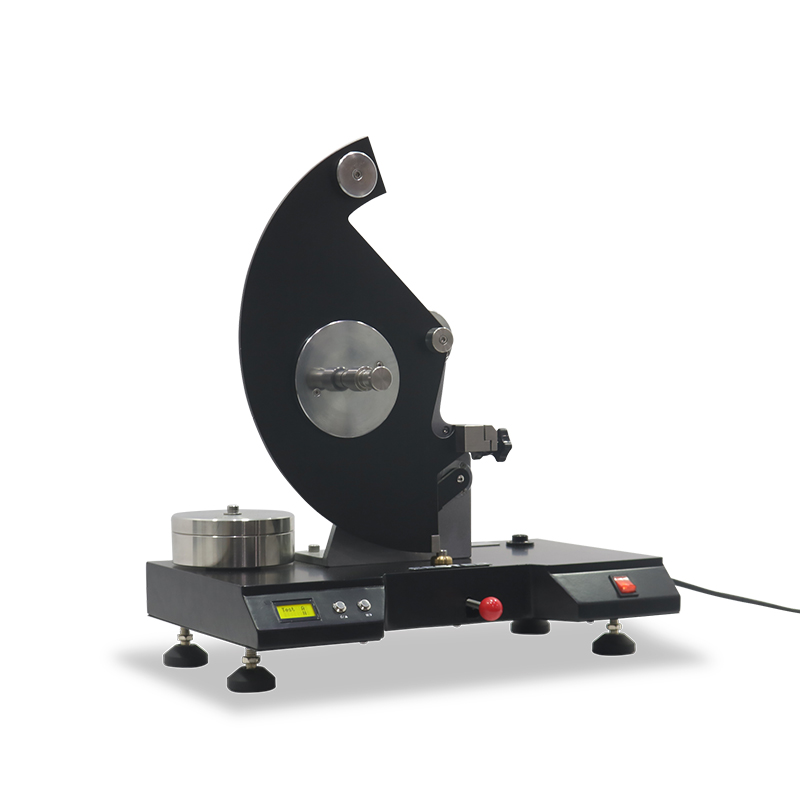

Falling-Pendulum Type Tearing Tester GT-C10B

This Elmendorf Tearing Tester GT-C10B can be used to test the Determination of tear resistance of textile, non-woven fabrics, paper, paperboard, thin film, ventilation tape, sheet metal etc.



Falling-Pendulum Type Tearing Tester GT-C10B



Product Introduction of elmendorf tear tester

Application:

This Elmendorf Tearing Tester can be used to test the Determination of tear resistance of textile, non-woven fabrics, paper, paperboard, thin film, ventilation tape, sheet metal etc.


Standards:

Test for Textile: GB/T 3917.1, ASTM D 1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17, NF G07-149

Test for Paper: GB/T 455, APPITA P 400, ASTM D 689, BS 4468, CSA D9, DIN 53128, EN 21974, ISO 1974, JIS P 8116, PAPTAC D9, SCAN P11, SNV 198482, TAPPI T414, UNI 6444

Test for Plastic: GB/T 11999, ASTM D 1922, ISO 6383-2, JIS K 7128-2, NF T54 141

Test for Non-woven fabrics: ASTM D 5734, WSP 100.1

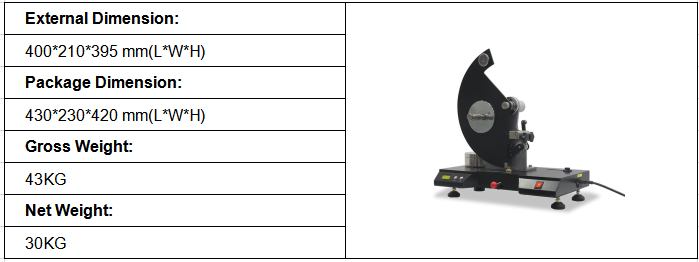

Dimensions of elmendorf tear tester

Falling-Pendulum Type Tearing Tester GT-C10B



Feature of tearing tester



1. This LCD display, simple to operate and easy to understand.

2. Microprocessor can automatically detect and analyze data. It features precision test, reliable performance and simple operation.

3. The instrument all can meet the related requirements of GB/T3917.1-2009 .

4. Apply to the determination of tear strength of various woven fabrics and other materials, such as paper, plastic sheets, film, electrical tape, sheet metal and so on.



Key Specifications of elmendorf tear tester

Model

GT-C10B

Range of tearing force

016N (A)

032N (B)

064N (C)

Accuracy

≤ ±1%F·S

Rip Length

43mm

Power Supply

AC220V 50Hz 20W

Dimensions

400×210×395mm

Weight

30kg

Standards accessories

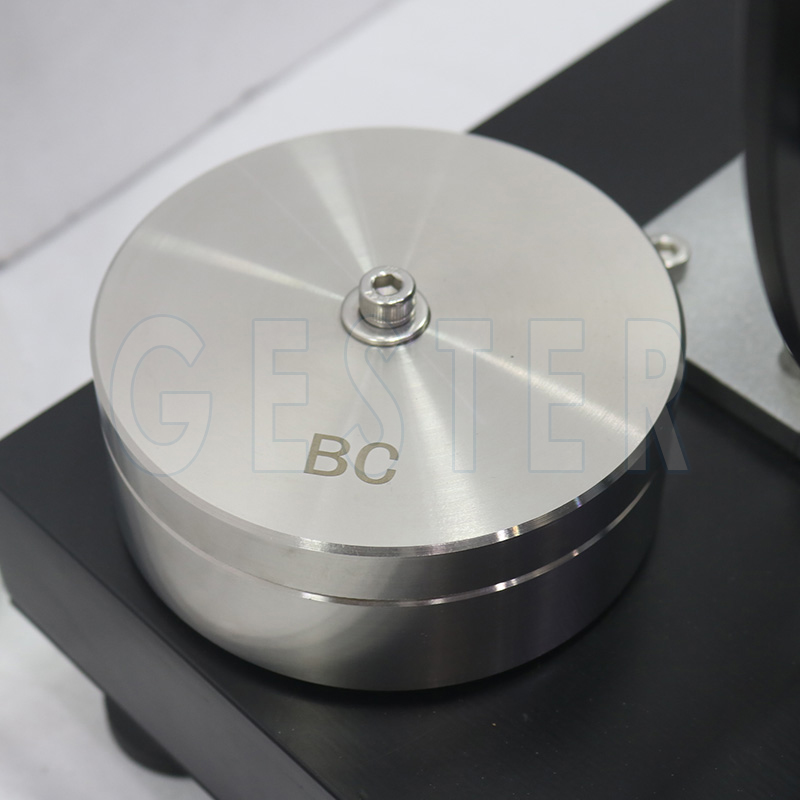

Pendulum B (16N) 1pc

Pendulum C (32N) 1pc

Sample Template 1pc

Power Line 1pc



Application Industry of elmendorf tear tester
All kinds of Below materials can be tested on the Falling-Pendulum Type Tearing Tester GT-C10B

elmendorf tear tester
