Fanless Embedded Industrial Controller with i5 4200U CPU 2LAN 2COM 4USB

MIS-EPIC04

Fanless Embedded Industrial Controller with i5 4200U CPU, 2LAN 2COM 4USB



MIS-EPIC04 Fanless Embedded Industrial Controller with i5 4200U CPU 2LAN 2COM 4USB



Product Introduction

Embedded industrial controllers are used to manage all aspects of a production line, including equipment control, material handling, quality inspection and production scheduling. This helps increase productivity, lower production costs, and reduce human errors.



In chemical industry, electric power, and pharmaceuticals, embedded industrial controllers are used to monitor and control complex industrial processes to ensure that process parameters are within acceptable ranges to maintain high-quality product production.



Features

■ Board affixed I5 4200U CPU

■ 2LAN Gigabit Ethernet port, 2COM 4USB

■ Optional WIFI or 4G wireless

■ Support VGA + HDMI independent dual display

■ Flexible configuration, optional memory hard drive of various capacities

■ DC12V input



Specifications optional configurations
Chassis All aluminium construction, sandblasted black

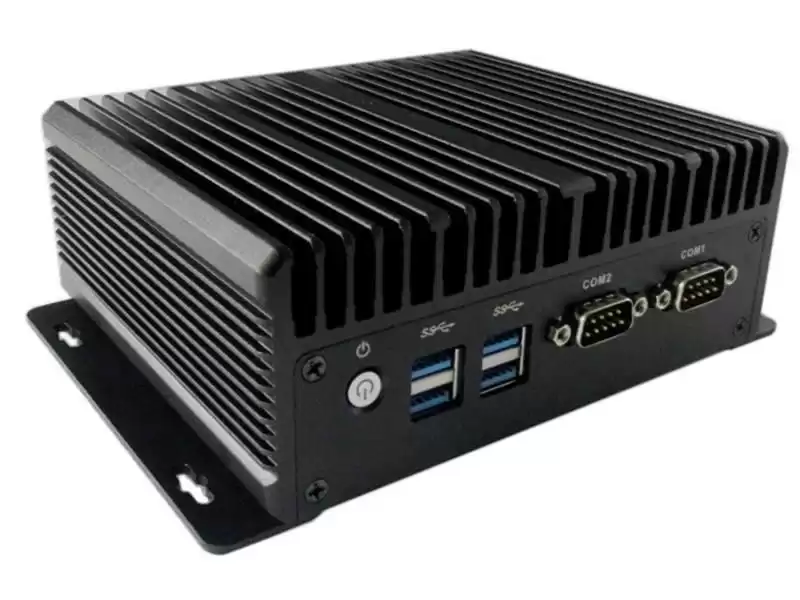

Front Switch with indicator light;4USB3.0;2COM(RS232)

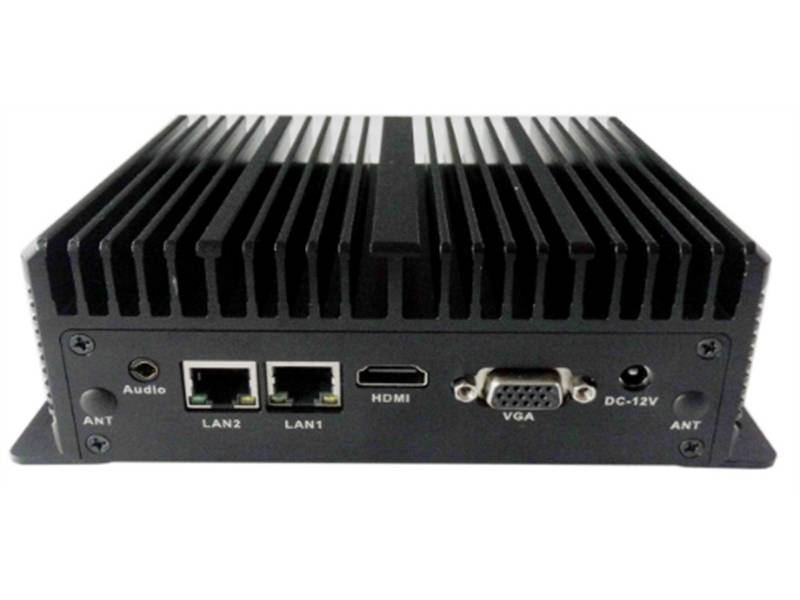

Back DC12V IN;VGA+HDMI display; 2 RJ45 Gigabit Ethernet ports; Audio output hole; 2 antenna holes
Hard disk rack Motherboard supports MSATA SSD and 2.5" HDD
Adaptive Motherboard Dedicated board sticker i5 4200U CPU motherboard
CPU/GPU I5 4200U
Memory 8G DDR3 Optional 4G DDR3
Hard Disk 128G MSATA Optional Msata SSD in each capacity; 2.5" mechanical HDD in each capacity
Size 155*125.5*52.5mm(Dimensions without stand) Net/Gross weight 1/1.5KG
Power Supply 12V adapter as standard
Installation mode Bracket Installation
Work and Environment
Working temperature (-20~60)℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
    Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

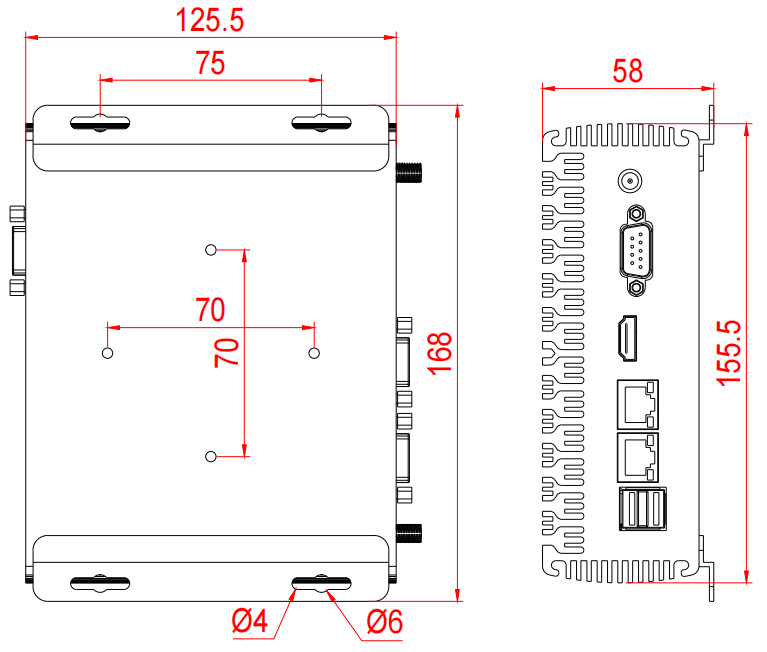

Installation Dimension Diagramllation Dimension Diagram



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
