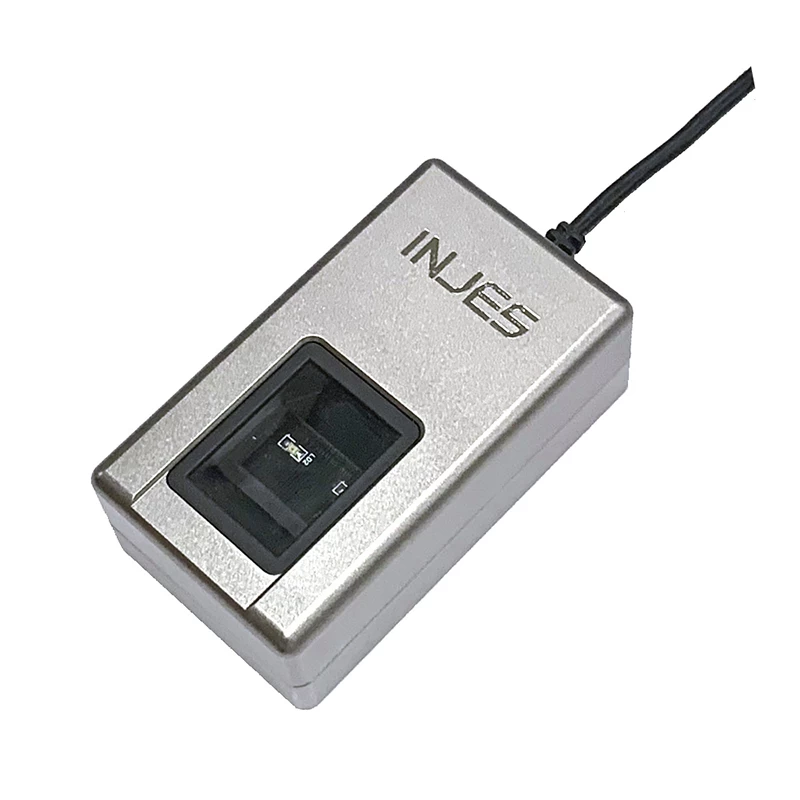

Product Name: FAP20 USB Fingerprint Scanner System with Linux PHP APK Code for Office Application
Description:
INJES FRT9200 USB Fingerprint Scanner utilizes precise optical fingerprint scanning technology to achieve superior reliability and excellent image quality,which can meet FBI FAP20 standards, support fingerprint templates with
ISO_IEC19794-2, and images in RAW,BMP or WSQ format.Crystal sensor allows it to read a wide range of fingerprints accurately including dry, moist or rough fingerprints.

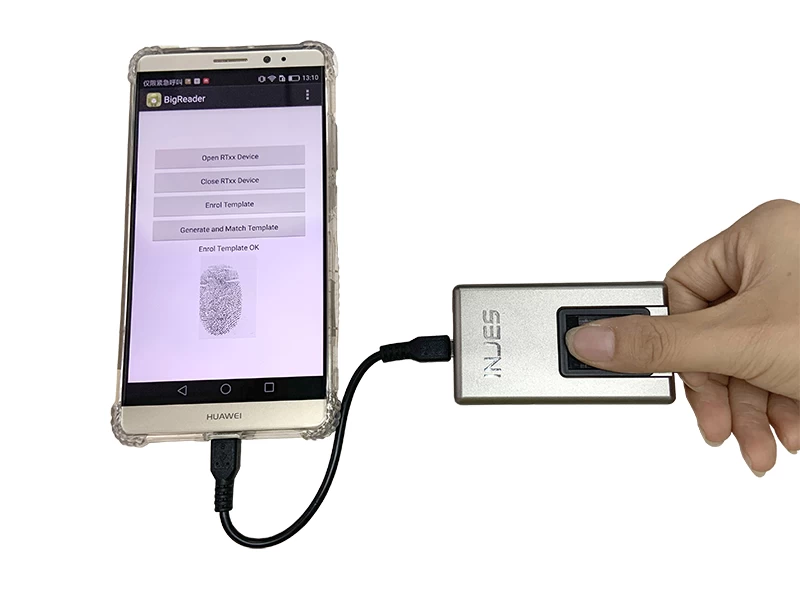

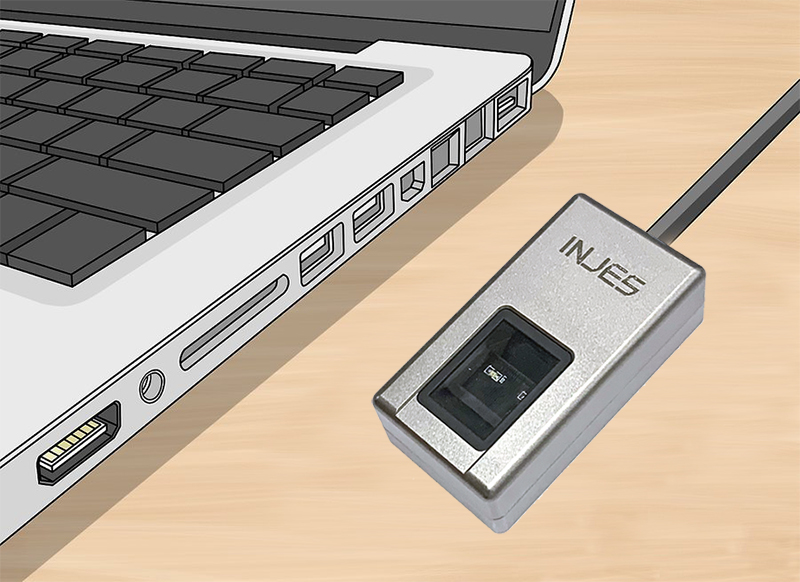

FRT9200 Fingerprint Scanners for Office use are compact, ergonomically designed and cost-effective. It support Plug&Play technology, is easily attached to a computer or a mobile terminal,like smart phone, android tablet and POS machine. On basis of Fingerprint Scanner Linux, PHP, APK source codes compatibility, it can be linked with different program environment and application,and let the fingerprint scanners suit both corporate and home applications, restricting access to sensitive information and protect data security.
Features:
．Infrared optical sensor
．300*400 pixel large image size
．24*26.8 mm large fingerprint detection area
．Meet FBI certified FAP20 standards
．No fingerprint residue
．Support RAW,BMP WSQ image format.
．Optional Micro USB port for Android Integration
．SDK customization on basis of clients’ requirements
．Compatible with Windows, Linux , PHP, Android OS, APK
Specifications:
|
Fingerprint Sensor
|
Infrared Optical Sensor
|
|
Interface
|
Standard USB 2.0, optional Micro USB
|
|
Image Resolution
|
500DPI
|
|
Sensor Size
|
24*26.8mm
|
|
Image quality
|
Meet FBI FAP20 , ISO_IEC19794-2
|
|
Image Size
|
300*400 PIXEL
|
|
Image Format
|
RAW,WSQ,BMP
|
|
Casing Material
|
Metallic
|
|
Compatible OS
|
Windows, Linux , Android
|
|
Gray scale
|
8 bit, 256
|
|
Gray level
|
255-255
|
|
Operating Humidity
|
0-95%
|
|
Operating Voltage
|
3.3-5V DC
|
|
Illumination
|
≤300lx
|
|
Gross Weight
|
0.5KG
|
