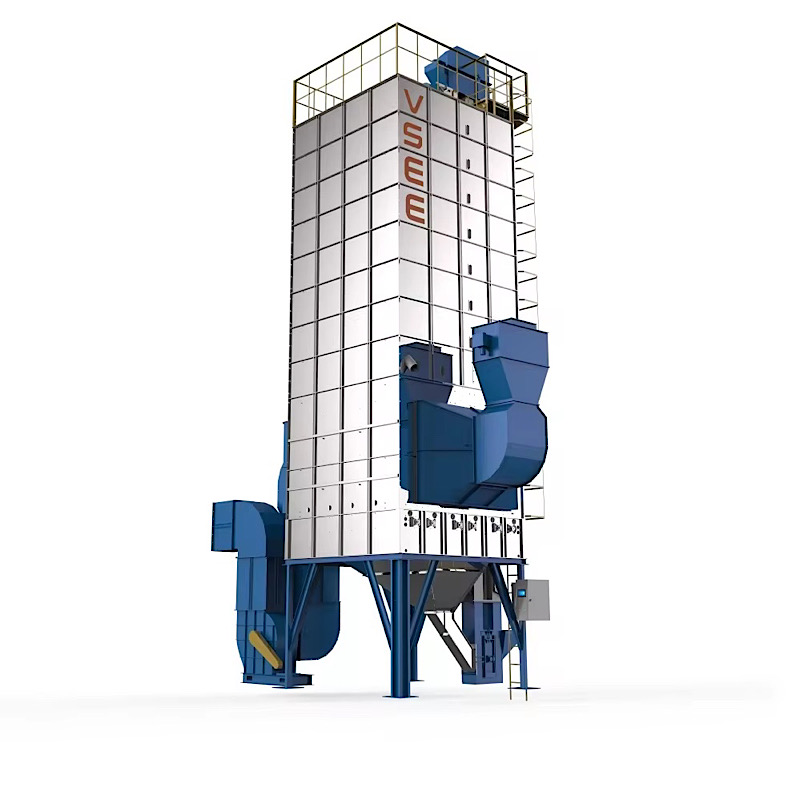

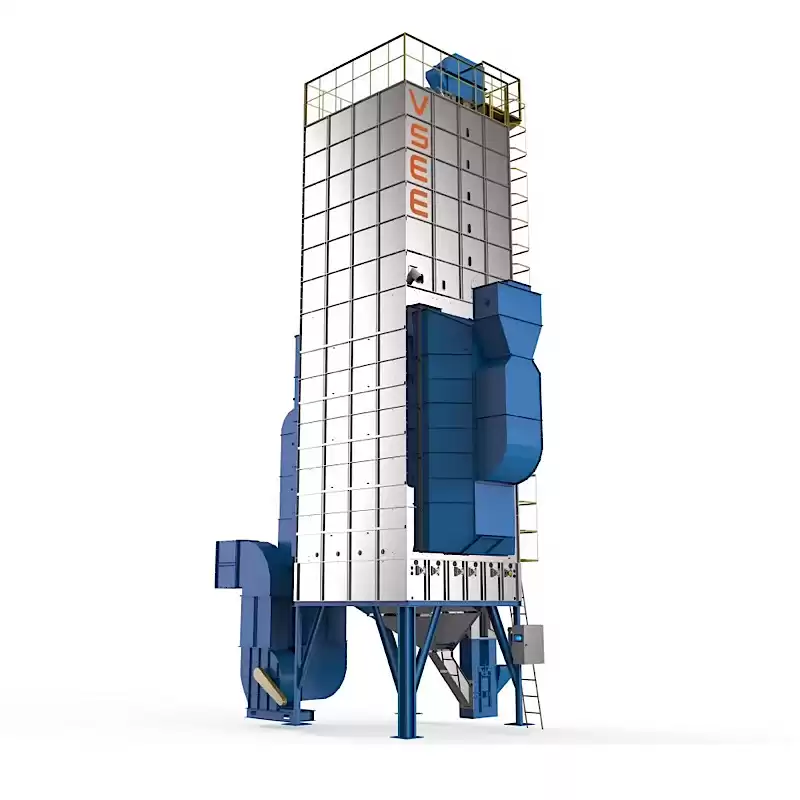

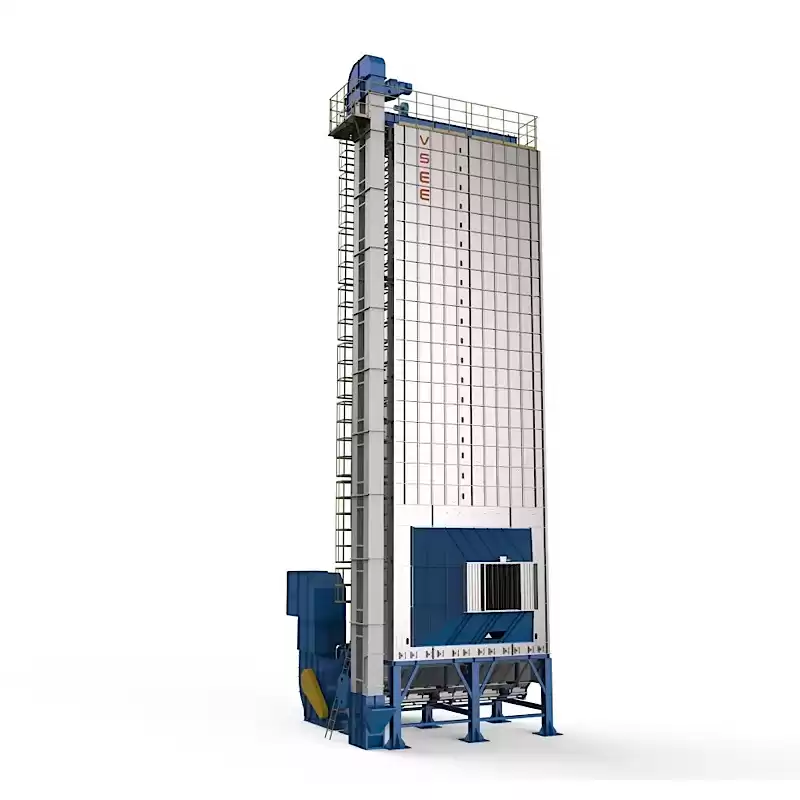

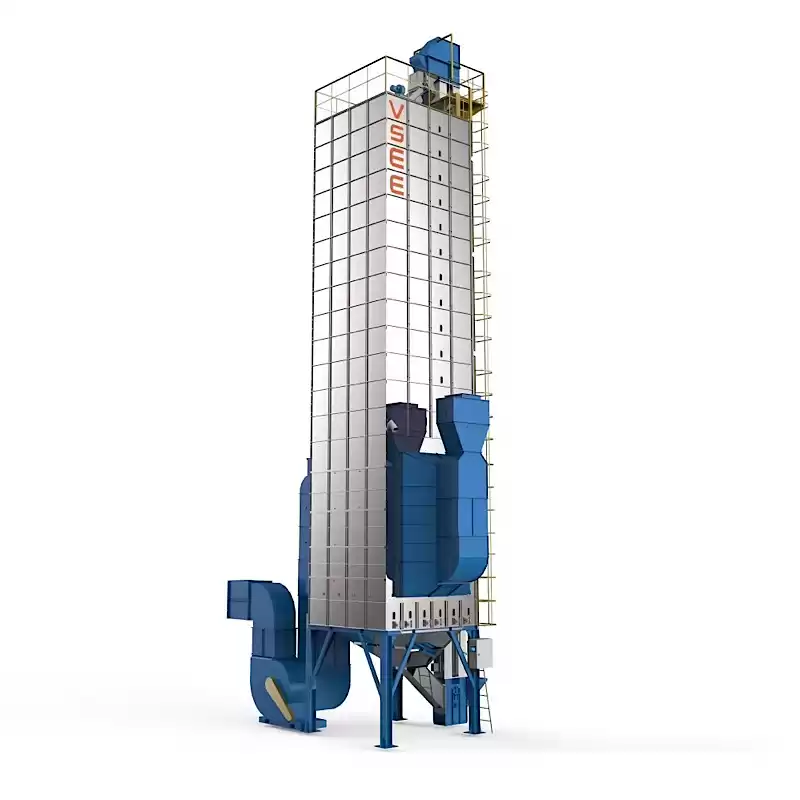

VSEE-JIUYANG Grain Dryers/ Rice Paddy Dryer
VSEE-JIUYANG take technology as the support, and take the market as the guidance.
Focus on drying equipment research and development, manufacturing, complete product range and comprehensive technology.
Our dryer have series 10T,15T,20T,30T,40T,50T,80T,100T,130T,150T etc.
Our drying furnace have series 5L-30, 5L-60, 5L-1300, 5L-1500, 5L-2000 five efficient indirect furnace.
These are suitable for the drying of cereal, such as rice, wheat, grain, corn, cottonseed and seed etc,
to ensures that the moisture content of rice, wheat and seed is higher than national storage standard.
Technology Advantages:
New Intelligent Control
Multistage drying temperature setting automatically with different moisture and customer's requirements. Energy saving. Drying quickly.
Top Box
Solid internal support structure. Made of high quality material with a durable life.
Drying Room
Stainless steel NET plates. Huge dry layer increases exchaning time and improve the drying rate.
To sure the grain drying smooth and uniform and fast. Electricity and energy
Circulatory System
Using up and down screw conveyor cycle system to avoid grain crushing and energy saving,truoble-free maintenance problems.
Moisture Sensor
The moisture can be determined cutomatically during the process of drying.
Machine can be stopped automatically by air cooling and drying operation after the value reached.
Frequency Conversion Type Allocating Axis
The most durable axis and blades with reinforcement combines with the control of frequency conversion type allocating axis.
The moisture of grain can be distributed evenly under the uniform circulation.
All the grain of each drying roon will be alternately circularty dried from four sides:front,rear,left and right.
Automatic Air Duct Cleaning Structure
All the grain dust cleaned by air flow during the heat inner air duct cleaning system. No any grain dust remains.
Quick output structure
Unique bottom design without motor make grain quick output and power and time saving. Customized
The Operator Panel
Industrial grade compact PLC Human machine interface Clearly user display Convenient and user-friendly operation
Main Features：
1)Up- and-down design without screw converyor, lowered grain crack rate, trouble-free and saving power.
2) Large drying area, thin multi-channel drying layer, makes drying efficiency and uniform.
3) Automatic drying monitoring system, temperature and moisture dynamic display, fault reminder, simple operation,
make the operation management more convenient.
4) Equiped with imported grain moisture tester, real-time accurate detection of the current moisture value of grain.
5) Heatingby multifunctional hot air furnace, uses rice husk, straw, wood and other fuels, makes low operating costs.
6) Strongly remove impurity, dryer with strongly removal fuction efficiently dry and remove impurity.
7) The inner heat exhaust air duct is automatically cleaned by air flow, grain dust is discharged with the grain, not stored in qir duct.
8) According to the level of misture and the customer's drying needs,
set multistage drying temperature automatically, to achieve uniform, energy saving, fast drying.
9) The most durable axis and blades with reforcement in industry, combines with the control by frequency conversion type allocating axis.
Machine parameters:
|
Model
|
5H-15
|
5H-20
|
5H-30
|
5H-40
|
5H-50
|
|
Form
|
Batch Cycle
|
Batch Cycle
|
Batch Cycle
|
Batch Cycle
|
Batch Cycle
|
|
Capacity（T）
|
15T/Batch
|
20T/batch
|
30T/batch
|
40T/batch
|
50T/batch
|
|
Machine Dimension
(mm)
|
5700*3860*11310
|
5750*3920*11970
|
6180*4675*12800
|
6285*4755*15430
|
6370*4730*19155
|
|
Feeding time
|
50min
|
40min
|
60min
|
45min
|
50min
|
|
Discharge time
|
40min
|
34min
|
52min
|
38min
|
40min
|
|
Drying rate
|
Paddy 0.6-1.5% / hour Wheat 0.4-1.5% / hour Corn: 0.6-1.5% / hour
|
Q: Why choose us?
A: 1. We can provide a complete solution according to customer requirements.
2. We can make market planning for customers after grain drying.
3. We p rovied 24 hours after-sales service, feel free to contact, solve problems at any time.
5. We can accept OEM&ODM.
Q: How long times does it take to dry the grains?
A: The drying time is determined by the yield and moisture content,
and the national standard stipulates that the moisture is reduced by about 1% in one hour.For example, the water is 25% dried to 13%, and the drying time is about 12 hours.
Q: What about the payment terms?
A: T/T, L/C, PayPal and other payment terms.
