Product name

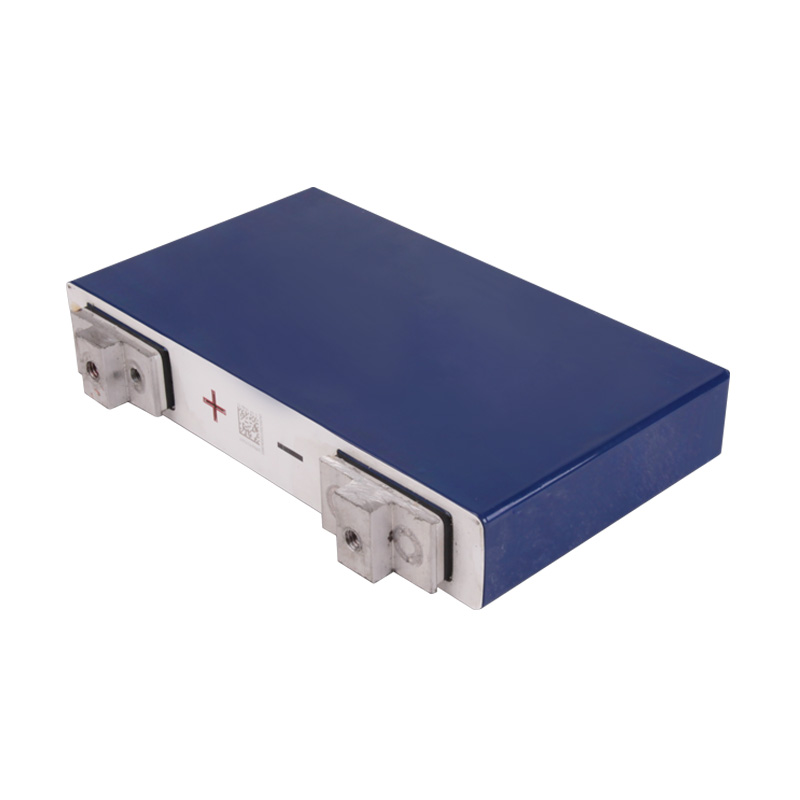

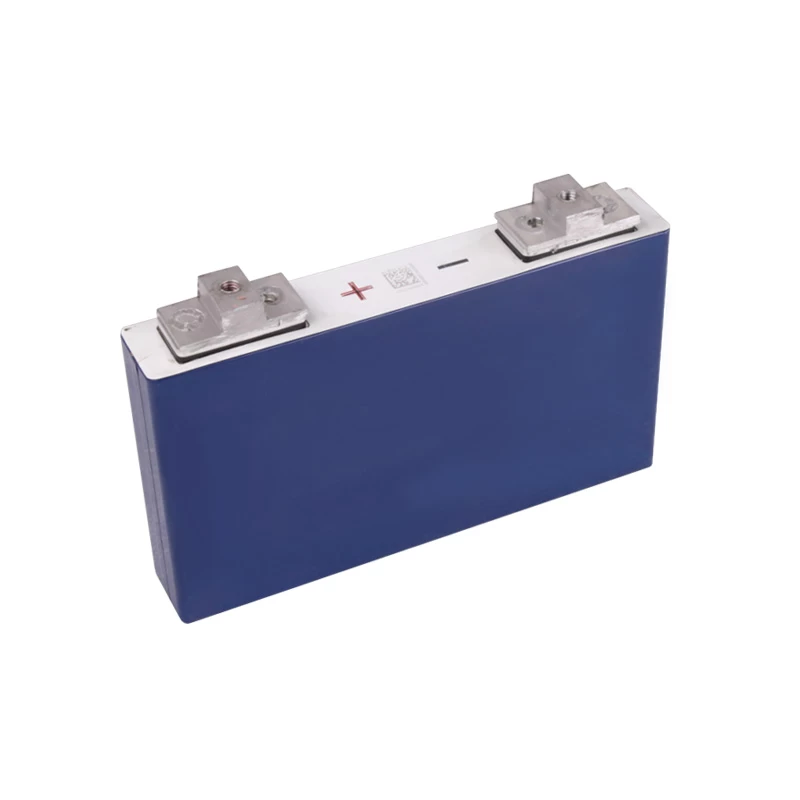

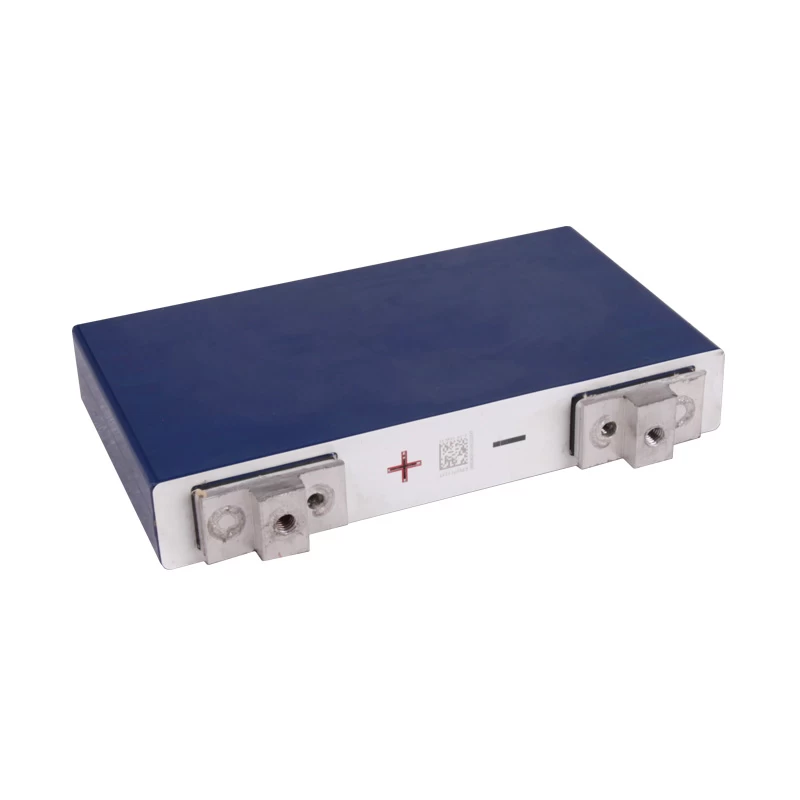

Fast Charge Prismatic LTO Tianate Battery 2.3V 30Ah
Specification
|
Item
|
Parameters
|
|
Model
|
OSN-1739727-LTO30Ah
|
|
Materials
|
LTO
|
|
Nominal capacity
|
30Ah
|
|
Nominal voltage
|
2.3 V
|
|
Dimension
|
173*97*27mm
|
|
Prismatic
|
|
Weight
|
1.01kg
|
|
Internal Resistance
|
≤1mΩ
|
|
Operating voltage
|
Charge cut-off voltage
|
2.8 V
|
|
Discharge cut-off voltage
|
1.5 V
|
|
Maximum charge current
|
4C
|
|
Maximum discharge current
|
10C
|
|
Cycle life
|
30000 times
|
|
Operating Thermal Ambient
|
Charging
|
-50℃~ 65℃
|
|
Discharging
|
-50℃~ 65℃
|
|
Storage Thermal Ambient
|
Short term
(within 1 month)
|
-20℃~ 45℃
|
|
Short term
(within 1 year)
|
-20℃~ 20℃
|
Highlight
Super long cycle life: over 30,000 times
Faster charge: 10mins fully charged
Higher discharge rate: Up to 10C
Wide working temperature range: -50°C ~ 65°C
High Safety(No fire, explosion,leakage)
Related Product
We supply all kinds of LTO cells ,including Yinlong Cylindrical LTO 2.3V30Ah
/35Ah/40Ah/55Ah,Yinlong Prismatic LTO 2.3V30Ah/33Ah.
Toshiba LTO 2.4V2.9Ah/10Ah/20Ah/23Ah etc .
Please contact us at service@osnpower.com or +86-18575517952 .
