Size of Sintered Segments(Unit:mm)
|
Diameter
|
Length
|
Thickness
|
Height
|
Core Thickness
|
Number of Tooth
|
900
|
24
|
6.0/7.0
|
8/10
|
5
|
64
|
1200
|
24
|
8.0/8.5
|
7/10/12
|
5.5/6.0
|
80
|
1600
|
24
|
9.5/10.0
|
10/12/13
|
7.2
|
108
|
1800
|
24
|
10.0/10.2
|
10/15
|
8
|
120
|
2000
|
24
|
10.5/11
|
10/12
|
8.0/9.0
|
128
|
Main uses
Diamond Segment for single blades, multi-blades, frame saws, core drills, special shape cutters.
China high quality Diamond Segments used for granite, marble, concrete, limestone, sandstone, basalt, ceramica, refractory material, etc.
SANSO Diamond Segment Feature
* Fast cutting without chipping.
* Guarantee sharp and smooth cutting.
* Apply for wet or dry cutting.
* Long life and excellent service.
* Customized Service: We provide personalized solutions for different customers.

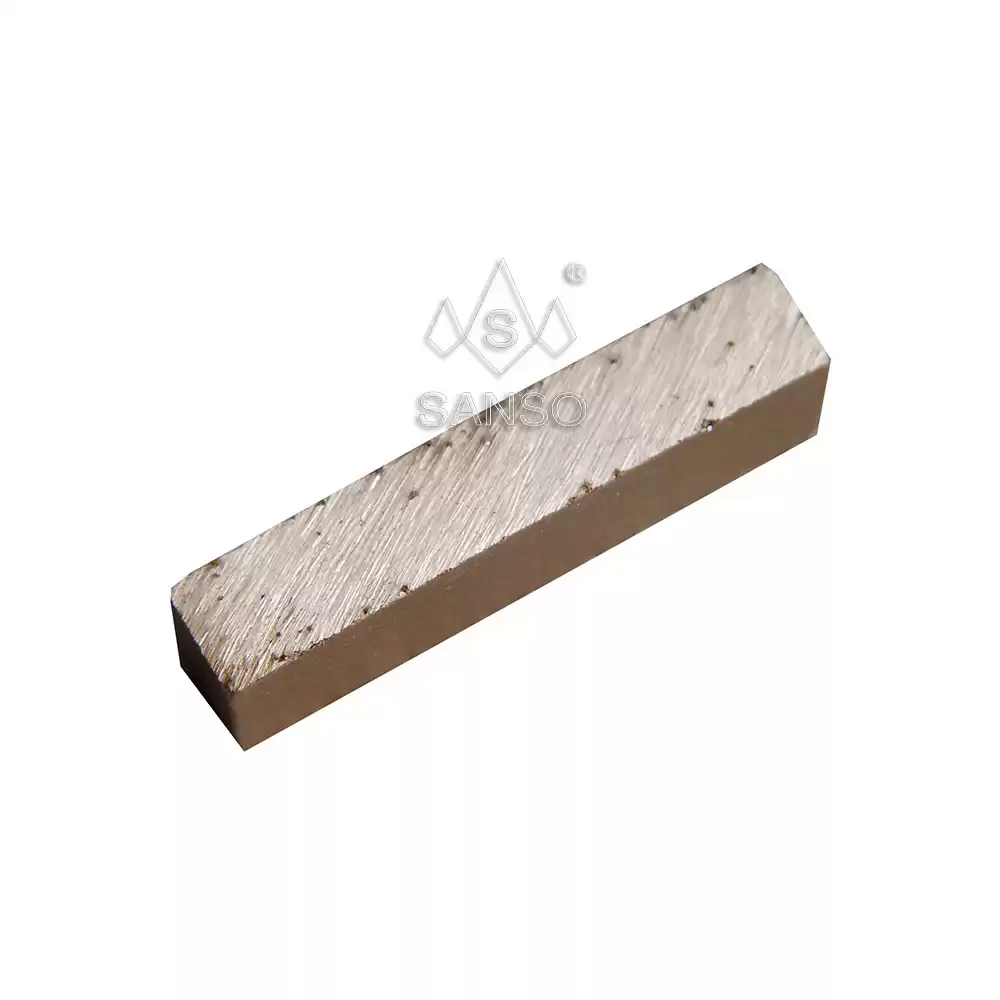

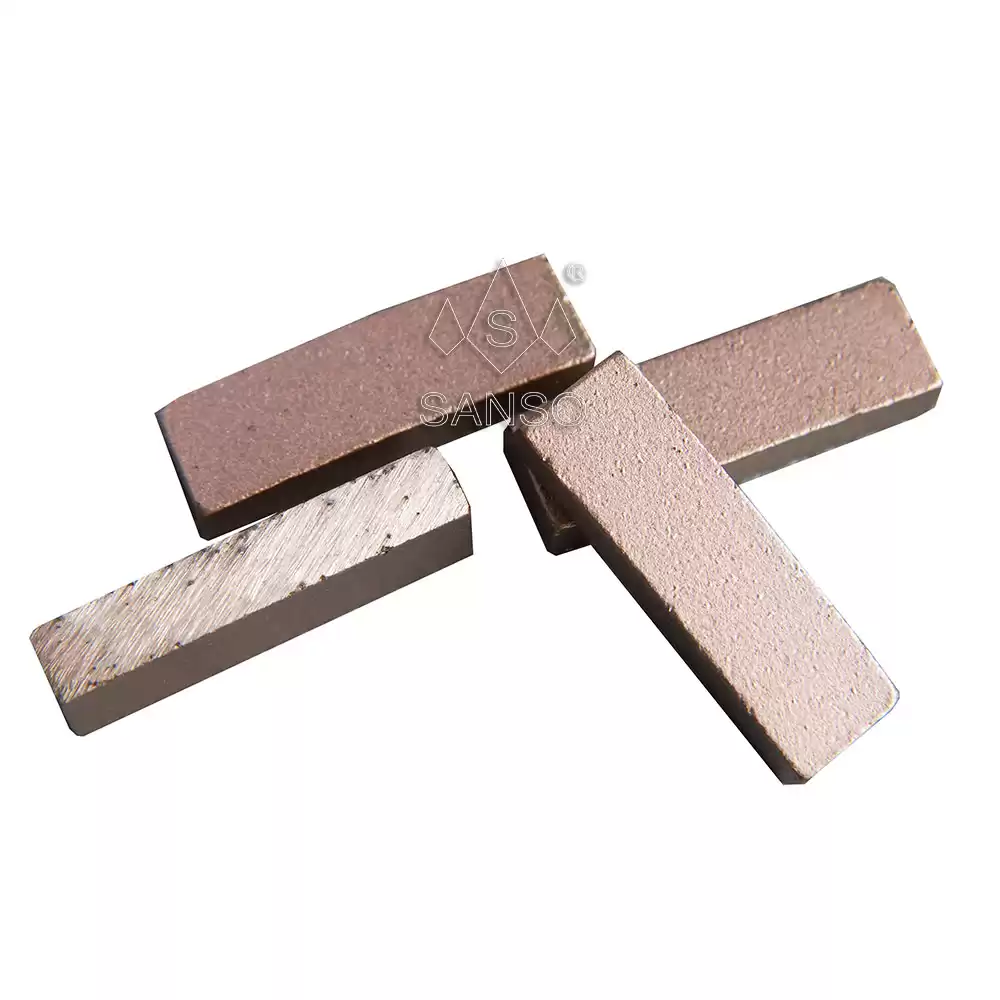

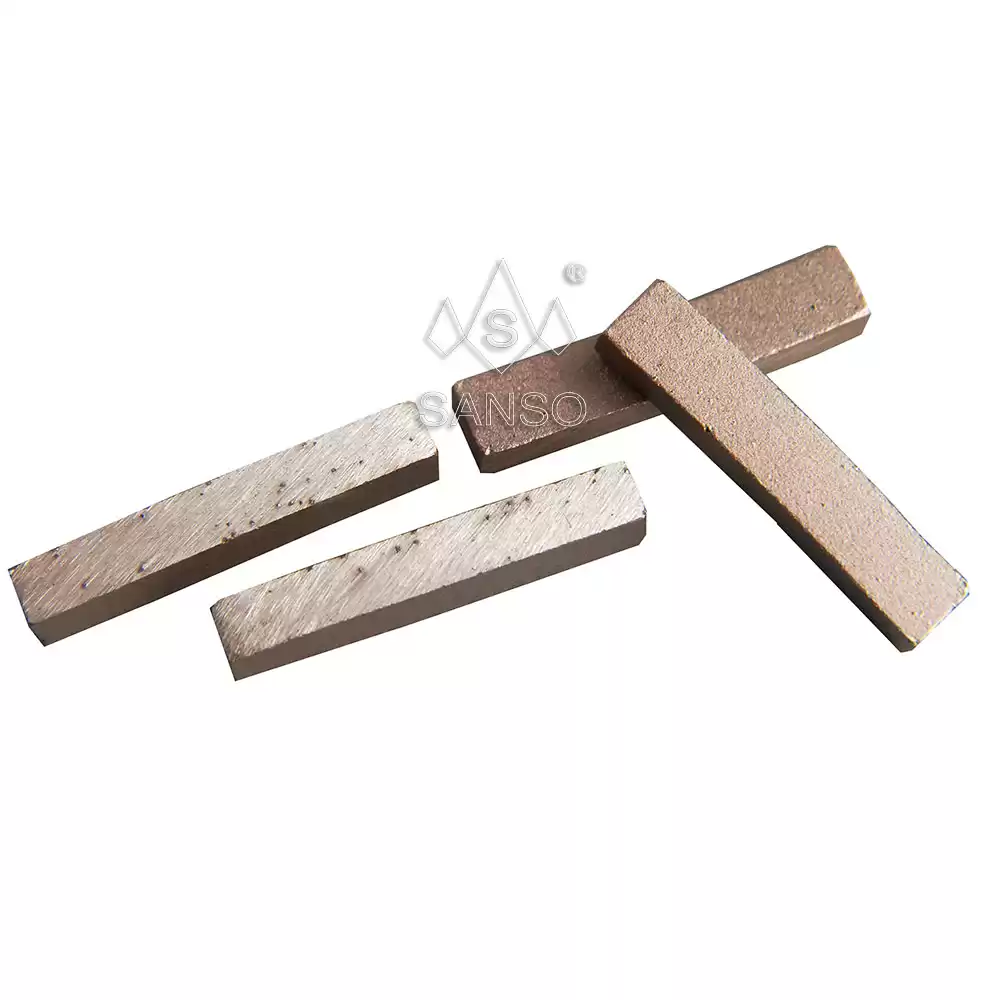

DETAIL PHOTOS
