Steel truss floor decking highlights
☆ Construction period: Steel truss deck can reudce 60-70% steel bars banding quantities,and reduce construction period for each floor;
☆ Quality: Producing by computer numerical control equipment,steel bar distance is evenly arranged and forced;
☆ Convenience: The base sheet and steel rebars of deck truss are previously integrated in factory,which make it easy construction at site;
☆ Safety: It not only saves labor costs, but also reduces the safety hazards of reinforcing steel bars on site;
☆ Cost reducing: Deck truss can reduce the cost of rented construction machines and construction management cost.At the same time,short construction period also can reduce the final cost.
Steel truss plates application
☆ High-rise/Super high-rise buildings:
Financial center, commercial building, bank building, office building, etc.
☆ Long span steel structure buildings:
Art Center, Super Large Gymnasium, International Convention and Exhibition Center, Airport Terminal, etc.
☆ Buildings with irregular special shape structure:
Architectural design with round,elliptical and other special-shaped steel structures.

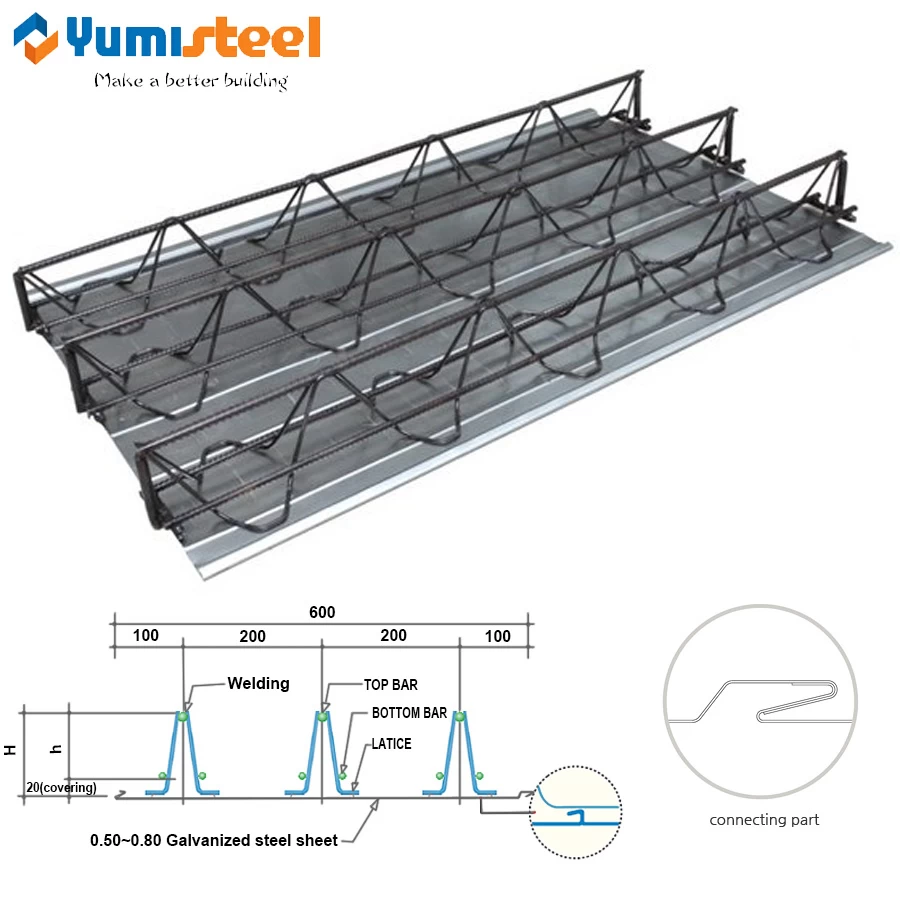

Composite floor decking specifications
|
Product component
|
Top bars,Bottom bars,Lattice,Bracket vertical bars,Base sheet
|
|
Product parameters
|
Top bars & Bottom bars:Hot-rolled coiled steel bar H R B 4 0 0E ,H P B 3 0 0 ；
|
|
Lattice:Hot-rolled coiled steel bar H R B 4 0 0 or Cold rolled round bar with equivalent performance C R B 5 5 0
|
|
Bracket vertical bars:Hot-rolled coiled steel bar H R B 4 0 0 ,H P B 3 0 0 ；
|
|
Bottom sheets: Q 2 3 5 cold rolled steel sheet;
S 2 5 0 G D + Z brand galvanized steel sheet.
Zinc coating range: 1 2 0 ~ 275g / m² on both sides.
|
|
Product specs
|
Truss deck
|
Specs
|
|
Bottom sheet width(mm)
|
600mm
|
|
Length(m)
|
1.0-11.9
|
|
Floor thickness(mm)
|
100-300
|
|
Steel truss height(mm)
|
70-270
|
|
Concrete cover thickness(mm)
|
15（Top&Bottom of truss is 15mm)
|
|
Base sheet thickness
|
0.50mm~0.80mm
|
Concrete slab production & installation video
For more technical data,you can download our catalog.Thank you.
Packing & Delivery:
☆ Packing:
Seaworthy packing standards.
☆ Delivery:
Delivery time for small order with stock material: 7-10 days ;
Delivery time for special requirement,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customers or accept appointed forwarder from customers.
